Coolant Temperature Sensor/Switch (For Computer): Locations

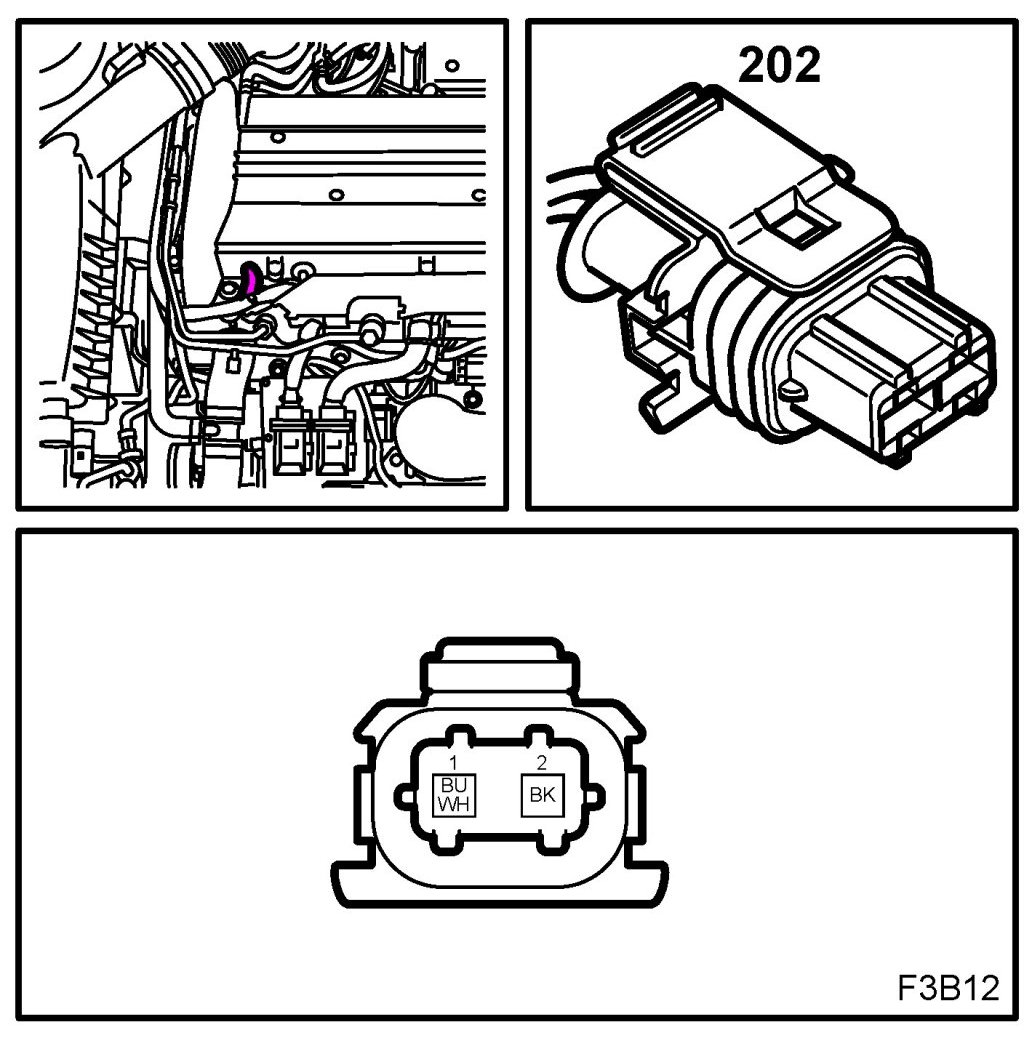

Coolant Temperature Sensor (202)Location:B207on the engine's top right front corner

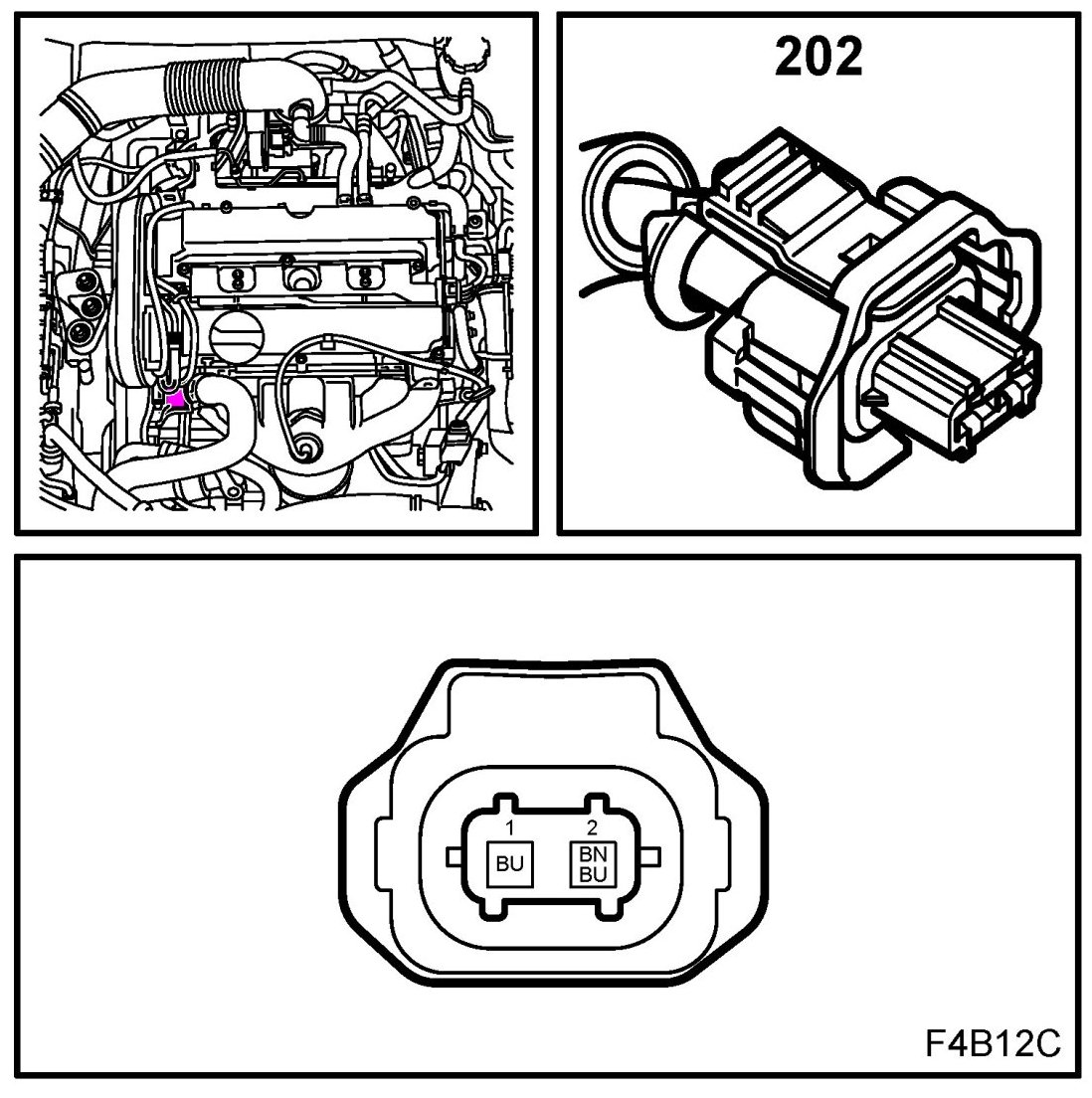

Z18XEon the engine's top right front corner

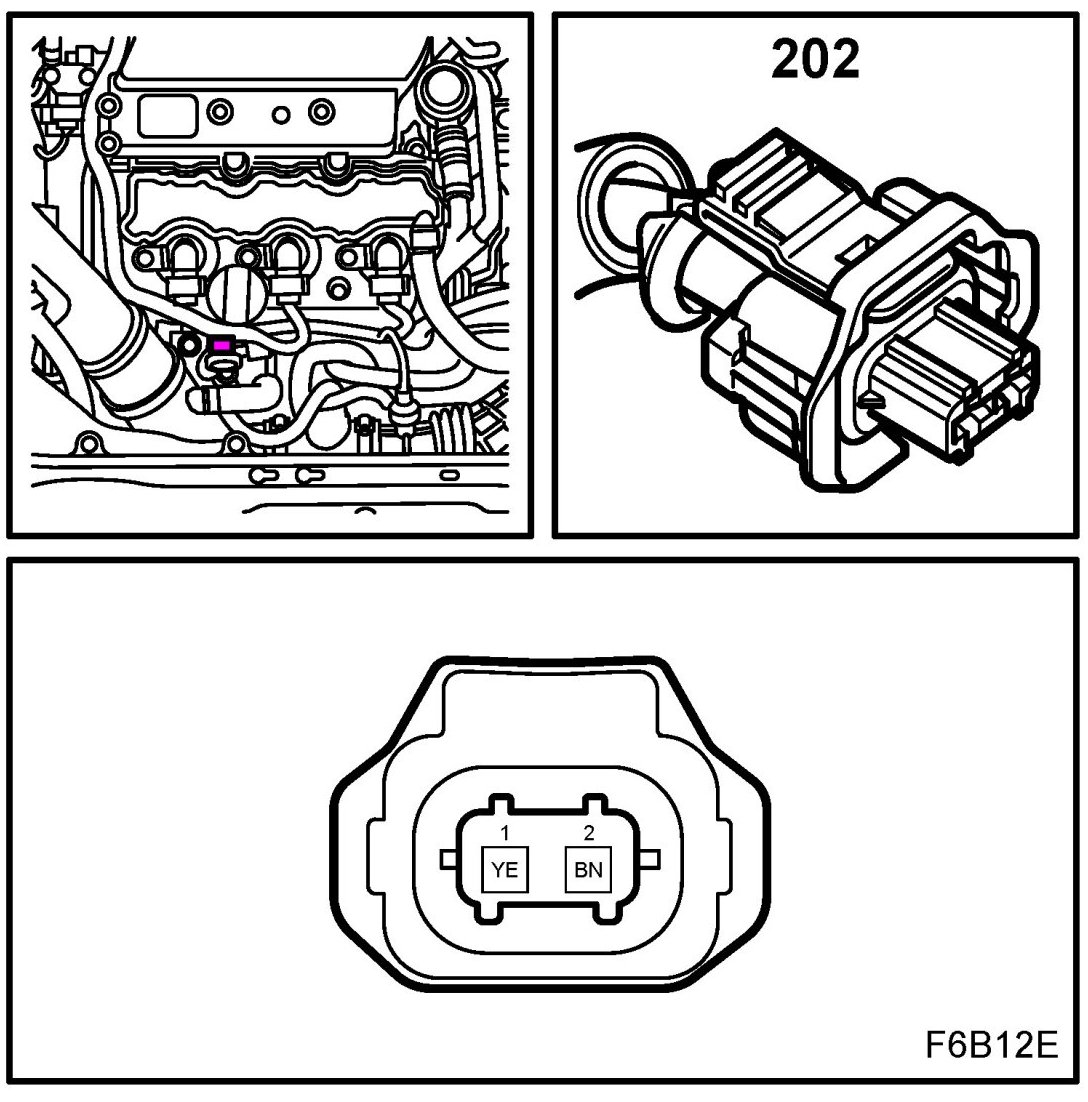

B284below oil pressure switch

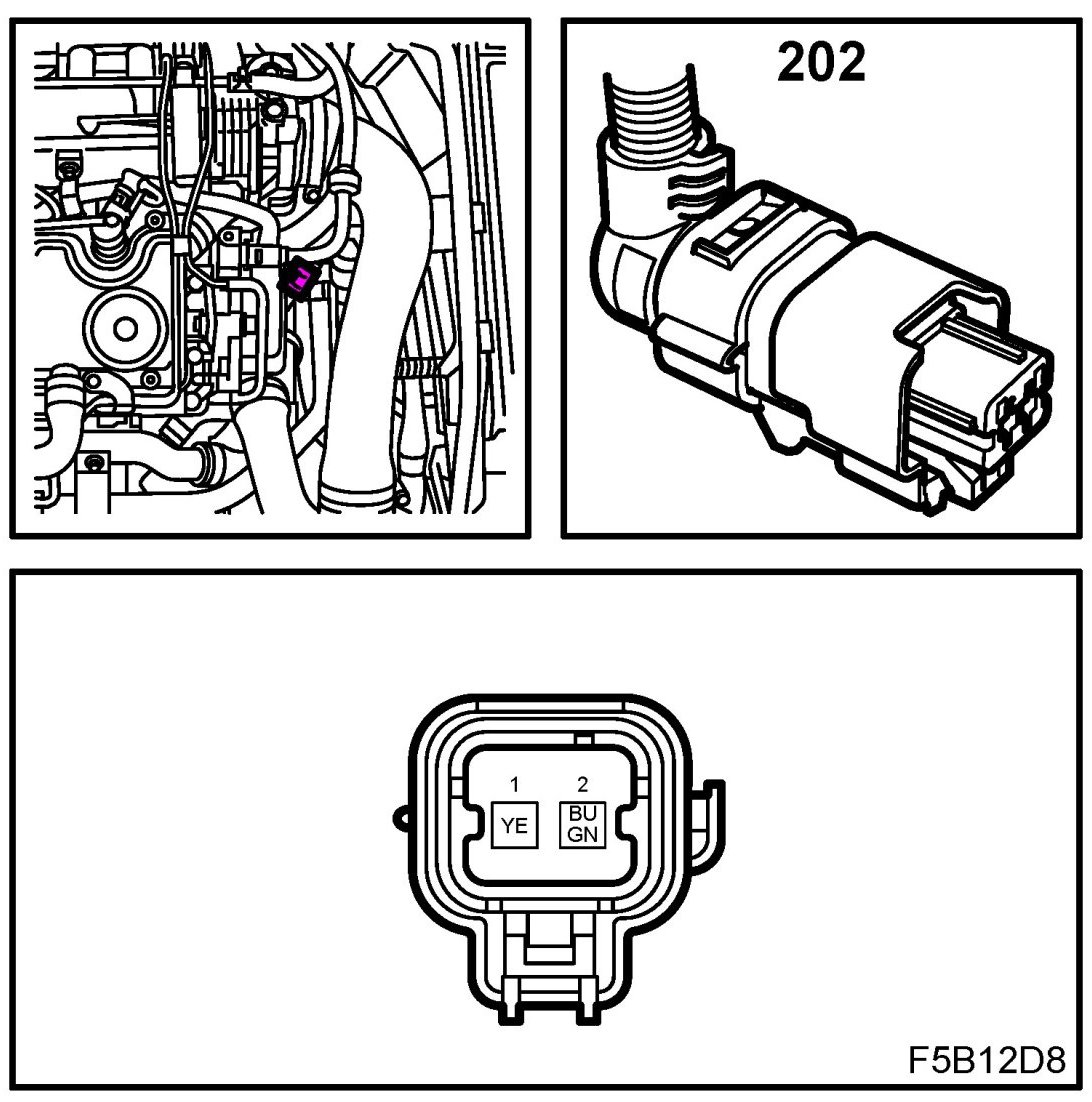

Z19DTon the engine's top left front corner

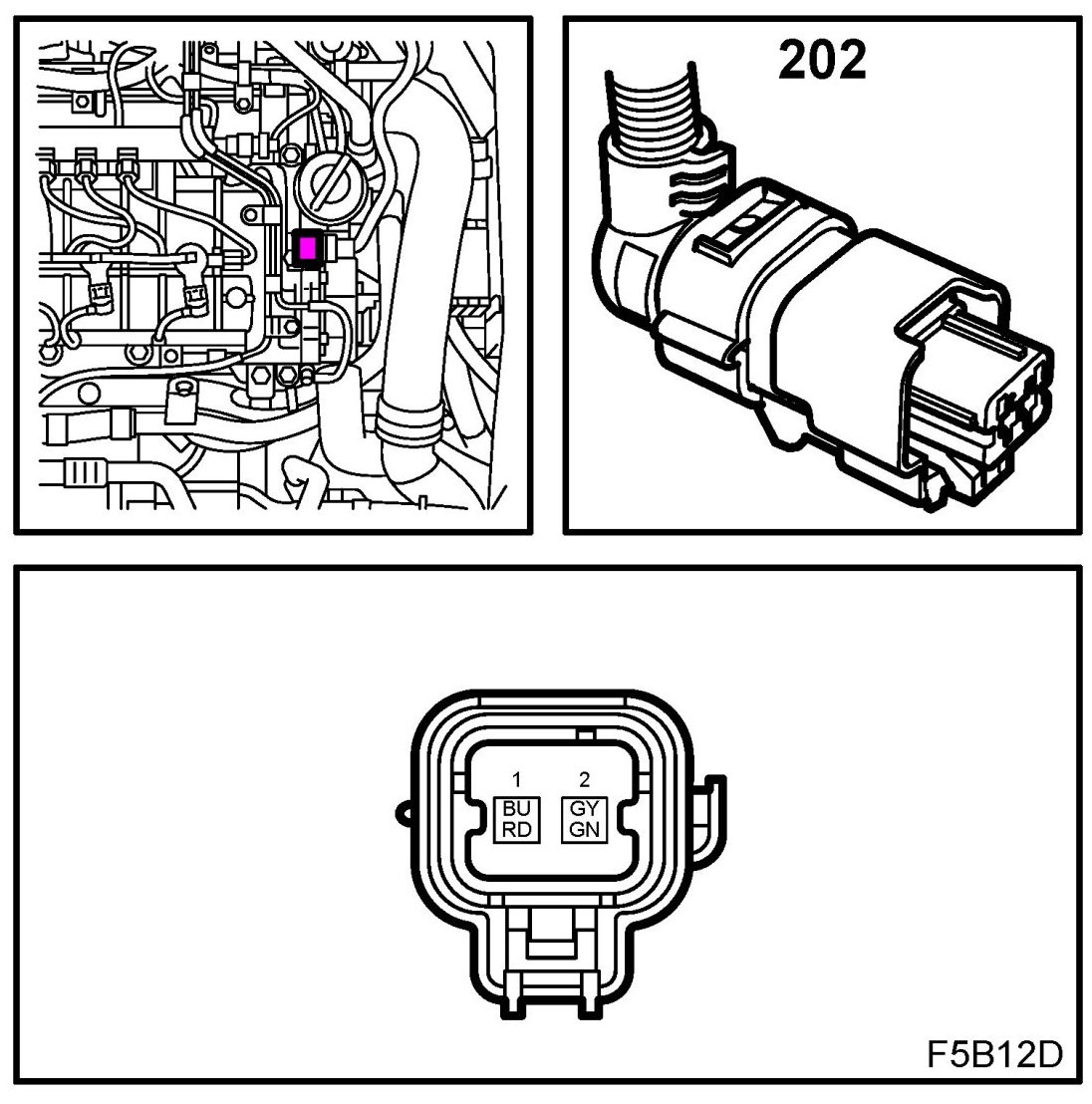

Z19DTH/DTRon the engine's top left front corner
