Fuel Level Sensor: Description and Operation

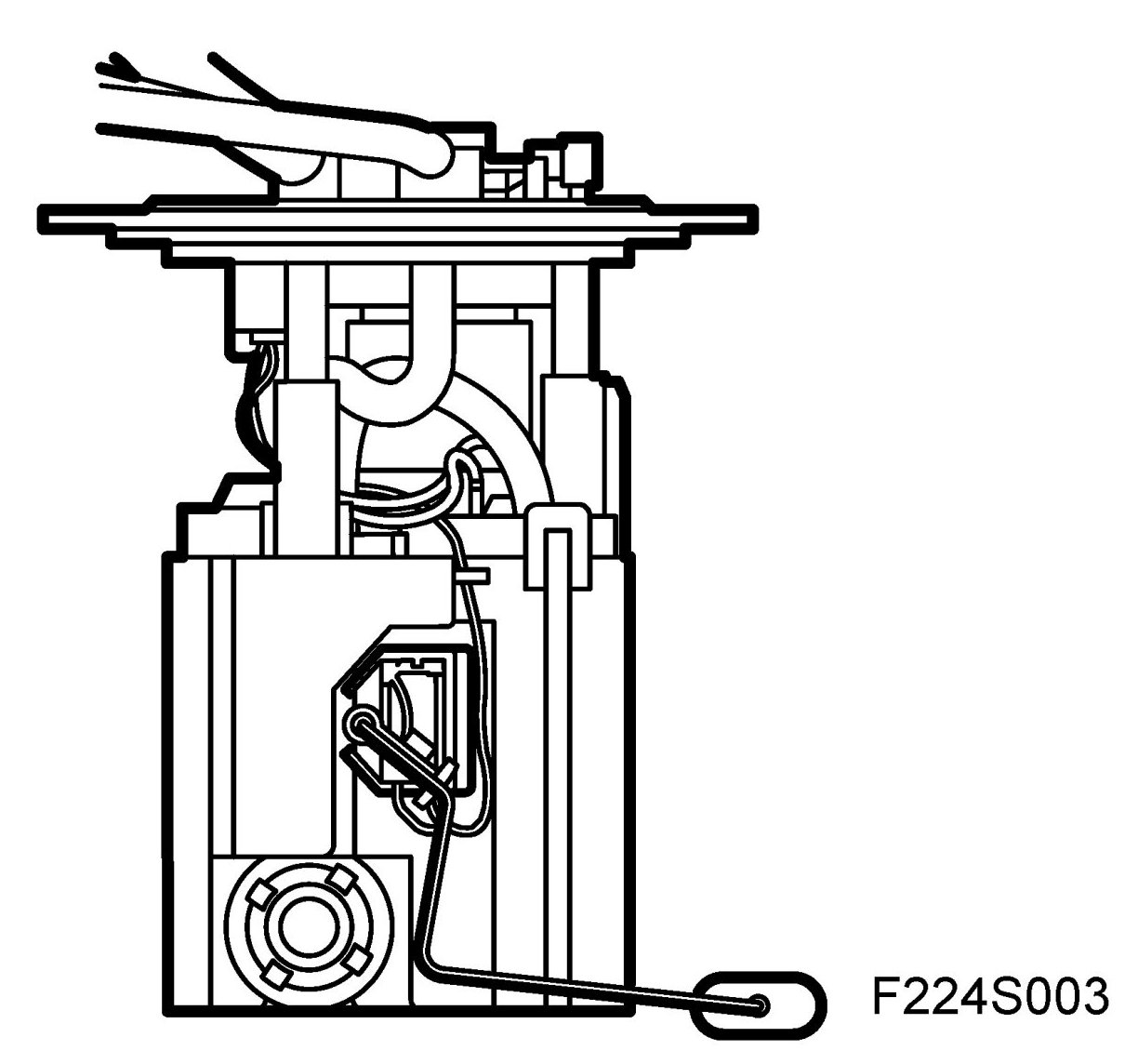

Fuel Level Sensor (46), T8LocationFuel level sensor (46)
Main taskInforms ECM on how much fuel is in the tank. ECM then sends this information on the bus.

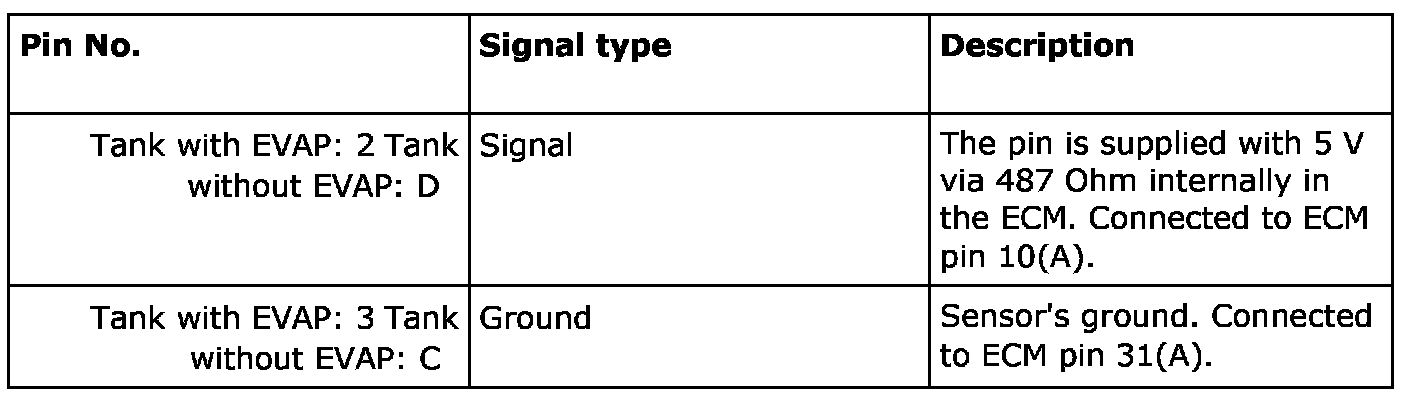

TypeLevel sensor with variable resistance, whose value corresponds to the level at which the sensor float lies in the tank. Feed via pull-up in ECM.

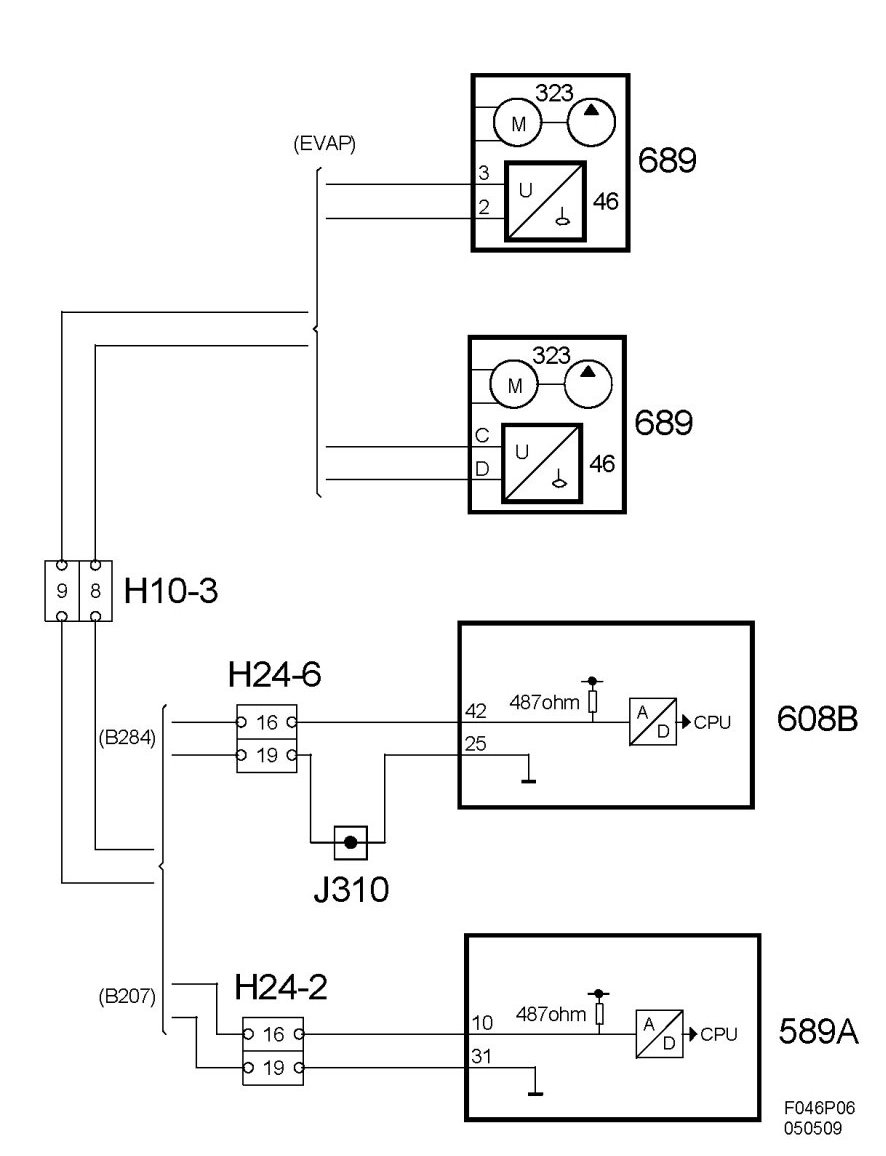

ConnectionDiagram

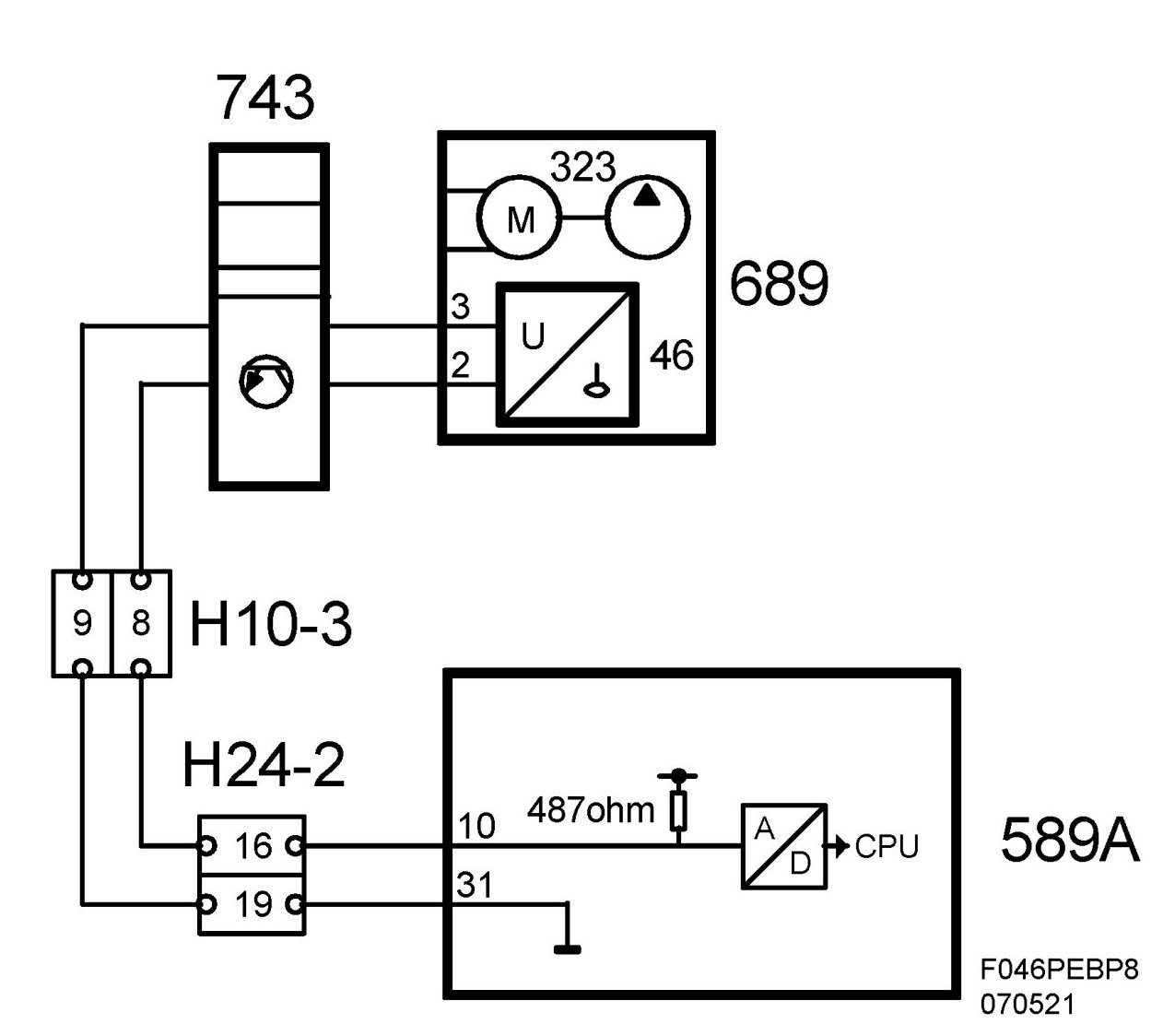

Diagram BioPower
