Fuel Level Sensor: Locations



Level Sensor, Fuel (46)

Location
Integrated in unit, fuel pump (689).

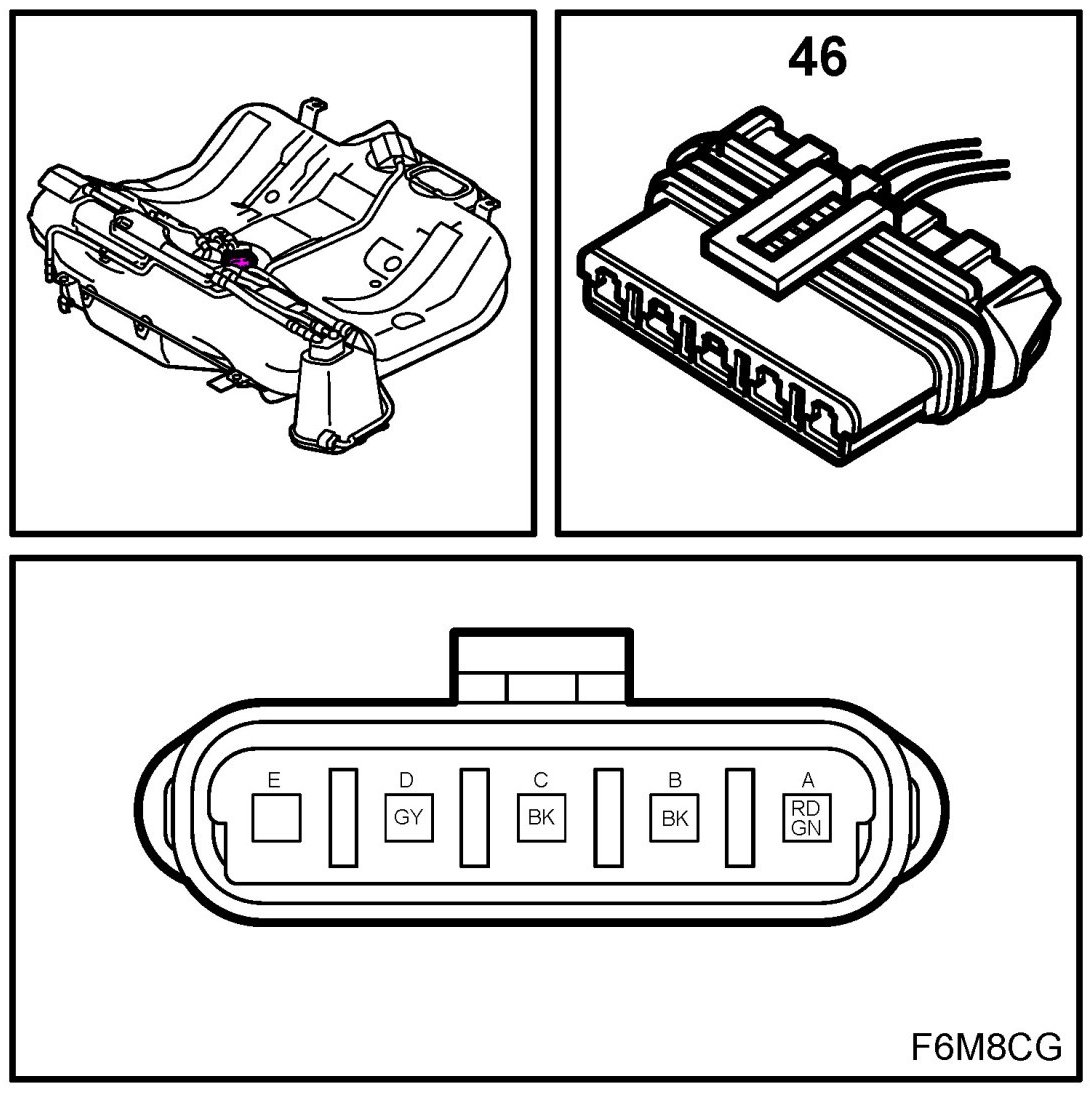

Petrol, market US/CA and 4WD.

4WD: The fuel pump unit is located on the right side of the fuel tank

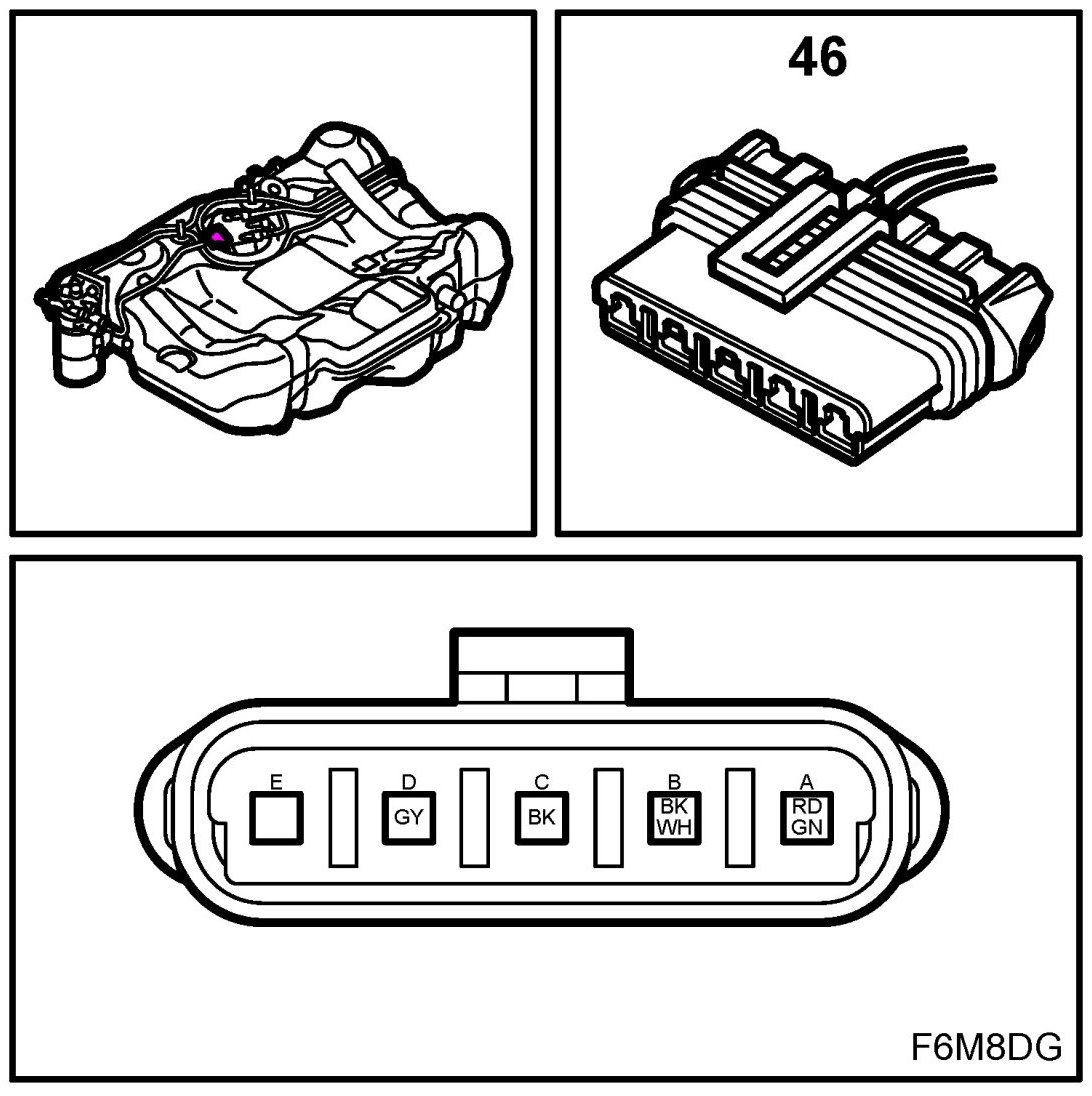

Petrol, other markets

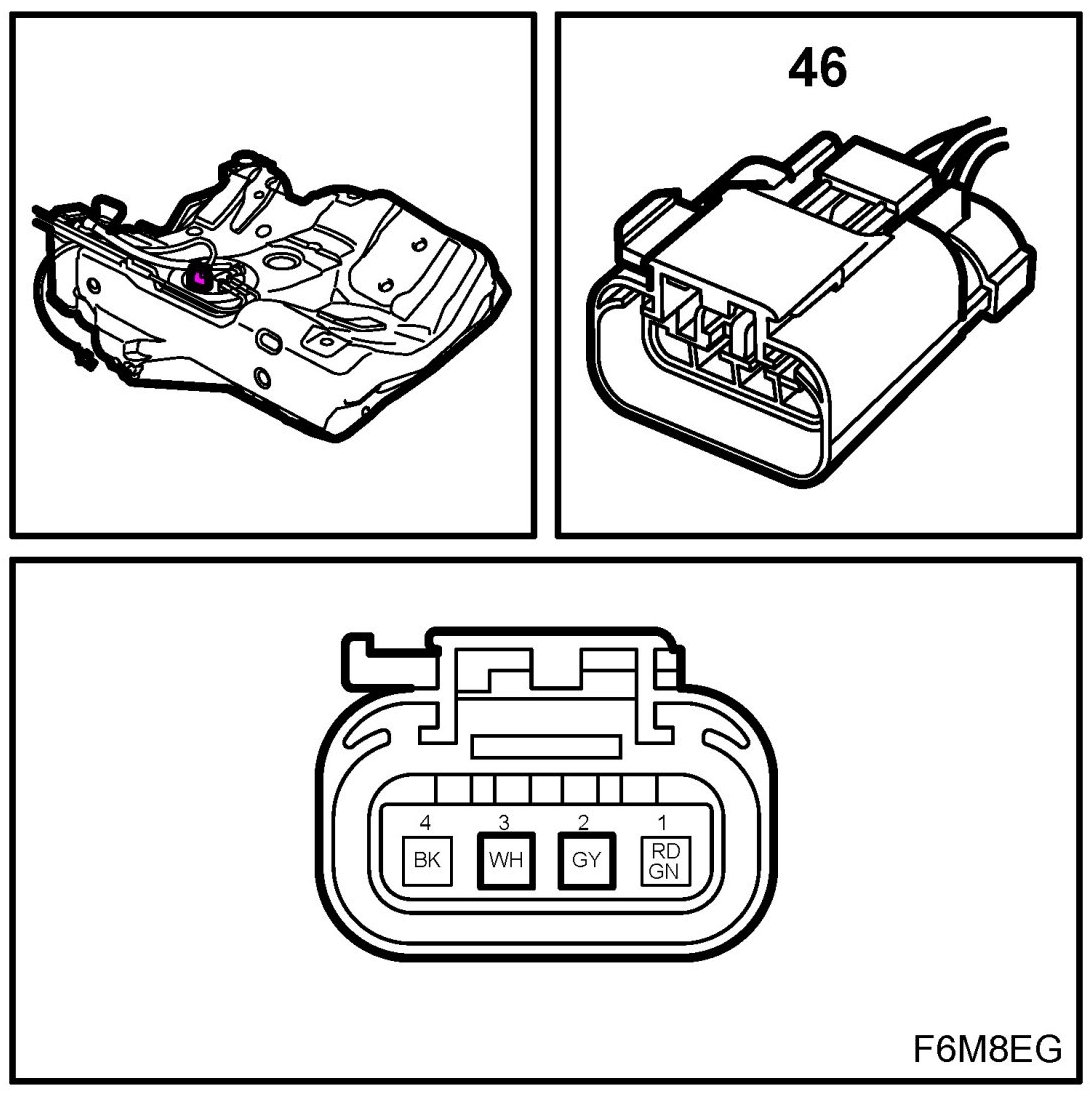

Diesel
