Sensor, Intake Manifold (688), B207

Sensor, Intake Manifold (688), B207

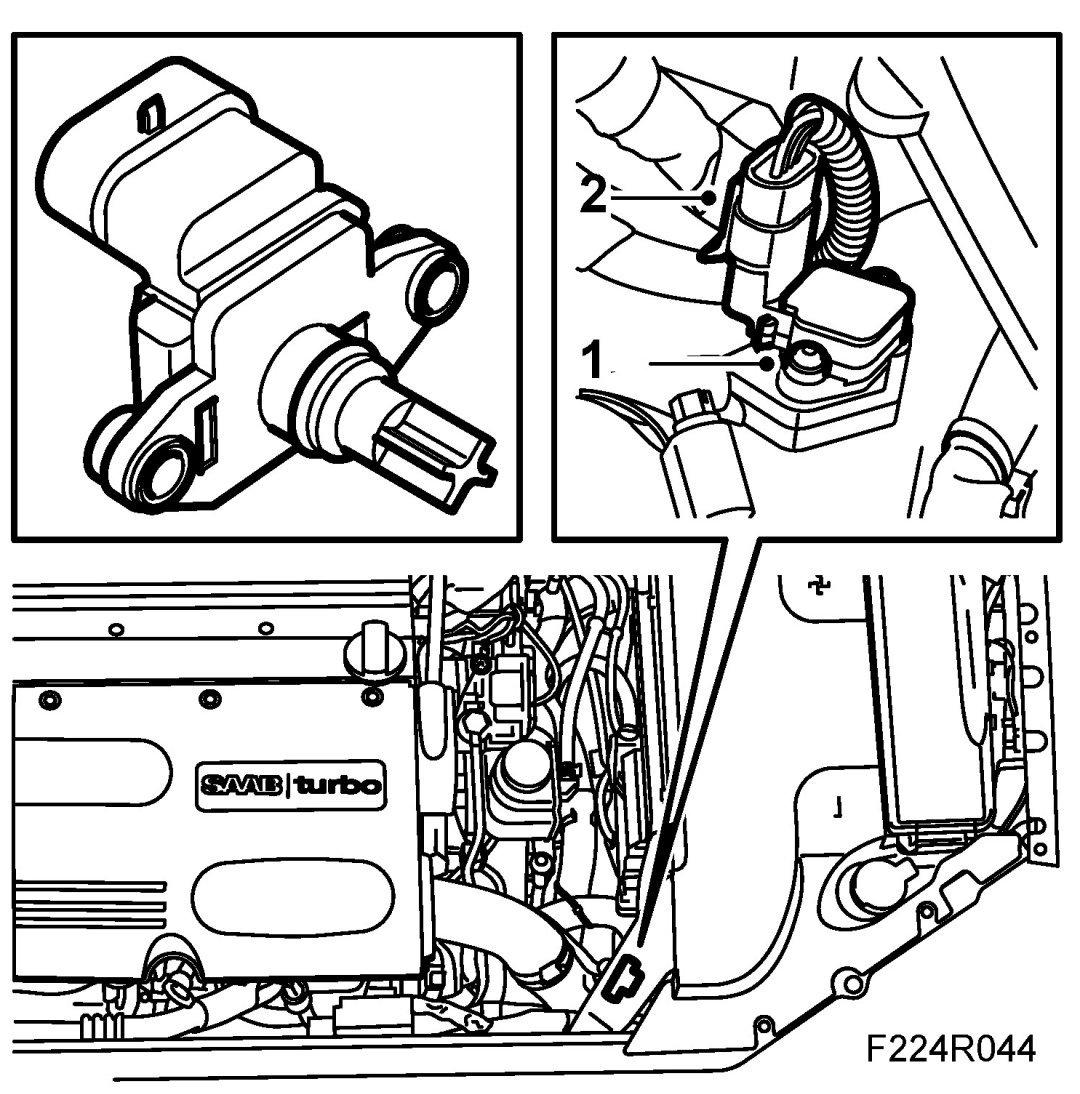

To remove
1. Unplug the sensor connector.

2. Remove the sensor.

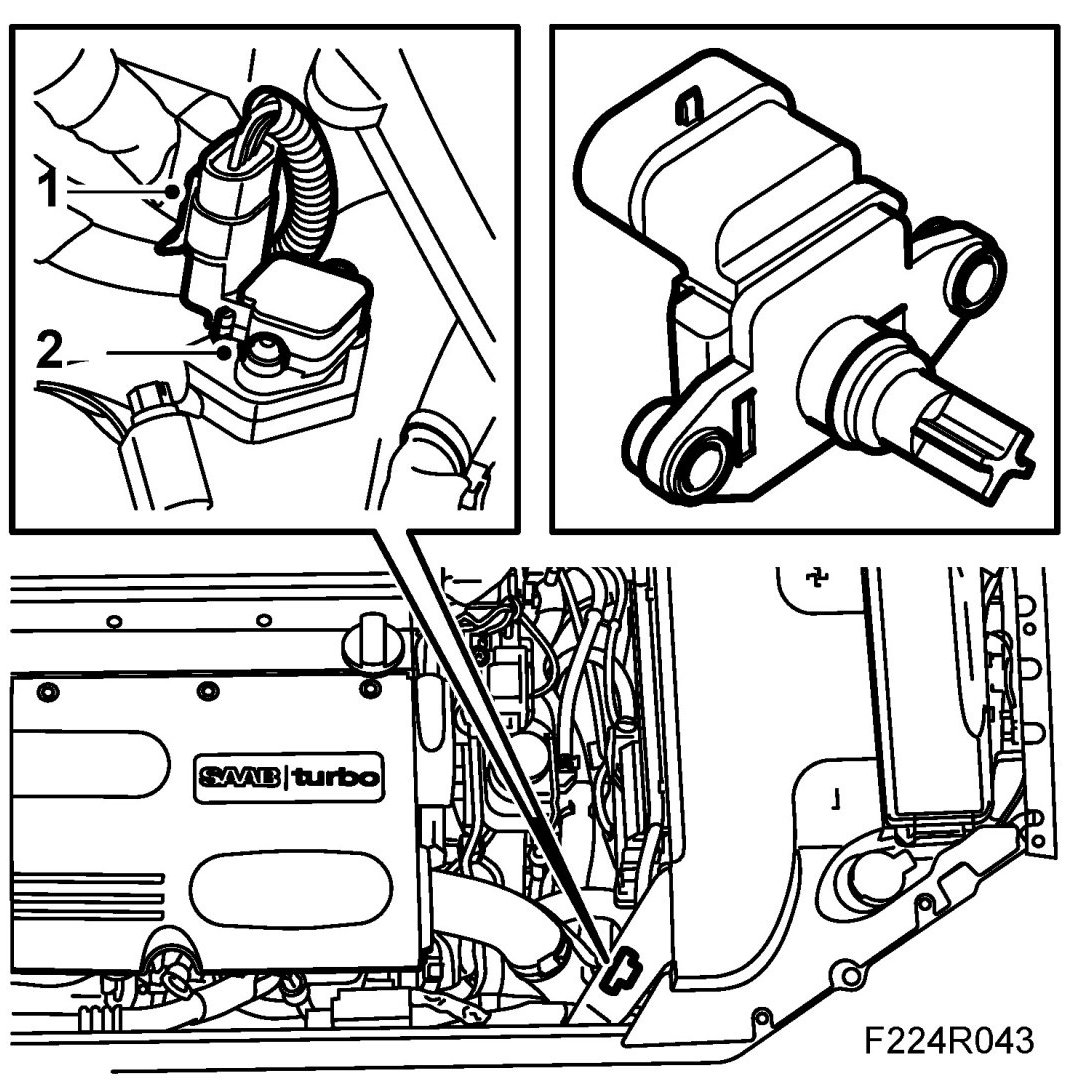

To fit
1. Fit the sensor with a new O-ring sparingly lubricated with Vaseline.

2. Attach the connector.
