Oil Pressure Sensor: Locations



Engine Oil Pressure Switch (44)

Location:

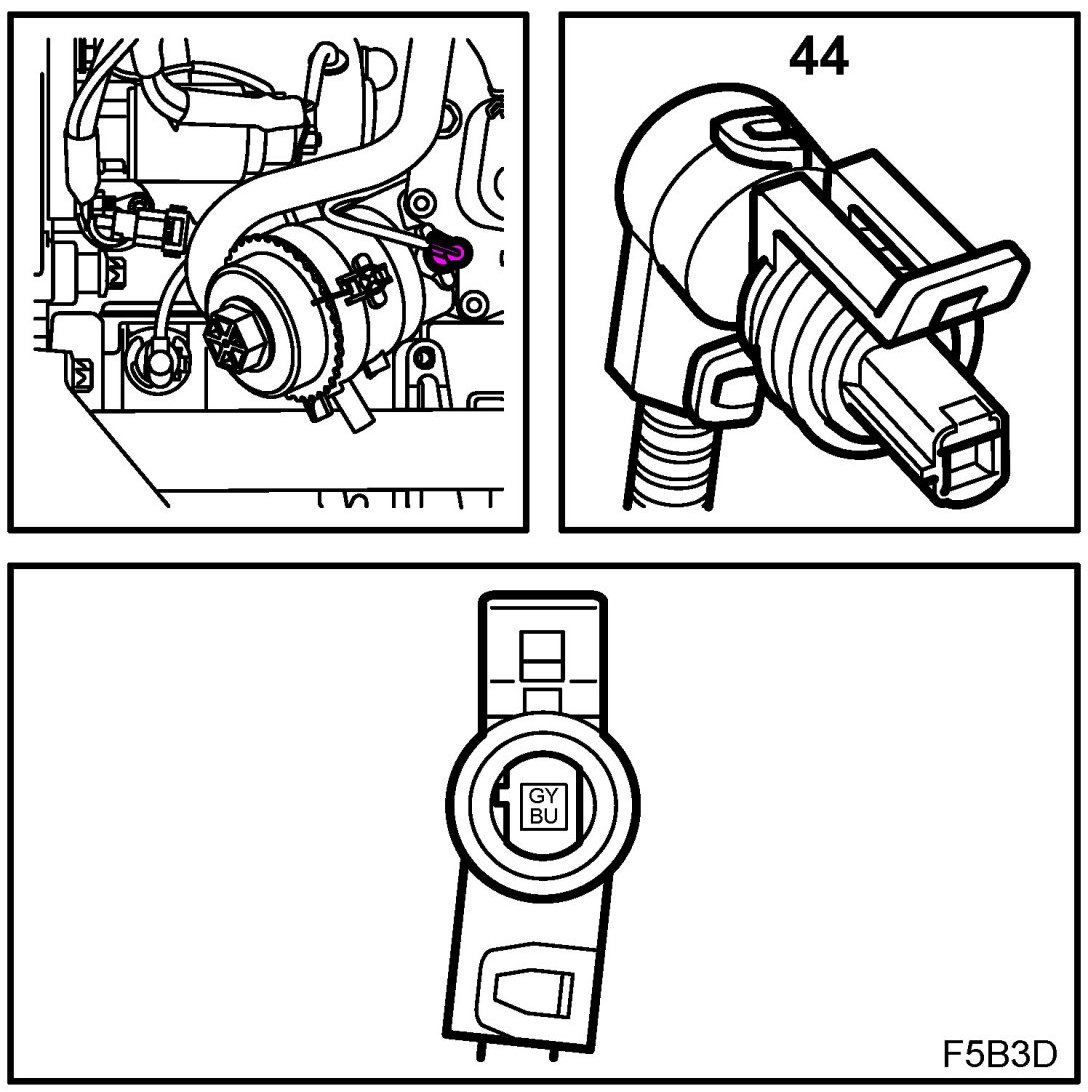

T8
by the front edge of the oil filter

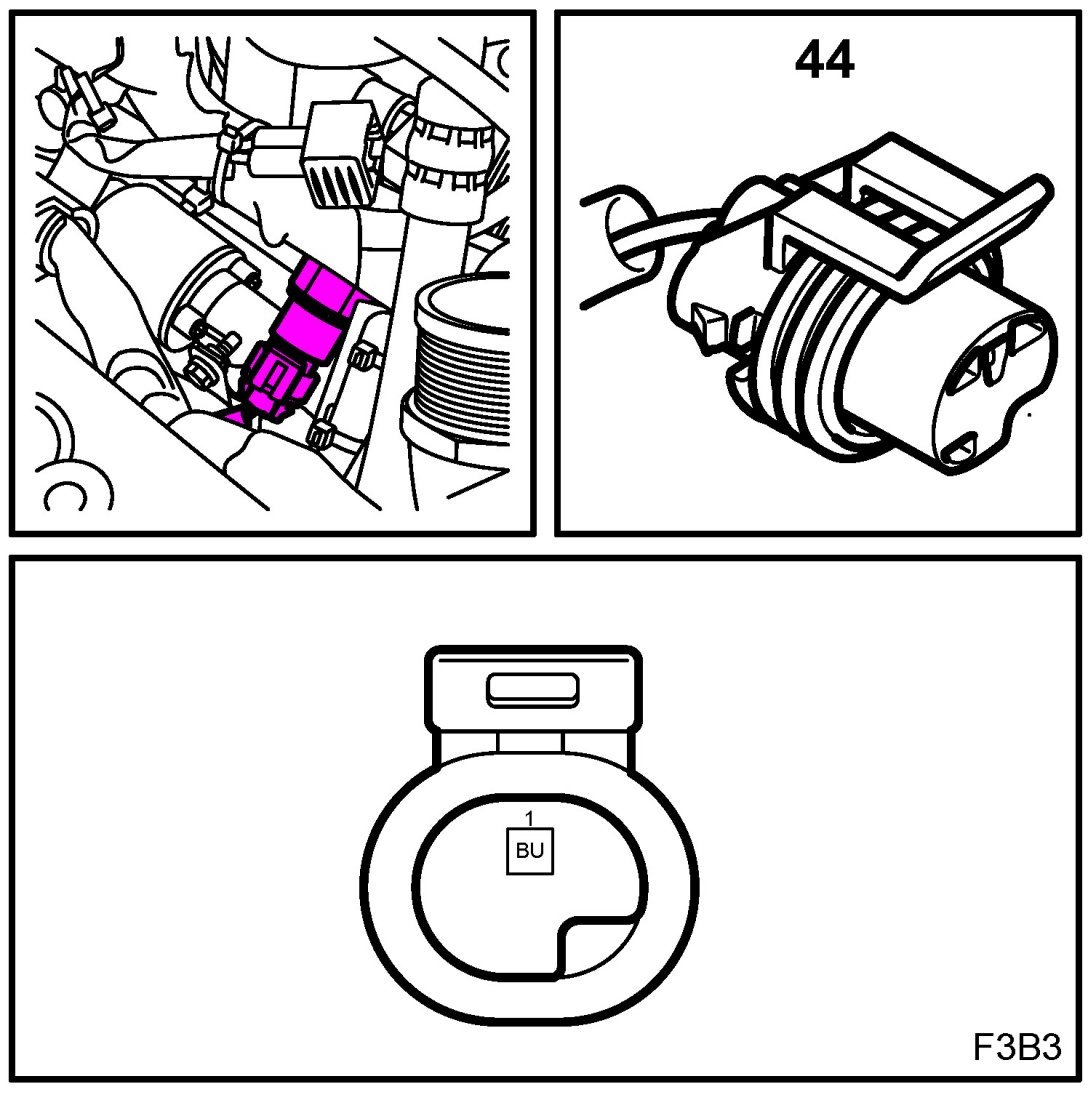

Simtec
under the generator

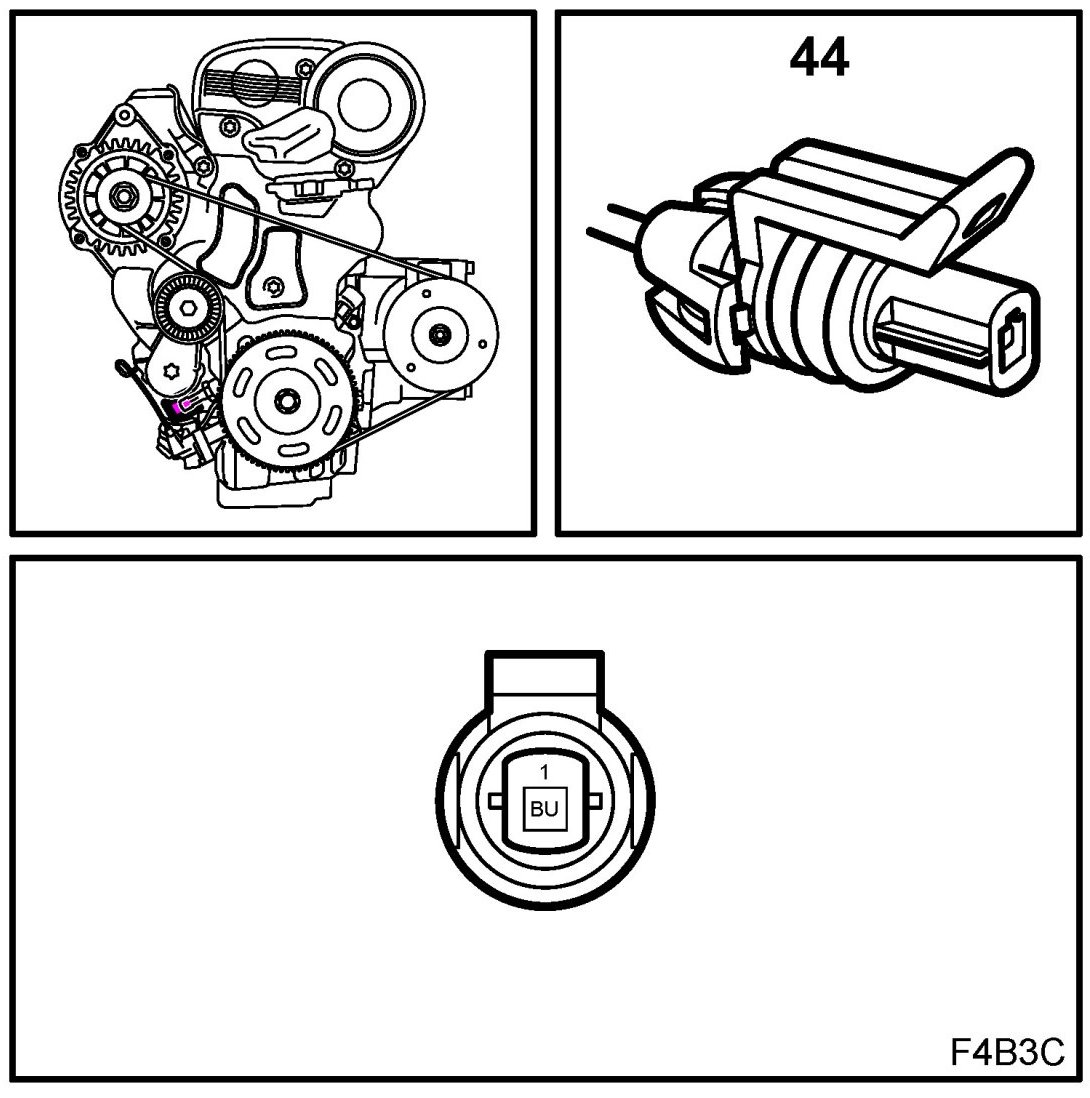

EDC16 8V
by the front edge of the oil filter

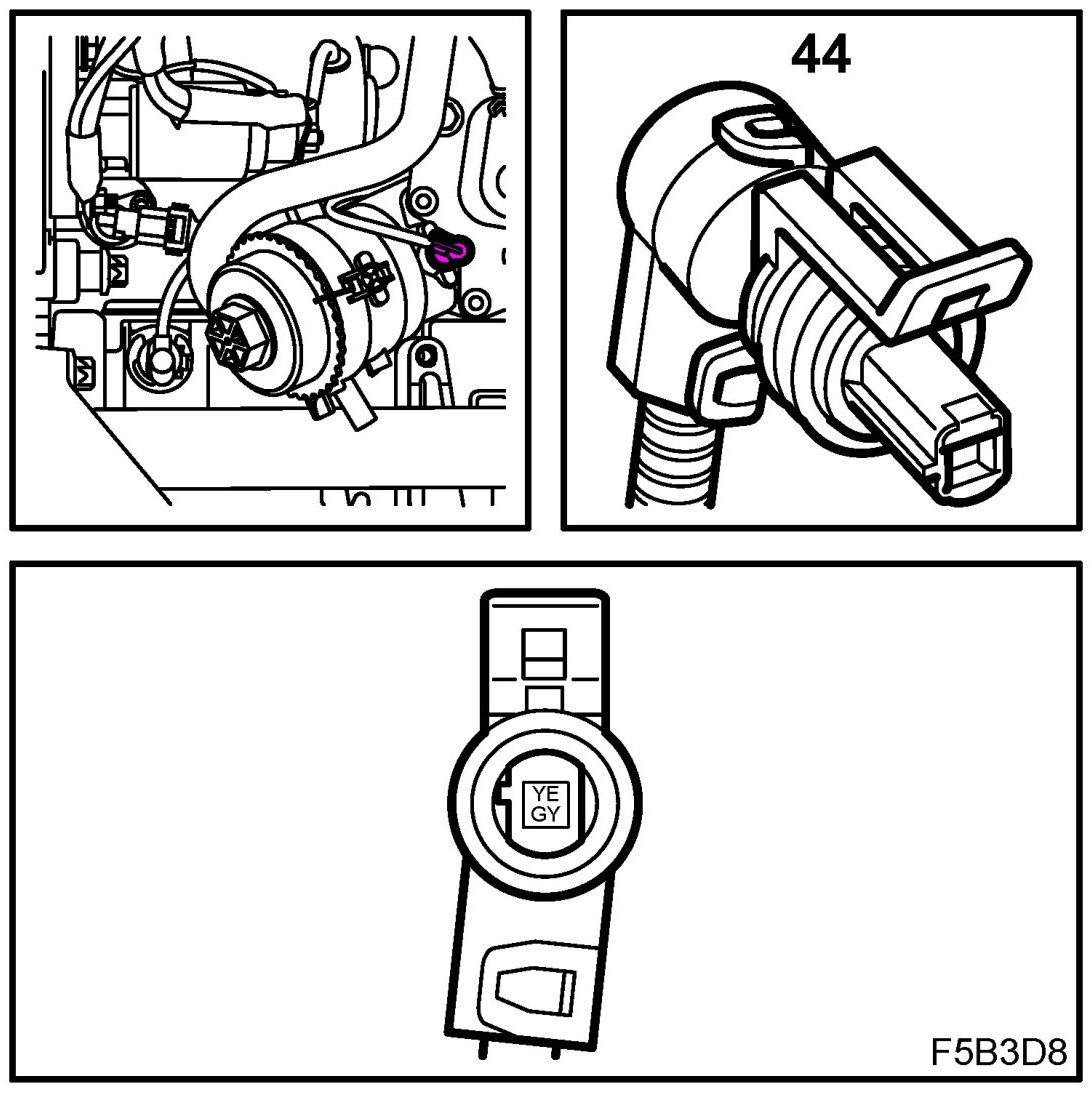

EDC16 16V
by the front edge of the oil filter
