Air Injection Pressure Sensor/Switch: Service and Repair

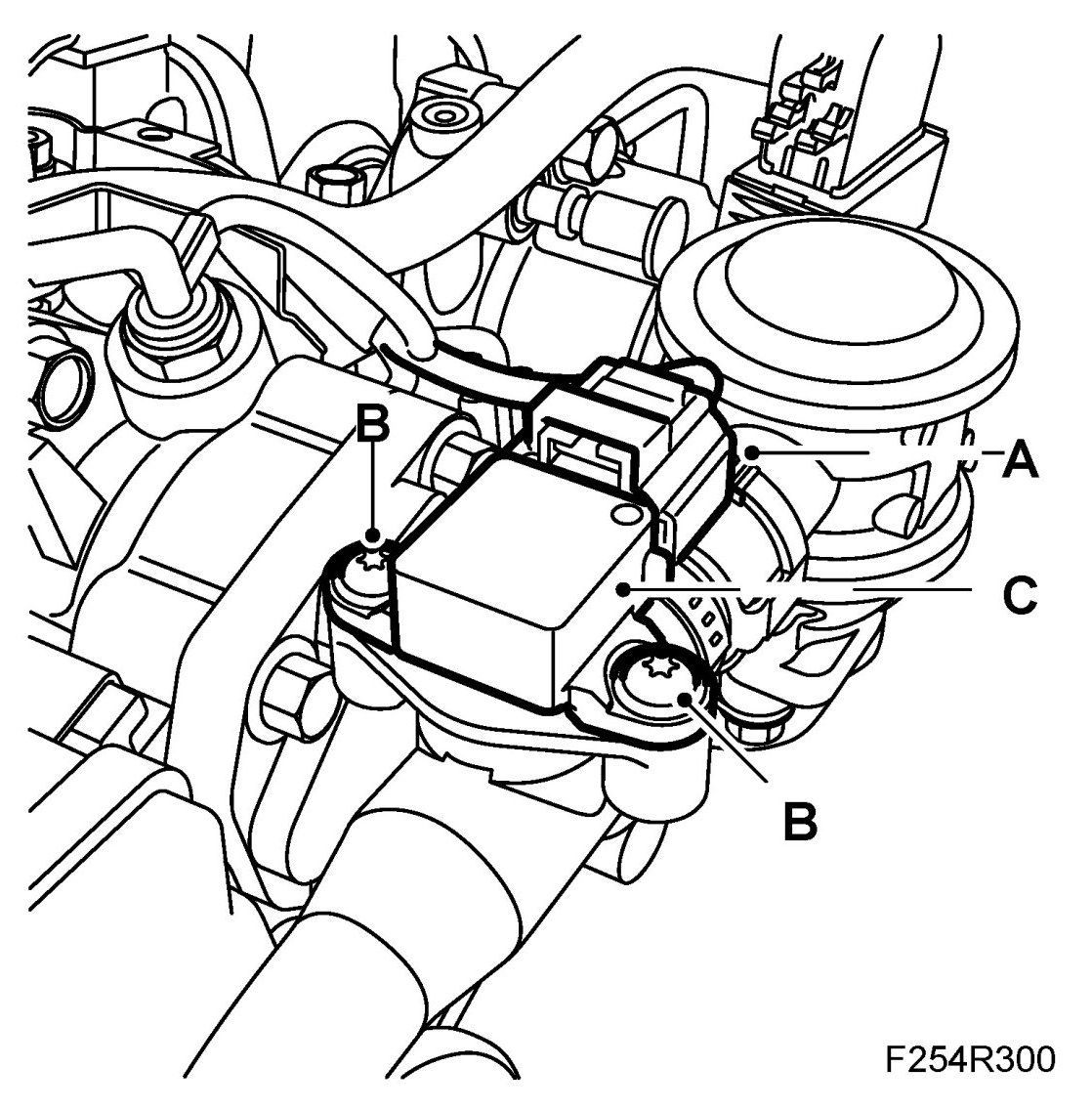

Sensor, Secondary AirTo remove 1.
Detach the sensor's electrical connection (A).
2.
Remove the sensor's screws (B).
3.
Remove the sensor (C).

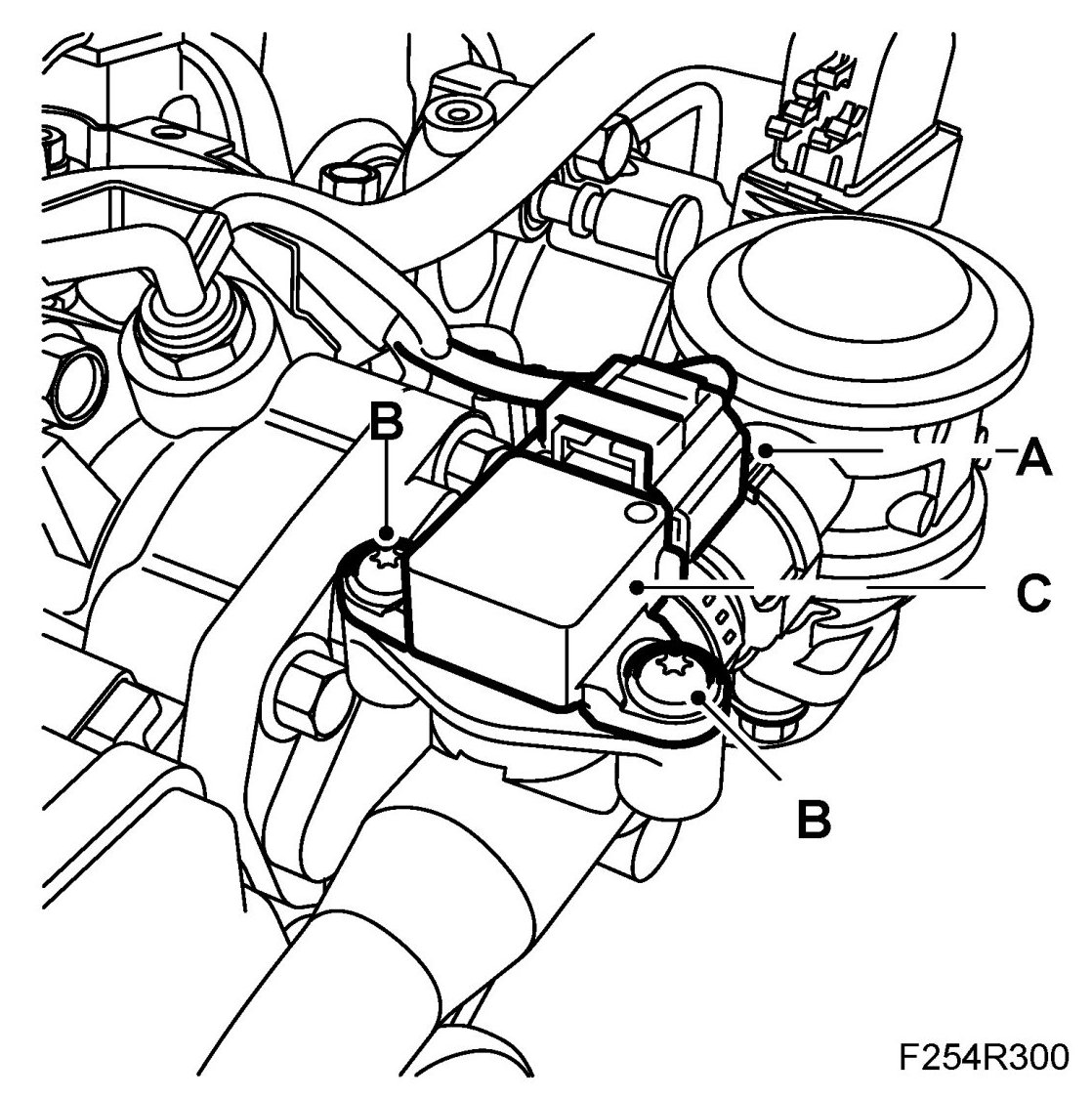

To fit 1.
Fit the sensor (C).
2.
Fit the sensor's screws (B).
3.
Attach the sensor's electrical connection (A).
