System Overview

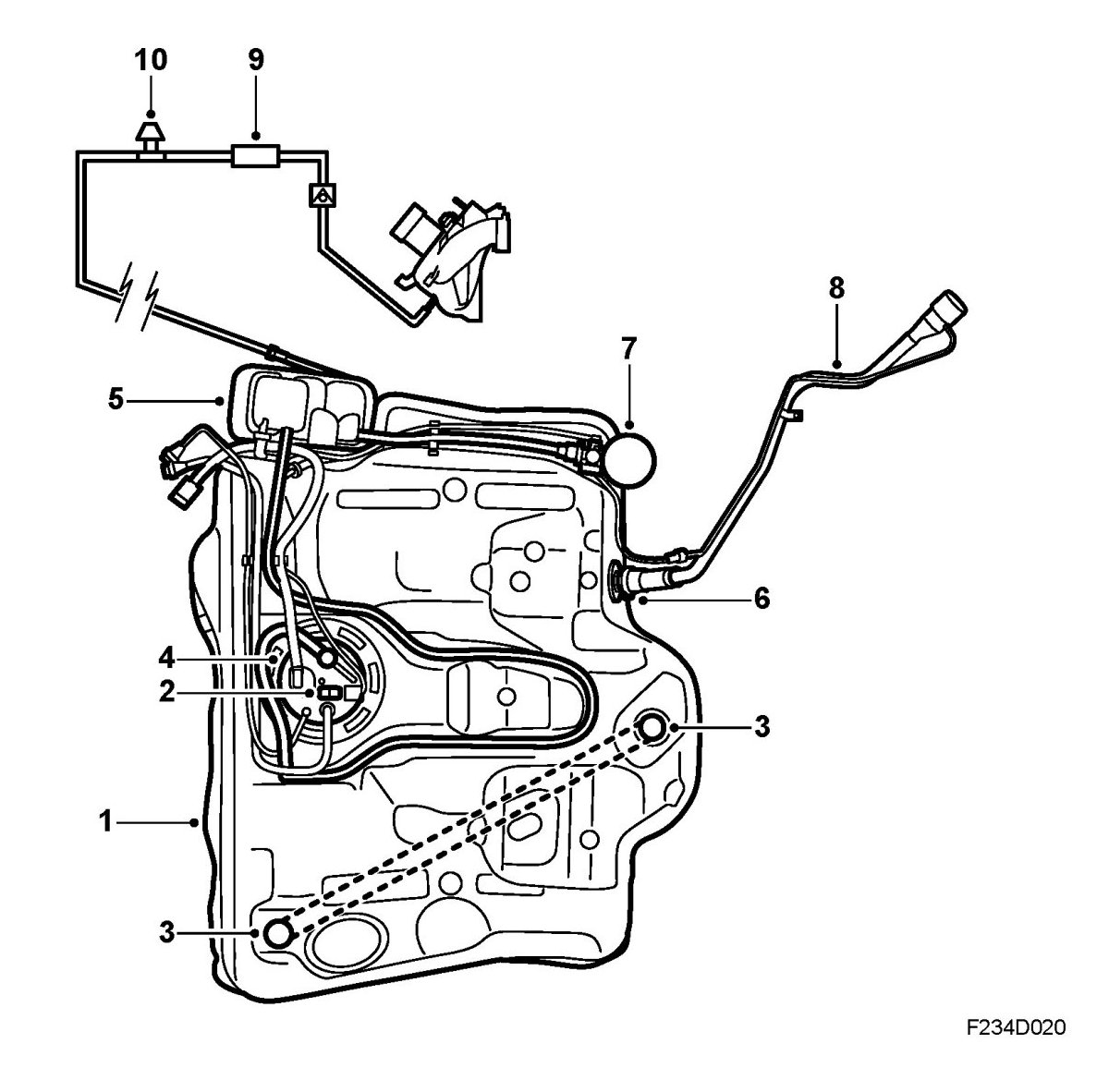

System Overview 1.
Fuel tank 2.
Manifold absolute pressure sensor (585)
3.
Shut-off valve, roll-over
4.
Float valve
5.
Evaporative emission canister
6.
Check valve,
fuel tank 7.
Solenoid valve, shut-off
EVAP (588)
8.
Fuel filler pipe
9.
Evap canister purge valve (321)
10.
Service port
