Control Module, Sunroof (182)
Control Module, Sunroof (182)
Location
Control module, sunroof (182).
Main task
Handle open and closing and logic for the sunroof
Type
Combined with motor
Power supply, ground and bus communication
The control module with motor is fed with B+ on pin 5 on the control module, grounding to pin 6 and pin 2 on the control module. Control signal to pins 3 and 4. Bus communication takes place from pin 1.

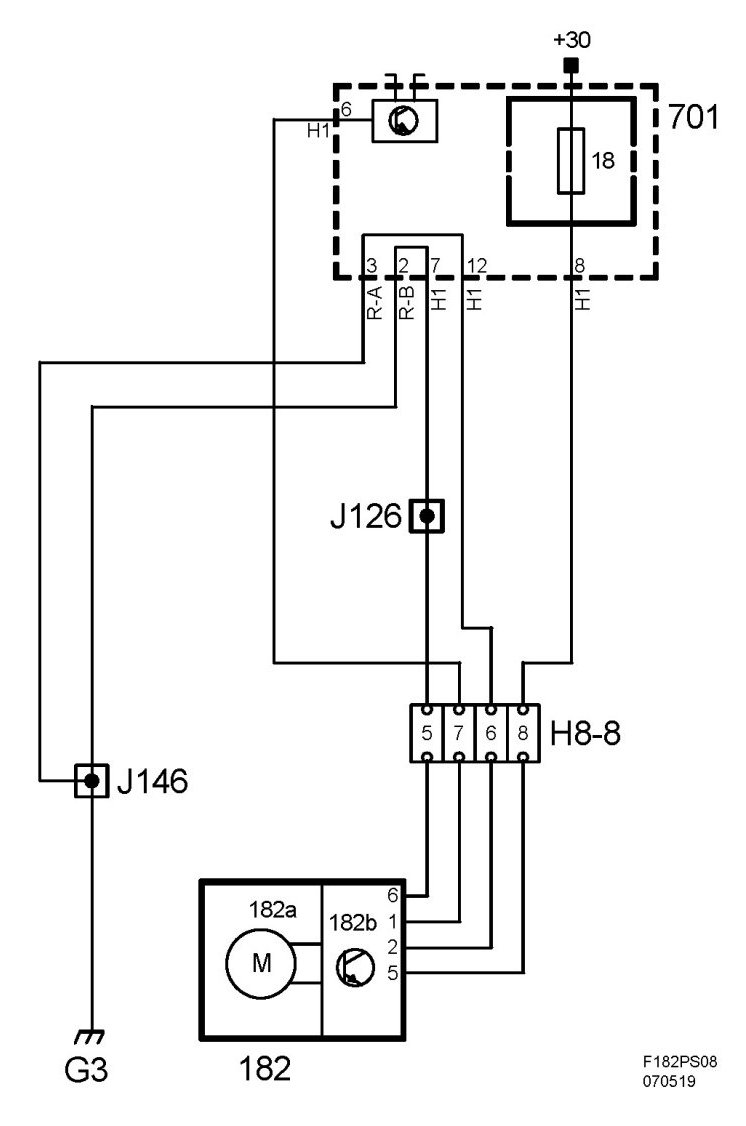

Wiring diagram, power supply

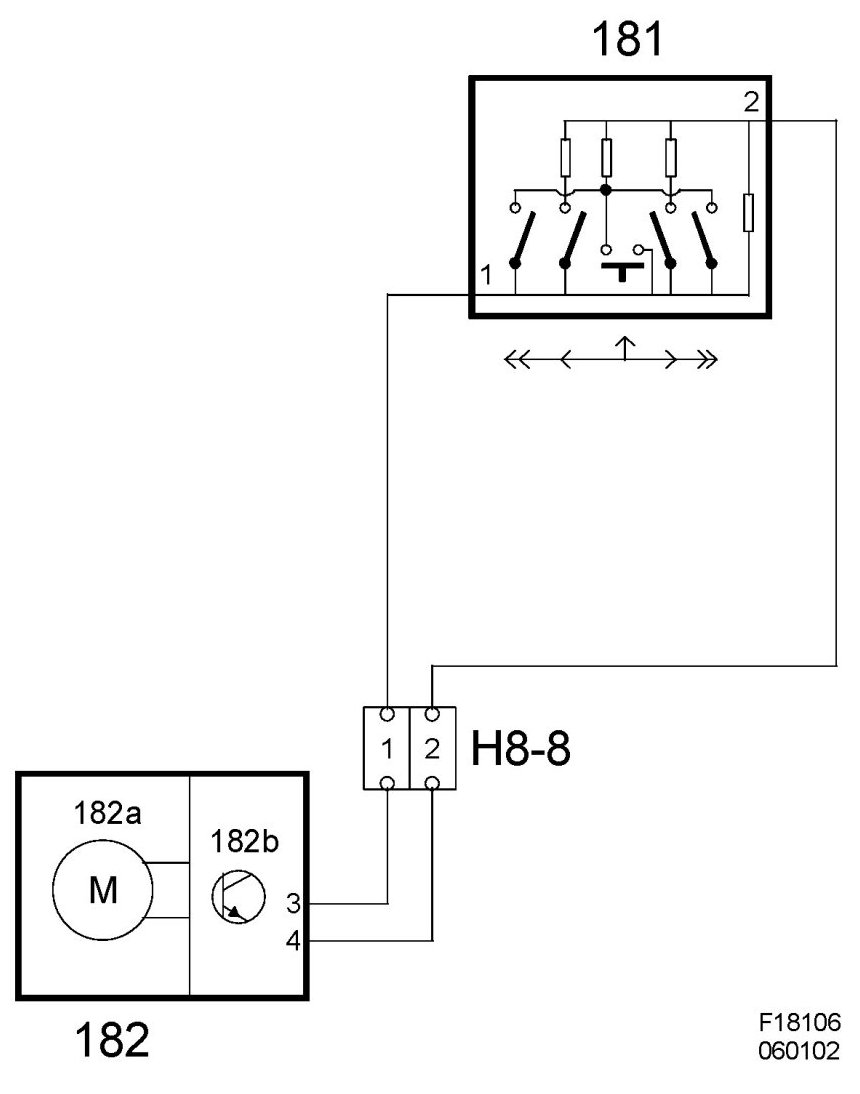

Wiring diagram, switch.
