Air Bag Control Module: Description and Operation
Bus Messages, Airbag Control Module (ACM)For a detailed description of the car's bus system, see bus and diagnostics communication.

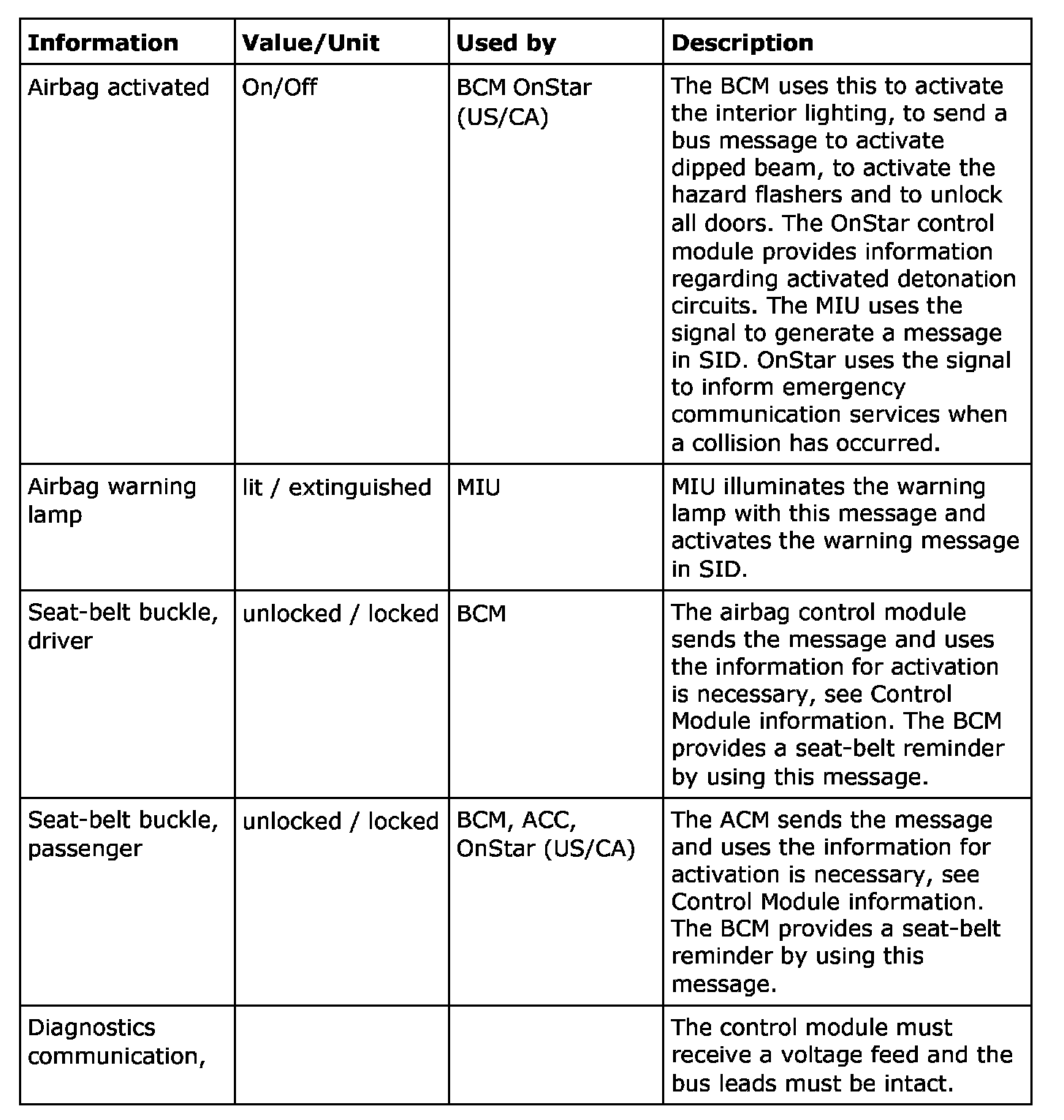

The ACM uses the following informationThe ACM sends the following information
