Restraints and Safety Systems



Test Readings, Control Module Connections

NOTE:
- Testing using a test instrument must not be carried out on the ignition circuit with components connected.The components must be disconnected and a reference resistance connected before testing is carried out. Values can be read from the ignition circuit with components connected when using the diagnostic tool. The values stated for the diagnostic tool show within which interval the resistance should be with a correct circuit.
- All units on the I and P-buses send signals.

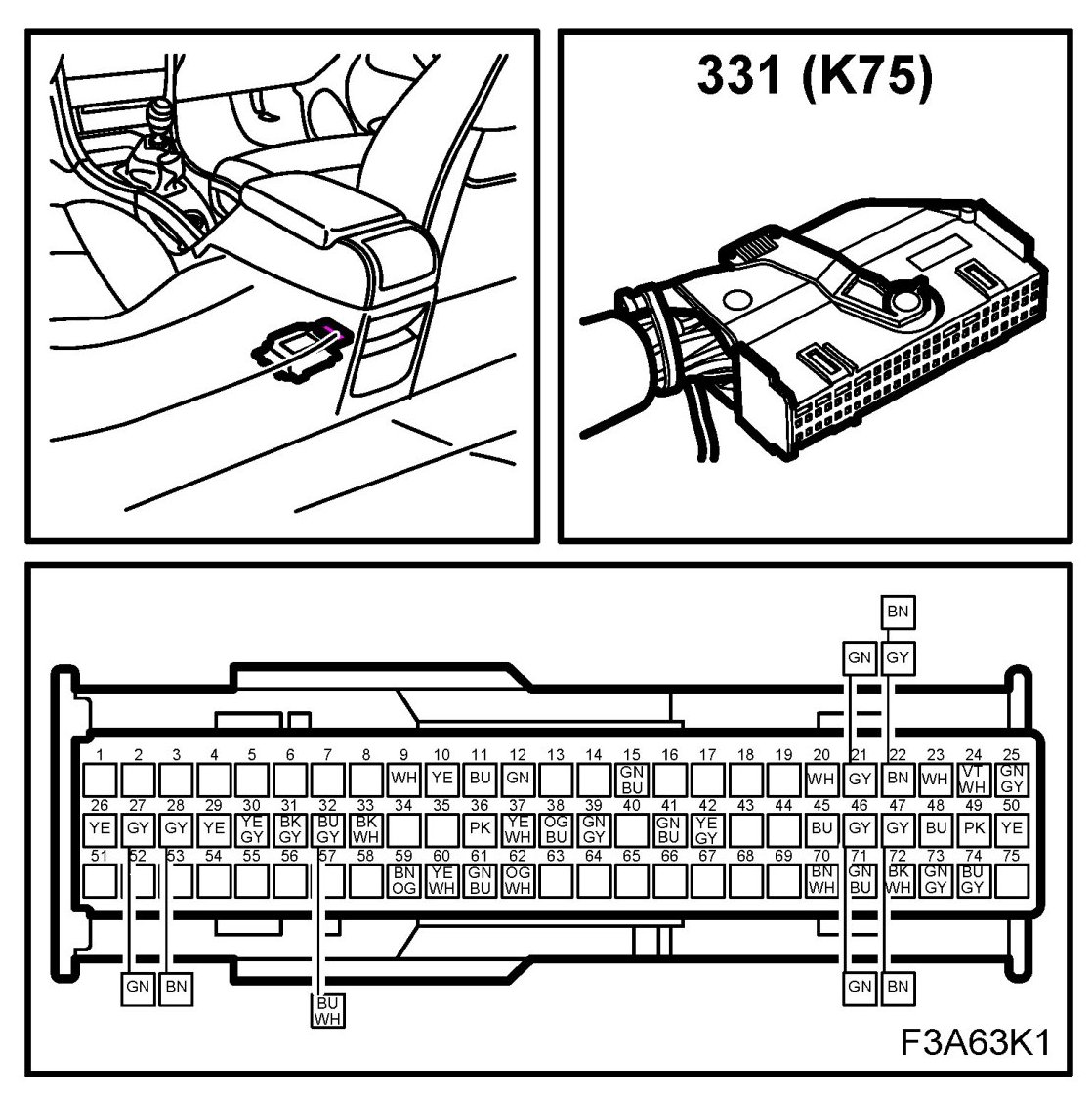

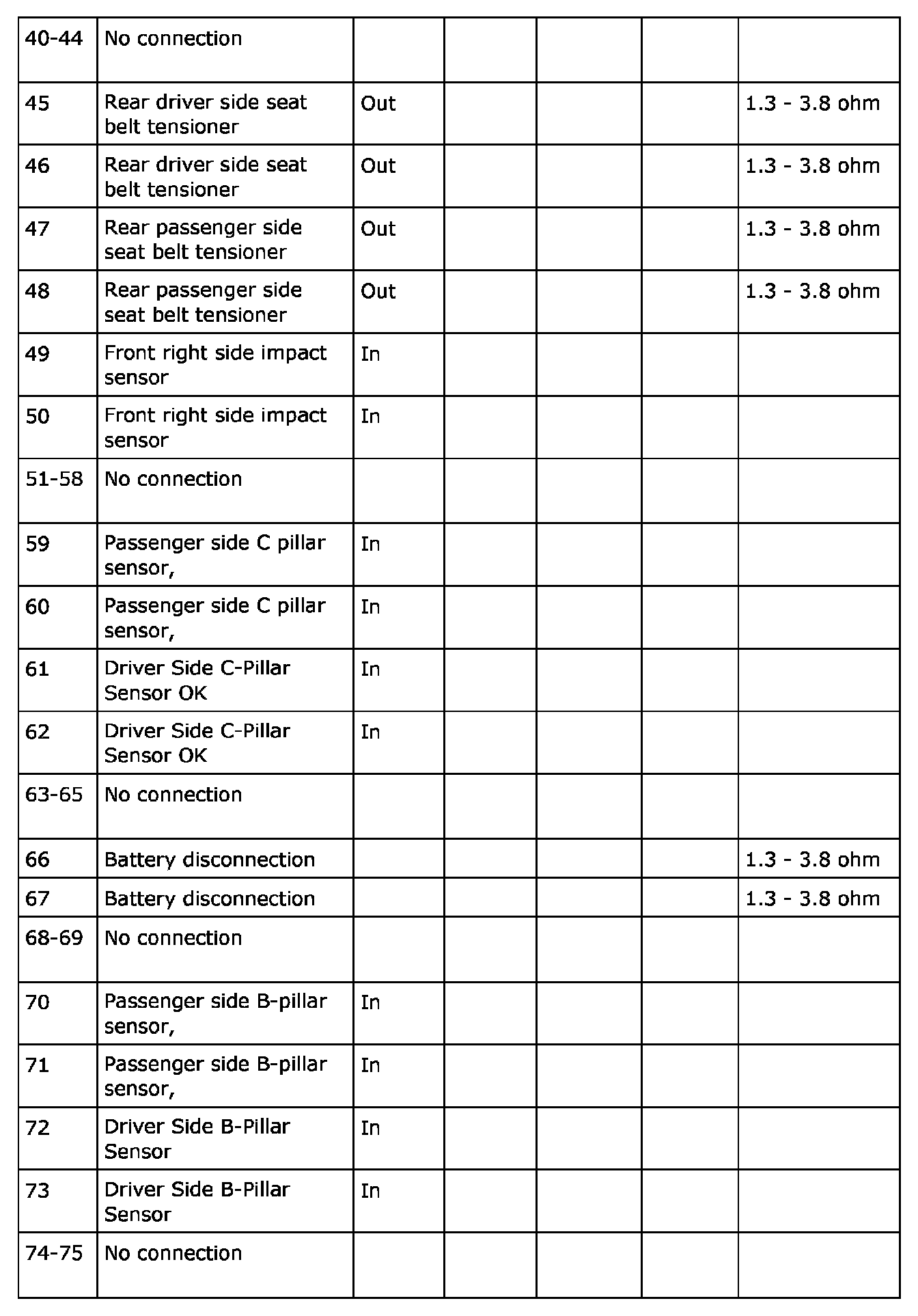

75-pin connector

The following table contains values for testing the air bag system levels. Testing should be carried out using the diagnostic tool.

Number of connector pins 75

Connector K75


















NOTE: Testing using a test instrument must not be carried out on the ignition circuit with components connected.The components must be disconnected and a reference resistance connected before testing is carried out. Values can be read from the ignition circuit with components connected when using the diagnostic tool. The values stated for the diagnostic tool show within which interval the resistance should be with a correct circuit.

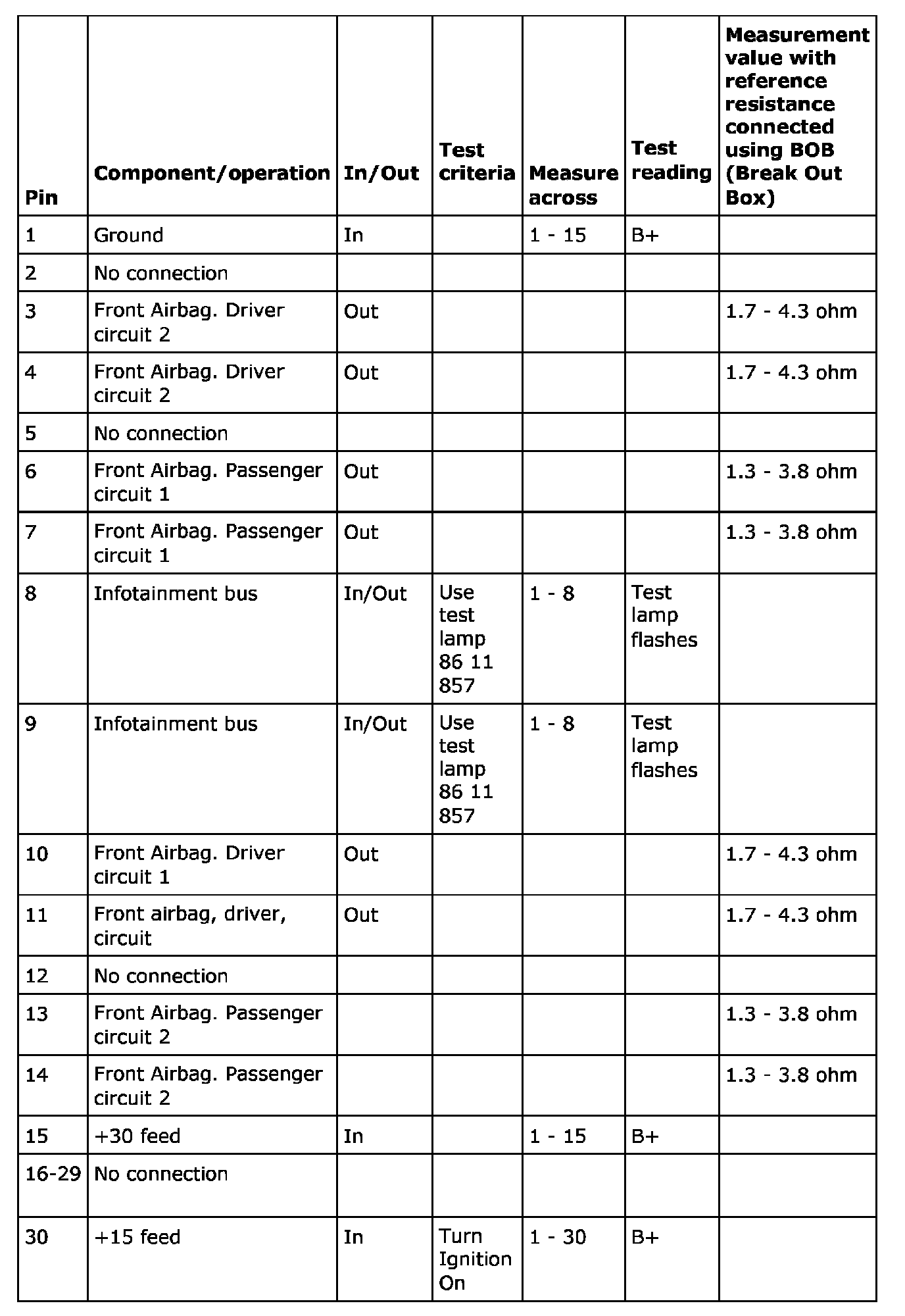

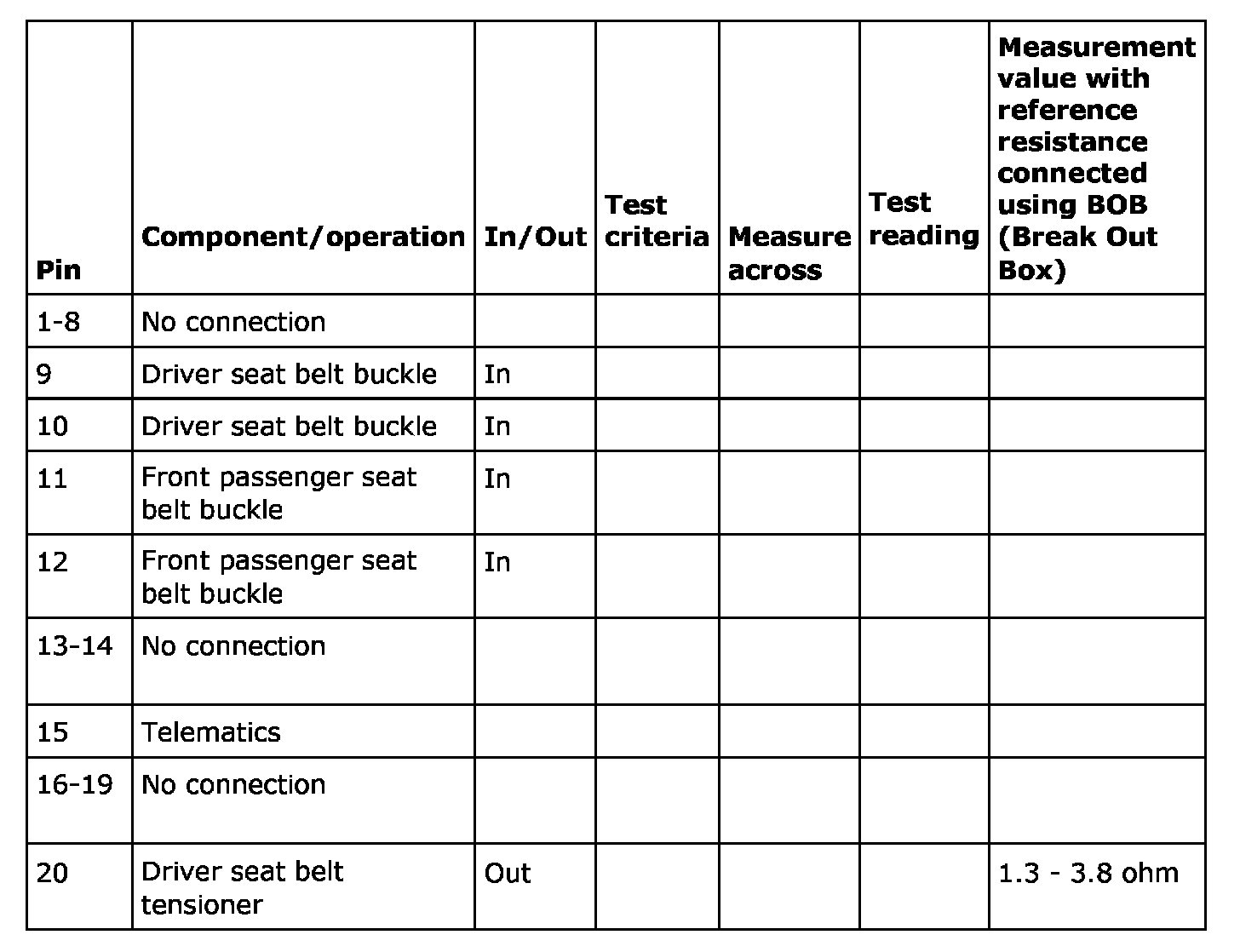

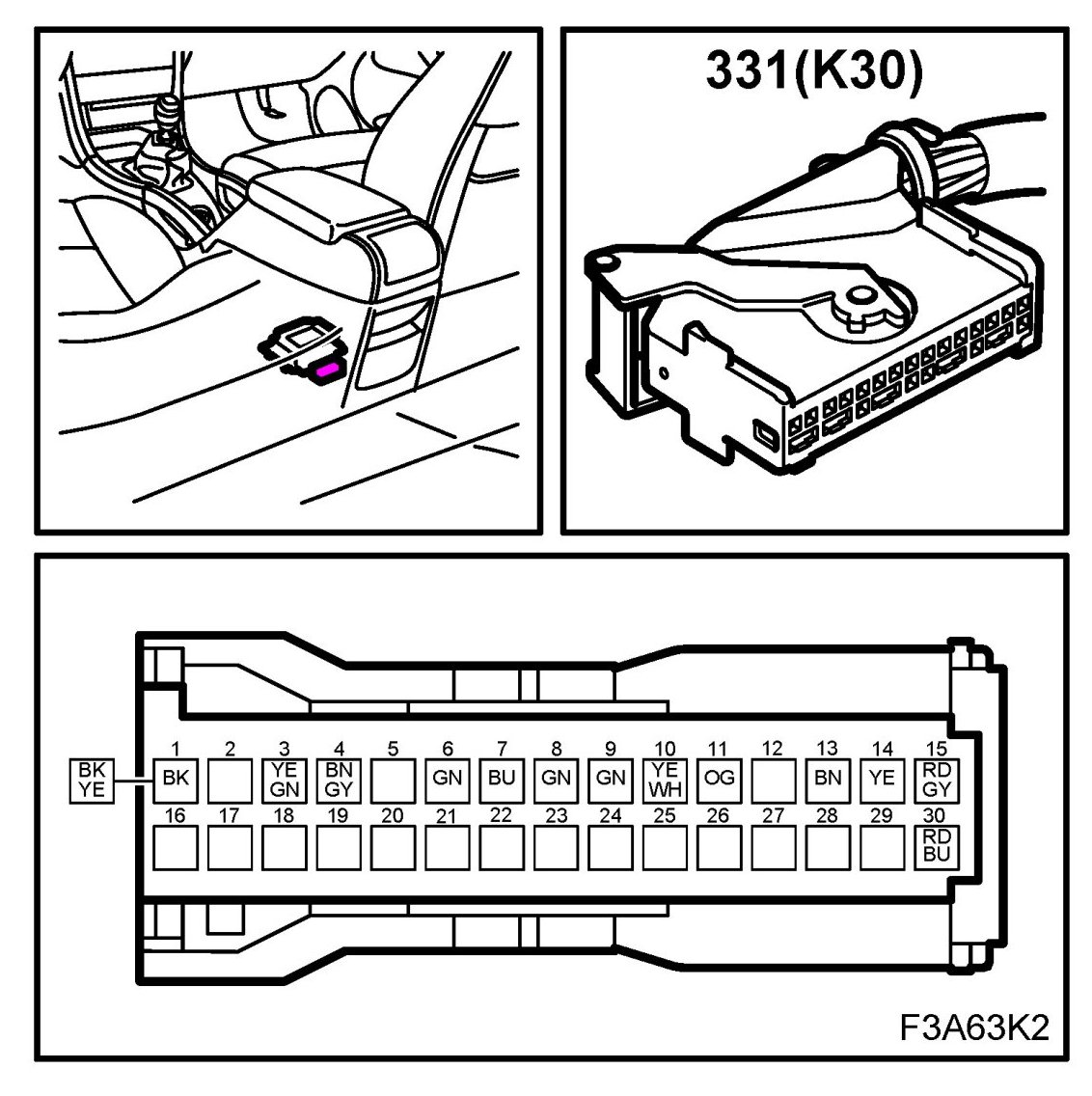

30-pin connector

The following table contains values for testing the air bag system levels. Testing should be carried out using the diagnostic tool.

NOTE: All units on the I and P-buses send signals.

Number of connector pins 30

Connector K30
