Camshaft, Engine

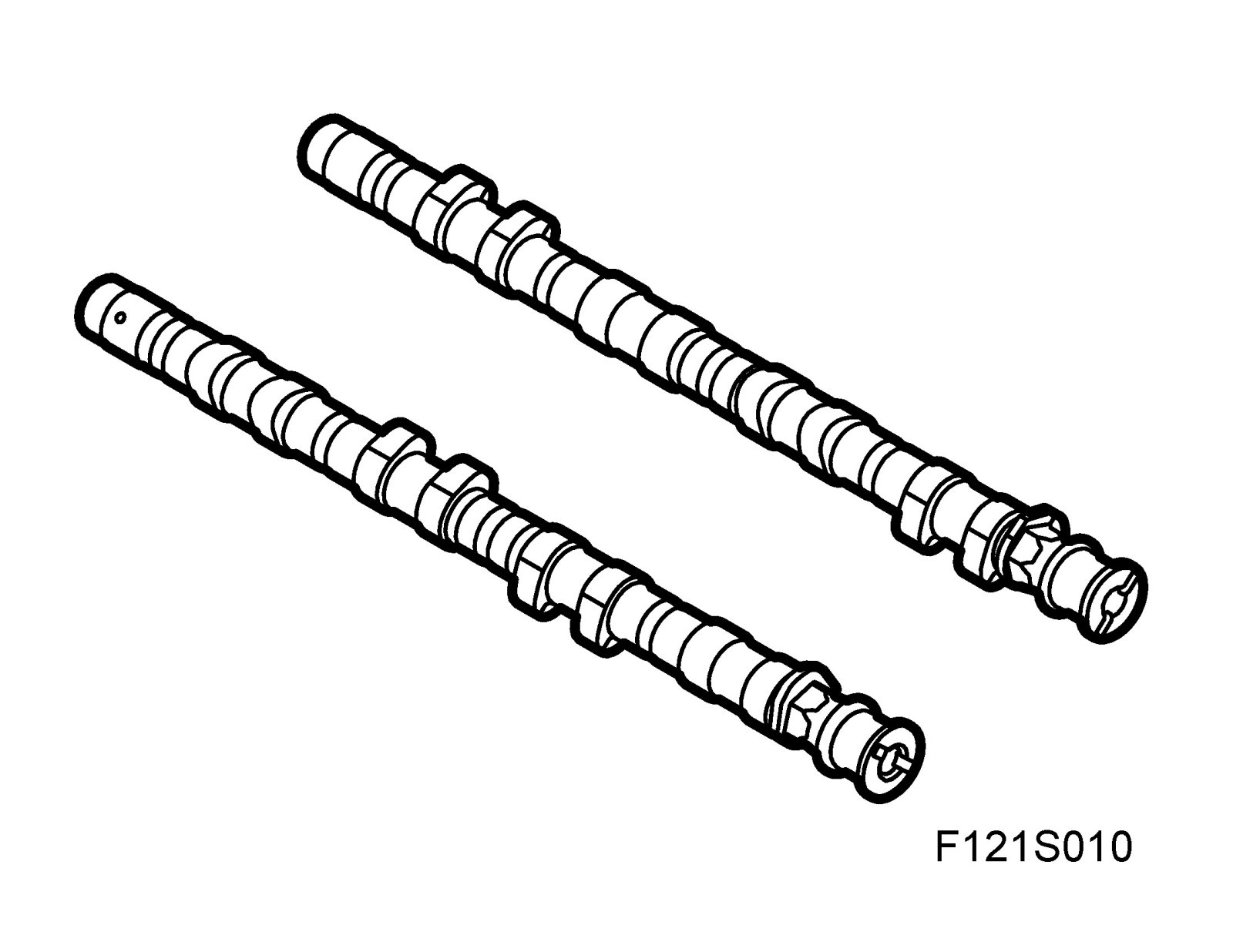

Camshafts

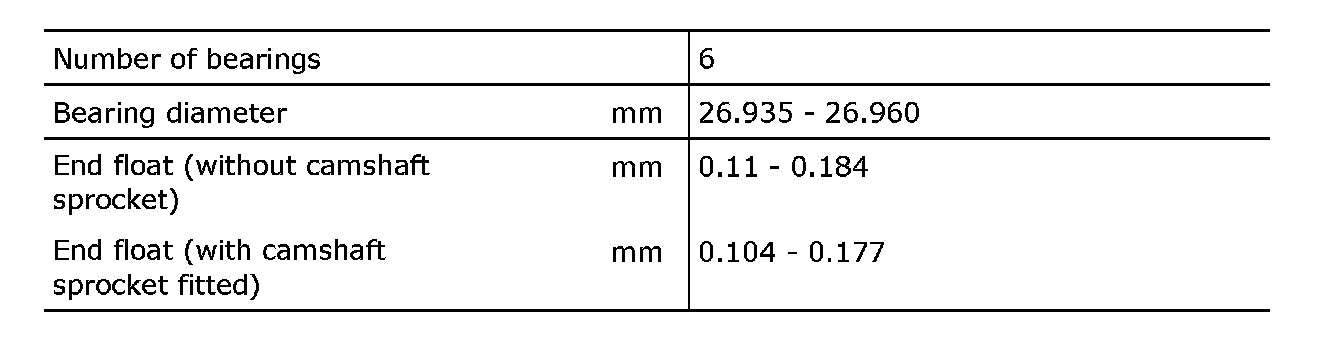

General Data

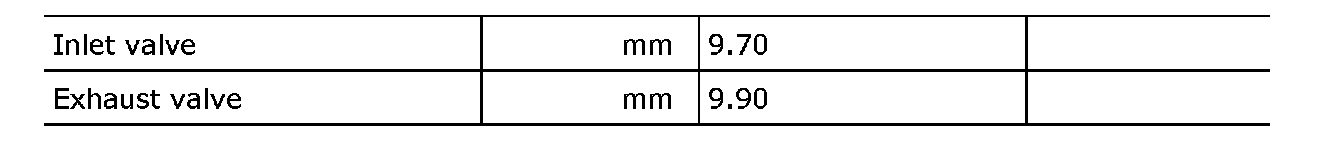

Cam lift

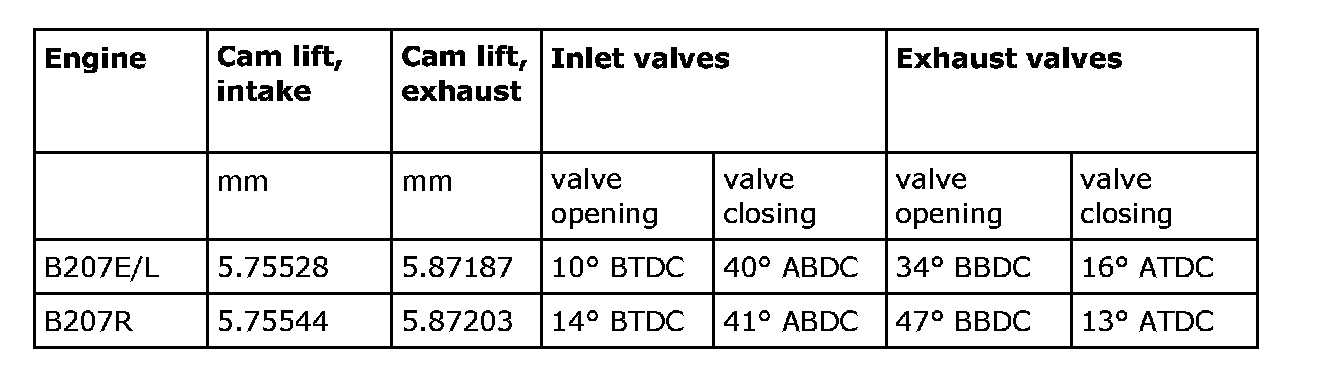

Valve timing





B207E/L: Total valve opening duration intake and exhaust: 230°

B207R: Total valve opening duration intake: 235°, exhaust: 240°
