Piston, Engine

Pistons

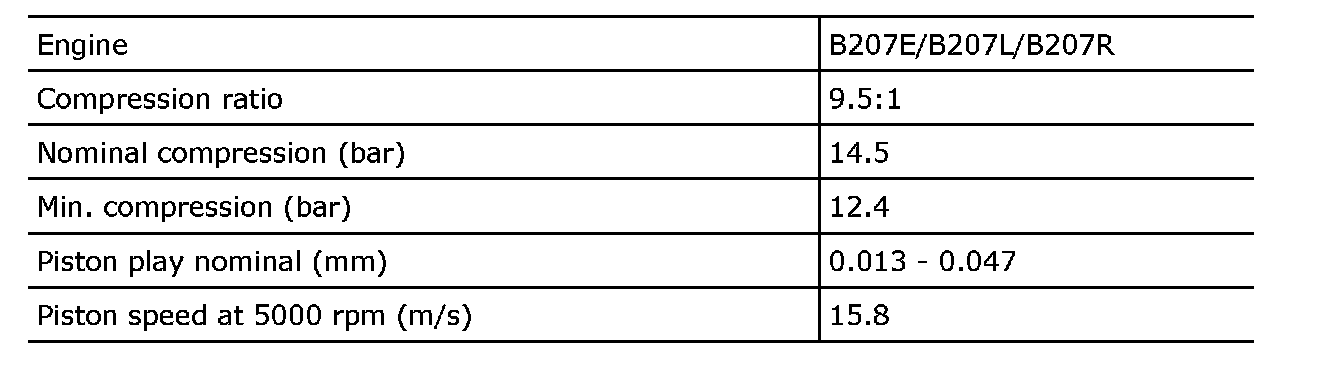

General data

Important
Pistons of different makes must not be used in the same engine. The piston make is cast onto the piston.

Piston types

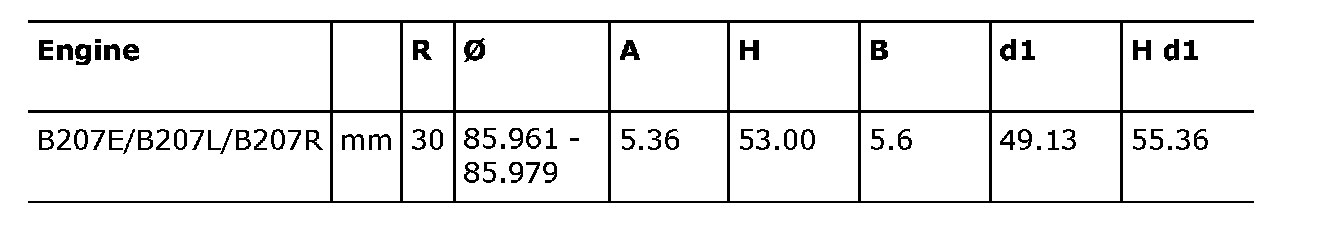

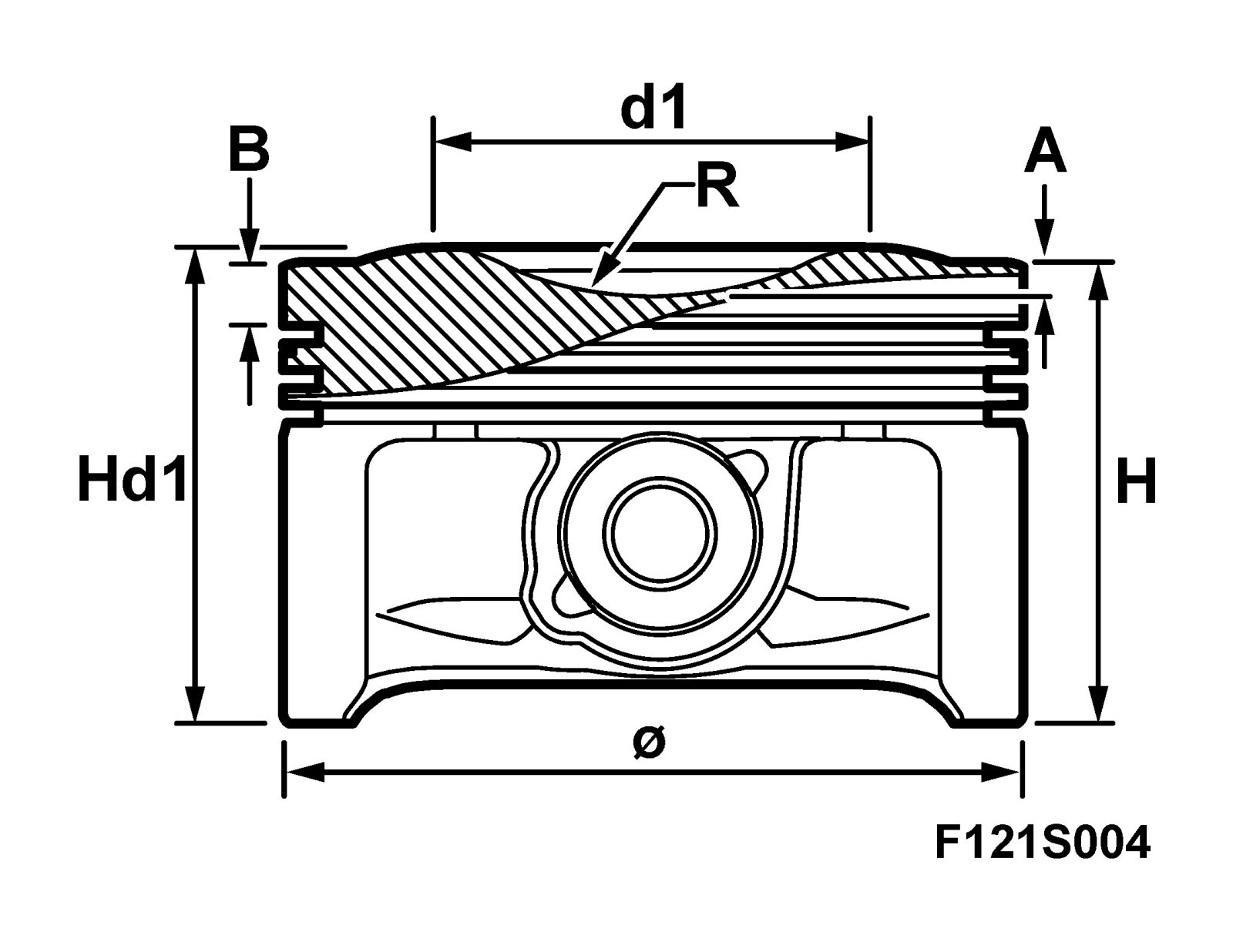

The piston diameter is measured perpendicular to the piston pin and 9mm from the piston base.

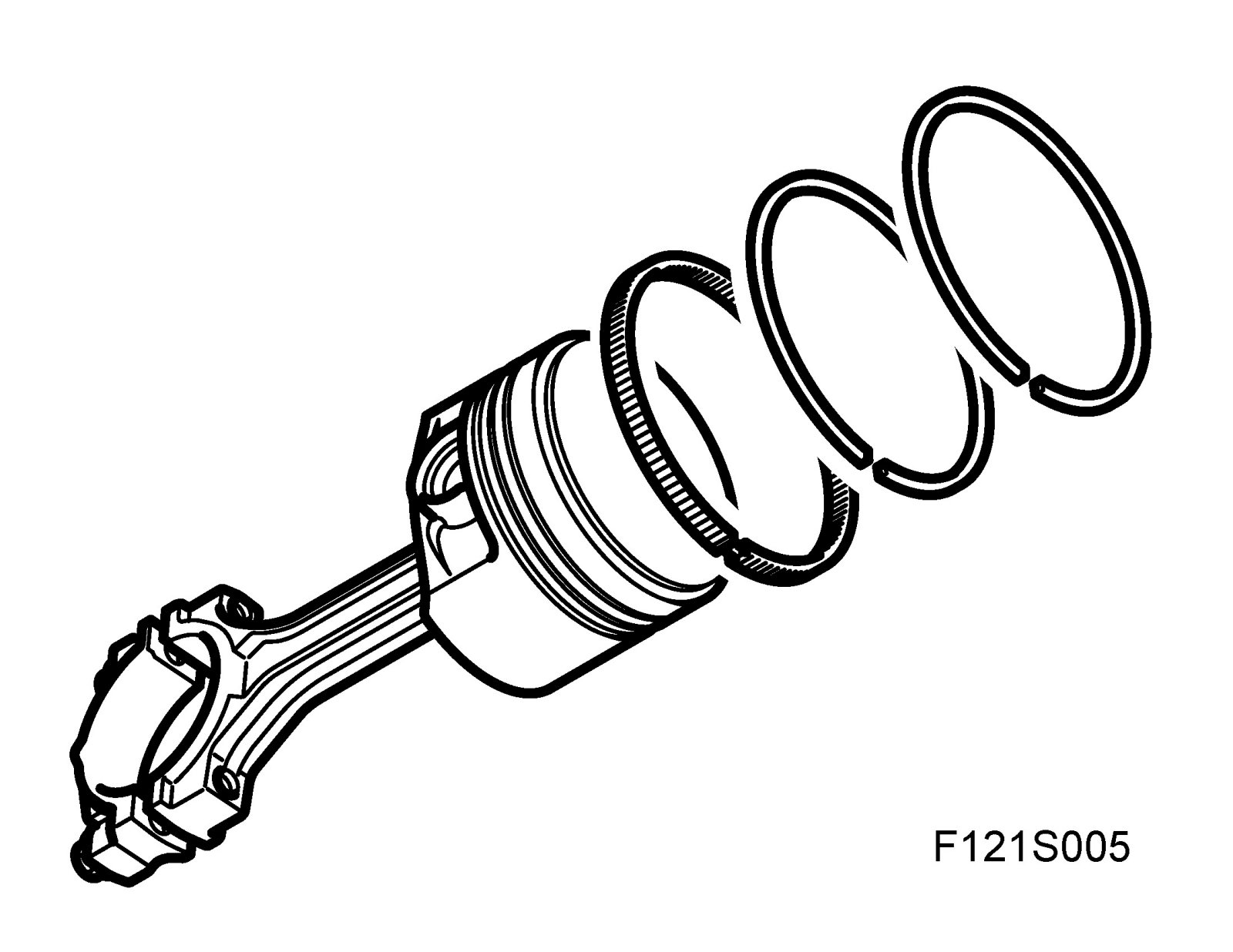

Pistons

Piston class and cylinder travel

The pistons for B207E/B207L/B207R only have one class

The cylinders in B207E/B207L/B207R only have one class

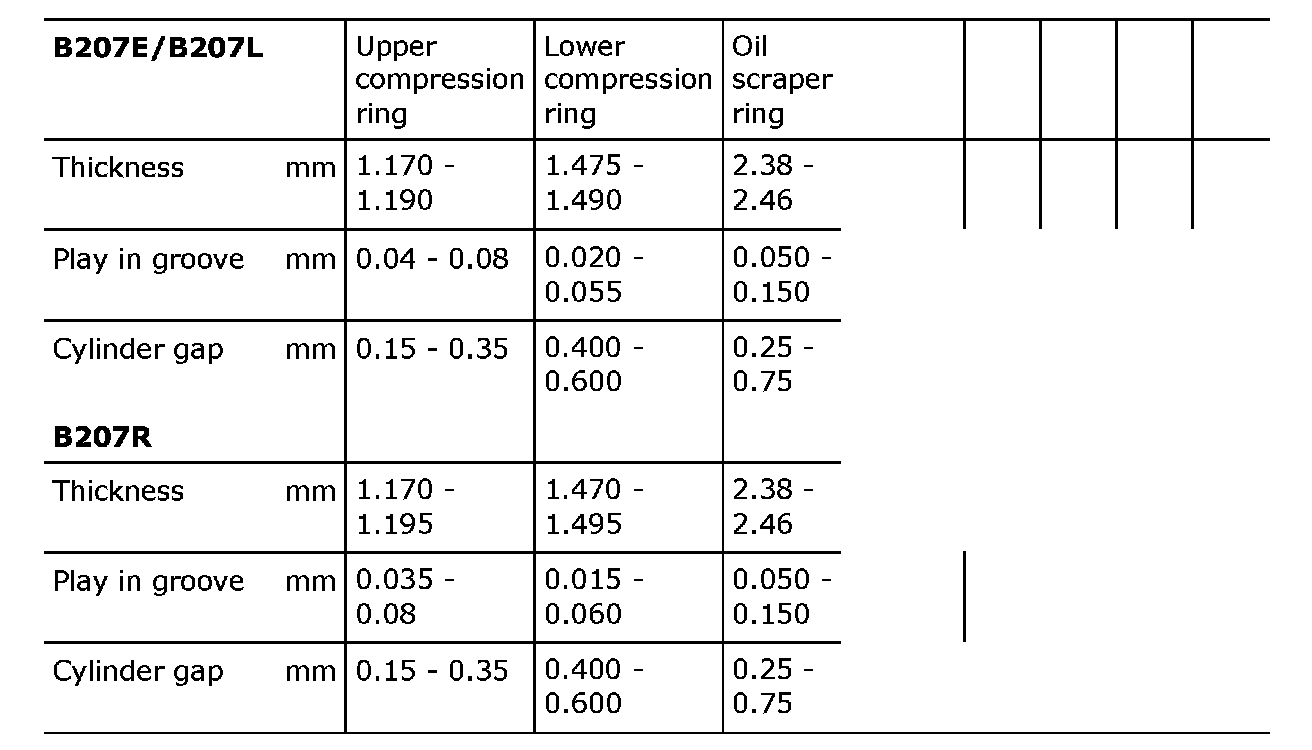

Piston rings

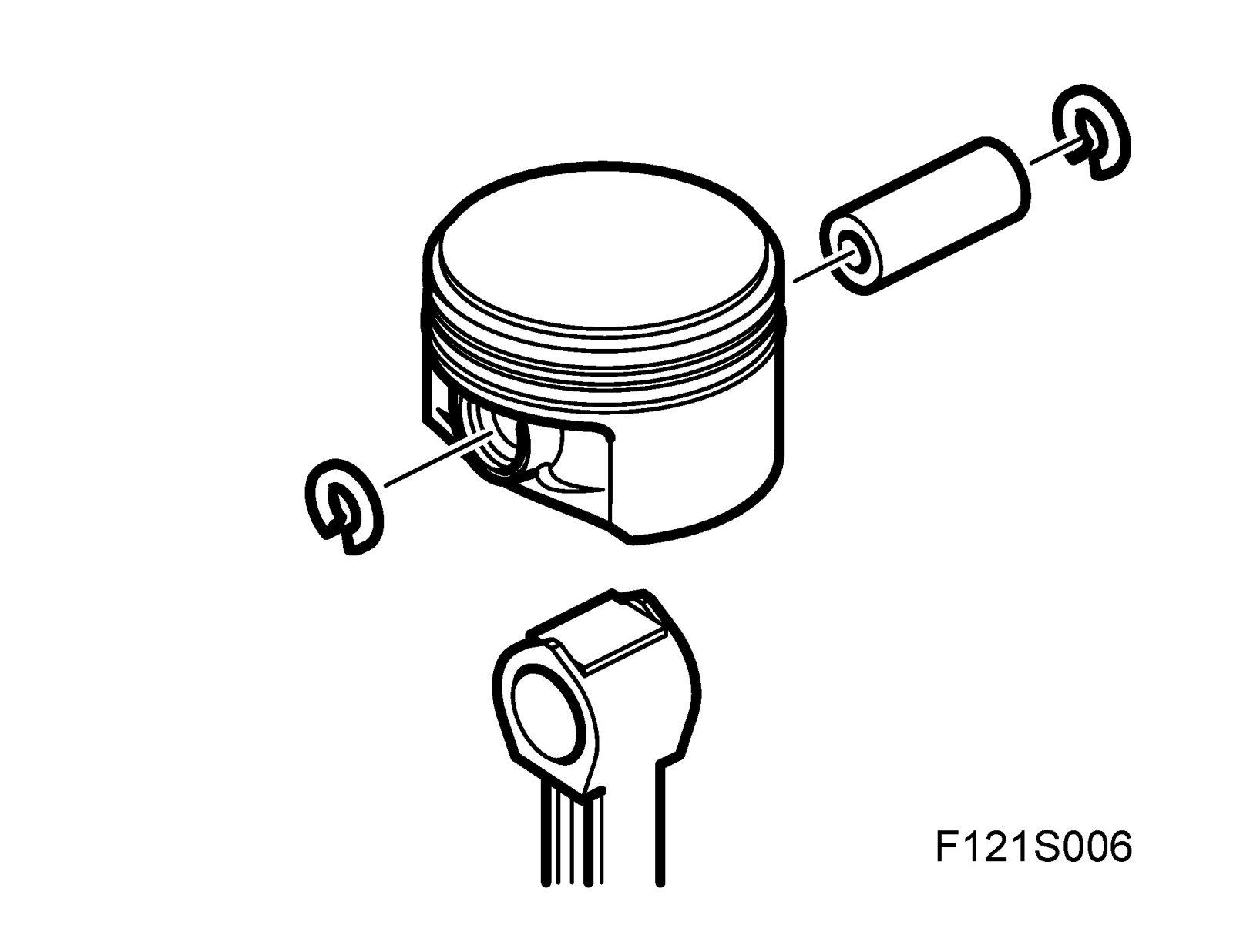

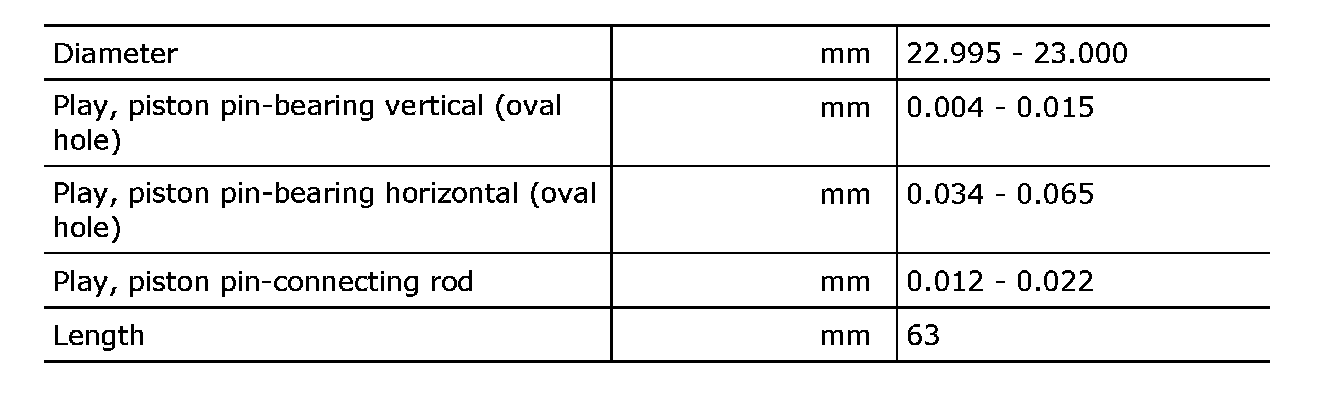

Piston pin
