Procedures

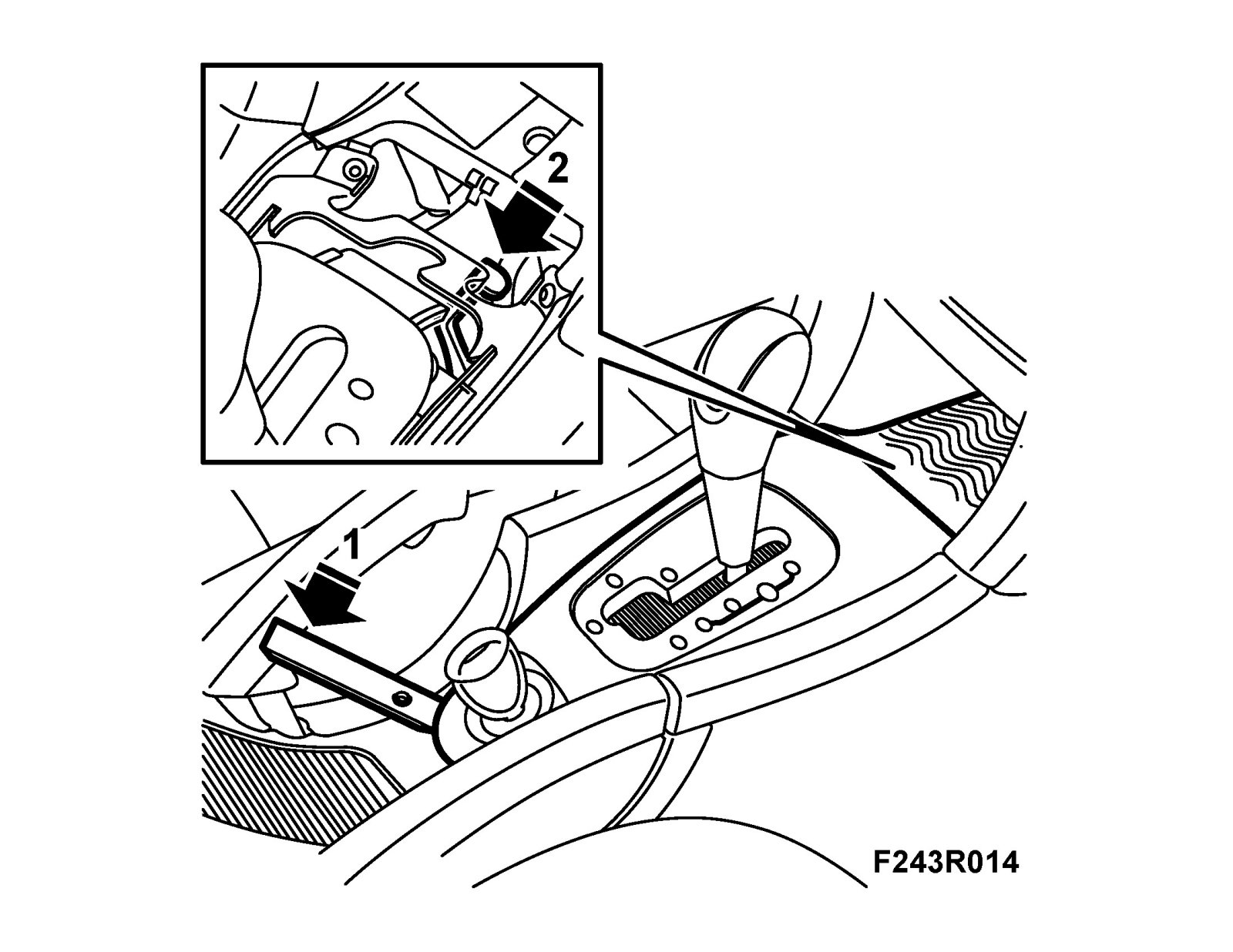

Manual release of solenoid, selector lever, SHIFT LOCK If there is no power, it will not be possible to move the selector lever because it is locked by the shift-lock
solenoid. Proceed as follows to release it manually:
1.
Remove the rubber mat. Use 82 93 474 Removal tool.
2.
Press with a screwdriver and hold down the yellow catch lever in order to select other gear positions.
3.
Fit the rubber mat.
