Power Window Switch: Service and Repair

Cover, Rear Switch, Window Lift

To remove

1. Remove Rear door trim

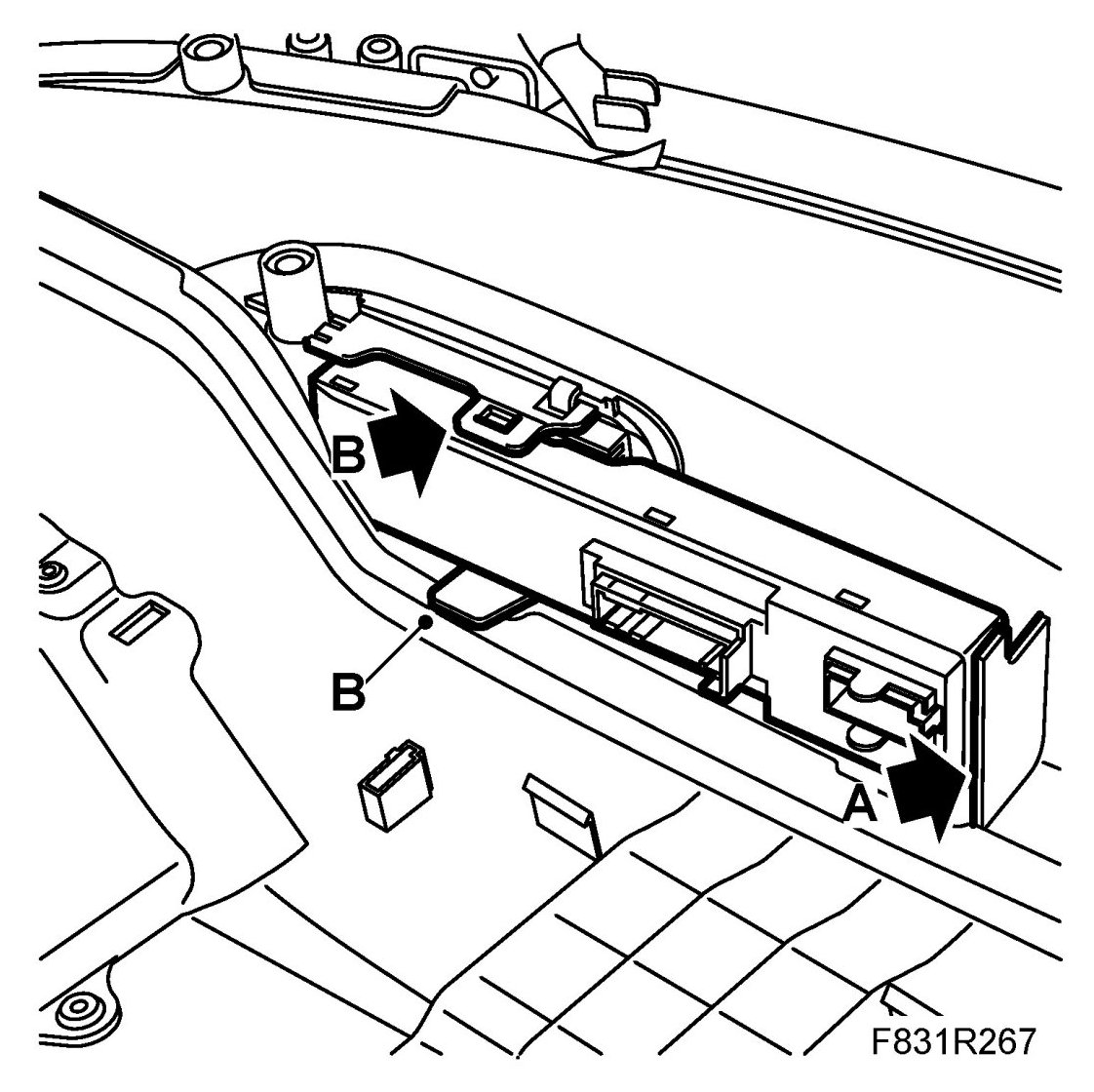

2. Remove the door module.
- First detach the rear clip (A). Use a screwdriver.






- Then detach the clips (B) on the sides of the door module.
- Carefully pull the door module backwards/downwards.

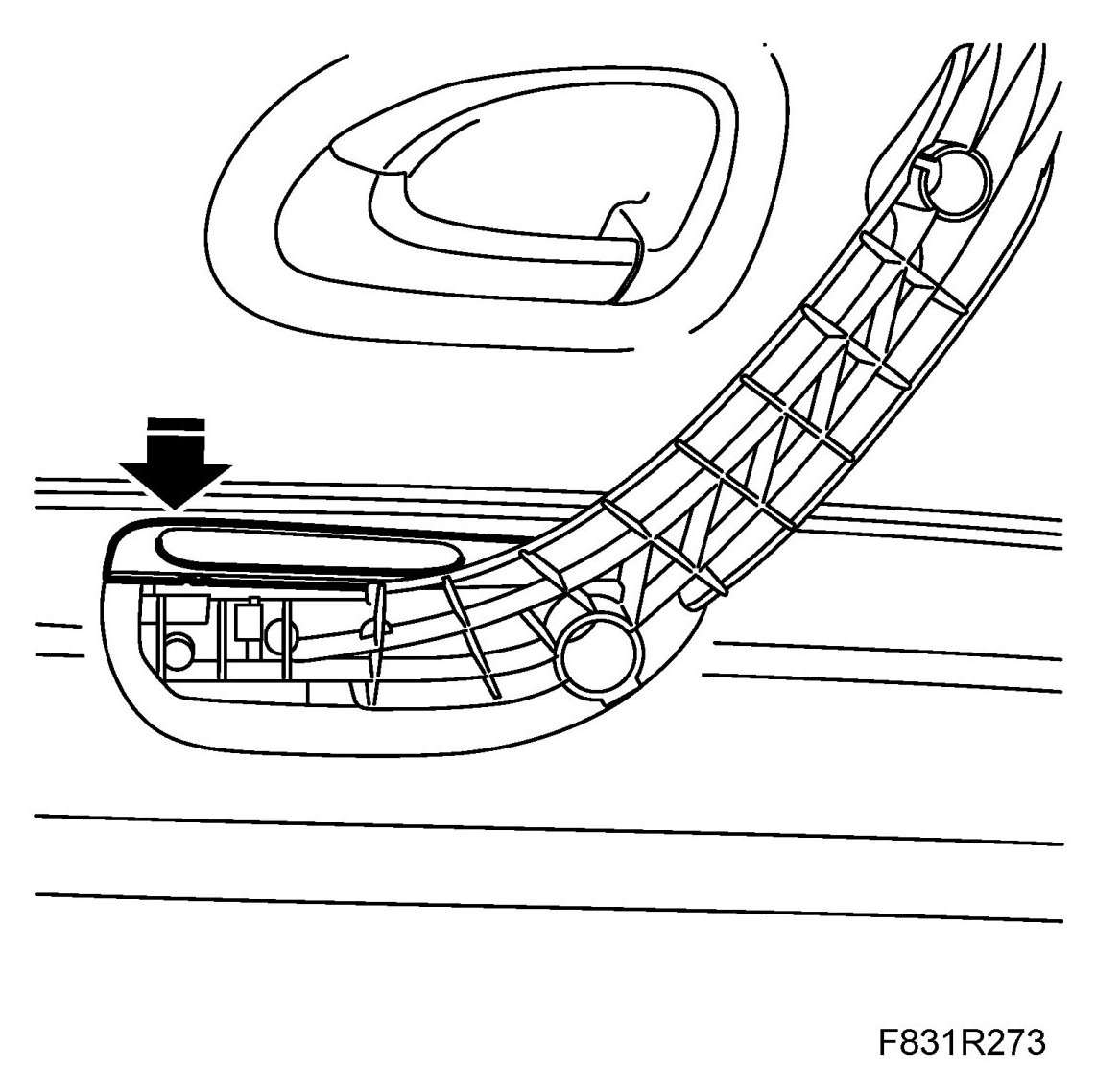

3. Remove the cover.

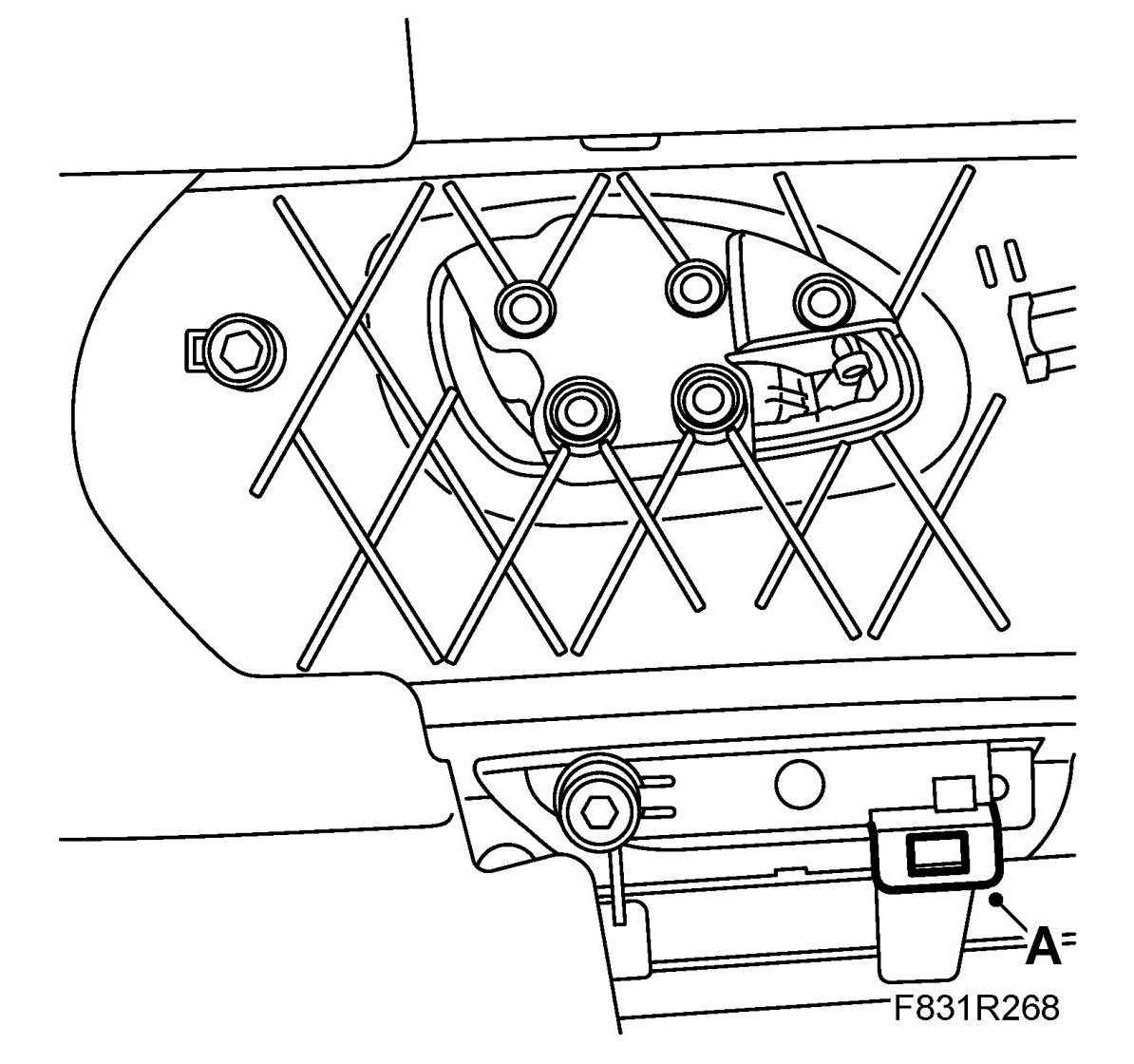

- Detach the locking catches (A) from their mountings.






IMPORTANT: Make sure that the catches do not fasten in the trim.

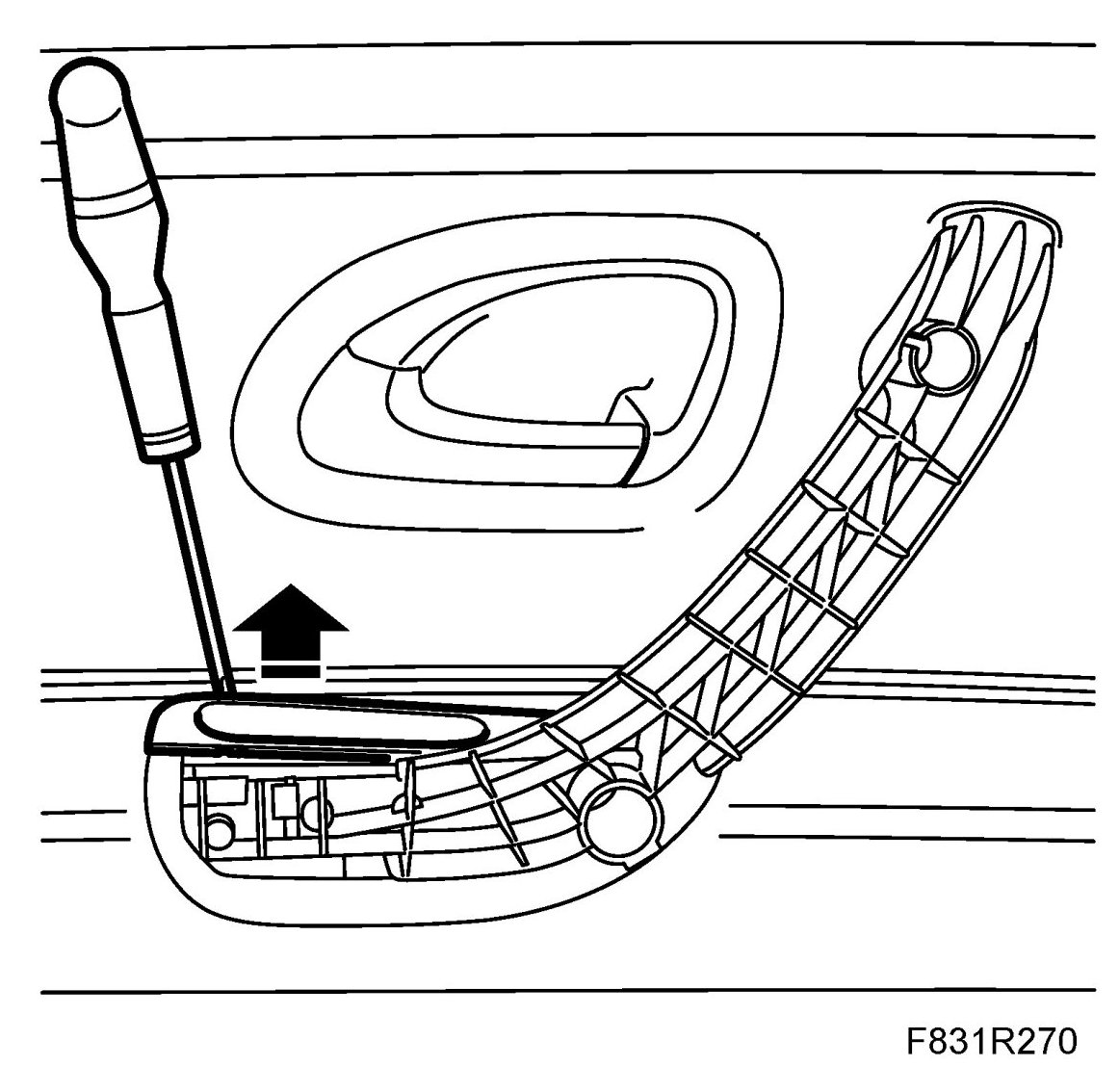

- Remove the cover by pressing it upwards. Use a screwdriver.






To fit

1. Fit the cover.

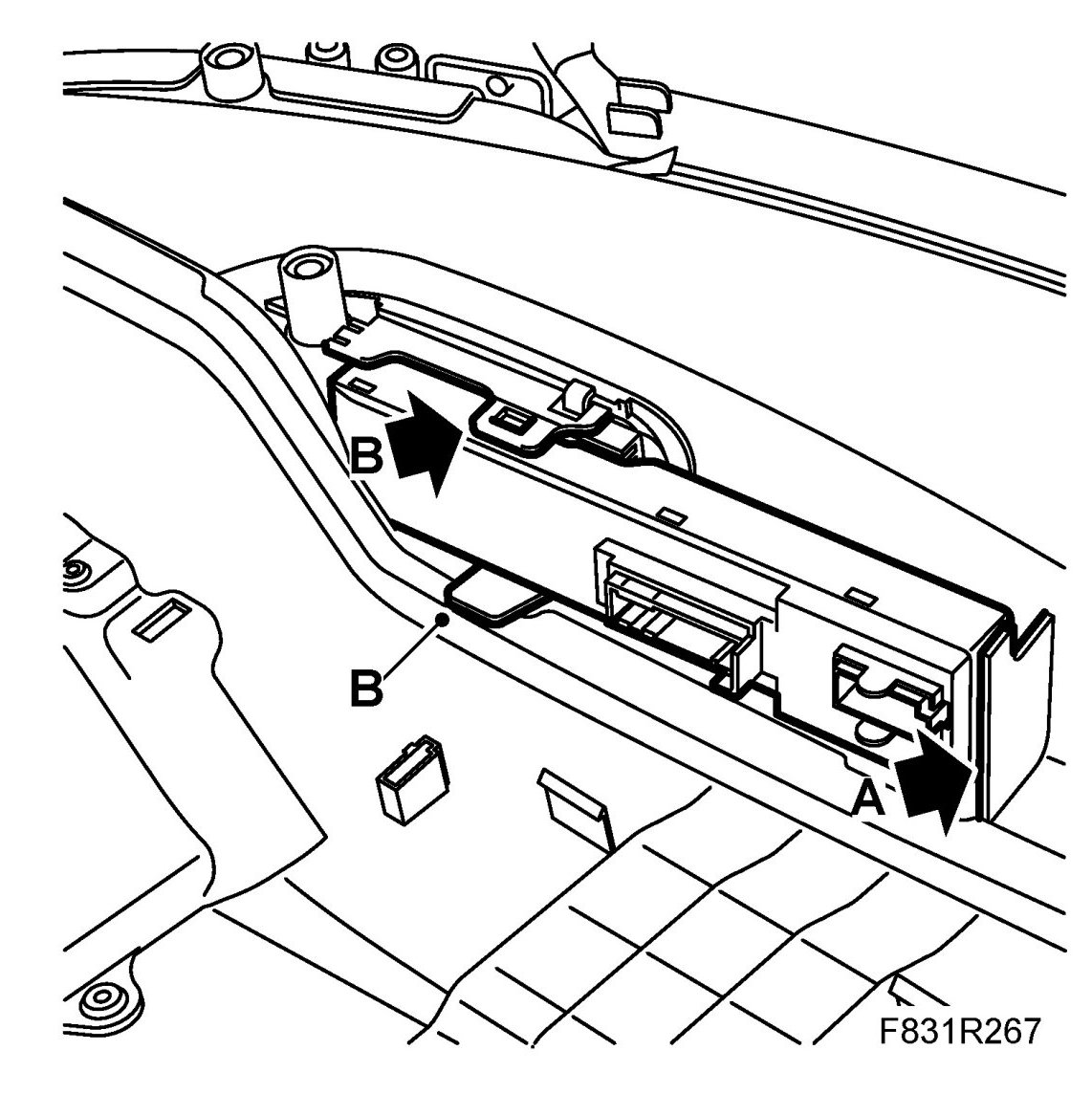

2. Fit the door module. Make sure that the retaining clips lock (A/B).






3. Fit Rear door trim.
