Differential Assembly

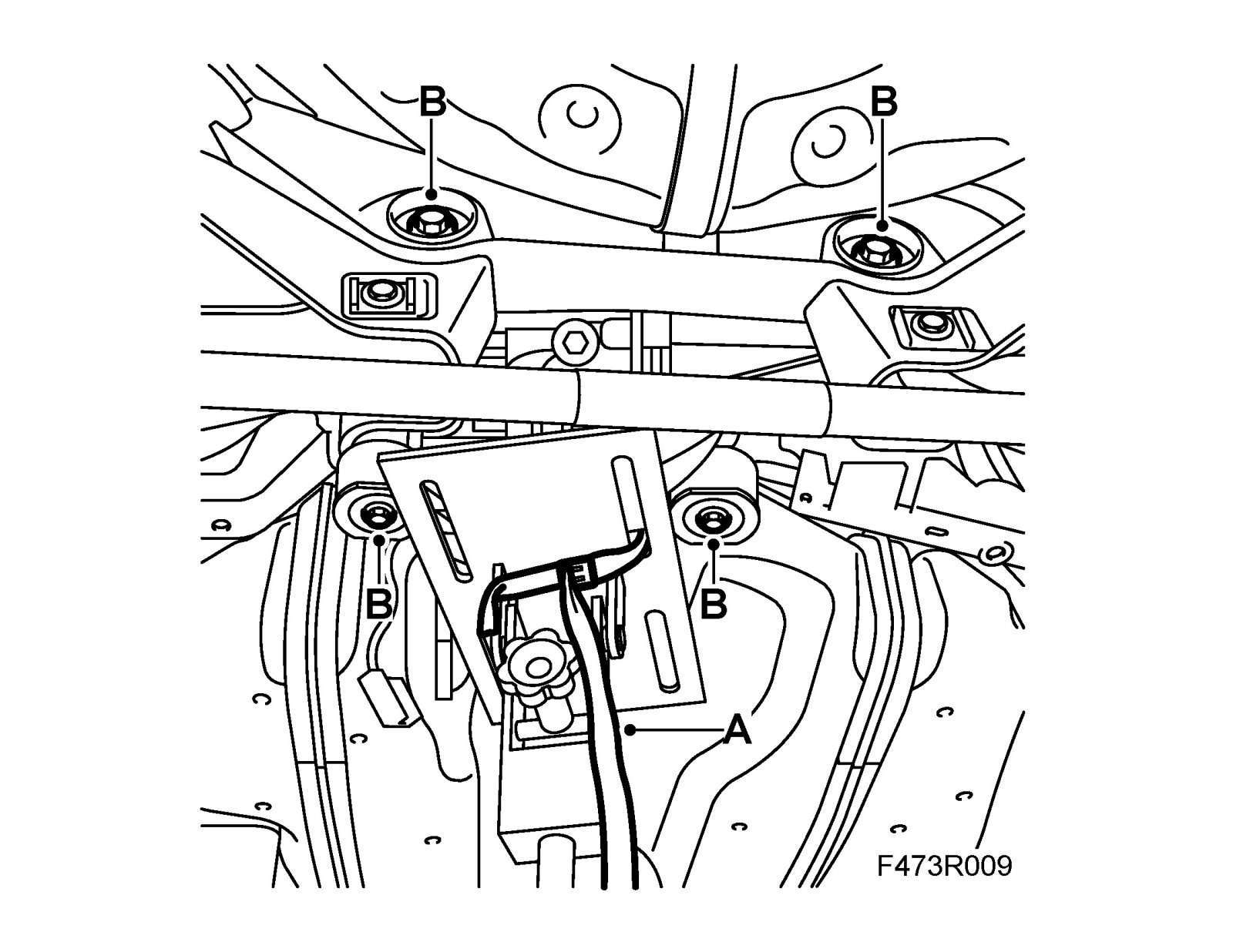

Differential Clutch and Limited Slip Differential Bolts (B)





First pass 90 Nm (66.4 lbf ft)
Second pass Tighten 90°
Final pass Tighten 15°

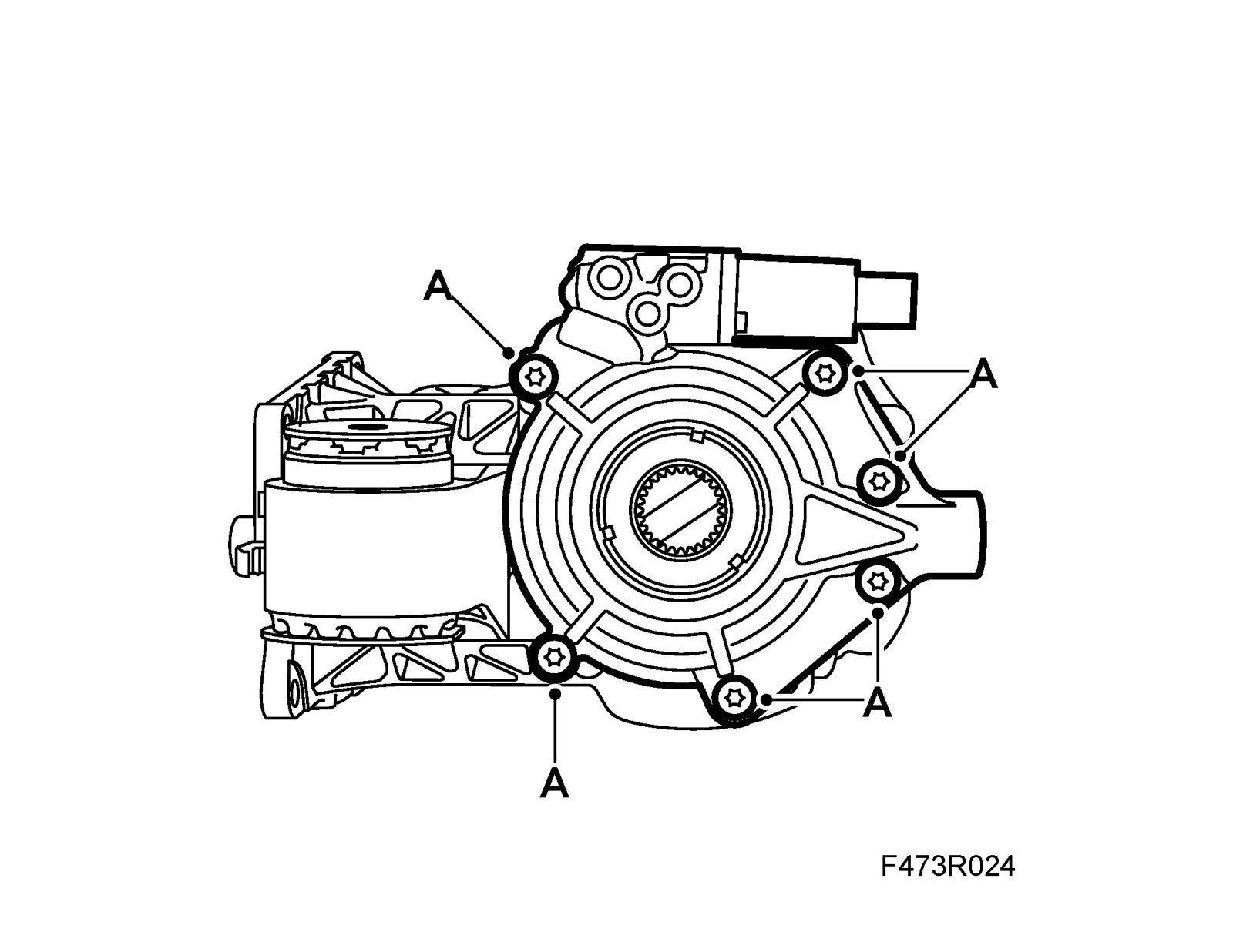

Differential Clutch Bolts (A) 30 Nm (22 lbf ft)





Differential Clutch Cover Bolts 5.7 Nm (4.2 lbf ft)
Tighten alternately

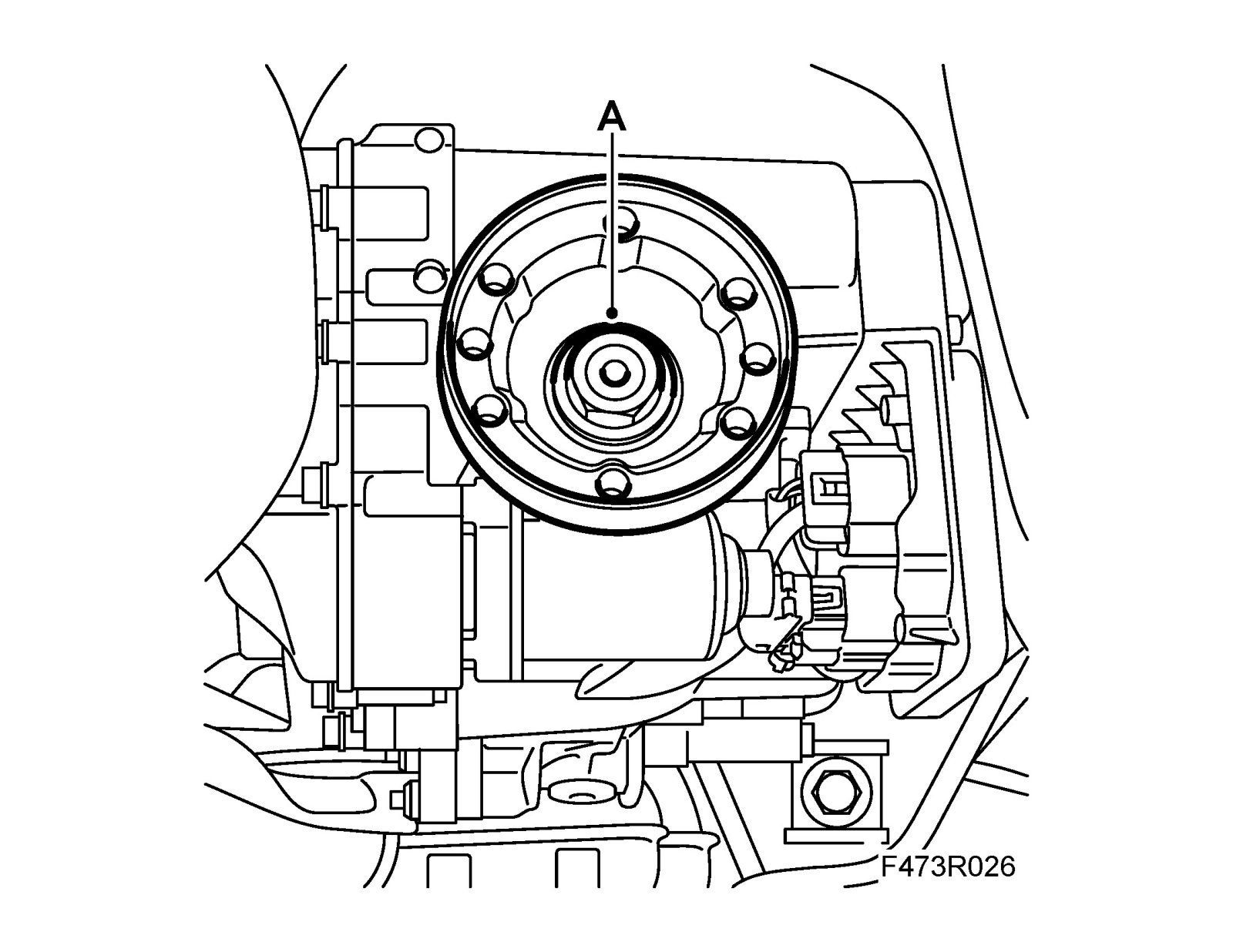

Differential Clutch Driver Bolts (A) 100 ± 5 Nm (73.8 ± 3.7 lbf ft)

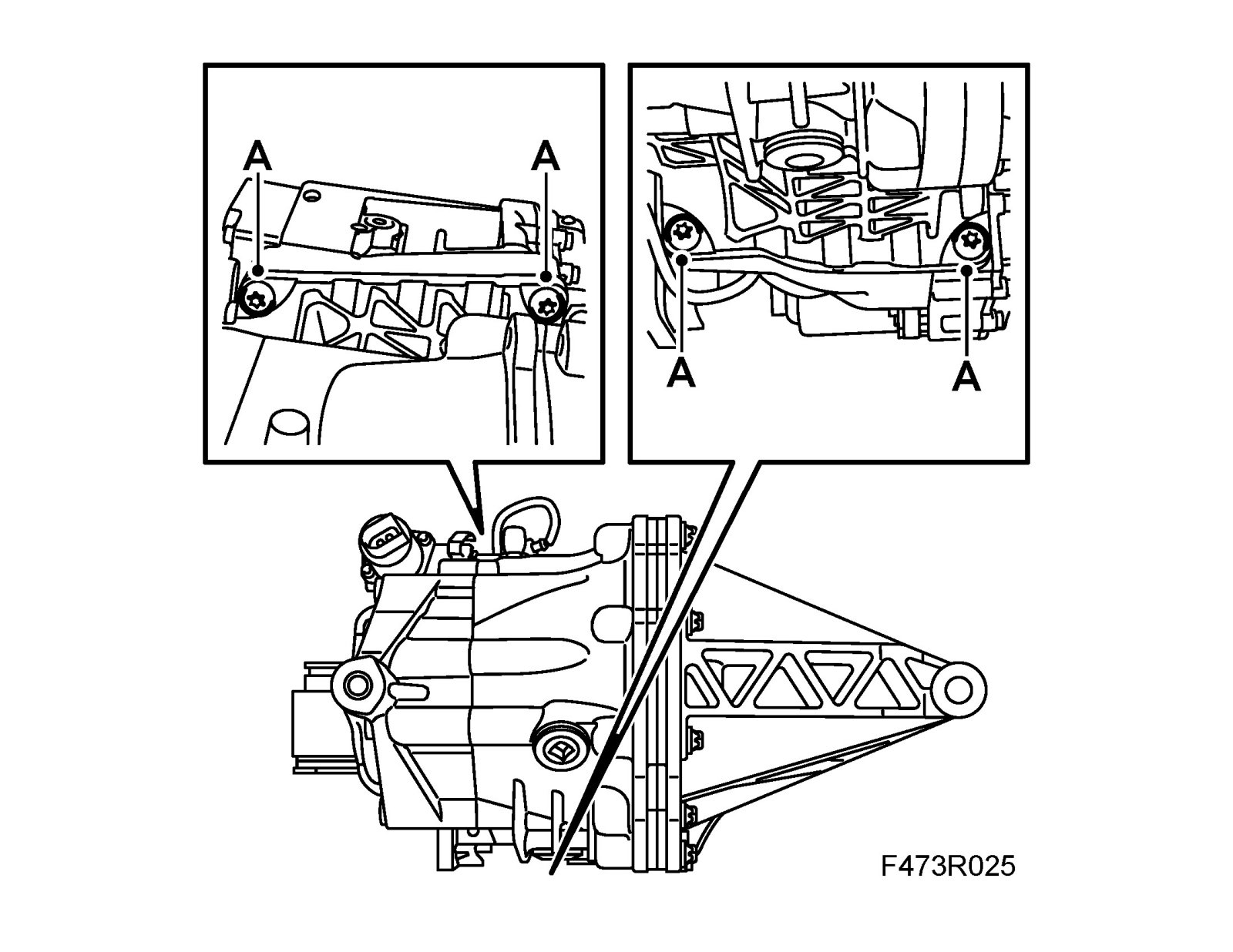

Limited Slip Differential Clutch Unit Bolts (A) 30 Nm (22 lbf ft)





Limited Slip Differential Drain Plug 25 Nm (18.4 lbf ft)
Install a new seal

Limited Slip Differential Level Plug 25 Nm (18.4 lbf ft)
Install a new sealing washer

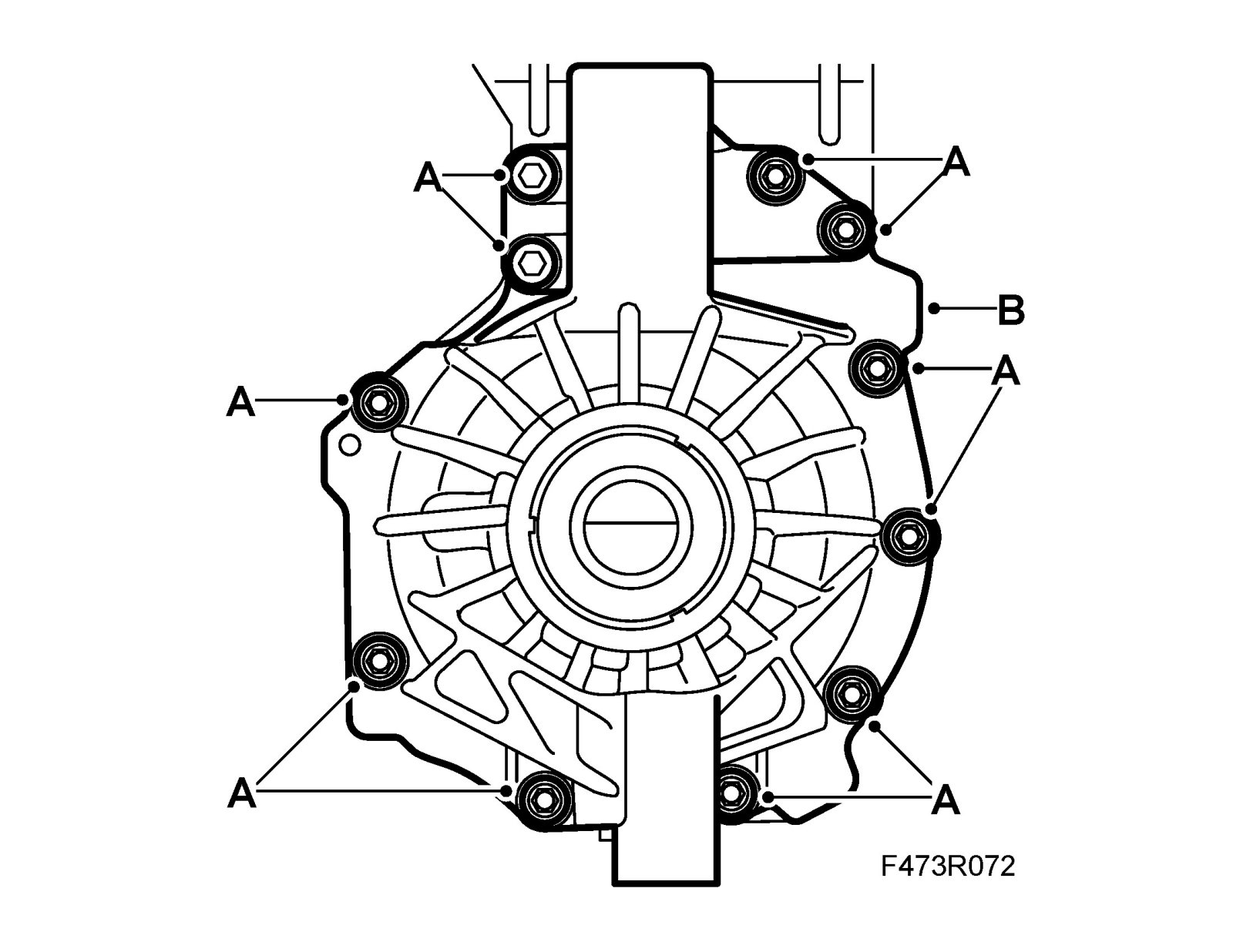

Right-Hand Limited Slip Differential Housing Bolts (A) 45 Nm (33 lbf ft)
Install new bolts
