Body Control Systems

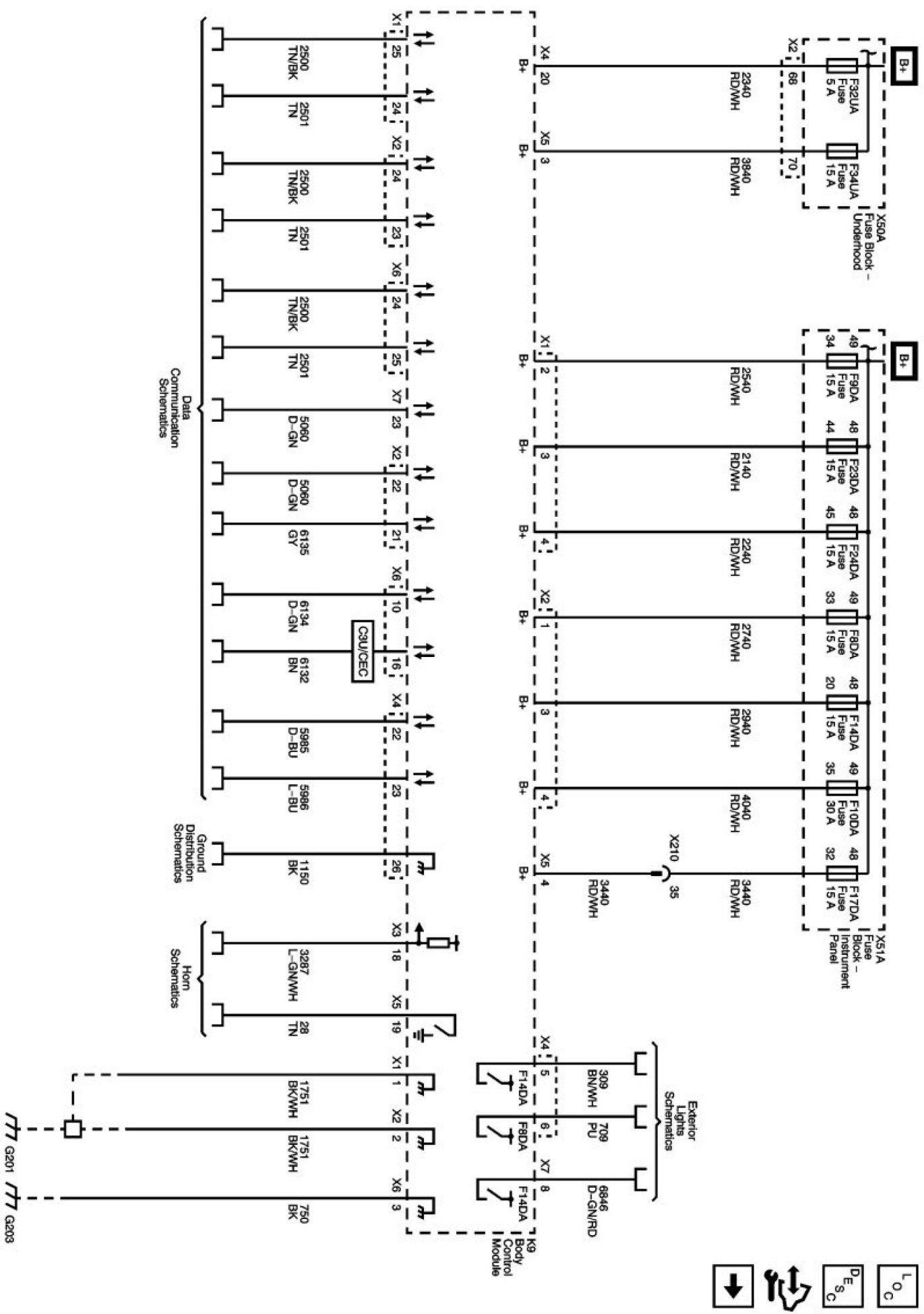

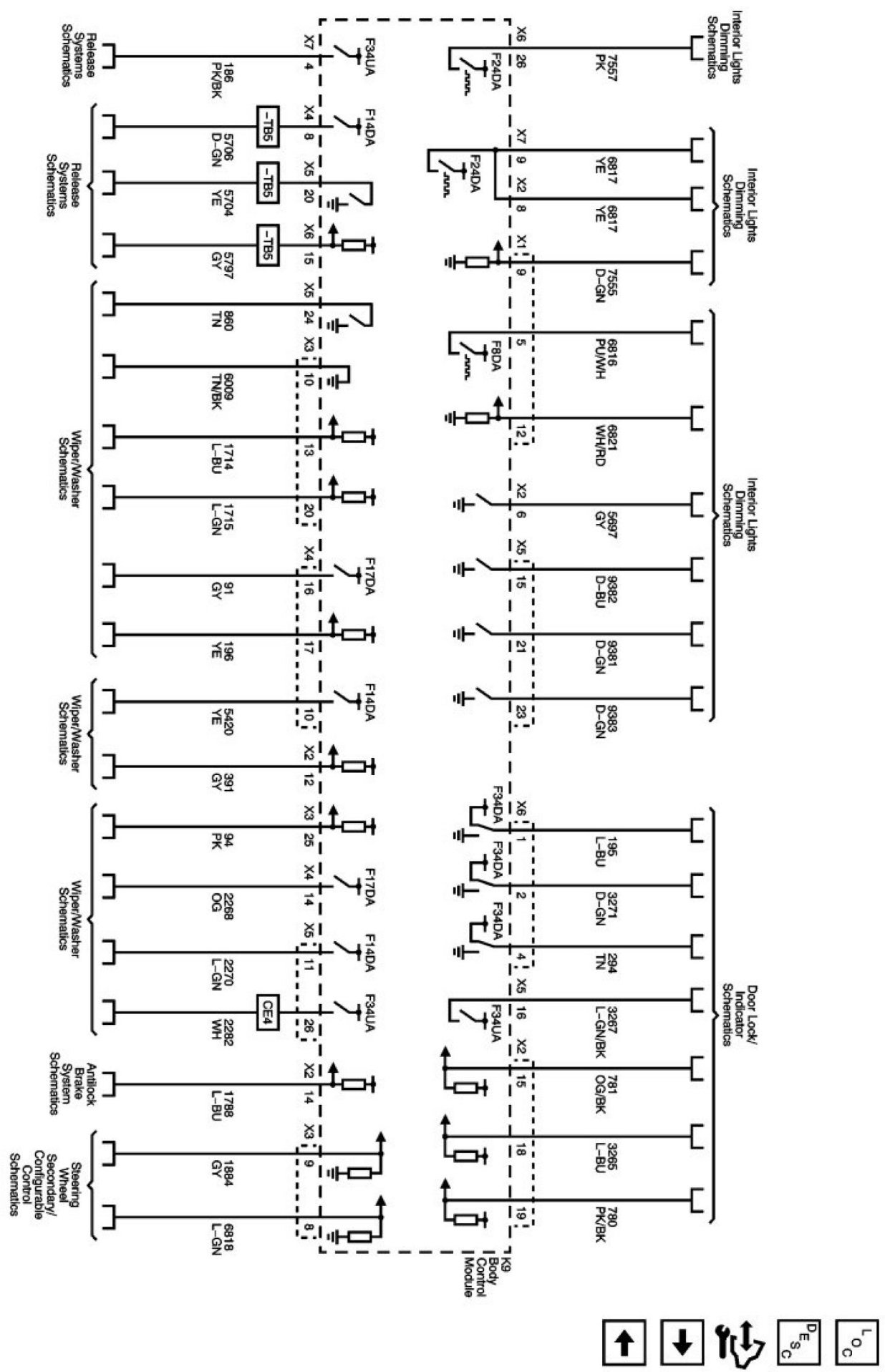

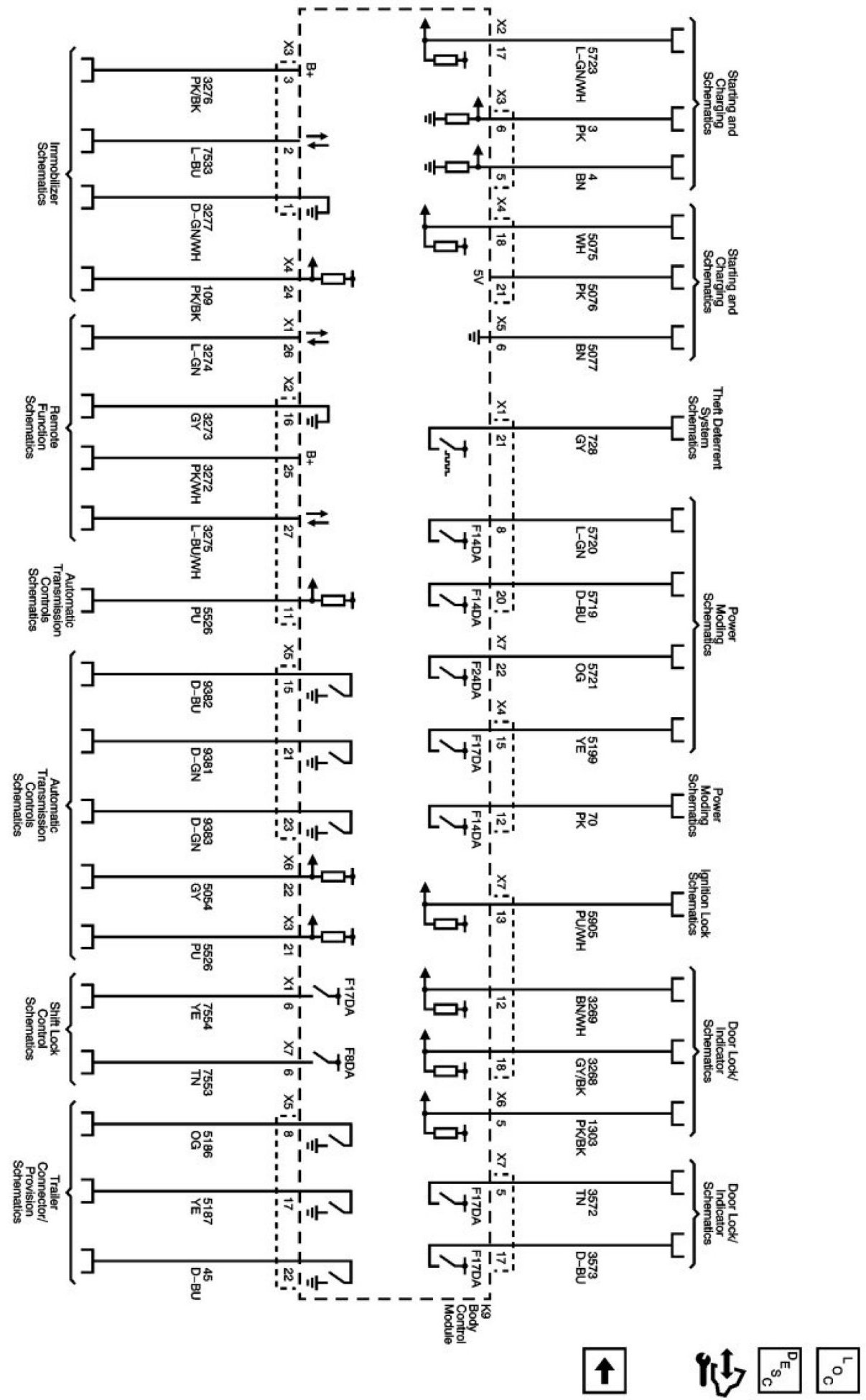

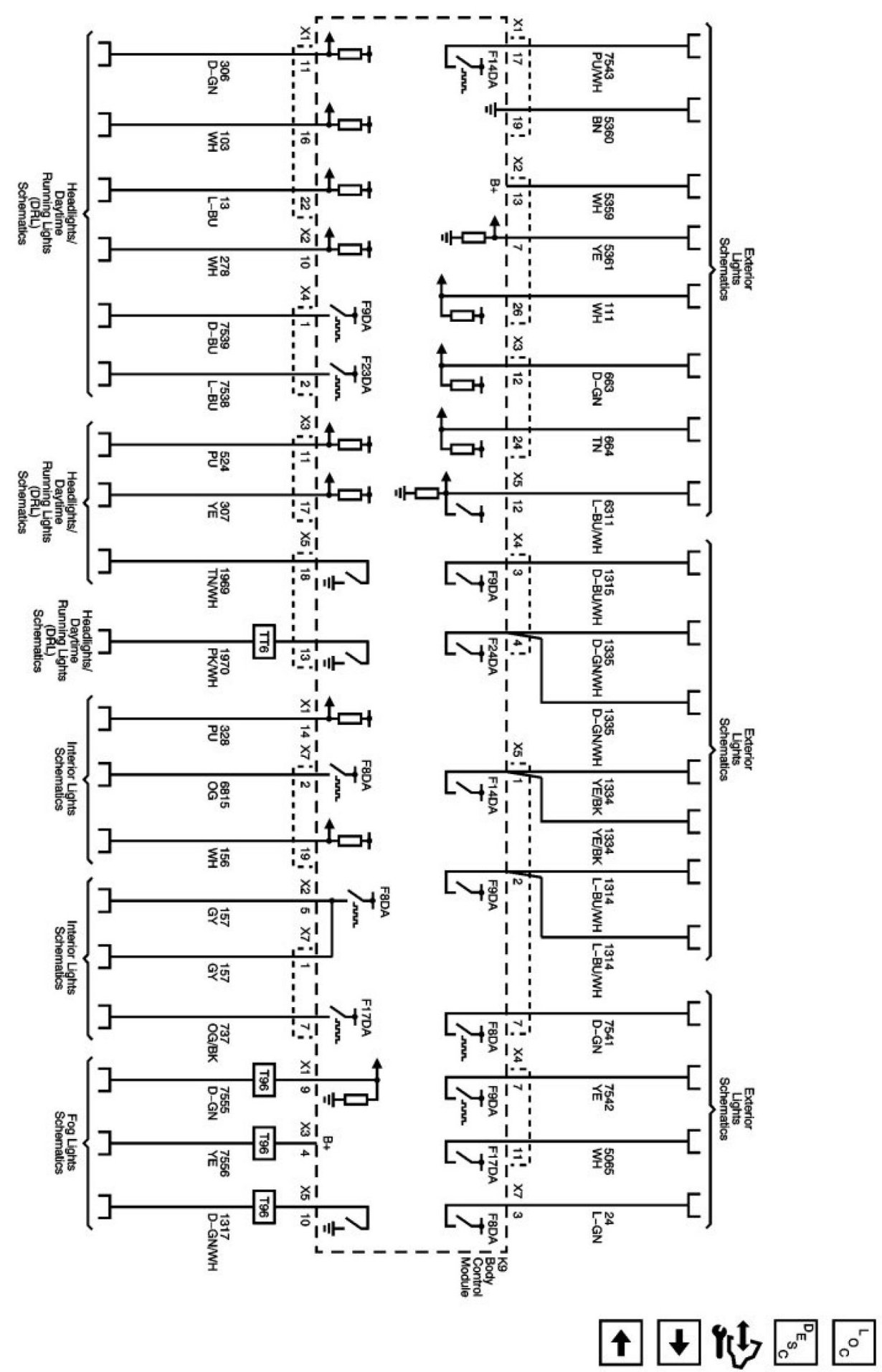

Body Control System SchematicsModule Power, Grounds, and Subsystem References (1 of 4)Subsystem References (2 of 4)Subsystem References (3 of 4)Subsystem References (4 of 4)Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) ) can be found at Power and Ground Distribution diagrams.
Electrical Diagrams
