Information Bus

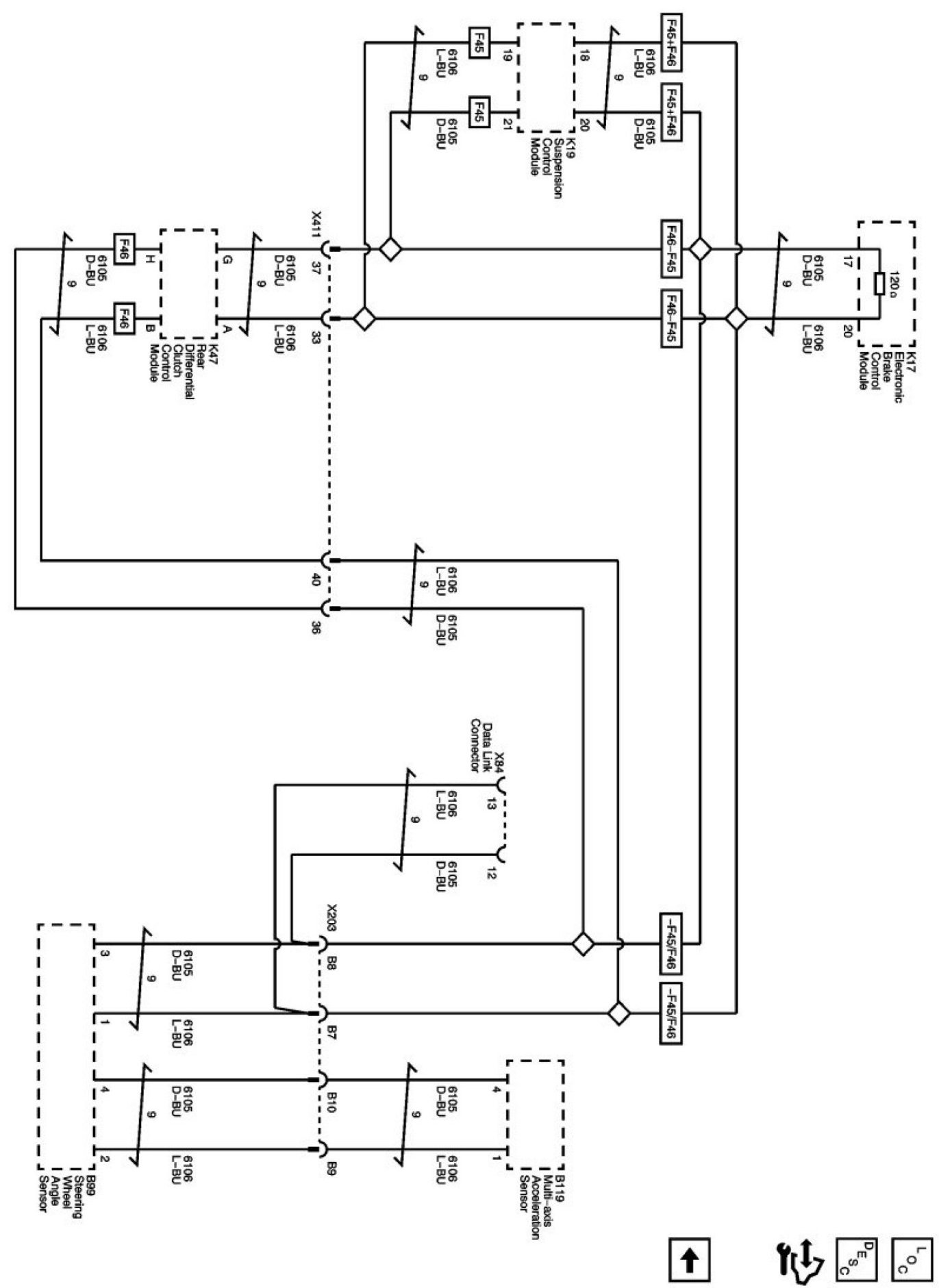

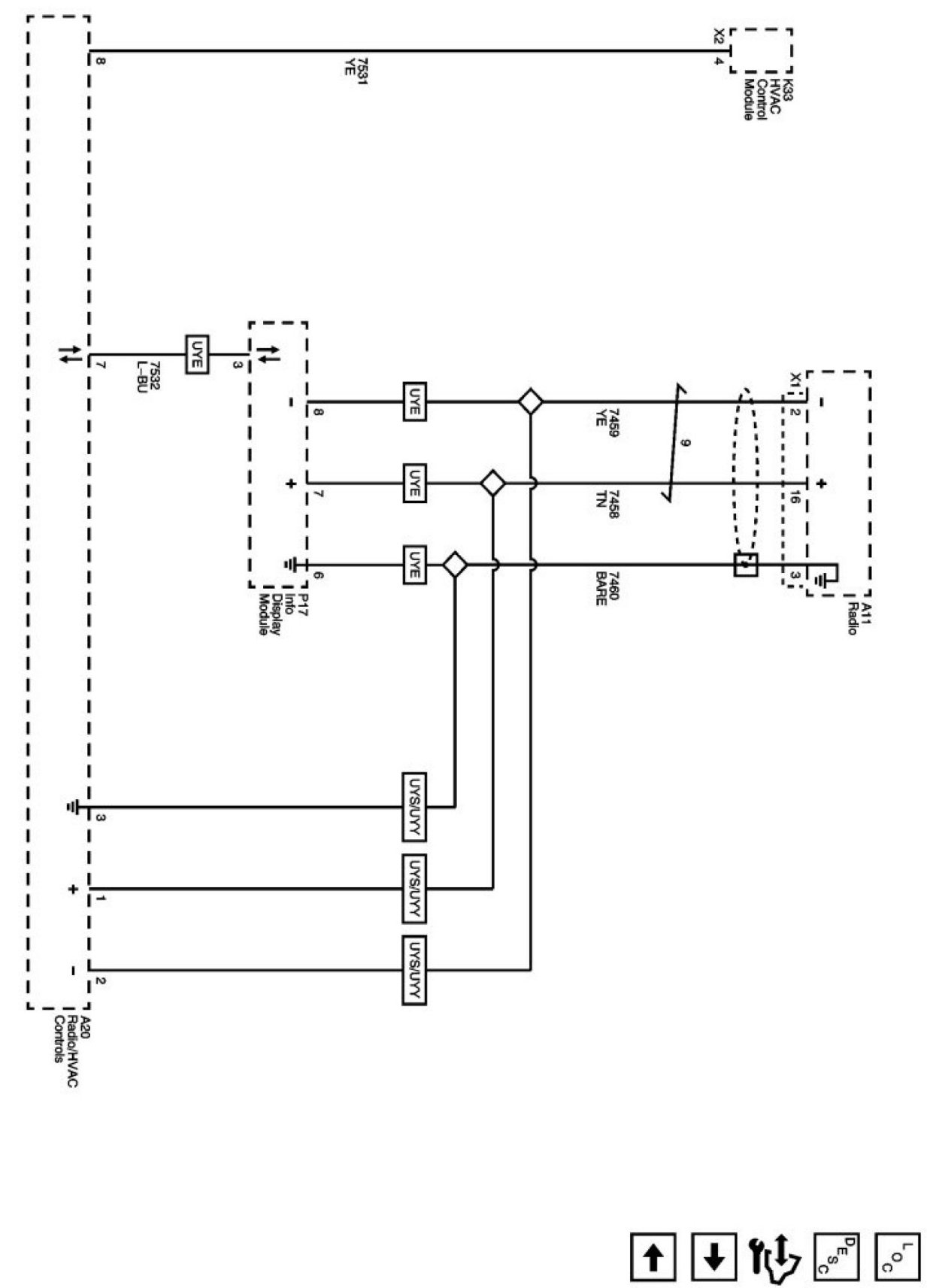

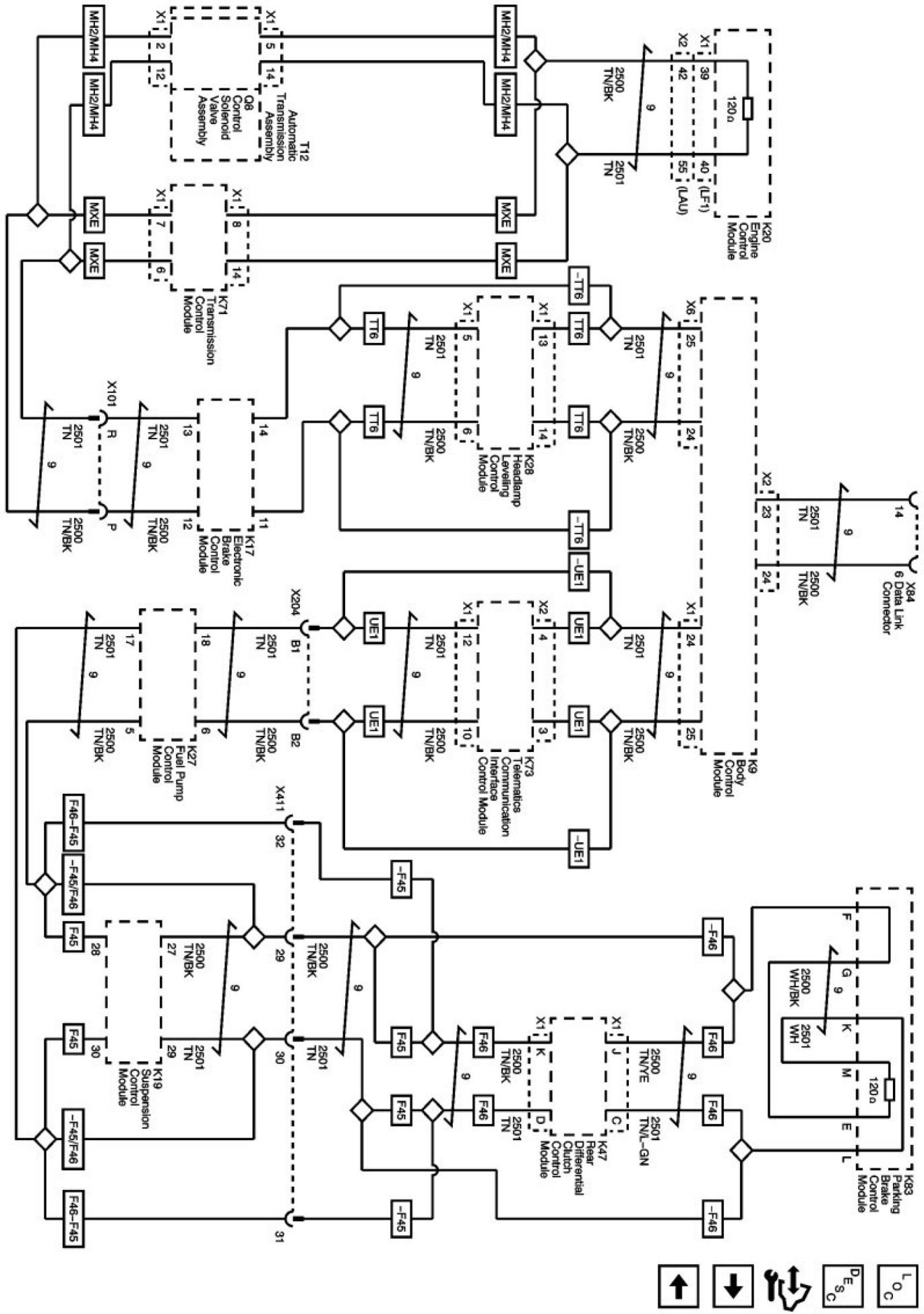

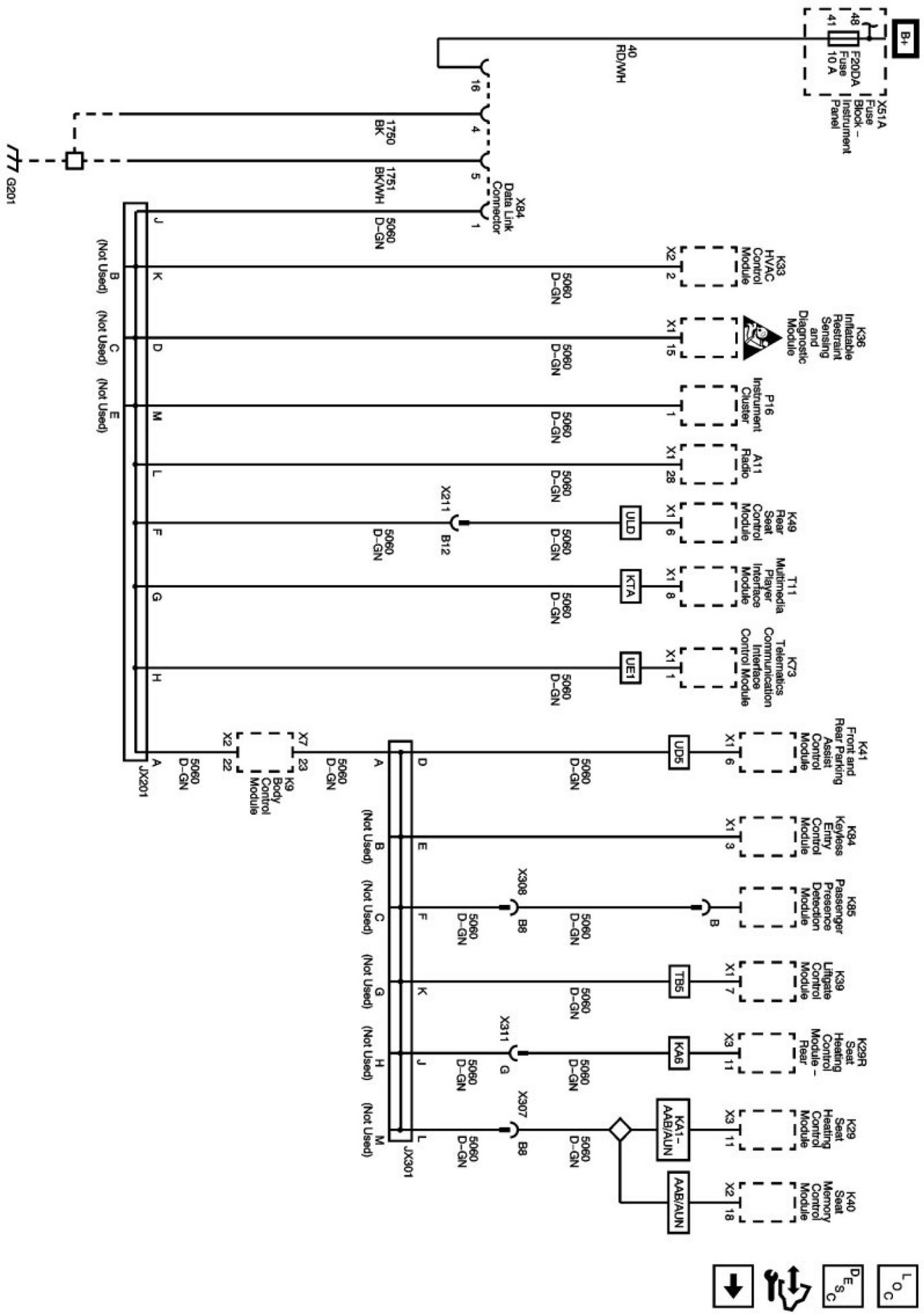

Data Communication SchematicsLow Speed GMLANHigh Speed GMLANEnable Serial DataLinear Interconnect Network BusesRadio/HVAC Linear Interconnect Network Bus and CAN Graphical InterfaceChassis Expansion BusPower Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) ) can be found at Power and Ground Distribution diagrams.
Electrical Diagrams
