Bushing, Bearing, and Washer Locations

Bushing, Bearing, and Washer Locations

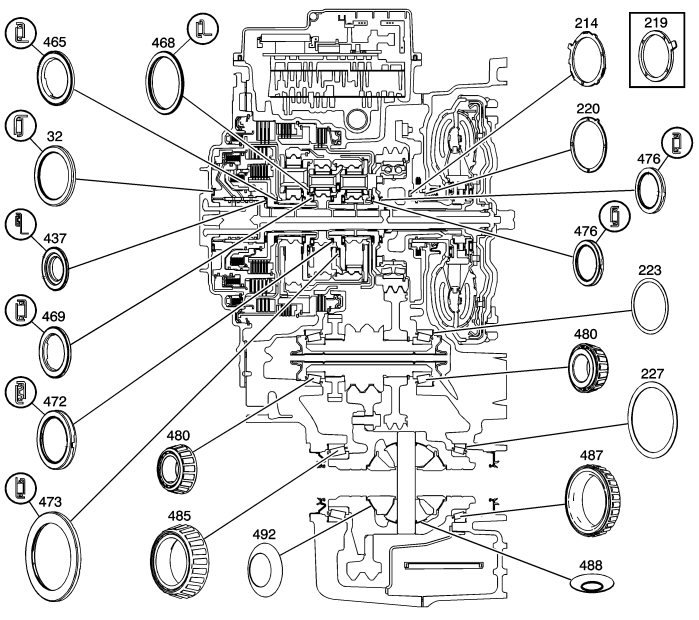

Bushing and Bearing Locations





(32) Input Shaft Thrust Bearing Assembly
(214) Drive Sprocket Thrust Washer
(219) Drive Sprocket Thrust Washer
(220) Drive Sprocket Thrust Washer
(223) Front Differential Drive Pinion Gear Bearing Thrust Washer
(227) Front Differential Bearing Thrust Washer
(437) 4-5-6 Clutch Hub Thrust Bearing Assembly
(465) 2-6 Clutch Hub Thrust Bearing
(468) Input Carrier Thrust Bearing Assembly
(469) Input Sun Gear Thrust Bearing Assembly
(472) Output Carrier Thrust Bearing Assembly
(473) Output Carrier Thrust Bearing Assembly
(476) Front Differential Transfer Drive Gear Input Hub Bearing Assembly
(480) Front Differential Drive Pinion Gear Bearing Assembly
(485) Front Differential Carrier Bearing Assembly
(487) Front Differential Carrier Bearing Assembly
(488) Front Differential Carrier Thrust Washer
(492) Front Differential Side Gear Thrust Washer
