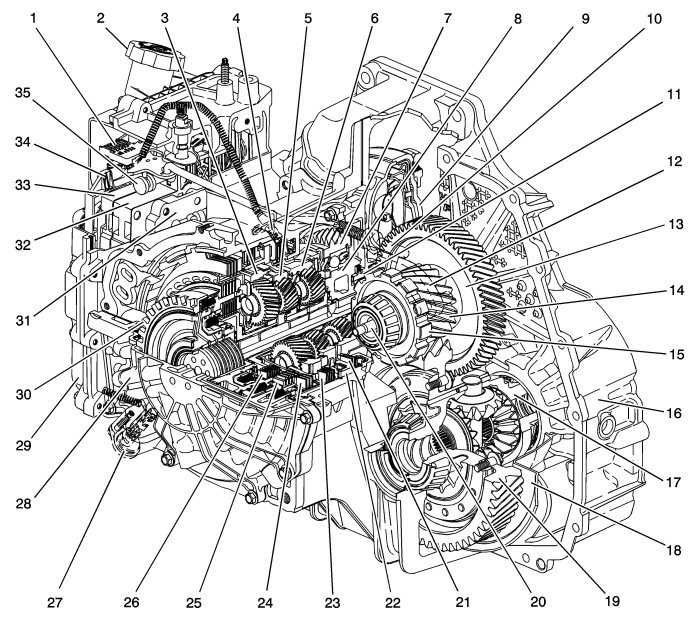

Component Location

Component Location

Component Location





(1) Manual Shift Detent Lever Assembly (w/Shaft Position Switch)
(2) Transmission Fluid Level Indicator Assembly
(3) Reaction Carrier Assembly
(4) Output Speed Sensor
(5) Input Carrier Assembly
(6) Output Carrier Assembly
(7) Front Differential Transfer Drive Gear
(8) Front Differential Transfer Drive Gear Support Assembly
(9) Torque Converter Assembly
(10) Park Pawl Actuator Assembly
(11) Fluid Pump Drive Link Assembly
(12) Park Pawl
(13) Front Differential Transfer Driven Gear
(14) Front Differential Drive Pinion Gear
(15) Park Gear
(16) Torque Converter and Support and Fluid Pump Housing Assembly
(17) Front Differential Carrier Assembly
(18) Front Differential Carrier Baffle
(19) Front Differential Ring Gear
(20) Front Differential Drive Pinion Gear Lube Tube
(21) 1-2-3-4 Clutch Assembly
(22) Low and Reverse Clutch Assembly (OWC)
(23) Low and Reverse Clutch
(24) 2-6 Clutch Assembly
(25) 3-5-Reverse Clutch Assembly
(26) 4-5-6 Clutch Assembly
(27) Input Speed Sensor
(28) Case Cover Assembly
(29) Control Valve Body Cover
(30) Input Shaft Speed Sensor Reluctor Wheel
(31) Control Valve Lower Body Assembly
(32) Control Valve Upper Body Assembly
(33) Control Valve Channel Plate Assembly
(34) Control Solenoid Valve Assembly (w/Body and TCM)
(35) Manual Valve
