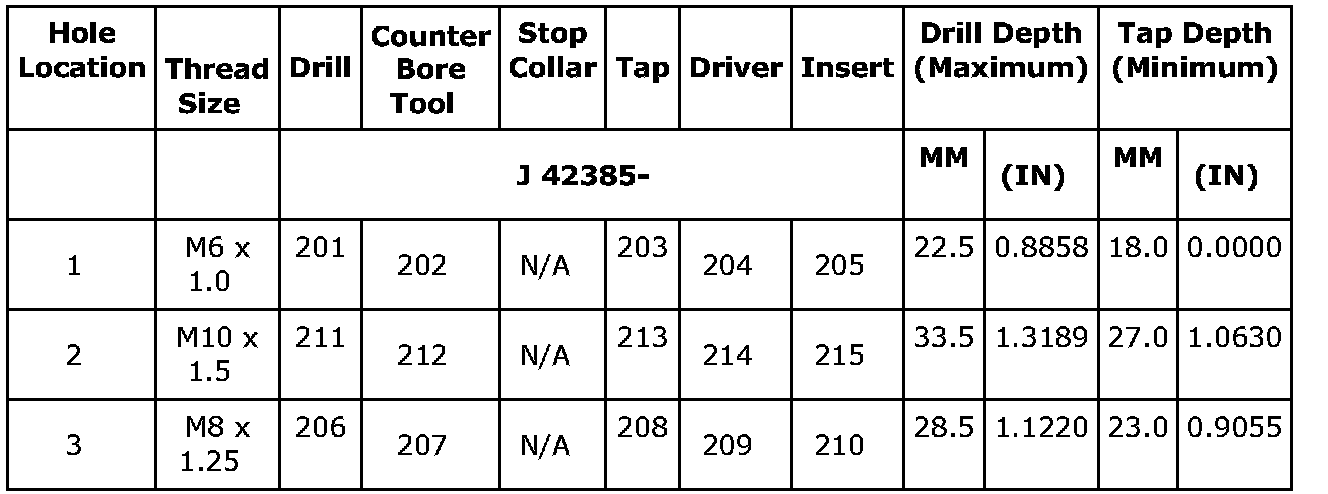

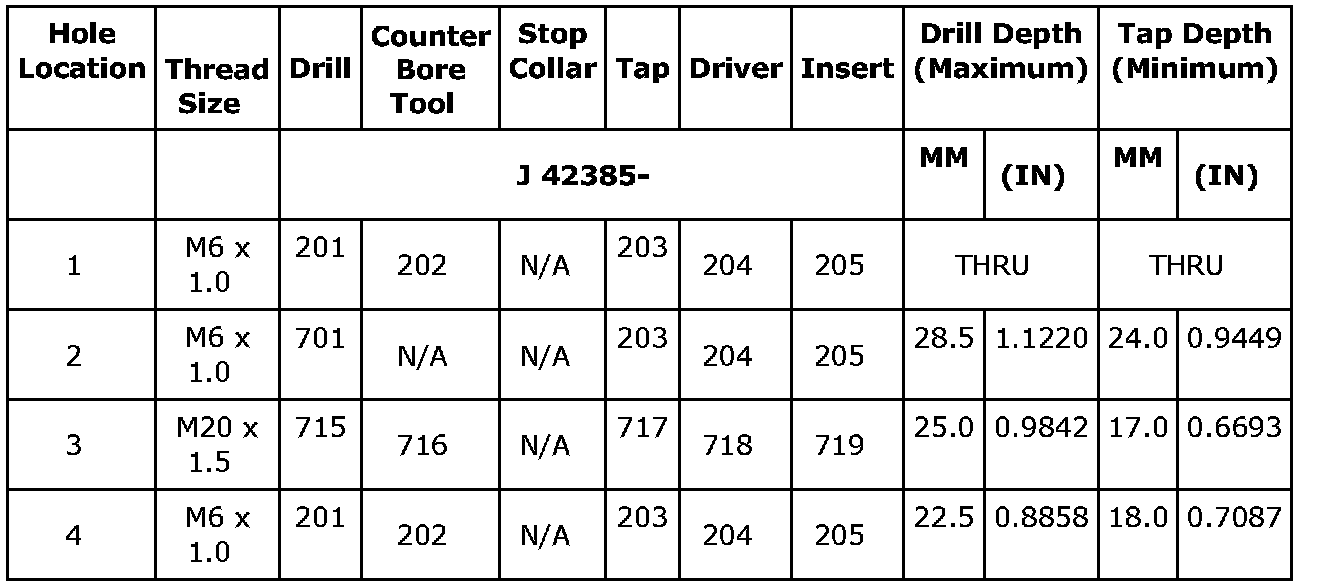

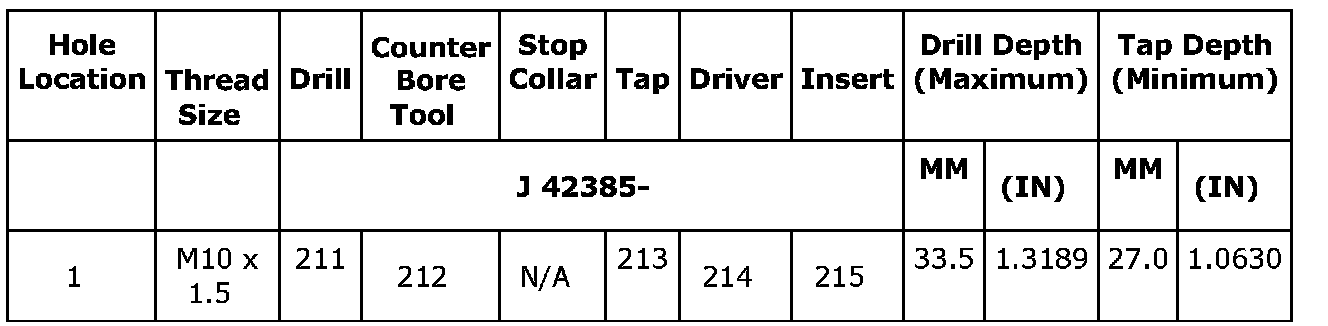

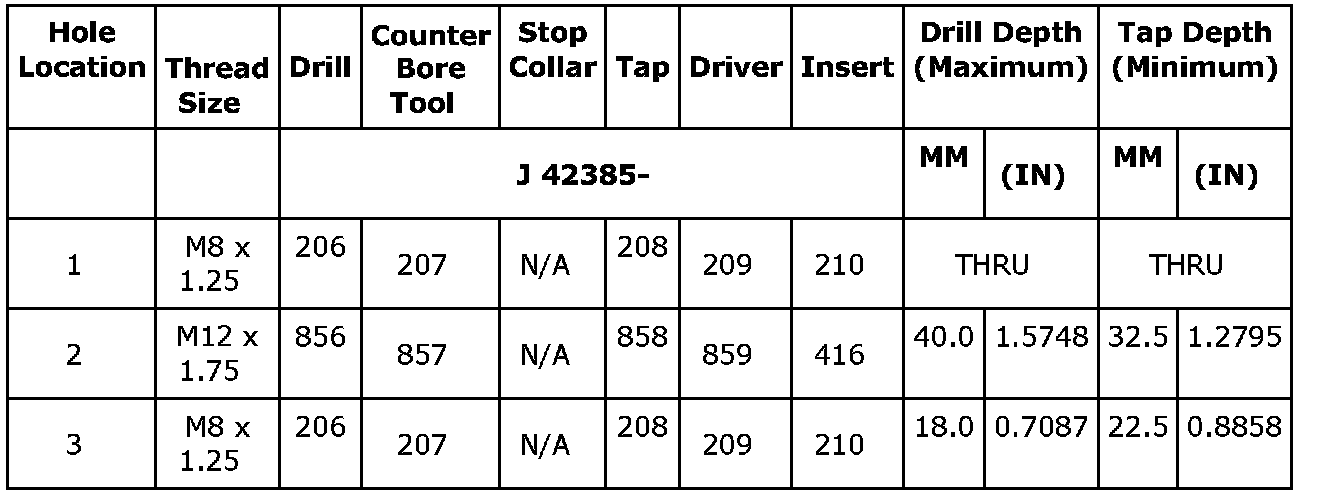

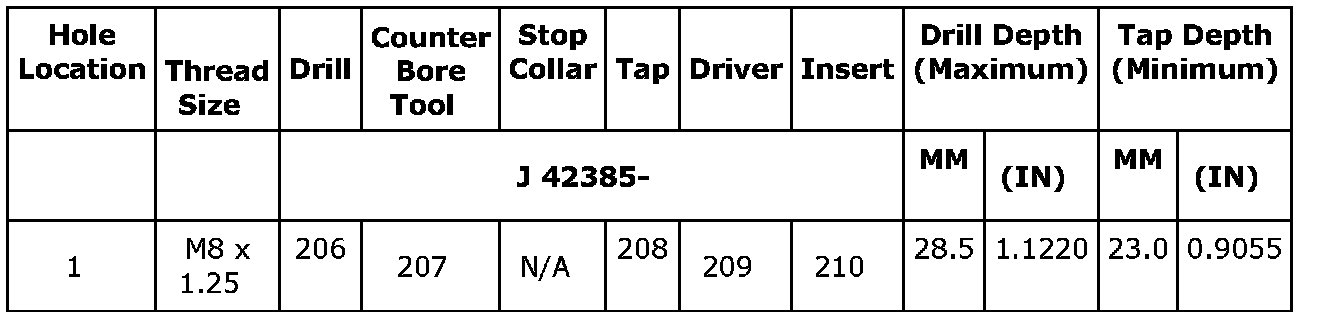

Thread Repair Specifications

Thread Repair Specifications

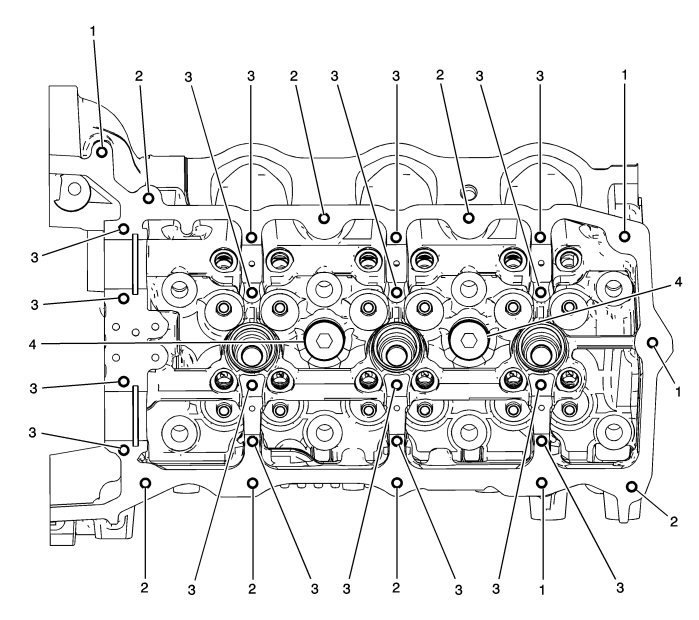

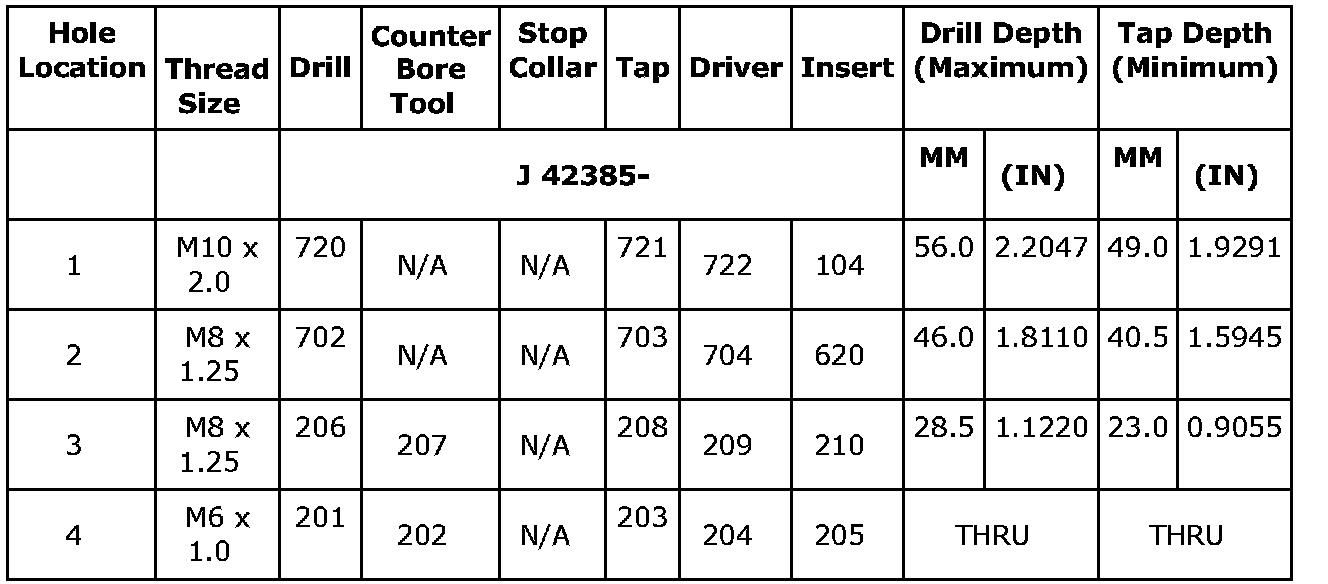

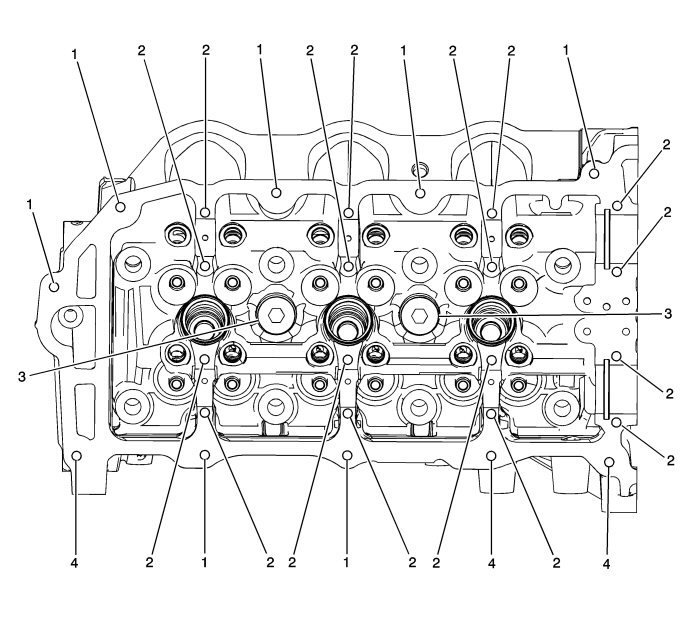

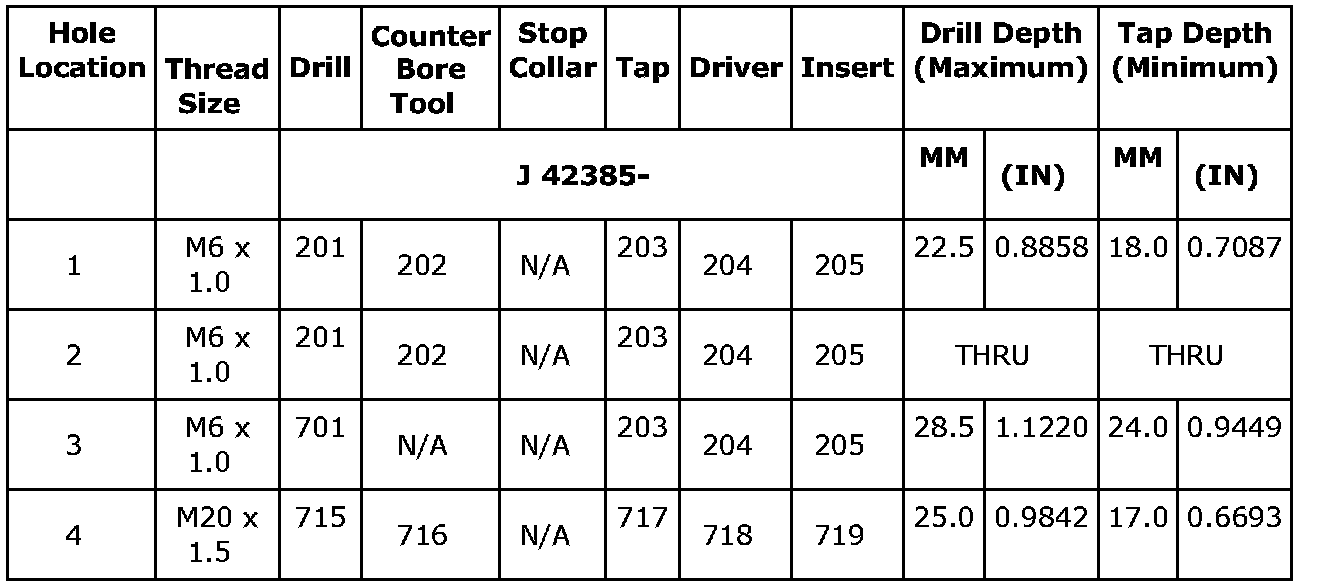

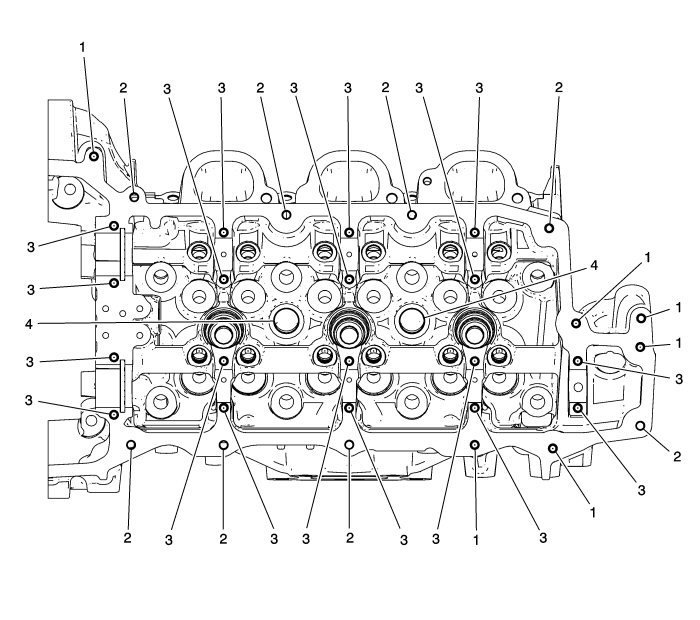

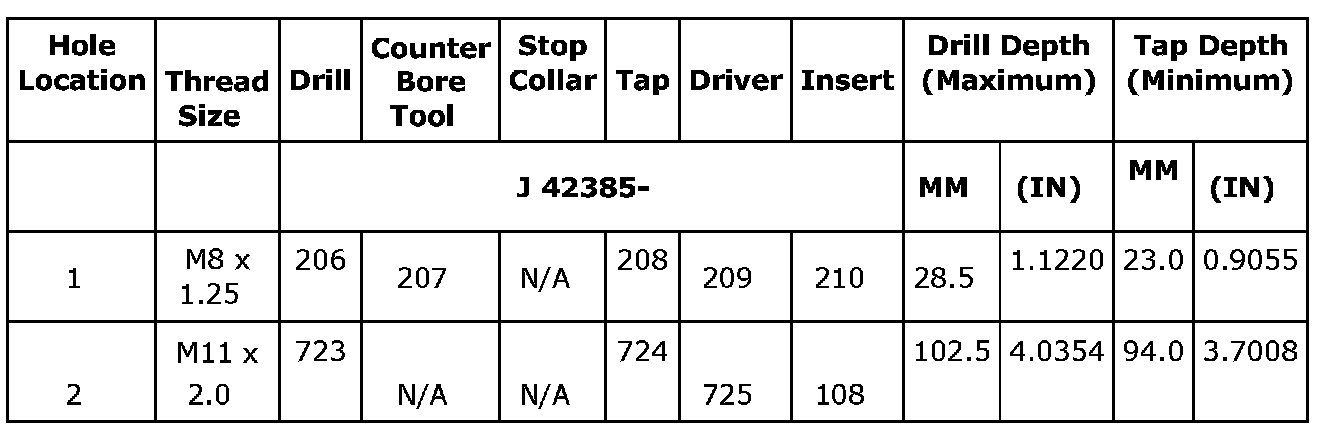

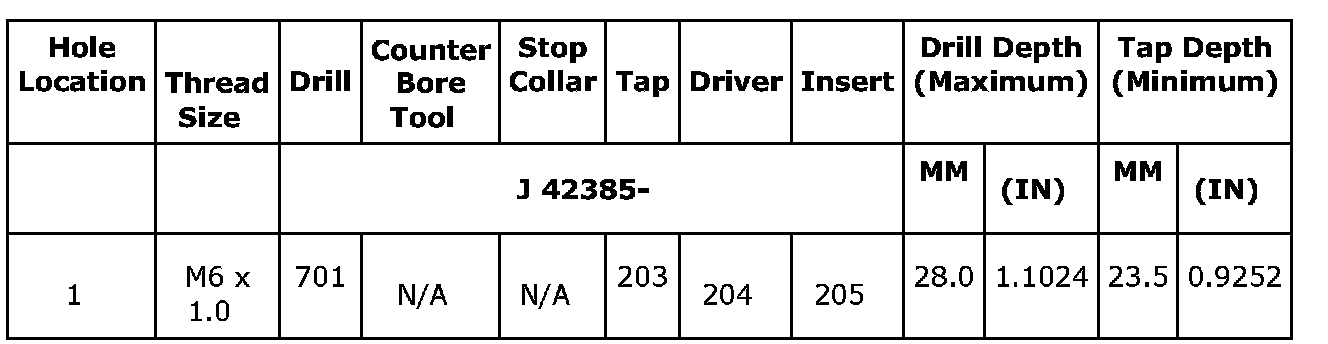

Left Cylinder Head Camshaft Cover Face (LAU or LBW)





Left Cylinder Head Camshaft Cover Face (LAU or LBW)





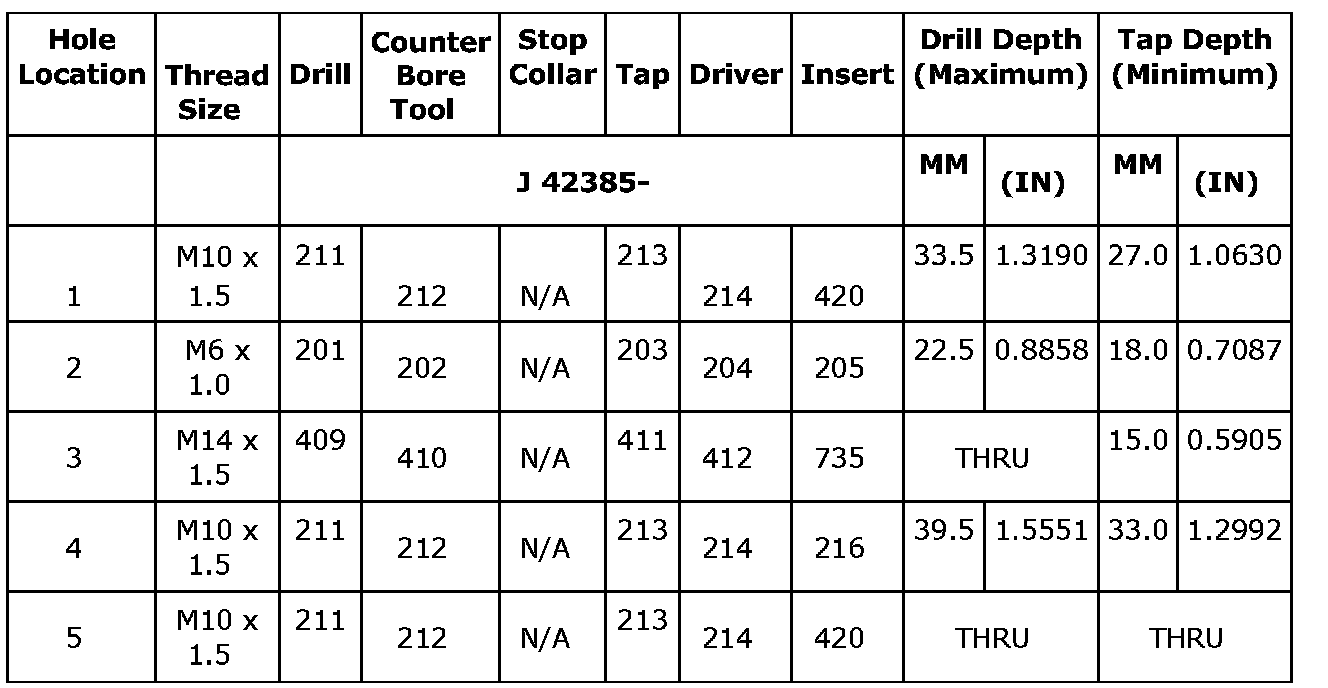

Left Cylinder Head Camshaft Cover Face (LF1)





Left Cylinder Head Camshaft Cover Face (LF1)





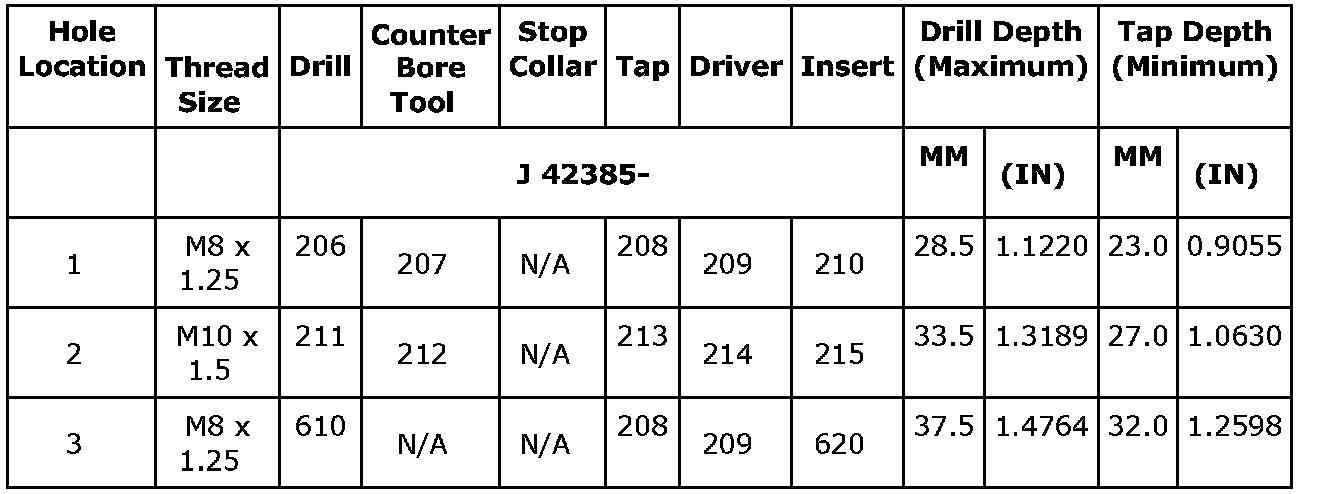

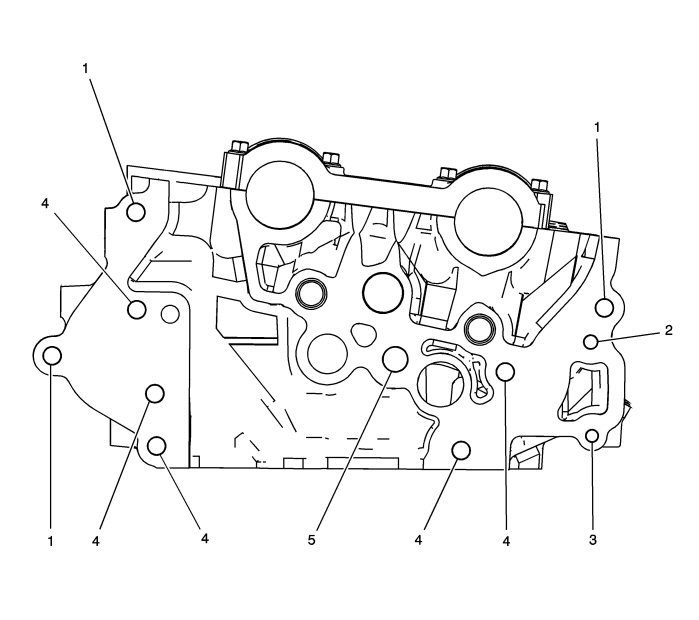

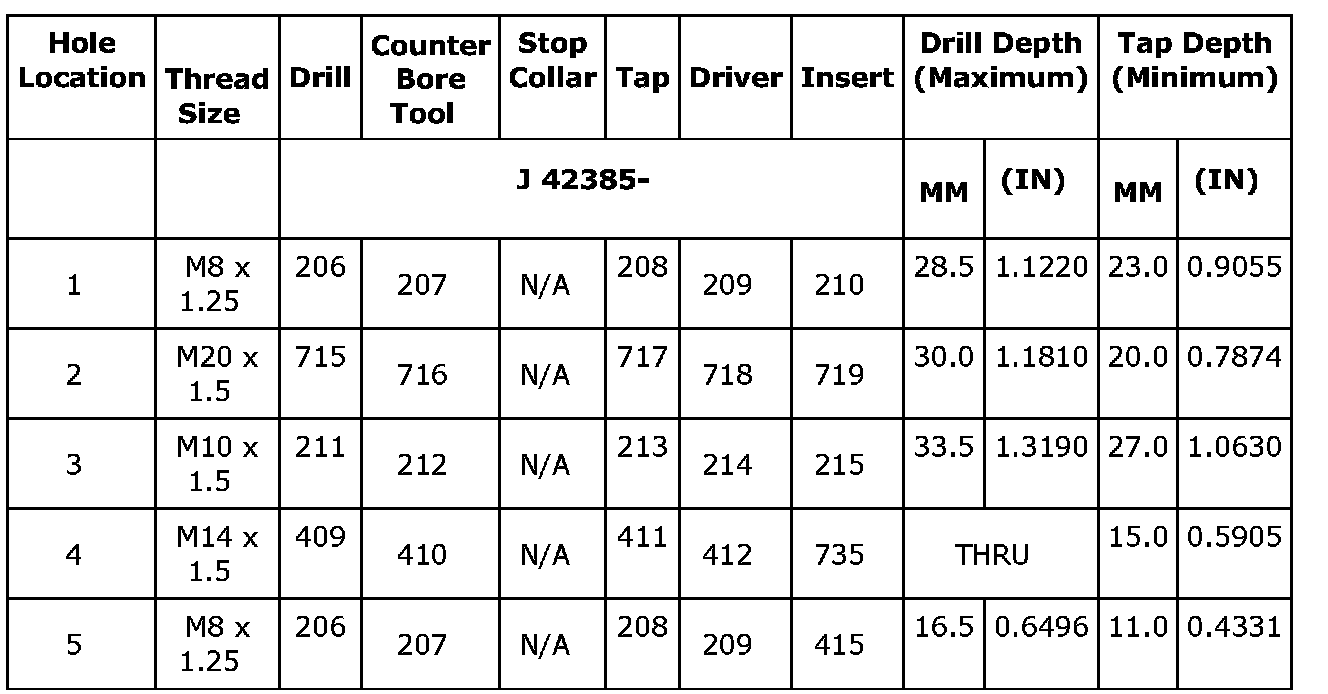

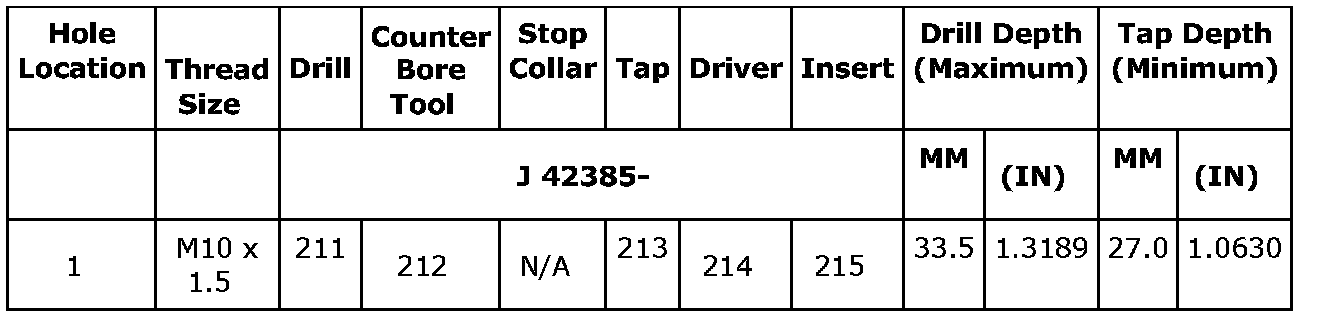

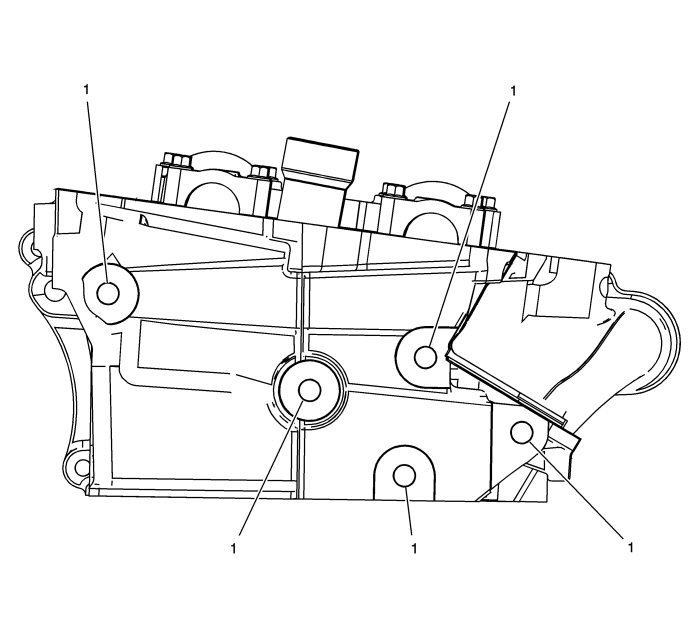

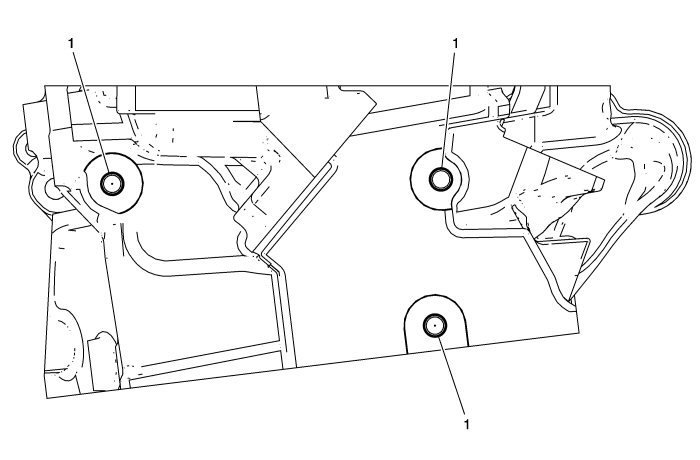

Left Cylinder Head Front Face





Left Cylinder Head Front Face

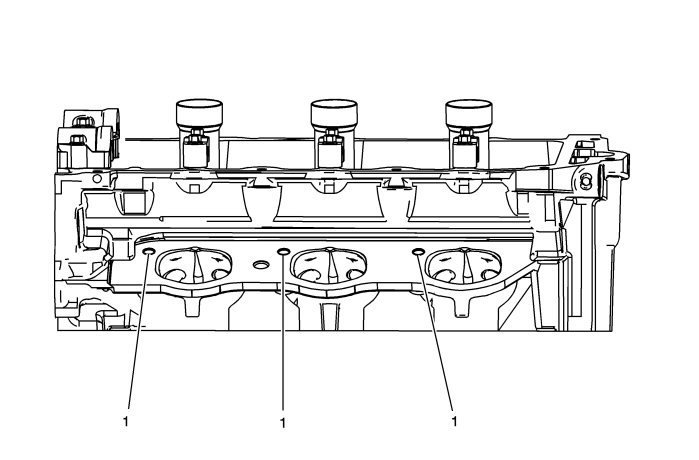

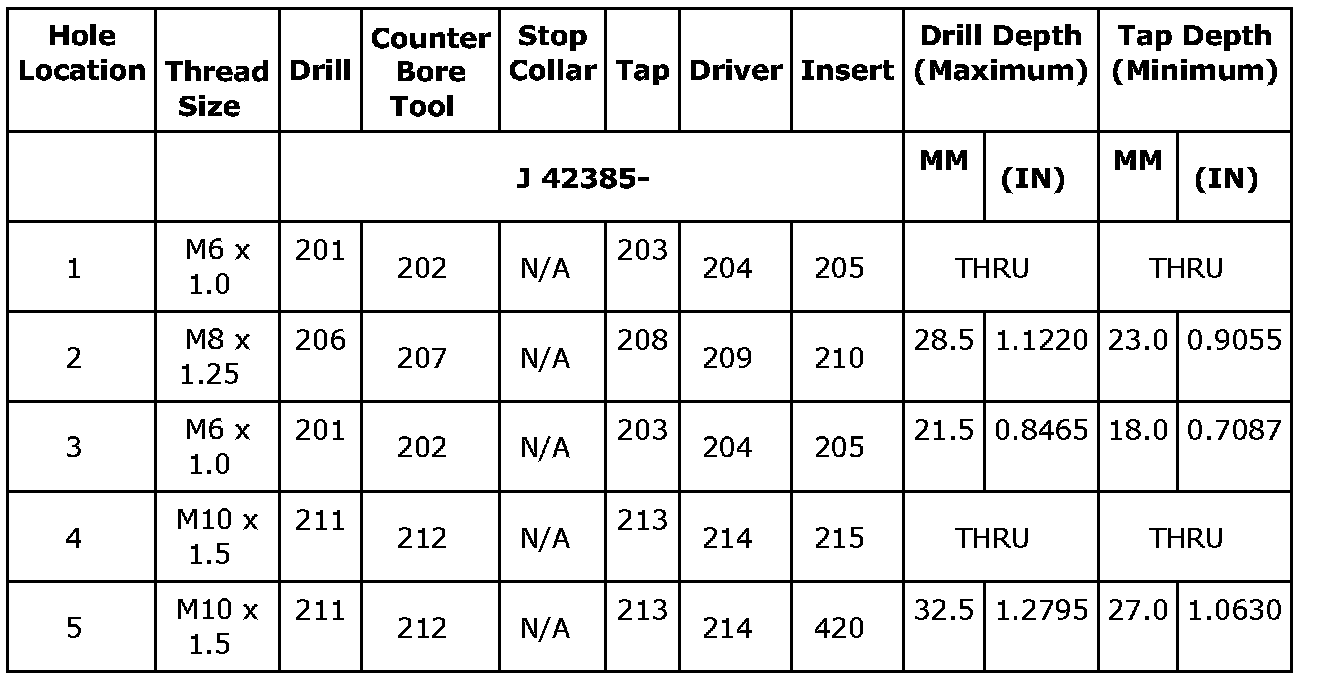

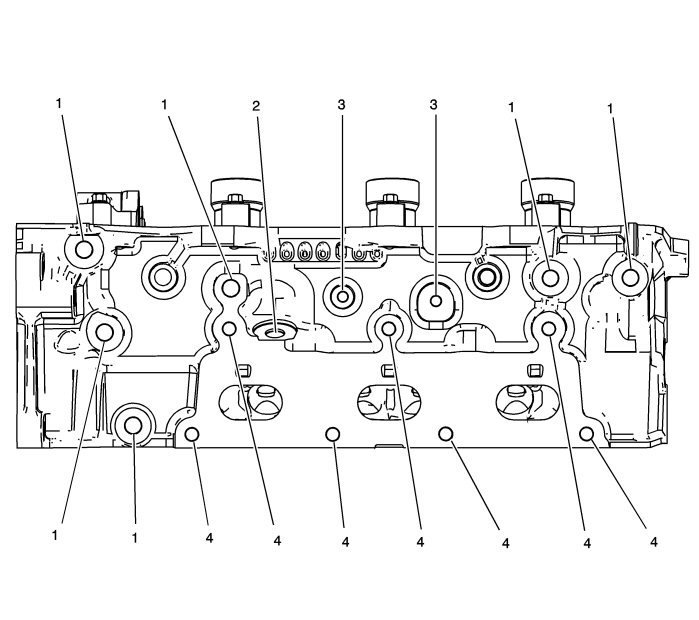

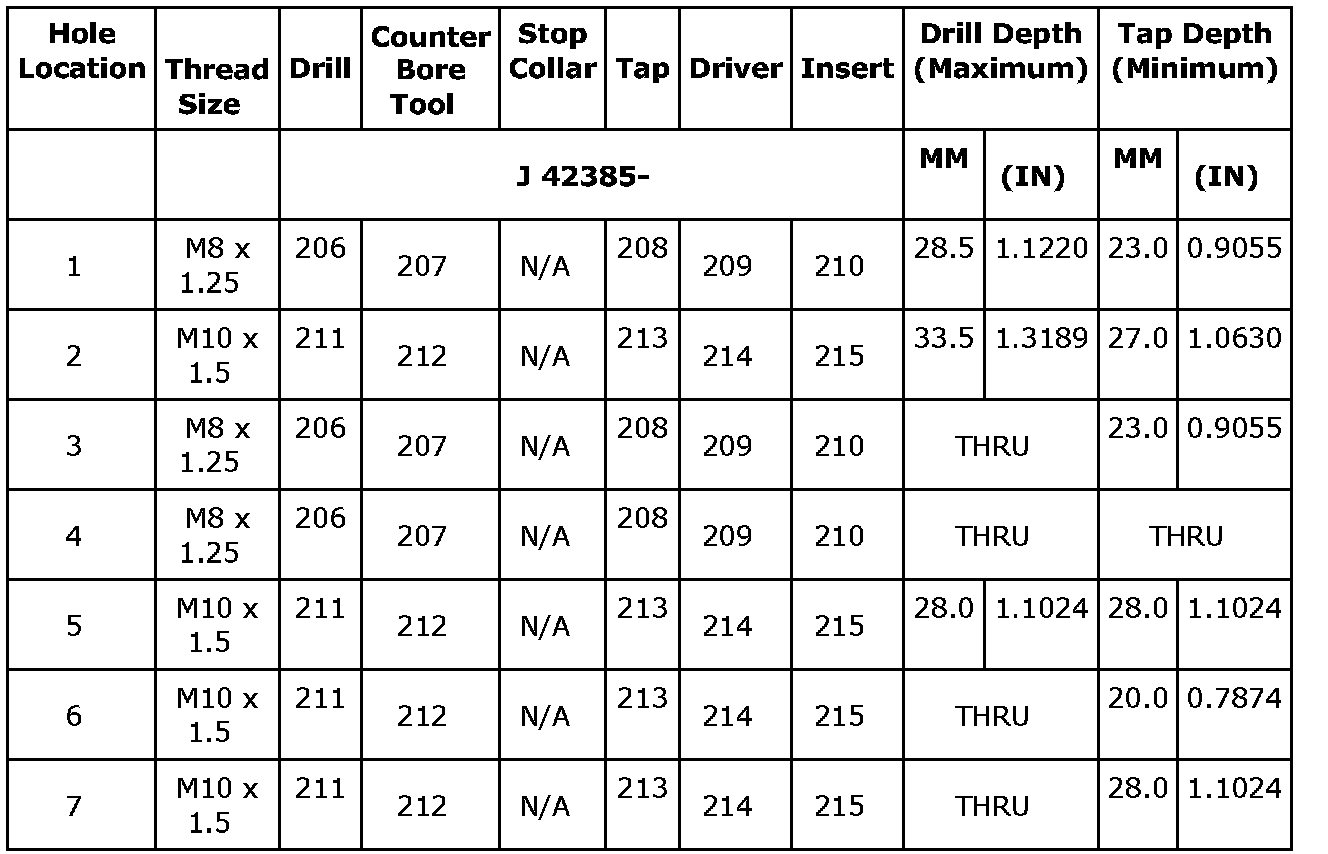

Left Cylinder Head Intake Face (LAU or LBW)





Left Cylinder Head Intake Face (LAU or LBW)





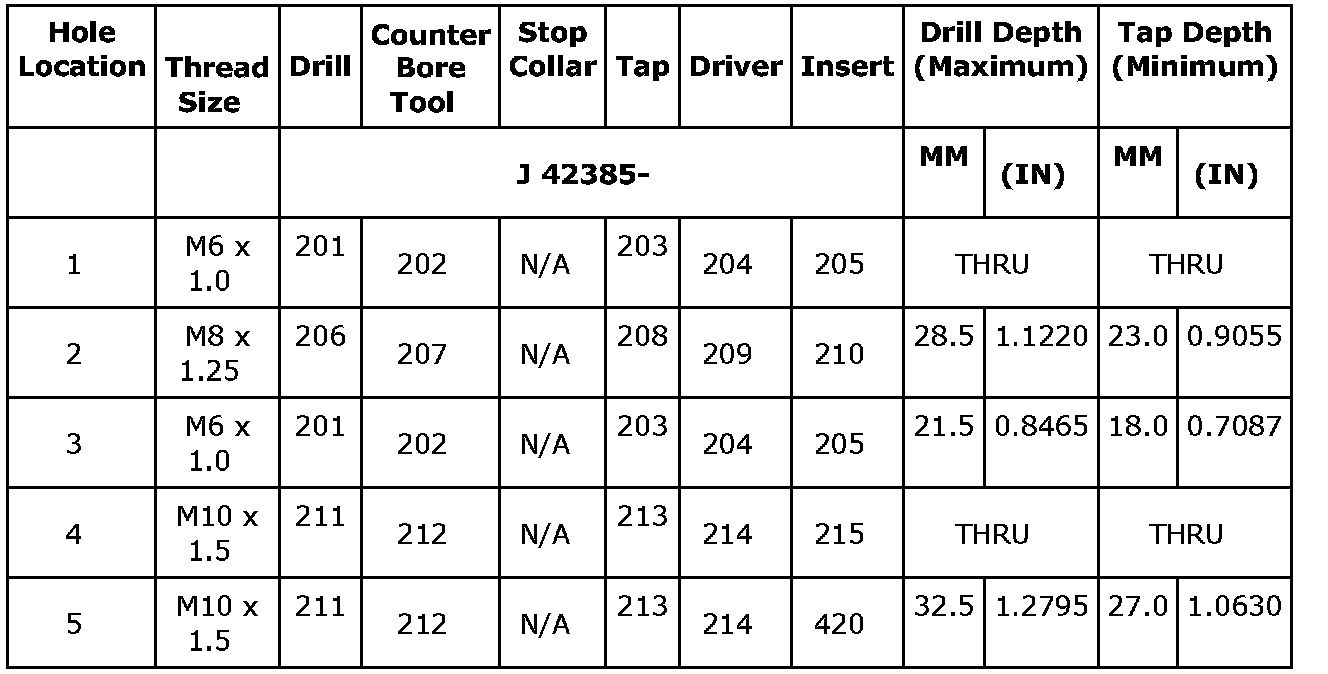

Left Cylinder Head Intake Face (LF1)





Left Cylinder Head Intake Face (LF1)

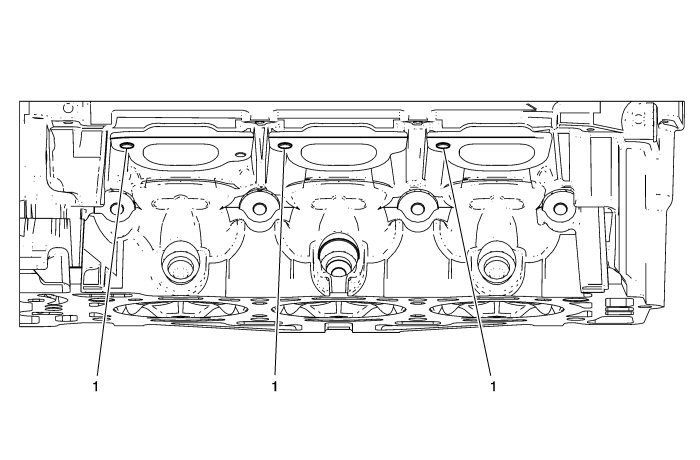

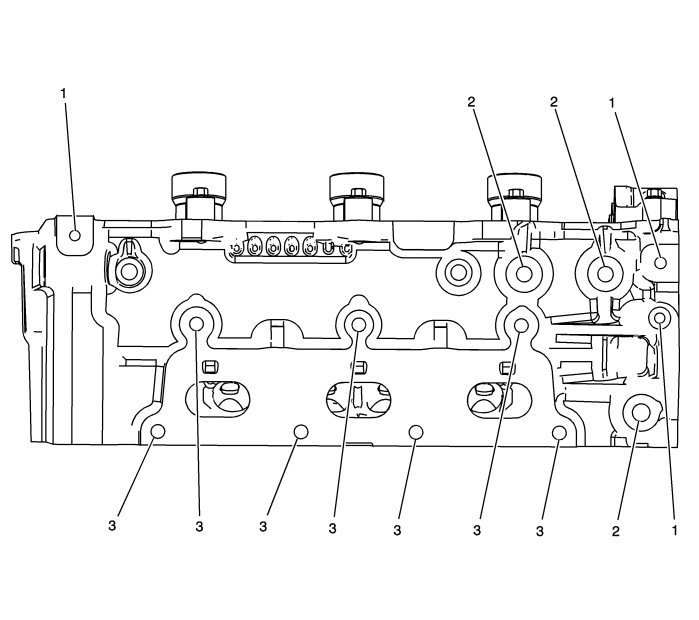

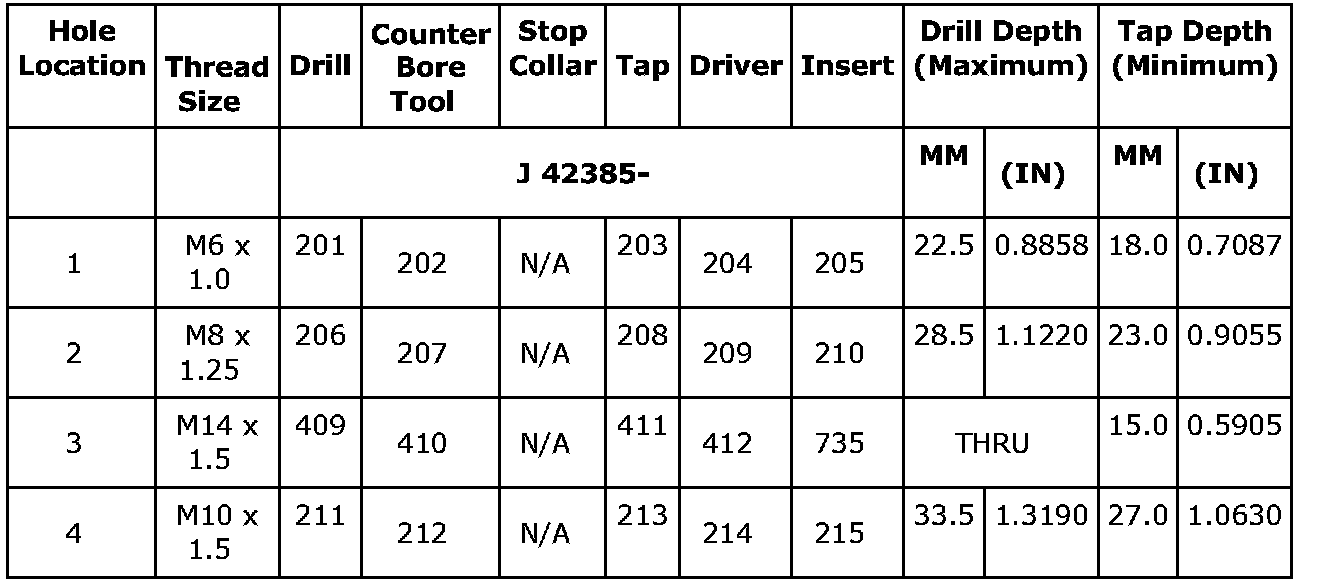

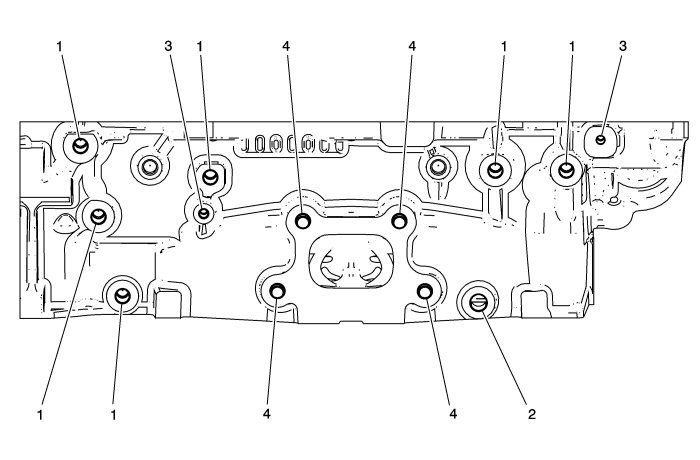

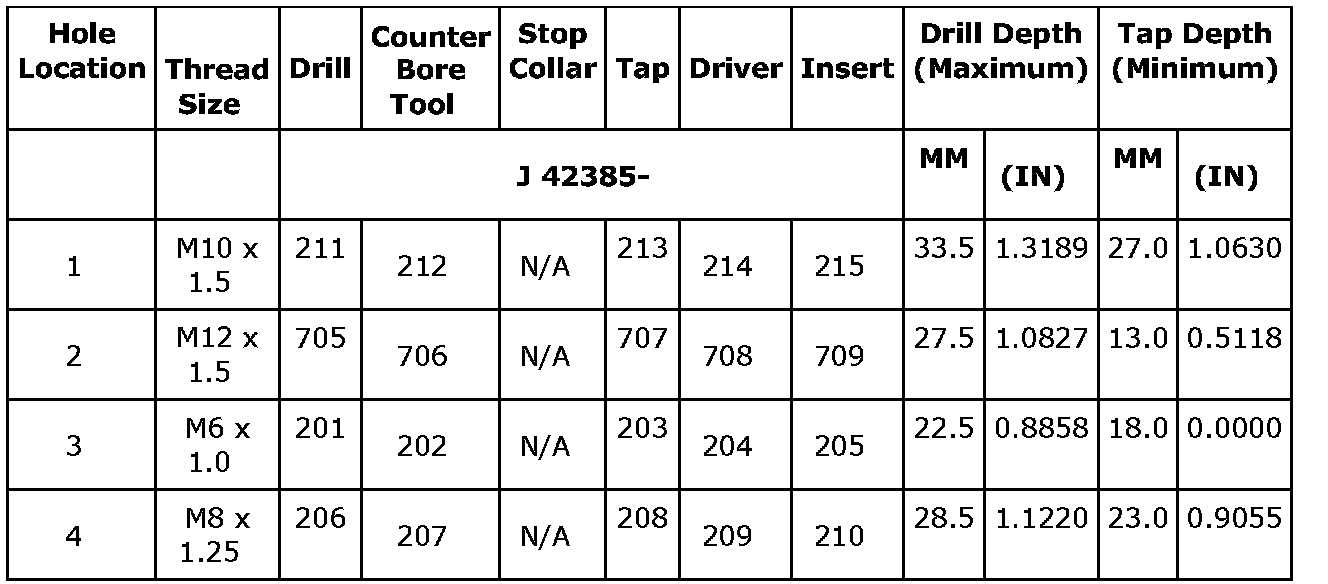

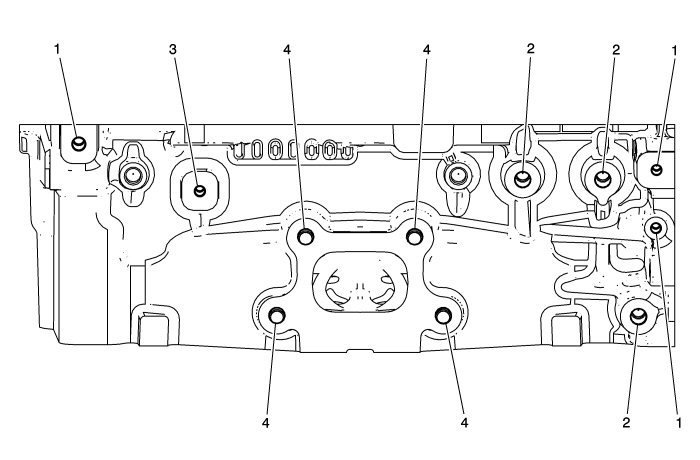

Left Cylinder Head Exhaust Face (LAU or LBW)





Left Cylinder Head Exhaust Face (LAU or LBW)





Left Cylinder Head Exhaust Face (LF1)





Left Cylinder Head Exhaust Face (LF1)





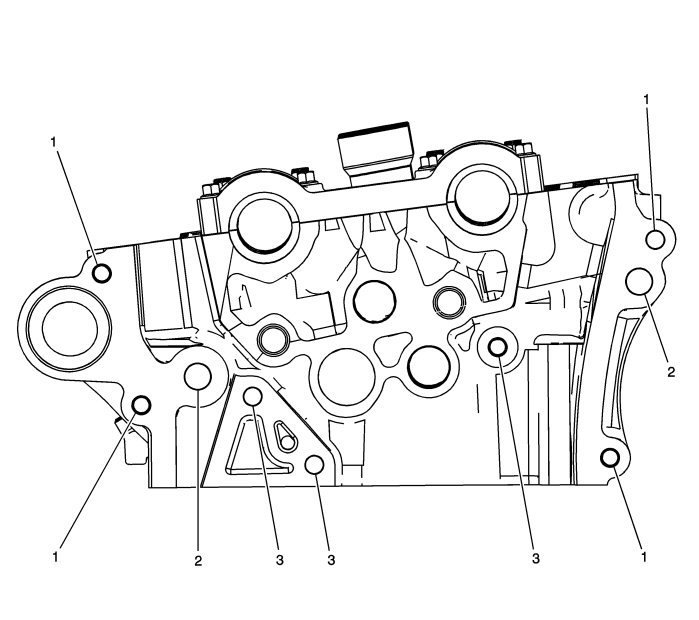

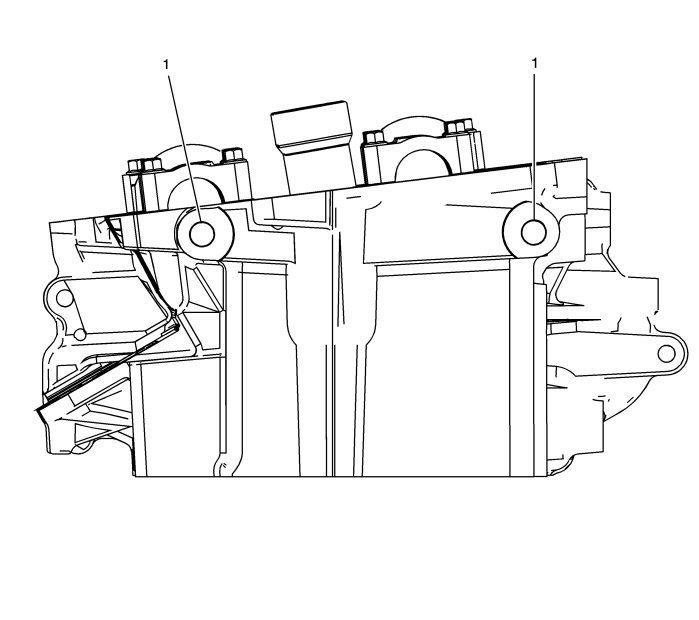

Left Cylinder Head Rear Face (LAU or LBW)





Left Cylinder Head Rear Face (LAU or LBW)





Left Cylinder Head Rear Face (LF1)





Left Cylinder Head Rear Face (LF1)





Right Cylinder Head Camshaft Cover Face





Right Cylinder Head Camshaft Cover Face





Right Cylinder Head Front Face





Right Cylinder Head Front Face

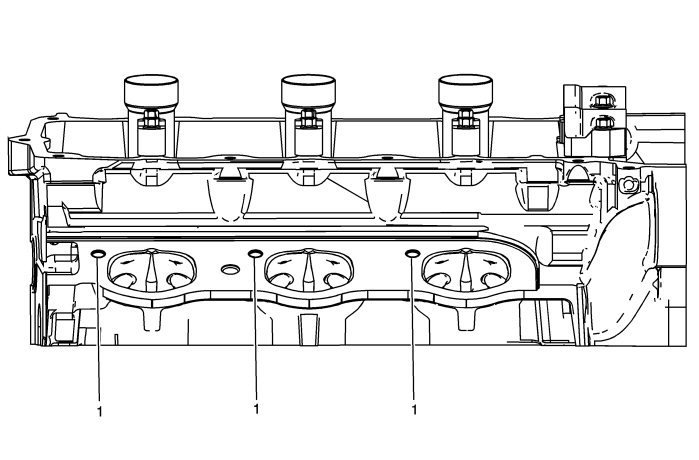

Right Cylinder Head Intake Face (LAU or LBW)





Right Cylinder Head Intake Face (LAU or LBW)





Right Cylinder Head Intake Face (LF1)





Right Cylinder Head Intake Face (LF1)

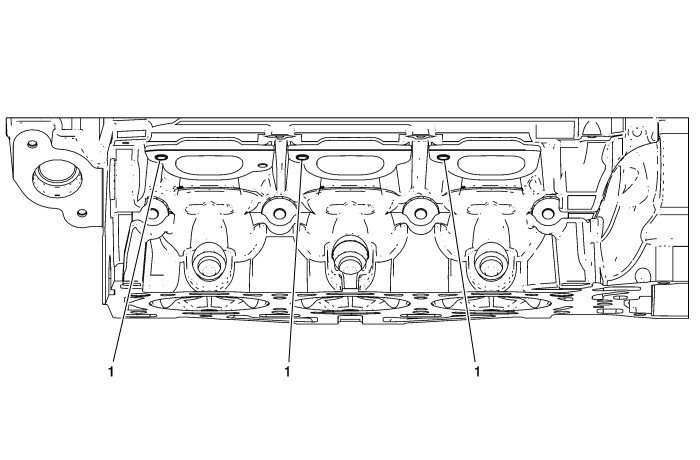

Right Cylinder Head Exhaust Face (LAU or LBW)





Right Cylinder Head Exhaust Face (LAU or LBW)





Right Cylinder Head Exhaust Face (LF1)





Right Cylinder Head Exhaust Face (LF1)





Right Cylinder Head Rear Face





Right Cylinder Head Rear Face

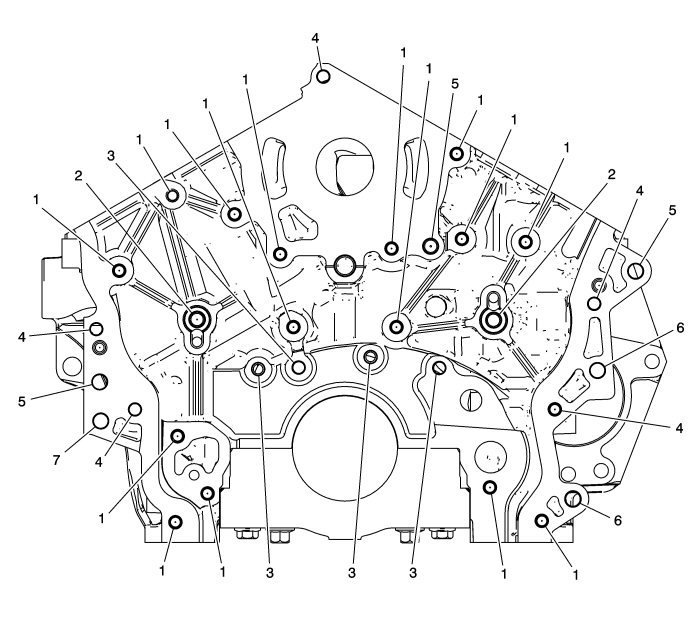

Engine Block Front





Engine Block Front

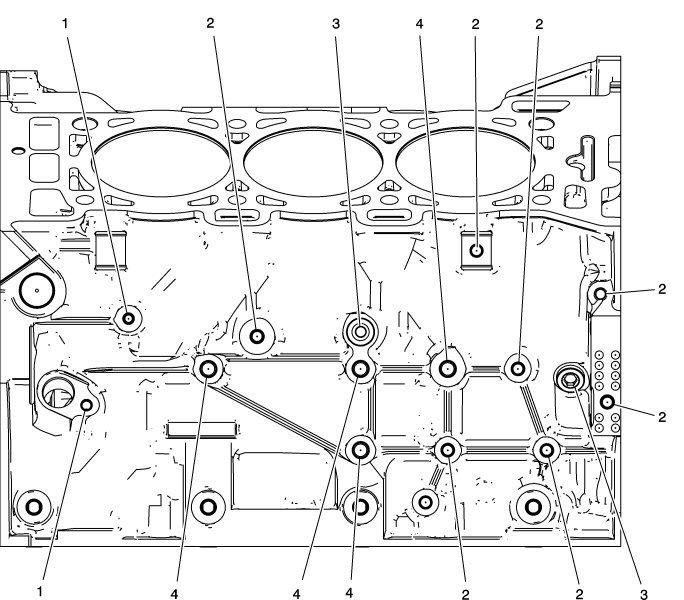

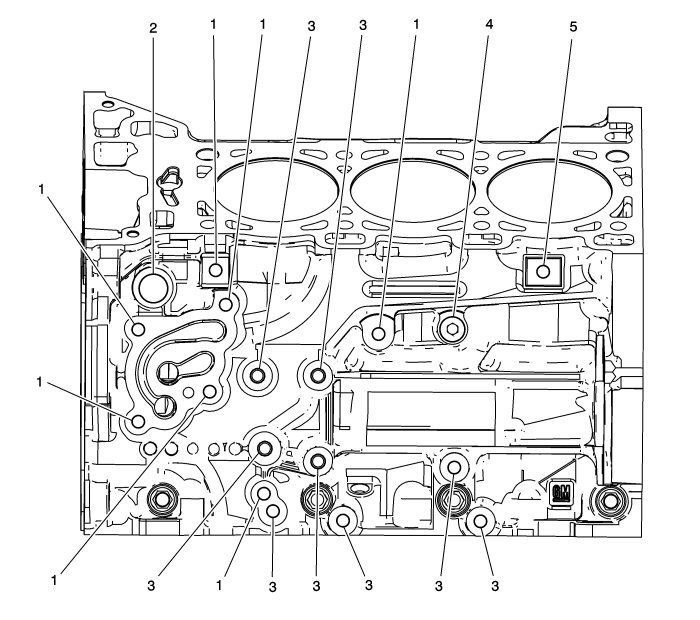

Engine Block Left Side





Engine Block Left Side





Engine Block Right Side





Engine Block Right Side





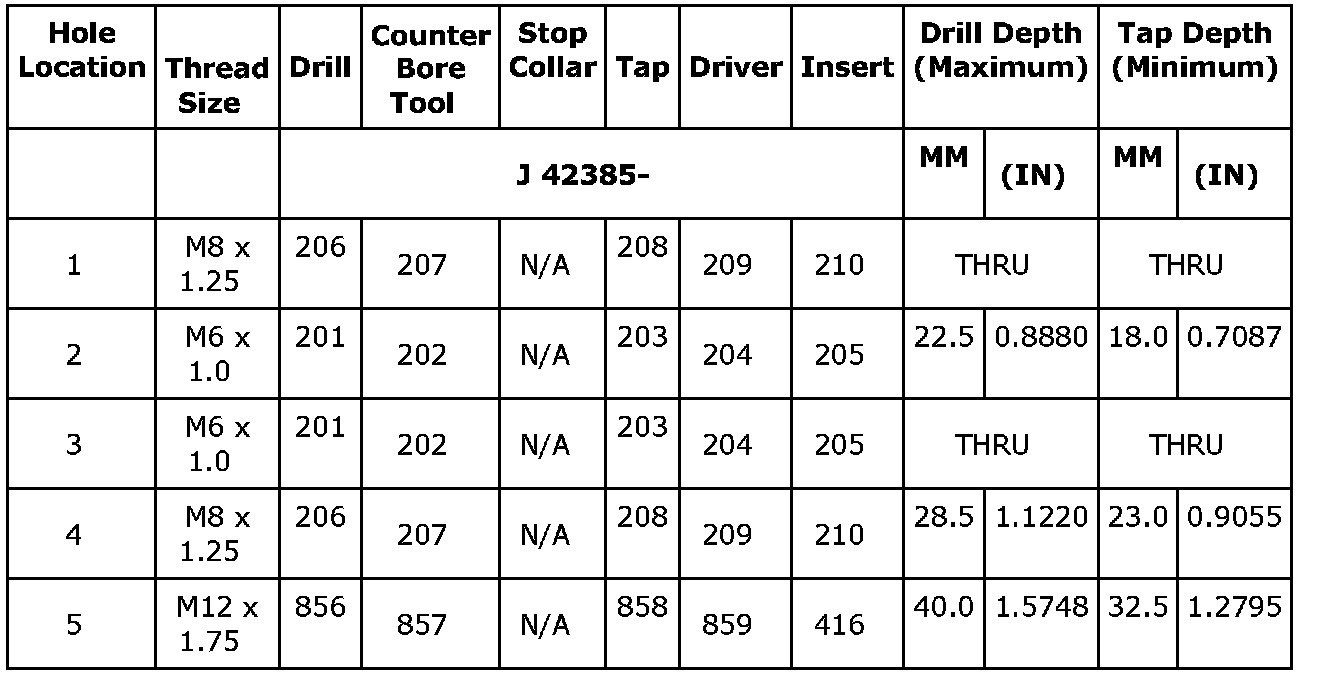

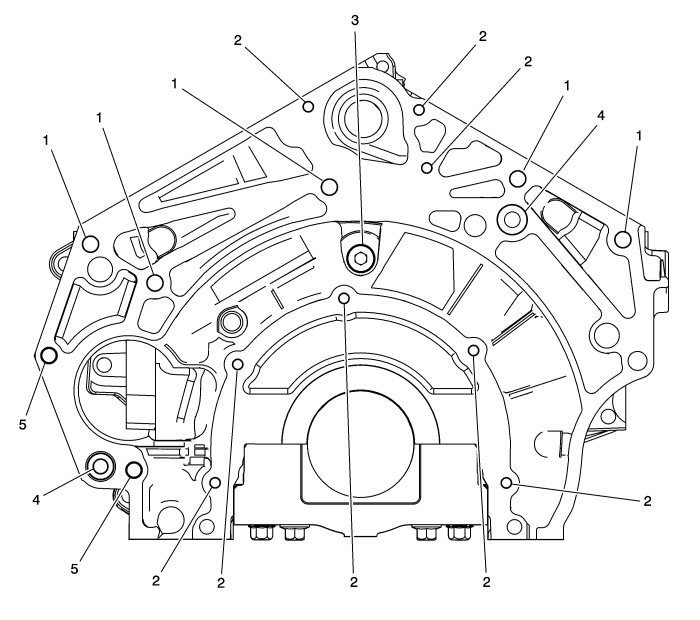

Engine Block Rear





Engine Block Rear

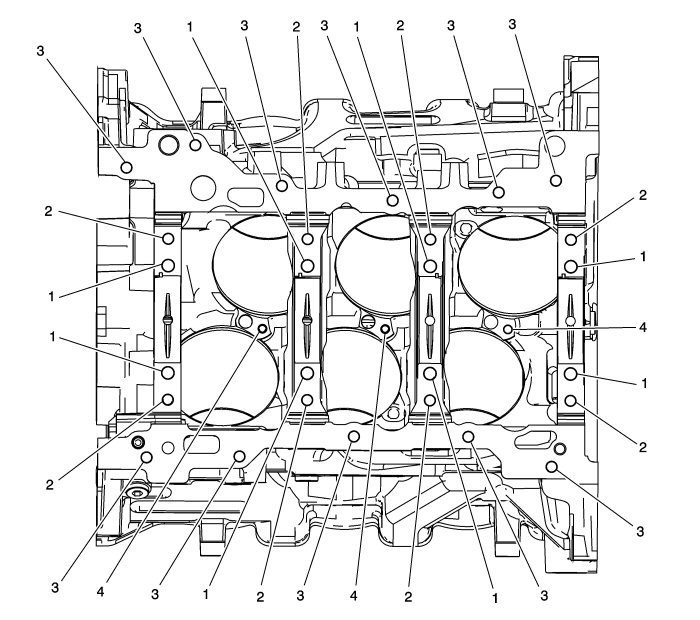

Engine Block Bottom





Engine Block Bottom





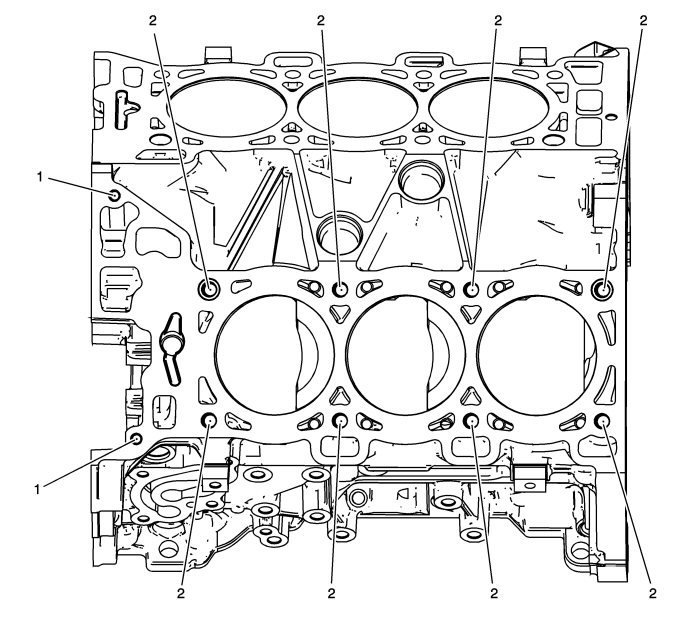

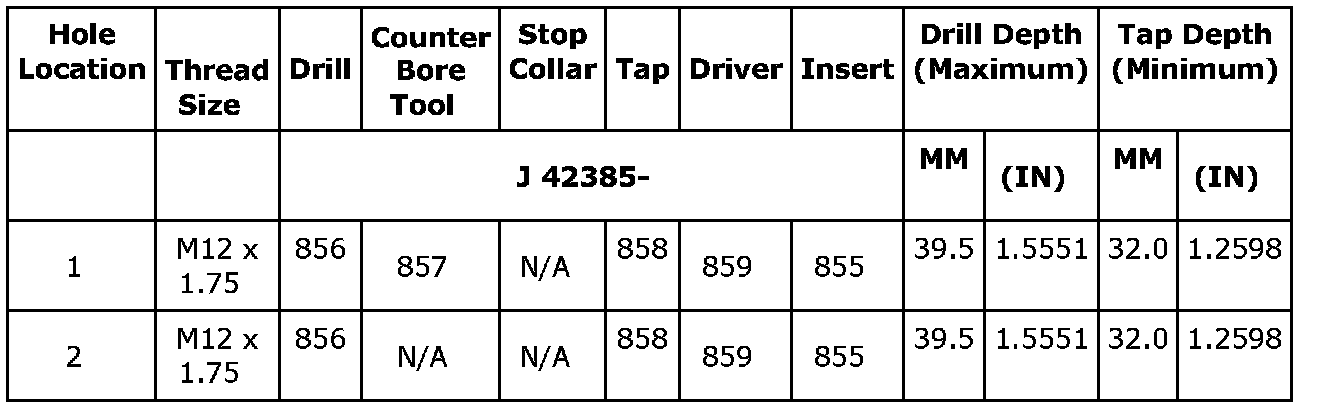

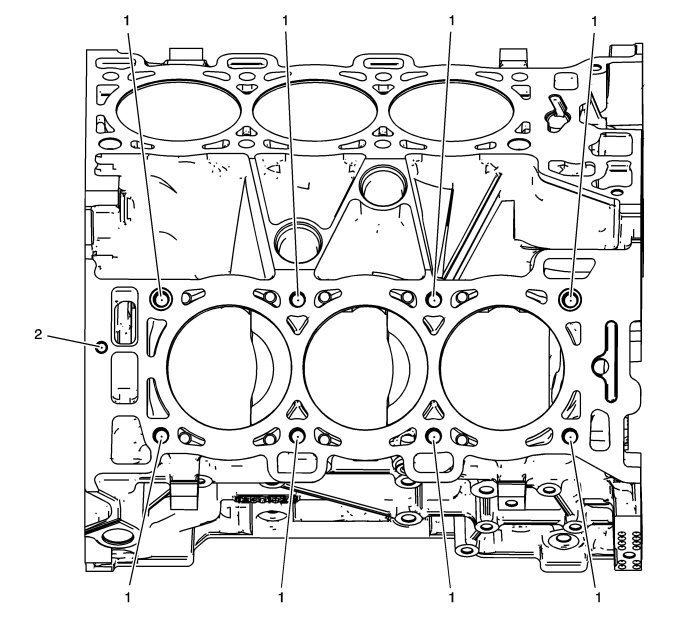

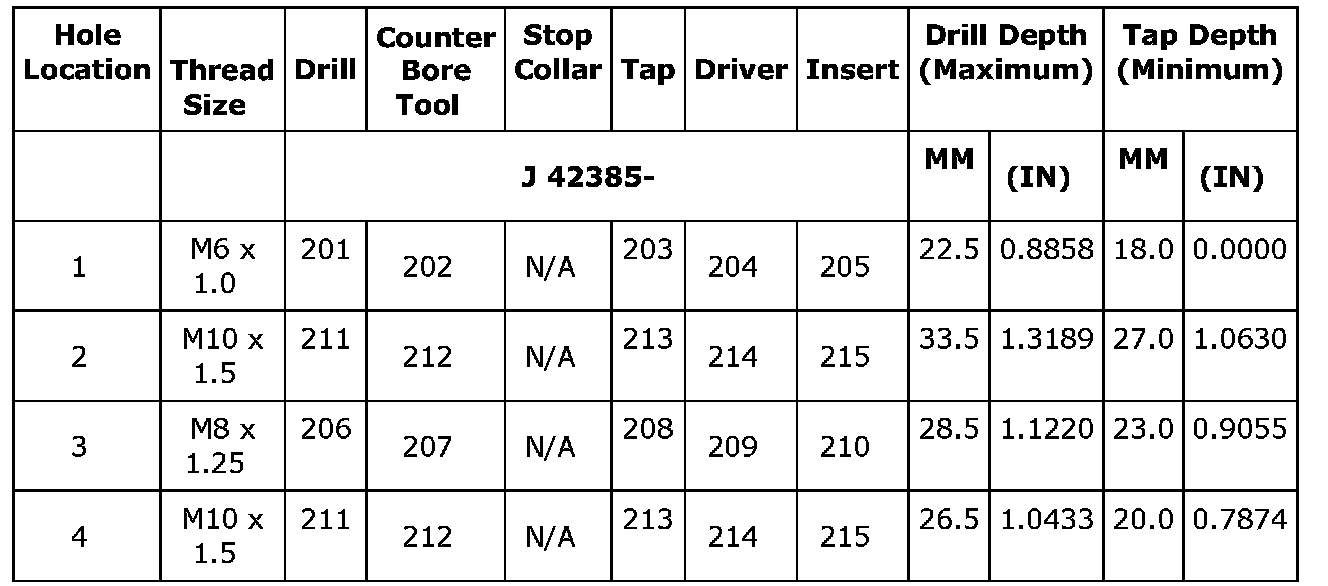

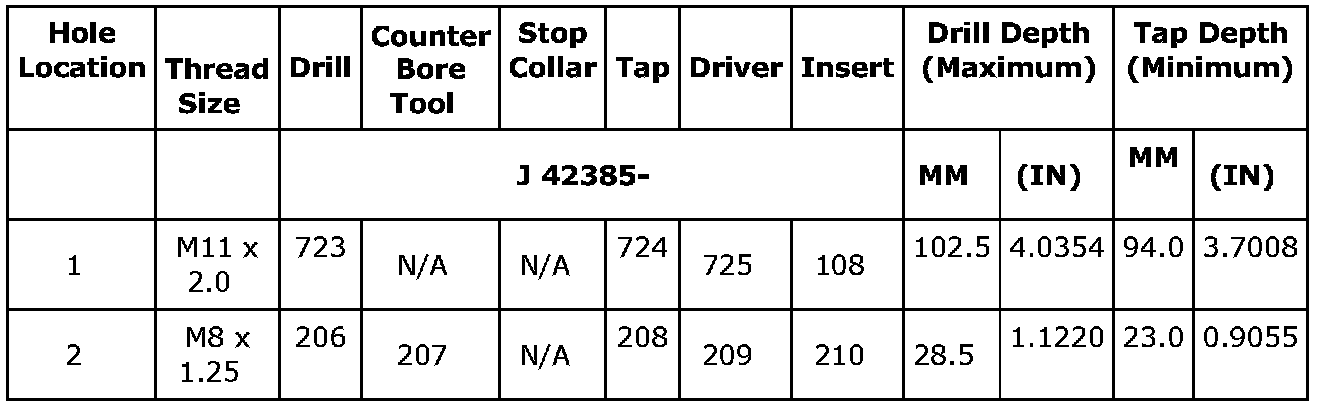

Engine Block Left Deck Face





Engine Block Left Deck Face





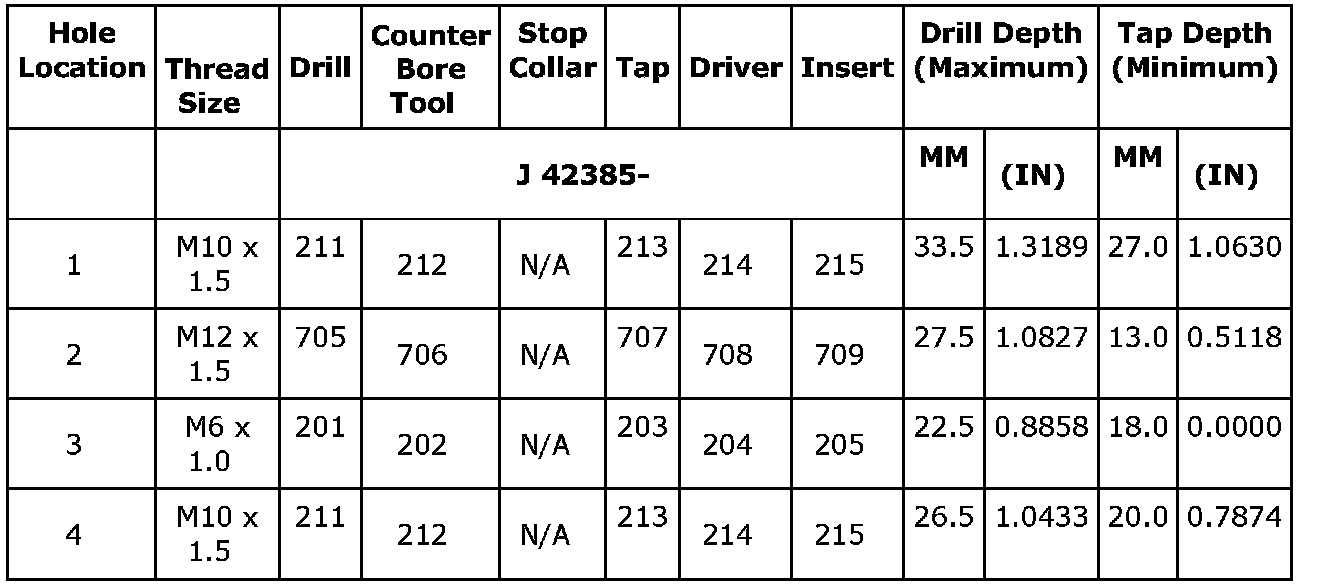

Engine Block Right Deck Face





Engine Block Right Deck Face





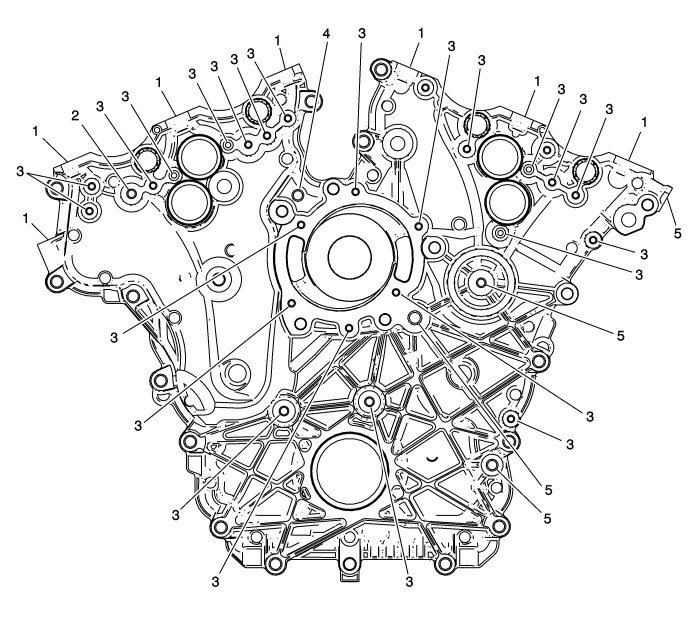

Engine Front Cover (LF1)





Engine Front Cover (LF1)





Engine Front Cover (LAU or LBW)





Engine Front Cover (LAU or LBW)





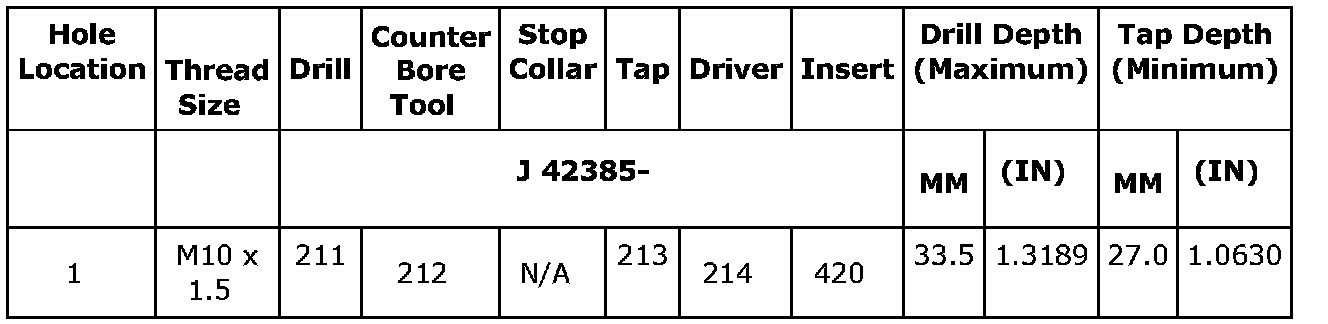

Oil Pan Front





Oil Pan Front

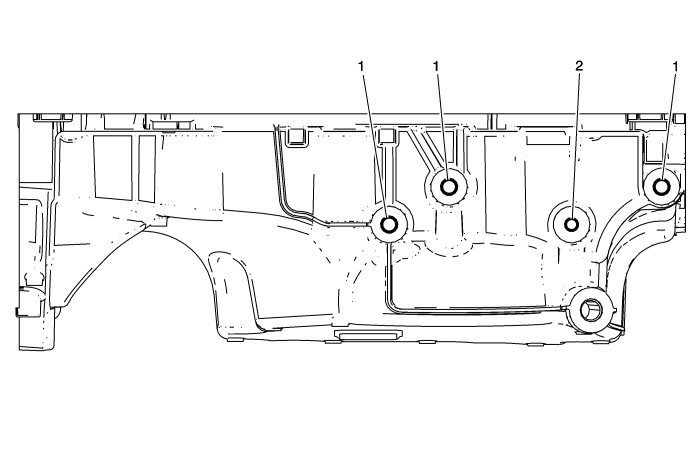

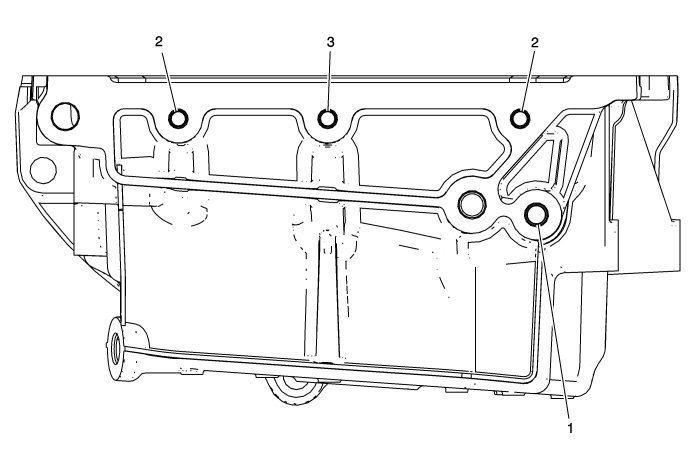

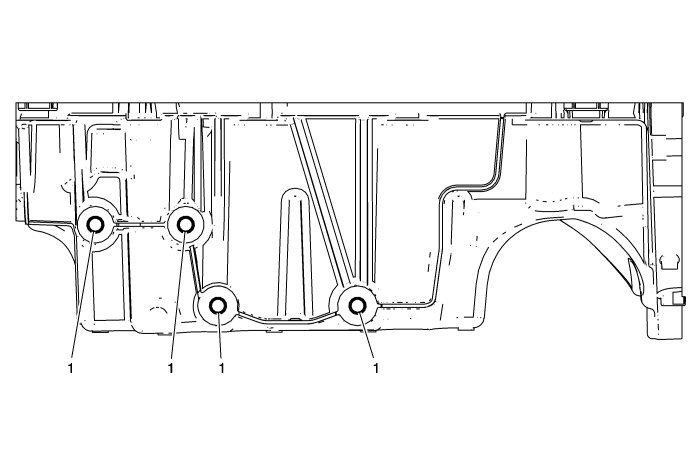

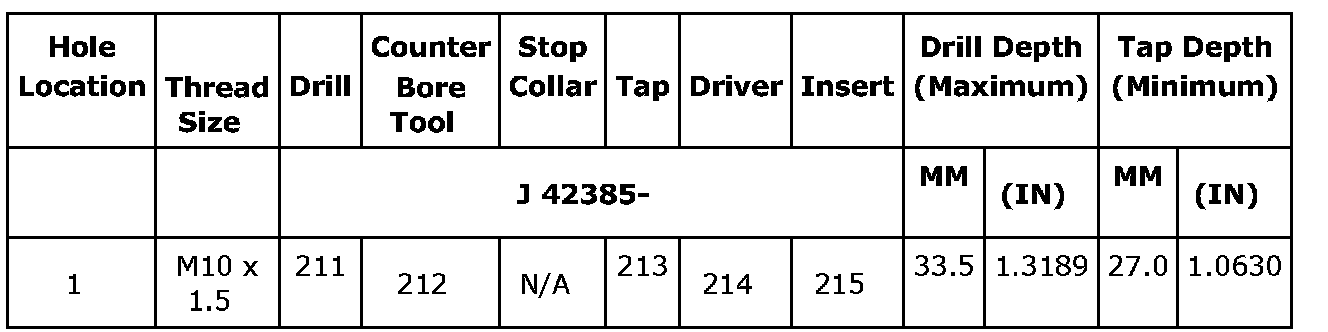

Oil Pan Left Side





Oil Pan Left Side





Oil Pan Right Side





Oil Pan Right Side





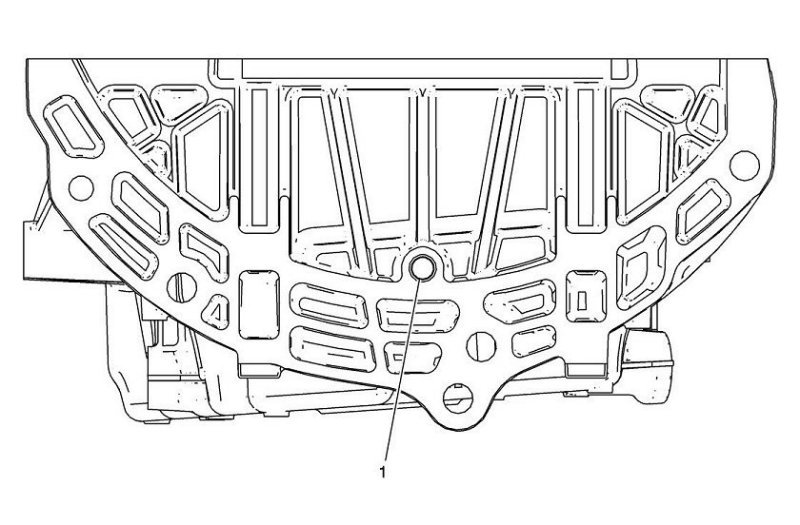

Oil Pan Rear





Oil Pan Rear

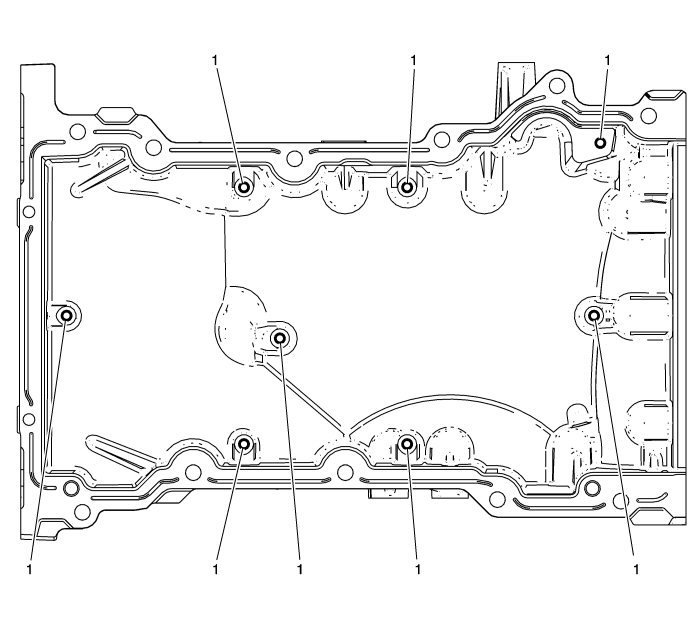

Oil Pan Top





Oil Pan Top
