Secondary Timing Chain Guide Installation - Right Side
Secondary Timing Chain Guide Installation - Right Side 1.

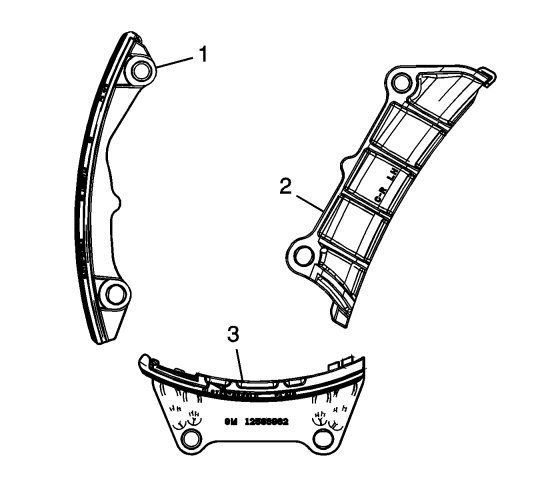

Ensure that the right secondary camshaft drive chain guide (1) is being installed.
2.

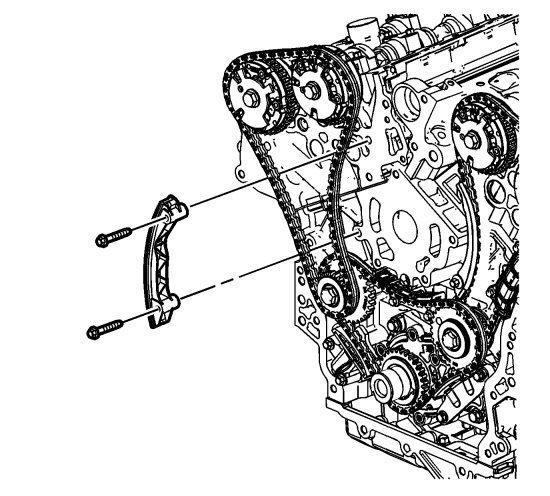

Position the right secondary camshaft drive chain guide.
3.
Refer to Fastener Caution.
Install the secondary camshaft drive chain guide bolts and tighten to 25 Nm (18 lb ft).
