Power Steering Fluid Level



Power steering fluid level

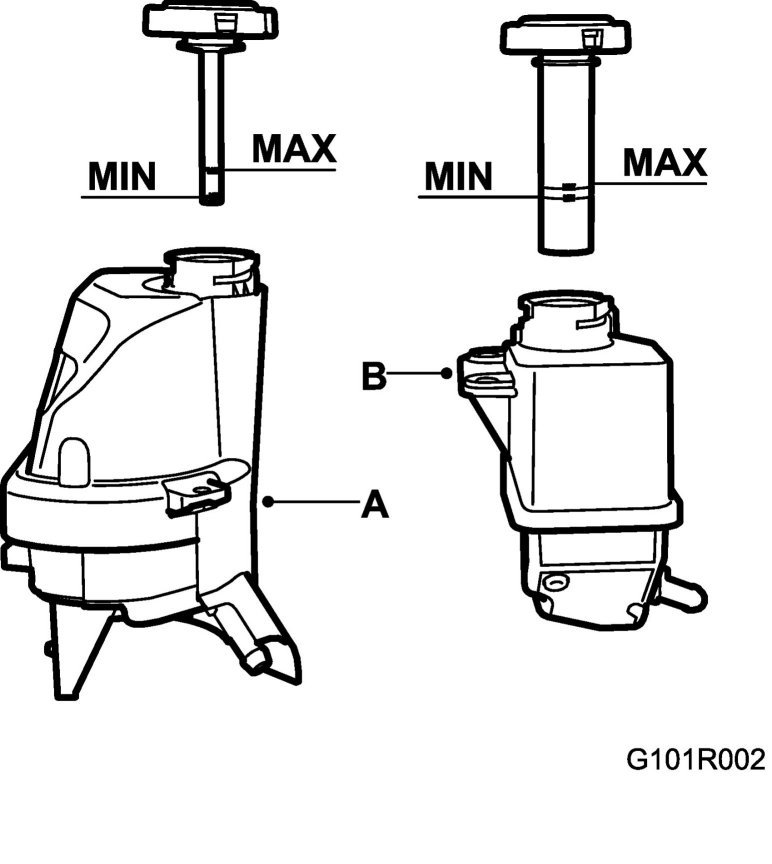

1. Open the cap and check the level on the dipstick.

4-cyl (A) respectively 6-cyl (B)






2. In the event of oil shortage, investigate the cause.
3. Top up the power steering fluid if necessary.

WARNING: Exercise caution with oil spills on hot surfaces. Risk of fire.
