Timing Cover

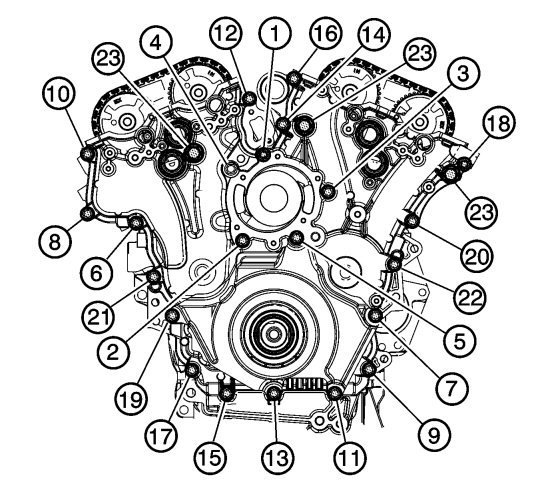

Engine Front Cover Bolts





First pass: Bolts (1-22) 20 Nm (14 lb ft)
Second pass: Bolts (1-22) Tighten an additional 60°
Final pass: Bolts (23) 65 Nm (48 lb ft)
