Engine Prelubing

Engine Prelubing

Special Tools

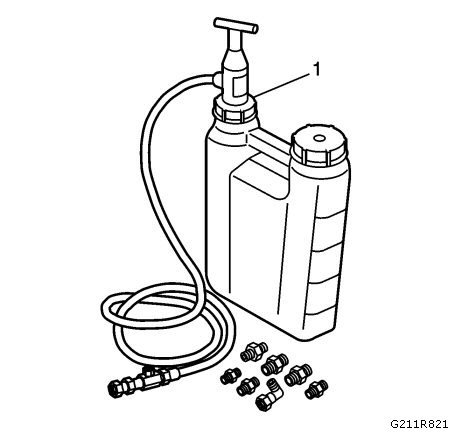

EN-45299 Engine Preluber

1. Note
A constant and continuous flow of clean engine oil is required in order to properly prime the engine. Ensure an approved engine oil is used, as specified in the owners manual.

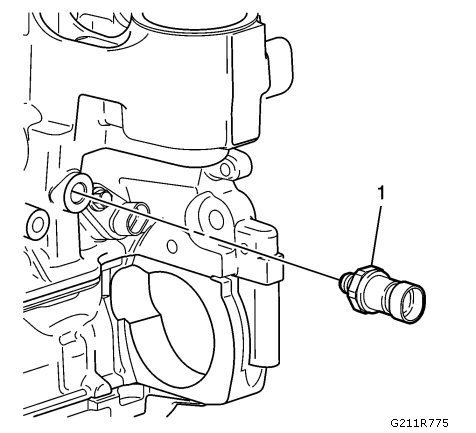

Remove the oil pressure switch.





2. Install the M12 x 1.75 adapter (1) P/N 509376.
3. Install the flexible hose to the adapter and open the valve.





4. Pump the handle on the EN-45299 preluber (1) in order to flow a minimum of 1-1.9 liters (1-2 quarts) of engine oil. Observe the flow of engine oil through the flexible hose and into the engine assembly.
5. Close the valve and remove the flexible hose and adapter from the engine.
6. Refer to Fastener Caution.
Install the oil pressure switch on the engine and tighten to 22 Nm (16 lb ft).
7. Top-off the engine oil to the proper level.
