System Diagram

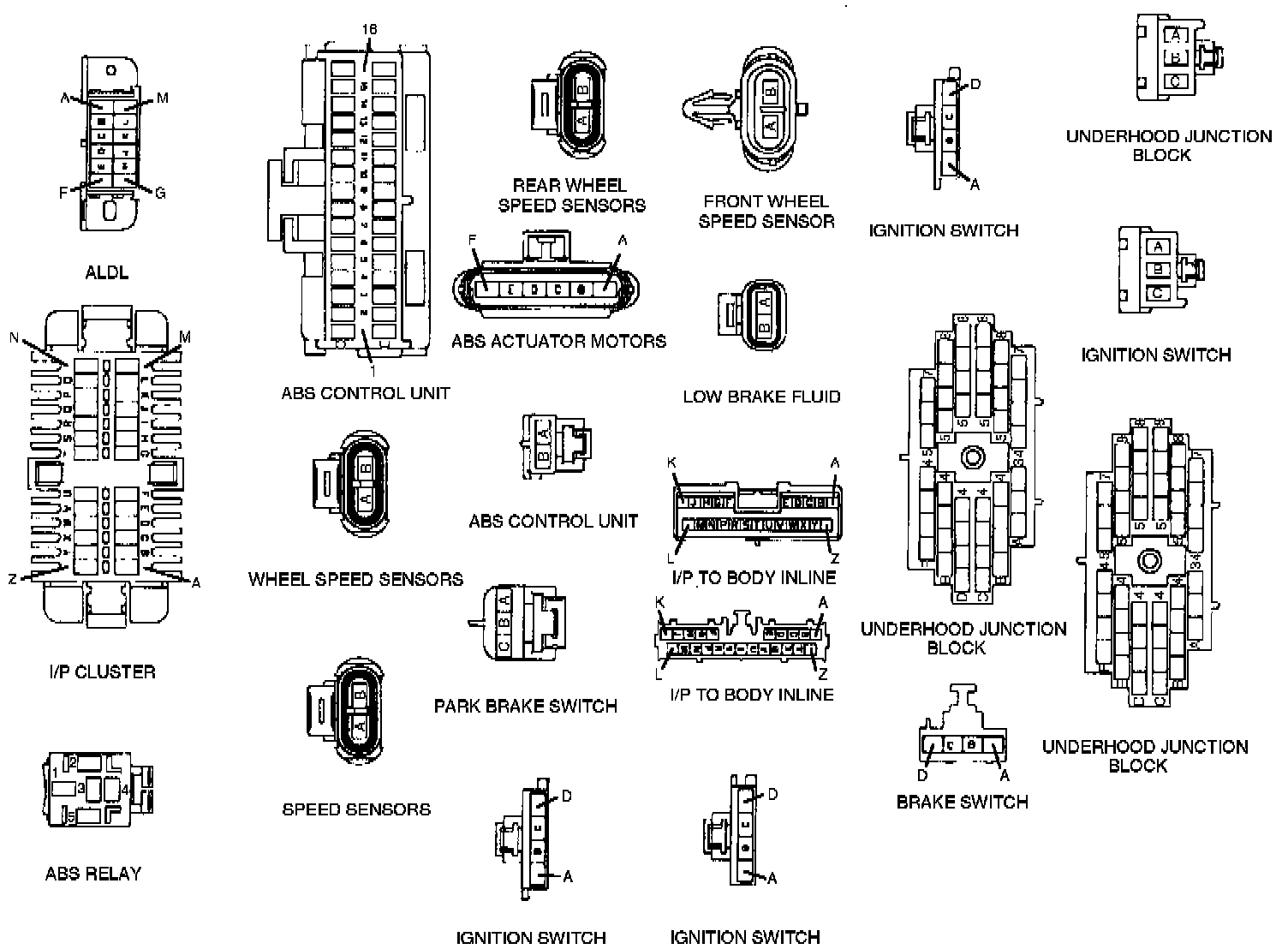

Fig. 6 Anti-Lock Brake System Electrical Connectors.:

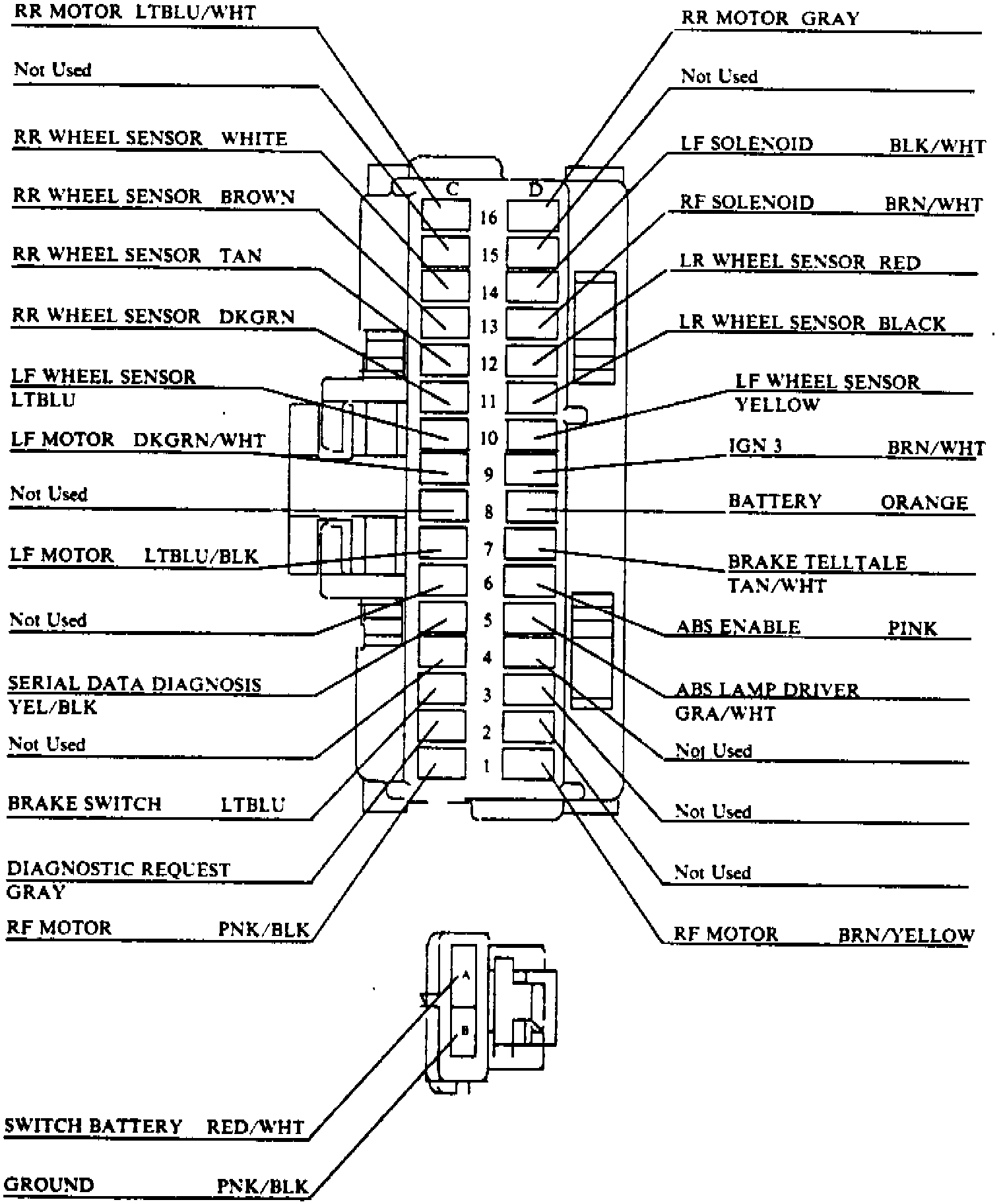

Fig. 7 ABCM Pin Identification.,:

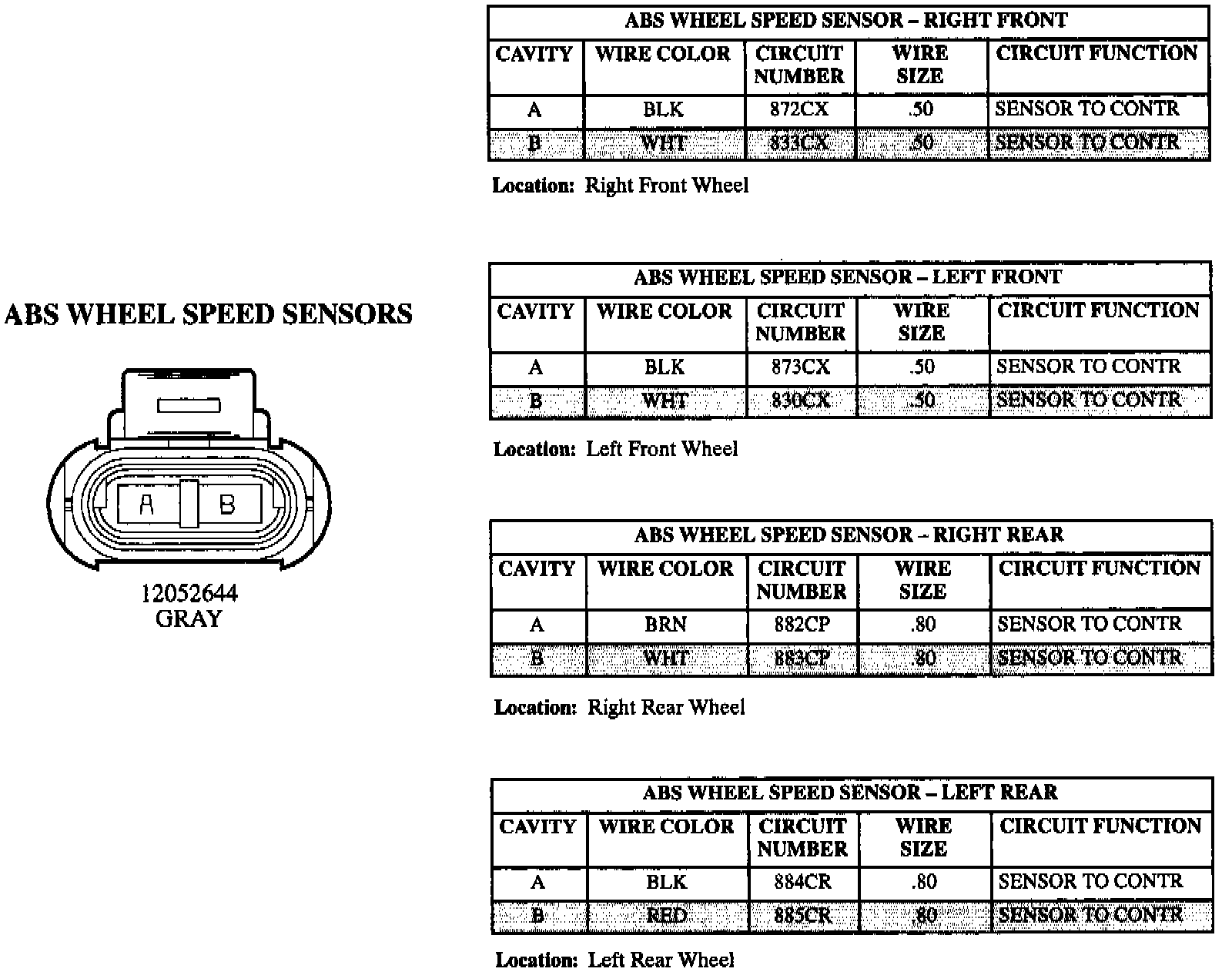

Fig. 14 ABS Wheel Speed Sensor Connector Terminal Identification.:
When performing ABS system troubleshooting, diagnosis and testing, refer to Anti-lock brake system connector terminal and pin identification,
Figs. 6, 7, 14.
