Differential Clutch

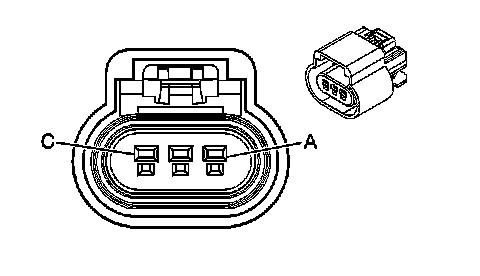

Rear Axle Connector End ViewsDifferential Clutch Pump Actuator Check Valve (M76)Connector Part InformationOEM
15326808
Service
See Catalog
Description
3-Way F GT 150 Series Sealed 4.5 (BK)
Terminal Part InformationTerminal
12191819/Tray 8
Core/Insulation Crimp
N/A
Release Tool/Test Probe
N/A

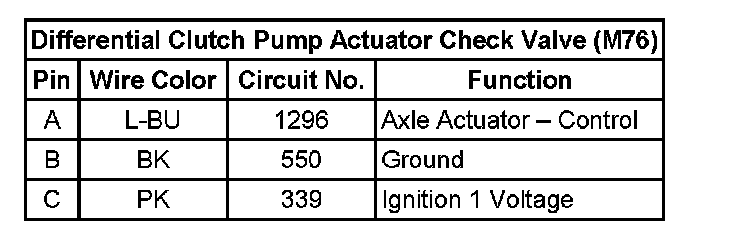

Differential Clutch Pump Actuator Check Valve (M76)
