Hydraulic System, Brakes



Hydraulic Brakes Connector End Views

Brake Fluid Level Switch





Connector Part Information

OEM
15449028

Service
88987978

Description
2-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal
15326267/Tray 19

Core/Insulation Crimp
N/A

Release Tool/Test Probe
15315247/J-35616-2A

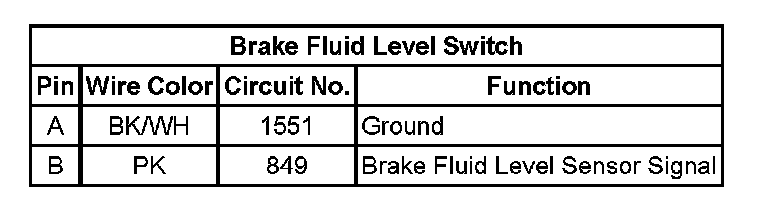

Brake Fluid Level Switch

Park Brake Switch





Connector Part Information

OEM
12004267

Service
12102561

Description
1-Way F 56 Series Lock Type (BK)

Terminal Part Information

Terminal
Not Serviced in Kit

Core/Insulation Crimp
N/A

Release Tool/Test Probe
N/A

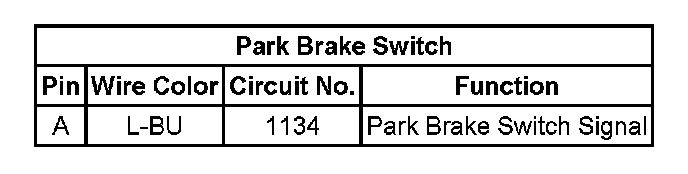

Park Brake Switch
