Air Recirculation Malfunction

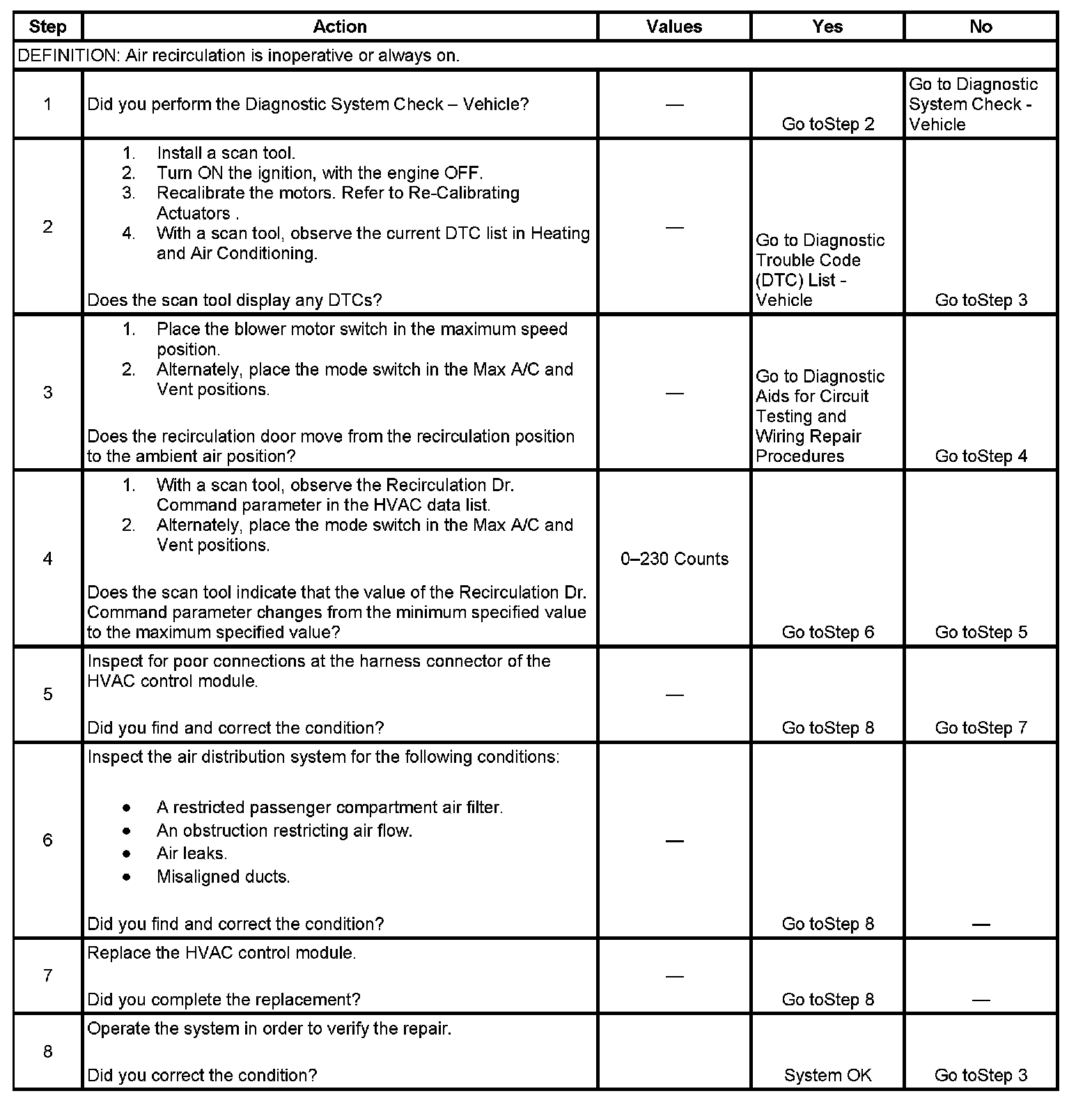

AIR RECIRCULATION MALFUNCTIONTEST DESCRIPTIONStep 1 - Step 8:
The numbers below refer to the step numbers on the diagnostic table. 2. This action will calibrate the HVAC actuators and check to ensure the DTCs that set when calibration is performed will be set. 4. This step is to ensure that the recirculation actuator is with its calibrated range.
