Driver Side Power Window Auto Up / Down Function Does Not Operate With Power Window Master Switch

WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch; 2013 MY FR-S [03/2012 -]
- Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch

DESCRIPTION

If the manual up and down function can be performed but the auto up and down function cannot, then the fail-safe mode may be functioning.

If the power window initialization Programming and Relearning has not been performed, the auto up and down function will not operate.

INSPECTION PROCEDURE

NOTICE:
* When the power window regulator master switch assembly, power window regulator switch assembly and power window regulator motor assembly is reinstalled or replaced, the power window control system must be initialized Programming and Relearning.
* After the door glass or weatherstrip, etc. have been replaced, if AUTO UP is performed at the position where the work was performed, a different window movement speed to the standard operating learning value may be detected, causing the jam protection function to operate. When the jam protection function malfunctions and prevents the door glass from closing completely, the following procedure can be used to cancel the jam protection function and allow the door glass to be closed*1.
* Repeat the AUTO UP maintain -> jam protection function operation twice in succession*2.
* The third repeat of the AUTO UP maintain operation will cause the position of the upper edge of the door glass to be relearned, allowing the door glass to be closed.
* *1: In some cases, the state of the door glass or regulator may prevent the glass from being closed, even in this mode.
* *2: If any action other that the AUTO UP operation (DOWN operation, IG OFF, timer operated OFF, index operation, etc.) is performed between the operation of the jam protection function and the AUTO UP maintain, this count will be reset.

PROCEDURE

1. READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Master Switch / Active Test.

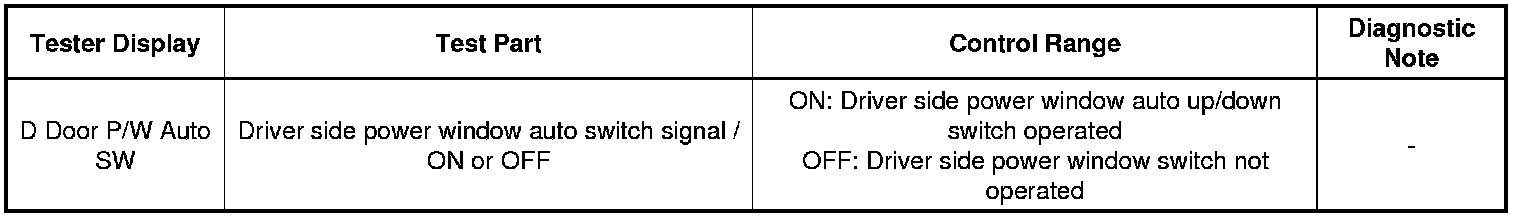

(e) Perform the Active Test according to the display on the Techstream.

Master Switch





OK:

The Techstream display changes normally when master switch is operated.

NG -- REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
OK -- Continue to next step.

2. PERFORM INITIALIZATION

(a) Initialize the power window regulator motor assembly Programming and Relearning.

(b) Check that the driver side door power window moves when the auto up and down function of the power window master switch assembly is operated Operation Check.

OK:

Driver side auto up and down function is normal.

NG -- REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY Removal

OK -- END (PROBLEM DUE TO INITIALIZATION FAILURE)

3. REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

(a) Temporarily replace the power window regulator master switch assembly with a new or normally functioning one Removal.

(b) Check the power window regulator master switch assembly operates Operation Check.

OK:

Driver door power window operates normally.

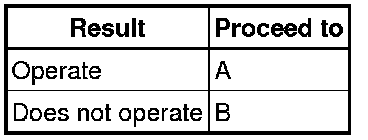

Result





B -- REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY Removal

A -- END (POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WAS DEFECTIVE)
