Front Passenger Side Index Function Does Not Operate
WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: Front Passenger Side Index Function does not Operate; 2013 MY FR-S [03/2012 -]
- Front Passenger Side Index Function does not Operate
DESCRIPTION
The main body ECU (network gateway ECU) detects signals from the front door courtesy light switch. When the ON signal from the front door courtesy light switch is sent to the power window regulator switch assembly via the main body ECU (network gateway ECU) using LIN communication system, the main body ECU (network gateway ECU) will lower the front passenger side door window about 20 mm (0.787 in.) automatically. When the OFF signal from the front door courtesy light switch is detected, the main body ECU (network gateway ECU) will raise the front passenger side door window to the fully-closed position automatically.
INSPECTION PROCEDURE
NOTICE:
* When the power window regulator master switch assembly, power window regulator switch assembly and power window regulator motor assembly is reinstalled or replaced, the power window control system must be initialized Programming and Relearning.
* After the door glass or weatherstrip, etc. have been replaced, if AUTO UP is performed at the position where the work was performed, a different window movement speed to the standard operating learning value may be detected, causing the jam protection function to operate. When the jam protection function malfunctions and prevents the door glass from closing completely, the following procedure can be used to cancel the jam protection function and allow the door glass to be closed*1.
* Repeat the AUTO UP maintain -> jam protection function operation twice in succession*2.
* The third repeat of the AUTO UP maintain operation will cause the position of the upper edge of the door glass to be relearned, allowing the door glass to be closed.
* *1: In some cases, the state of the door glass or regulator may prevent the glass from being closed, even in this mode.
* *2: If any action other that the AUTO UP operation (DOWN operation, IG OFF, timer-operated OFF, index operation, etc.) is performed between the operation of the jam protection function and the AUTO UP maintain, this count will be reset.
PROCEDURE
1. READ VALUE USING TECHSTREAM (D Door Courtesy SW)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Enter the following menus: Body Electrical / Main Body / Data List.
(e) Read the Data List according to the display on the Techstream.
Master Switch
OK:
On the Techstream screen, ON or OFF is displayed accordingly.
NG -- GO TO LIGHTING SYSTEM (Door Courtesy Switch Circuit) Door Courtesy Switch Circuit
OK -- Continue to next step.
2. PERFORM INITIALIZATION
(a) Initialize the power window regulator switch assembly Programming and Relearning.
(b) Check the power window regulator switch assembly is operated Operation Check.
OK:
Front passenger side door power window operates normally.

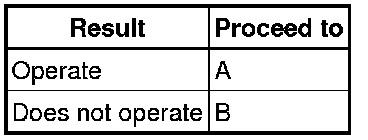

Result
B -- END
A -- Continue to next step.
3. READ VALUE USING TECHSTREAM
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Enter the following menus: Body Electrical / Main Body / Data List.
(e) Read the Data List according to the display on the Techstream.
Master Switch
OK:
Pulse generation.
NG -- REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY
OK -- Continue to next step.
4. CHECK POWER WINDOW REGULATOR ASSEMBLY
(a) Check the power window regulator switch assembly operates Operation Check.
OK:
Front passenger side door power window operates normally.

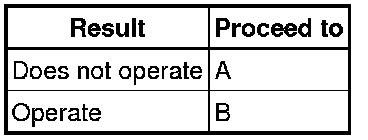

Result
B -- REPLACE POWER WINDOW REGULATOR ASSEMBLY
A -- Continue to next step.
5. REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY
(a) Temporarily replace the power window regulator motor assembly with a new or normally functioning one Removal.
(b) Check the power window regulator switch assembly operates Operation Check.
OK:
Front passenger side door power window operates normally.
Result
B -- REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY Removal
A -- END
6. REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY
(a) Temporarily replace the power window regulator switch assembly with a new or normally functioning one Removal.
(b) Check the power window regulator switch assembly operates Operation Check.
OK:
Front passenger side door power window operates normally.
Result
B -- END
A -- Continue to next step.
7. REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY
(a) Temporarily replace the power window regulator motor assembly with a new or normally functioning one Removal.
(b) Check the power window regulator switch assembly operates Operation Check.
OK:
Front passenger side door power window operates normally.
Result
B -- REPLACE POWER WINDOW REGULATOR ASSEMBLY
A -- END
