Trouble Codes - Additional Information

88subaru01
NUMBER: 11-29-88


DATE: 01-04-88

APPLICABILITY 1988 "L" SERIES SERVICE MANUAL

SUBJECT: TROUBLE CODE 44 MPI FUEL SYSTEM

THIS BULLETIN IS FOR INFORMATION ONLY

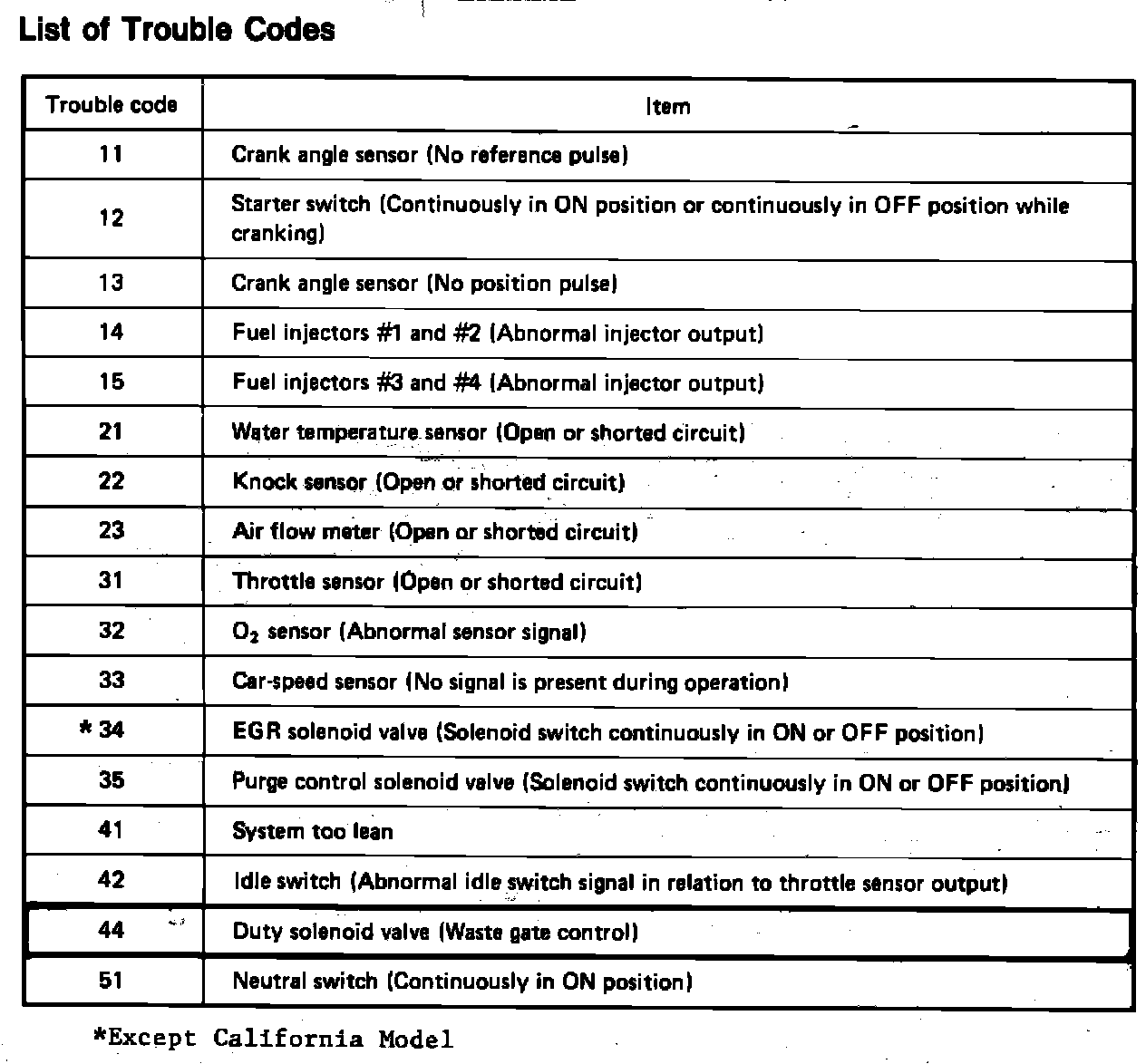

FIGURE 1:




FUEL INJECTION SYSTEM:

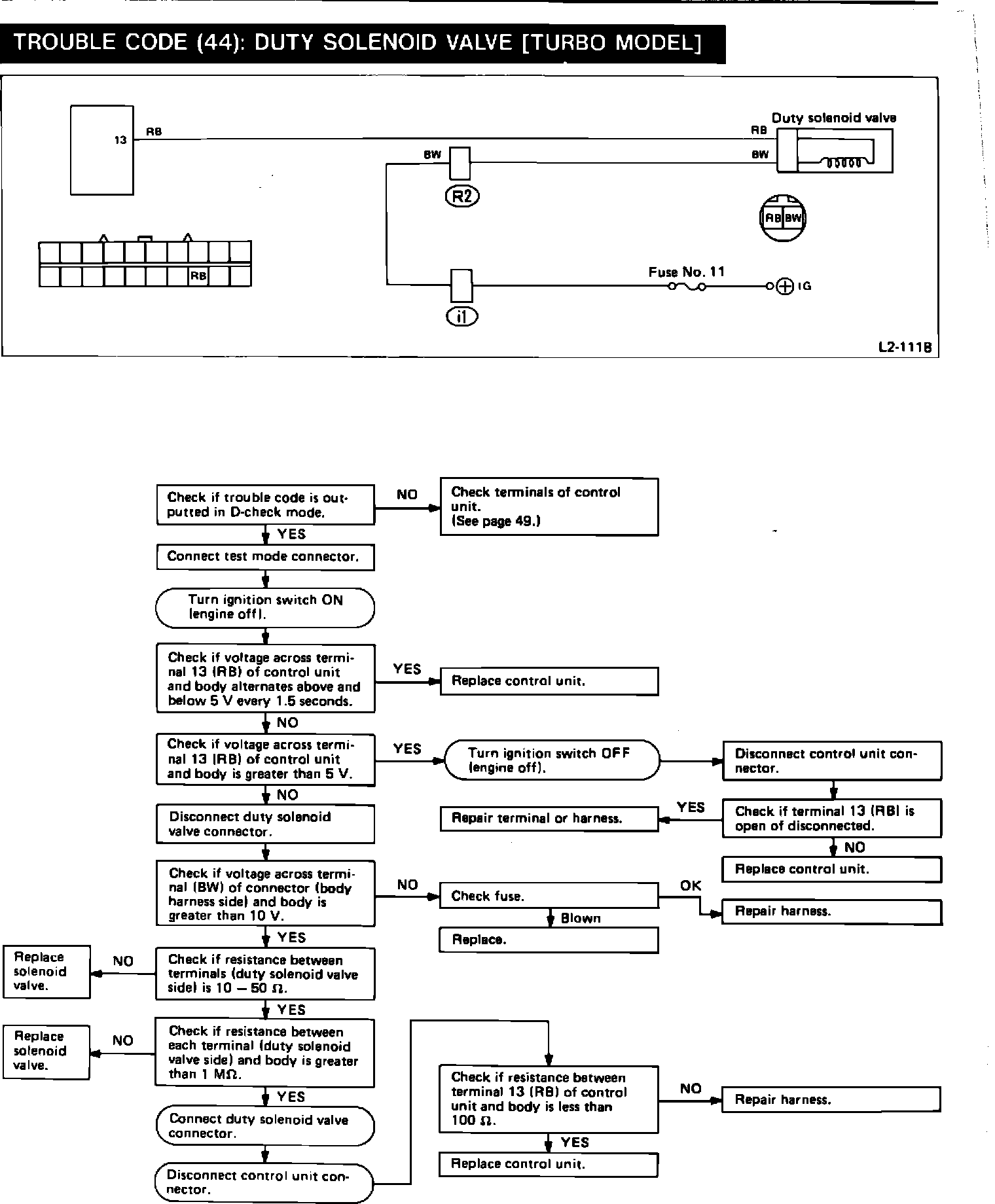

Please add Trouble Code 44: Duty Solenoid valve (Waste Gate Control) to the list of trouble codes found in section 2-7, page 99 of the 1988 "L" Series Subaru Service Manual. See figure 1. This Bulletin includes the Trouble Code 44 Diagnostic Trouble Shooting Chart. See figure 2 on back of this page.
