EGR Temperature Sensor: Service and Repair

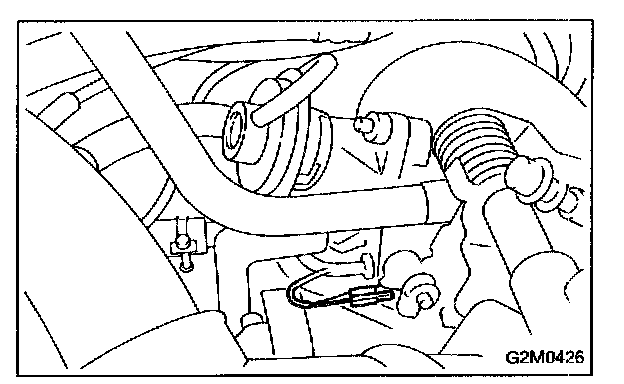

Recirculation Gas Temperature Sensor (California Model)

REMOVAL AND INSTALLATION




1. Disconnect connectors from recirculation gas temperature sensor.




2. Apply SUBARU CRC or its equivalent to threaded portion of recirculation gas temperature sensor and leave it for one minute or more.

SUBARU CRC (Part No.004301003)

3. Remove recirculation gas temperature sensor from collector chamber.

CAUTION: When removing recirculation gas temperature sensor, do not force it excessively.

4. Installation is in the reverse order of removal.
