Exterior Lighting Module

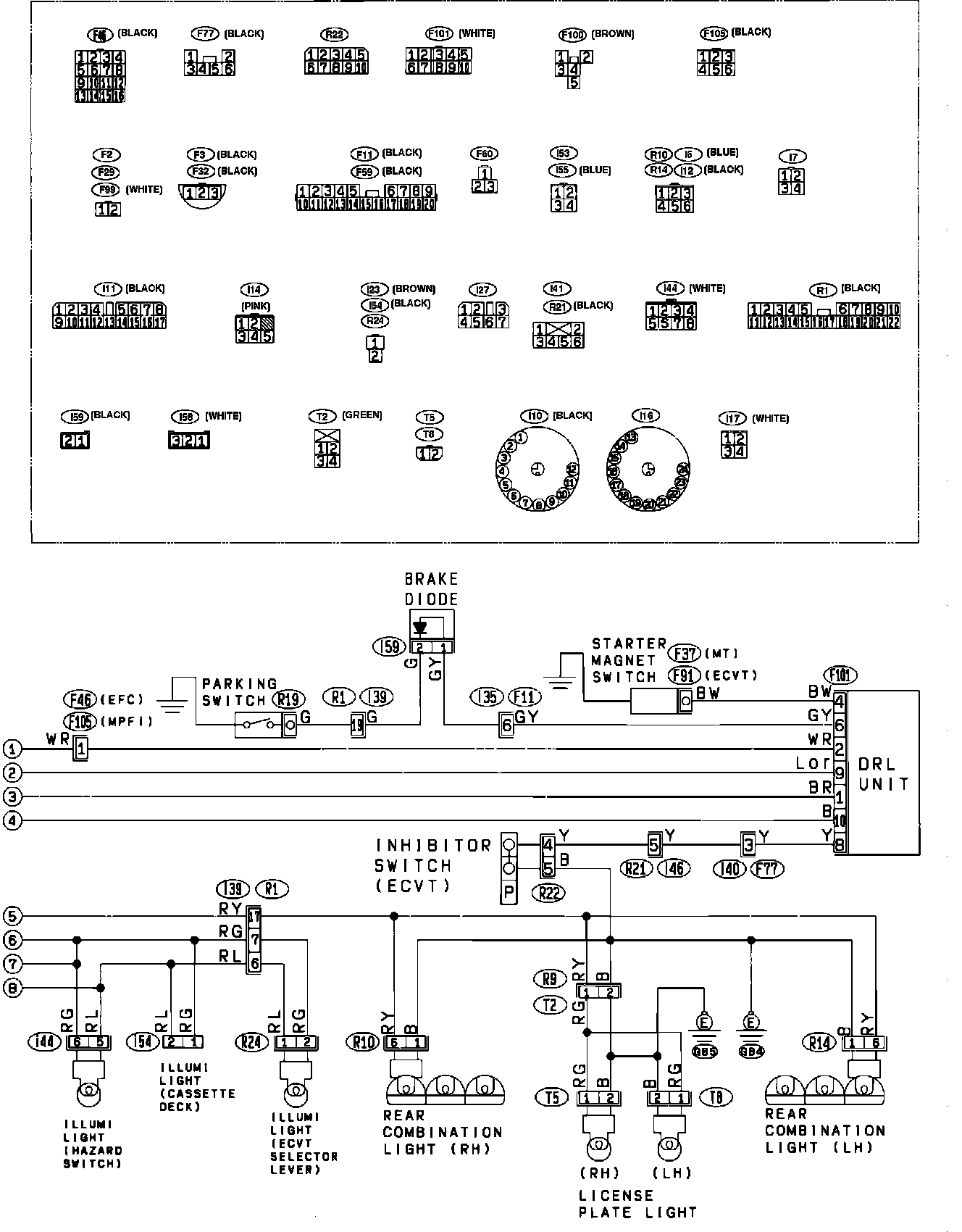

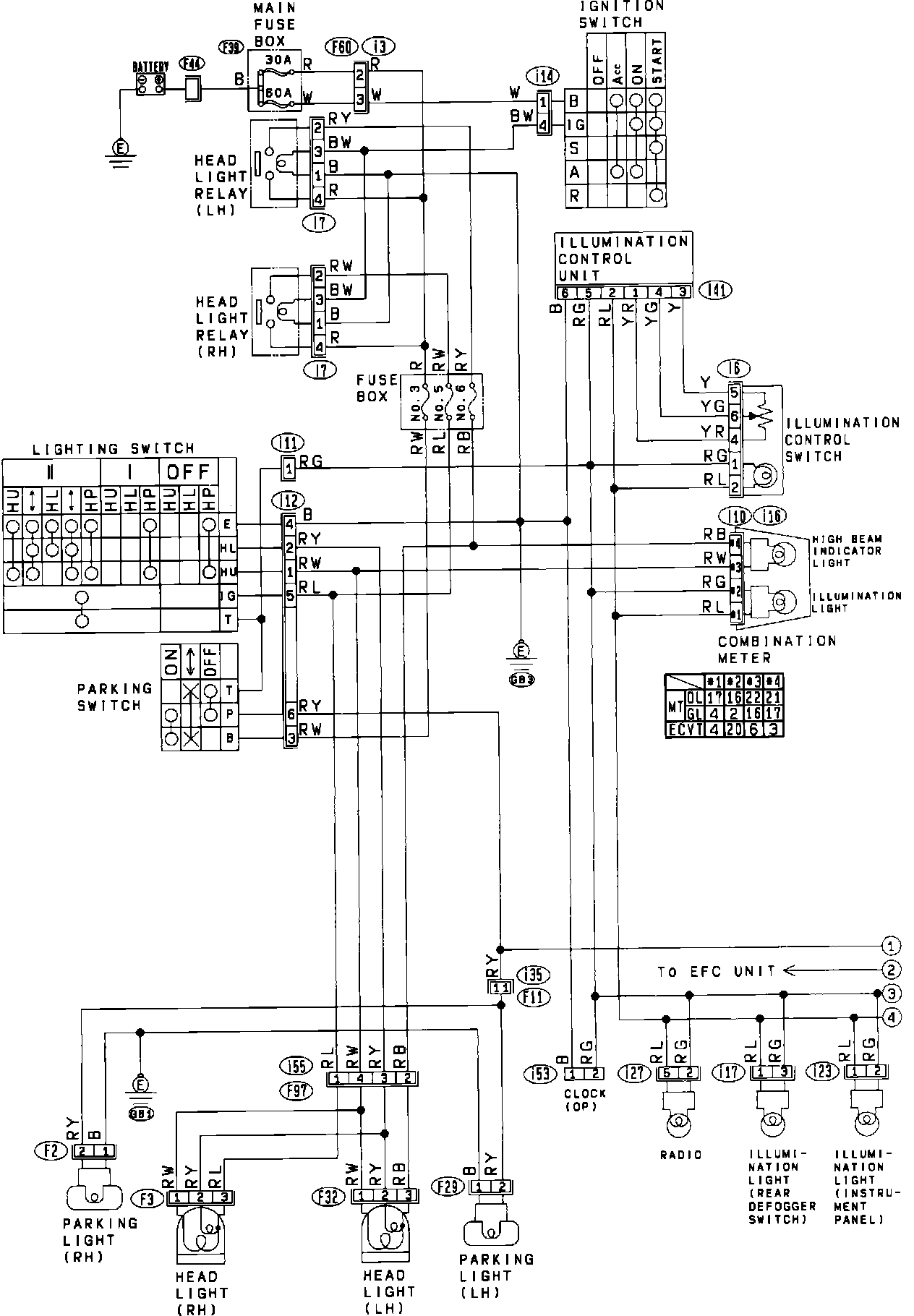

Complete Lighting System (USA Model):

USA

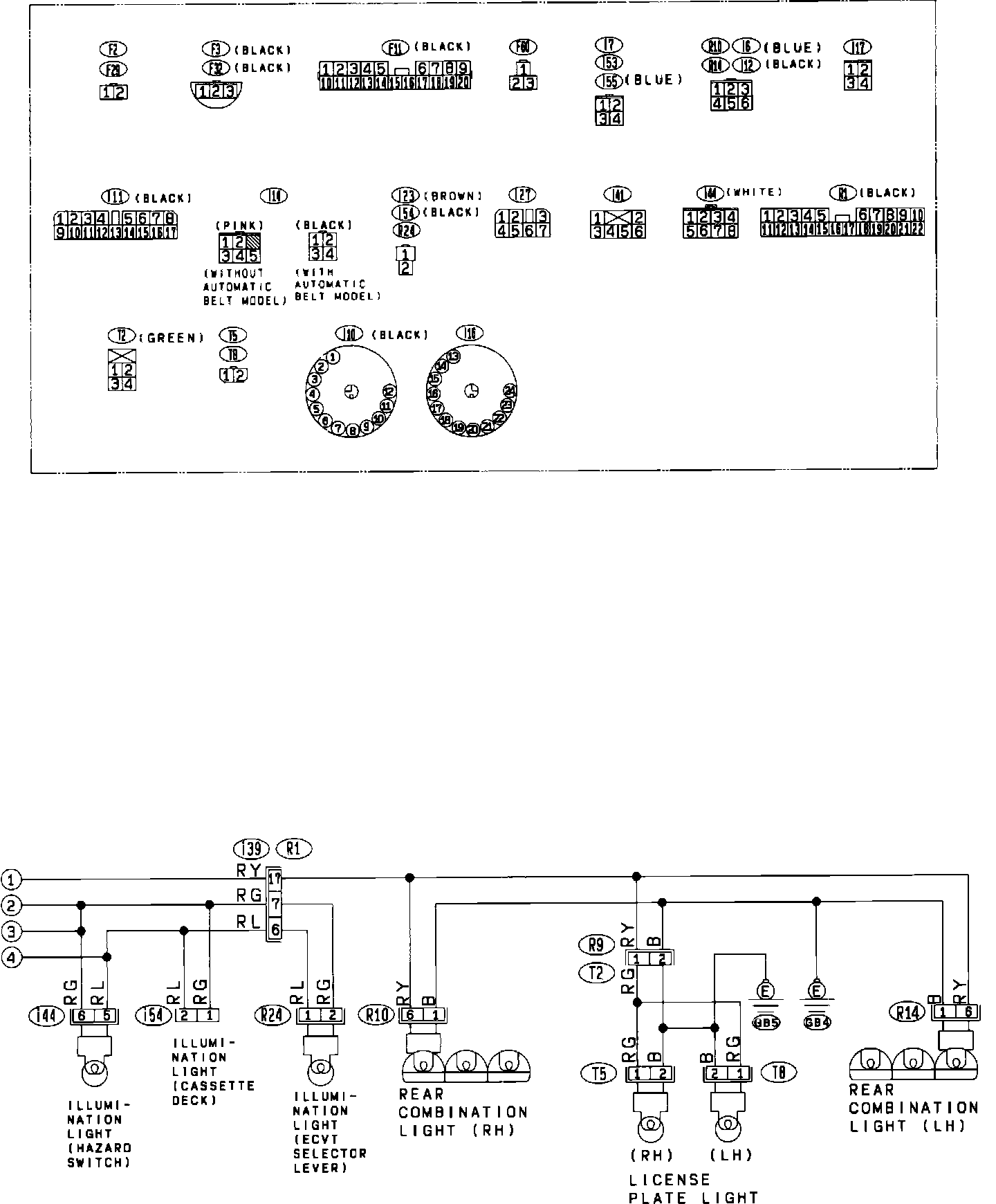

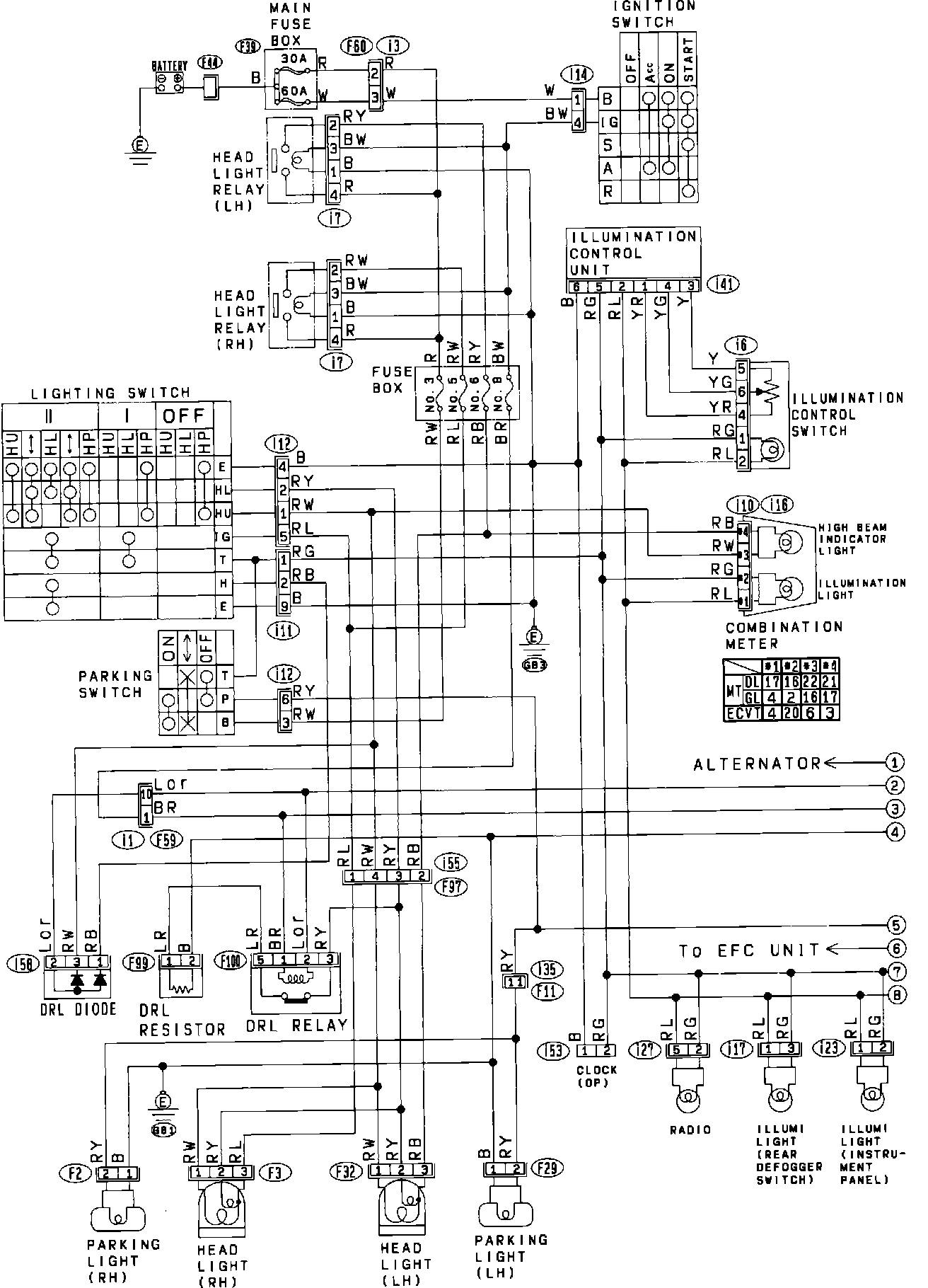

Complete Lighting System (Canada Model):

Canadian

Fuse Locations: For fuse locations refer to Vehicle / Locations / Component Locations / Fuses and Fusible Links:

Ground Locations: For ground locations refer to Vehicle / Locations / Grounds: Ground Locations

Connector Locations: For connector locations refer to Vehicle / Locations / Connectors: Connector Locations

Component Locations: For component locations refer to Vehicle / Locations / Components: Component Locations

NOTE:
To locate Connectors, Components and/or Grounds using Harness Connector Location diagram(s) use the connector's alphanumeric name [referred to in the wiring diagram(s)] to identify the apropriate Harness Connector Location diagram. For example, the prefix letter "B" in the connector name "B-38" indicates the location is displayed in the Bulkhead Wiring Harness Connector Location diagram.

Legend:

Prefix Harness Connector Diagram

F Front
B Bulkhead
i Instrument Panel
P Power Window
D Door
R Rear
