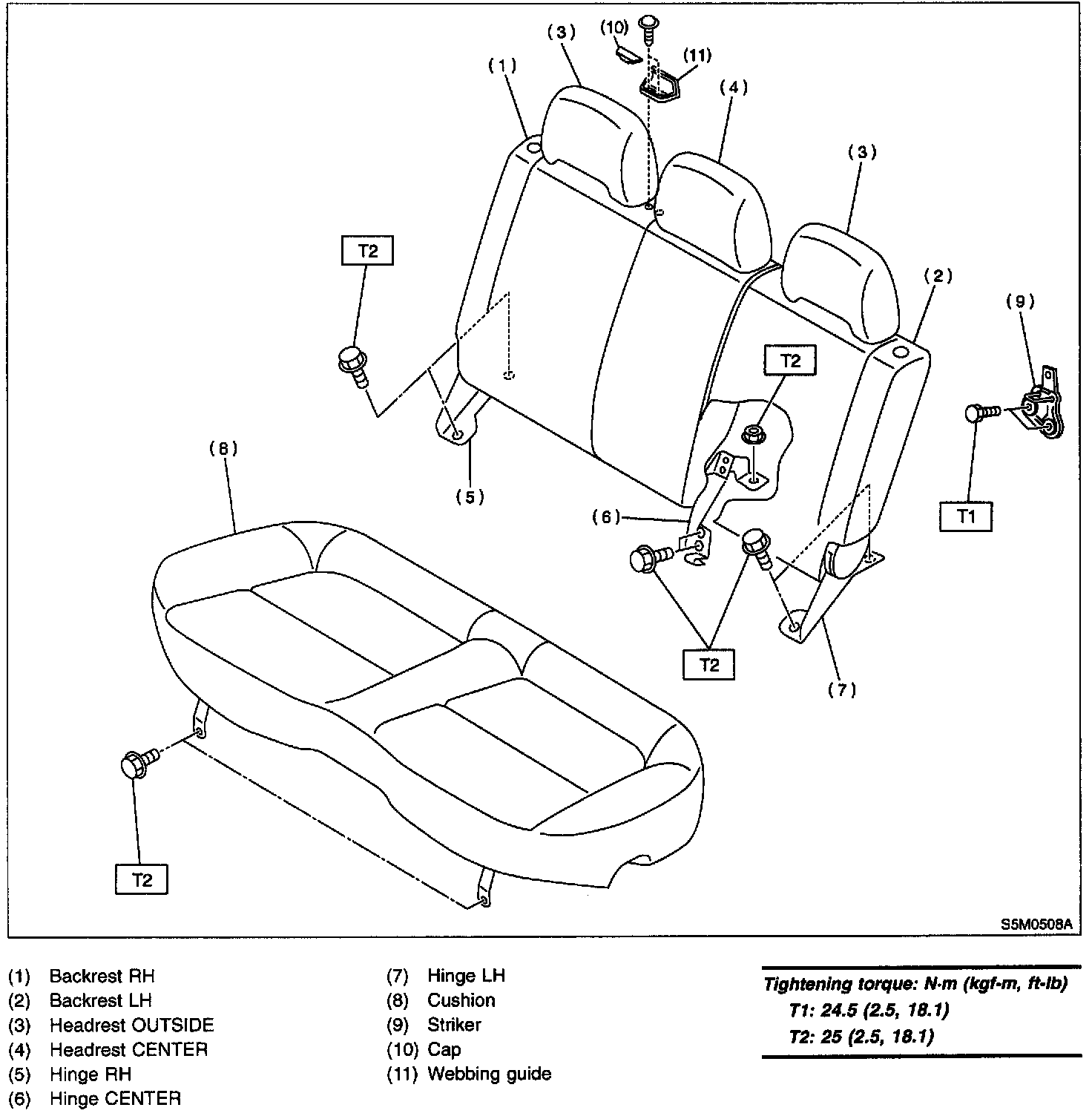

Rear Seat
REAR SEATRear Seat:
REMOVAL 1.
Remove bolts securing hinges (located at front of cushion) to body.
2.
Slightly raise front of cushion while pushing down on cushion in the direction of "A". With cushion held in that position, move it forward until it is unhooked.
3.
Remove rear quarter lower trim.
4. Remove bolts and nuts.
5. Detach backrest.
INSTALLATION
Install in the reverse order of removal.
