Disassembly and Assembly
Intake Unit With Evaporator:
Intake Unit Disassembly and Assembly 1.

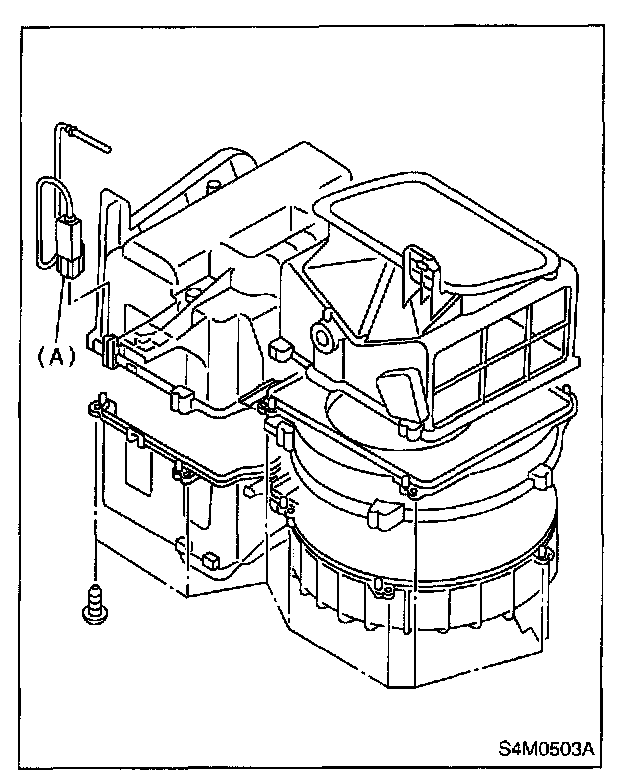

Remove thermistor (A) from intake unit case.
2.
Remove some screws then separate intake unit case.
3.
Remove thermistor from clip with the evaporator.
4.
Remove the block
expansion valve (A) from pipes.
