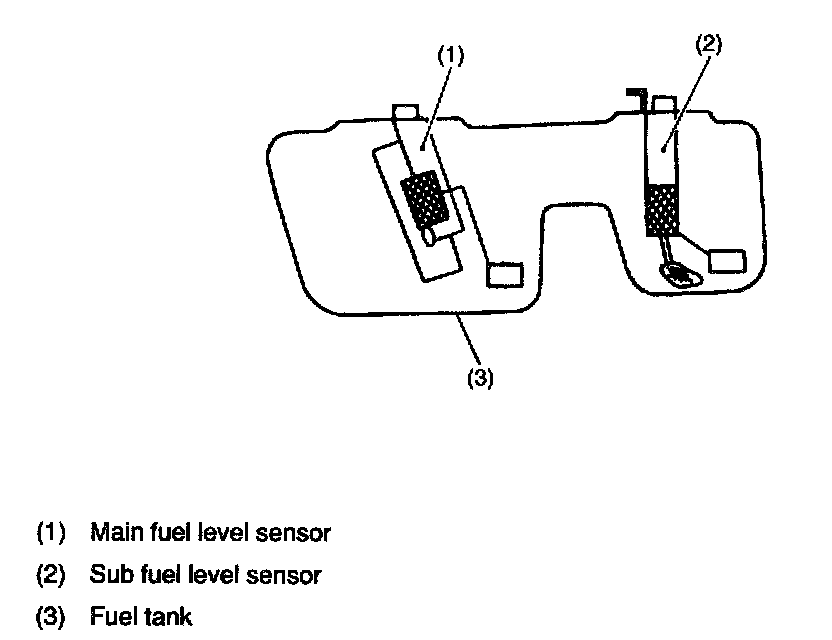

Fuel Sub Level Sensor






Fuel Sub Level Sensor / REMOVAL

WARNING: Place "NO FIRE" signs near the working area.
Be careful not to spill fuel on the floor.






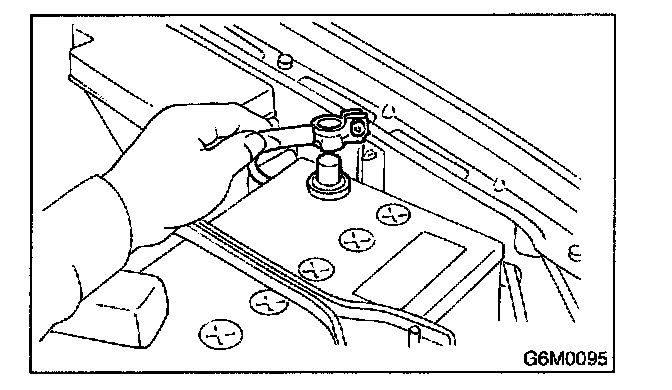

1. Disconnect battery ground cable.
2. Remove the floor box located just behind the rear seats.

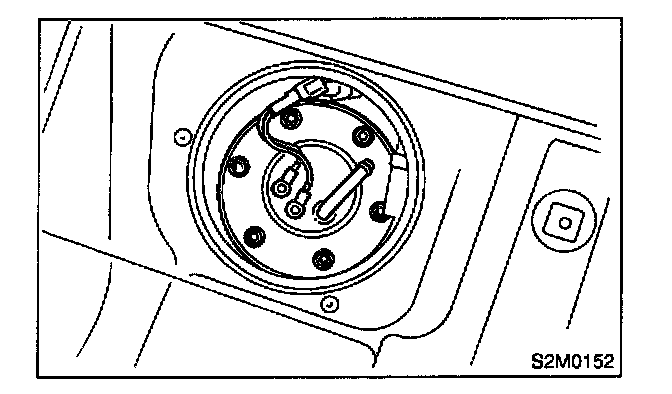

3. Remove service hole cover.

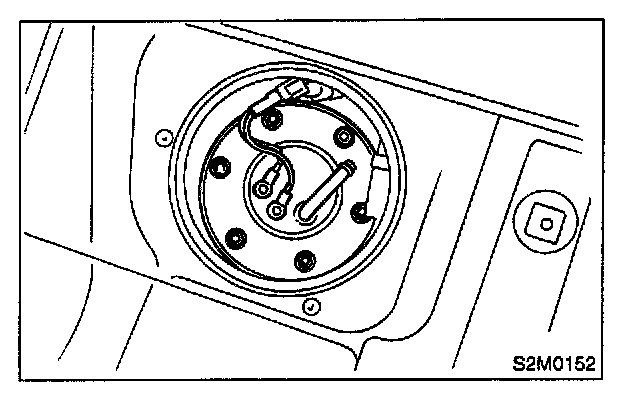

4. Disconnect connector from fuel sub meter.






5. Disconnect fuel jet pump hose.






6. Remove bolts which install fuel sub meter unit on fuel tank.

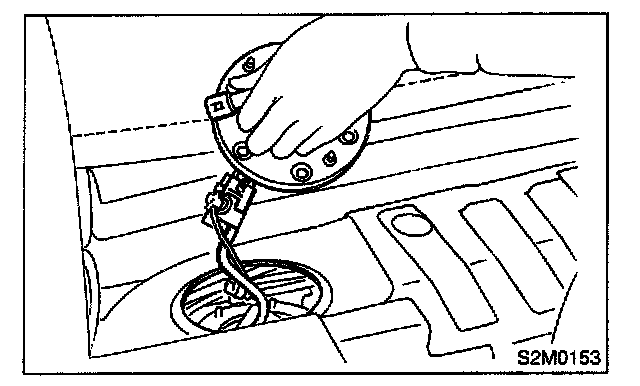

7. Remove fuel sub meter unit.






INSTALLATION
Install in the reverse order of removal.

Tightening Torque: 4.4 N.m (0.45 kgf-m, 3.3 ft-lb)
