Function Setting (ECM Customizing)

FUNCTION SETTING (ECM CUSTOMIZING)

Part 1:




Part 2:




1. On the <
> display screen, select the {Each System Check} and press the [YES] key.
2. On the <> display screen, select the {Integ. Unit mode} and press the [YES] key.
3. On the �Integ. Unit mode failure diag� display screen, select the {ECM customizing} and press the [YES] key.
4. Change the setting with UP/DOWN key and press the [YES] key.

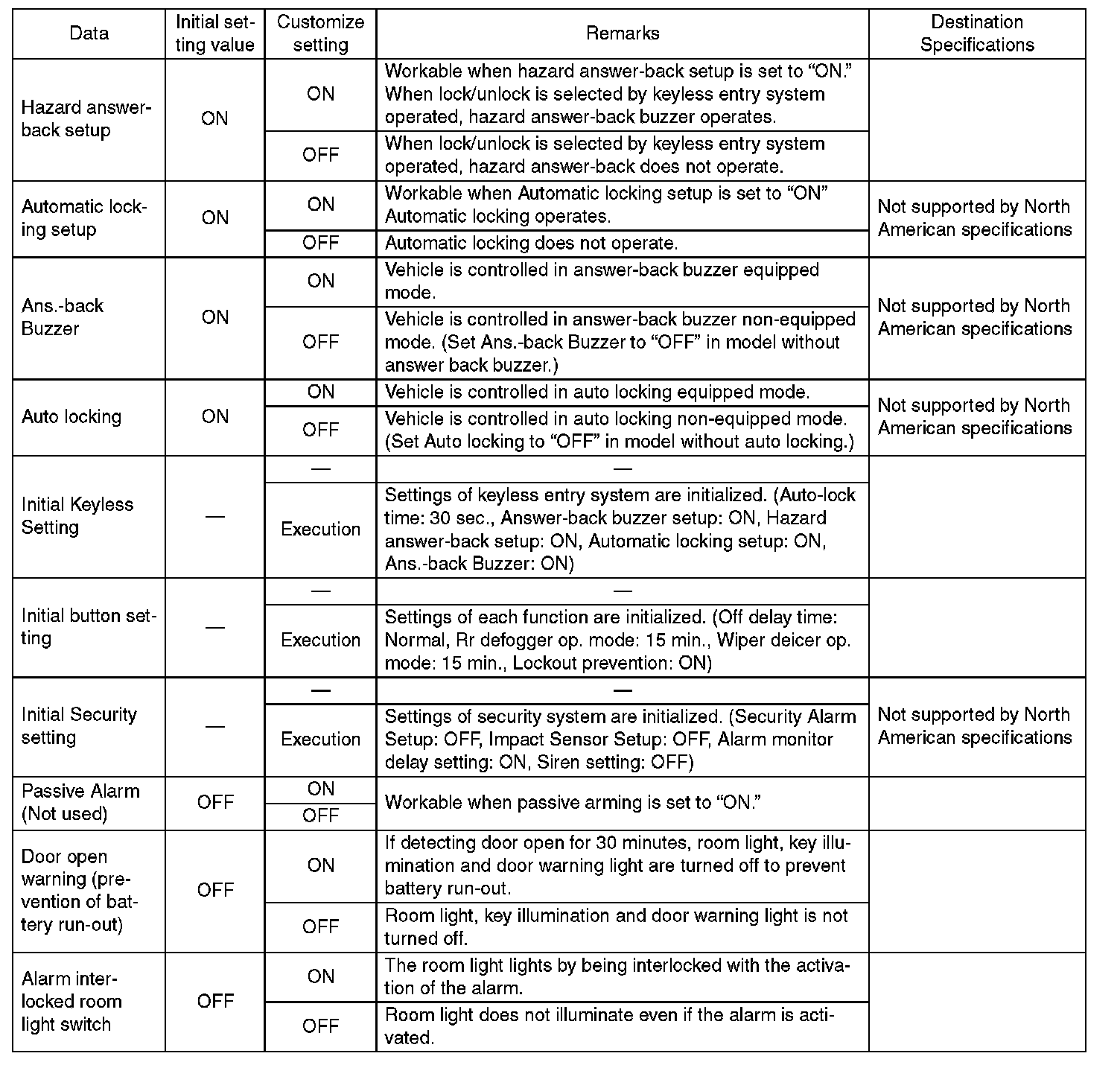

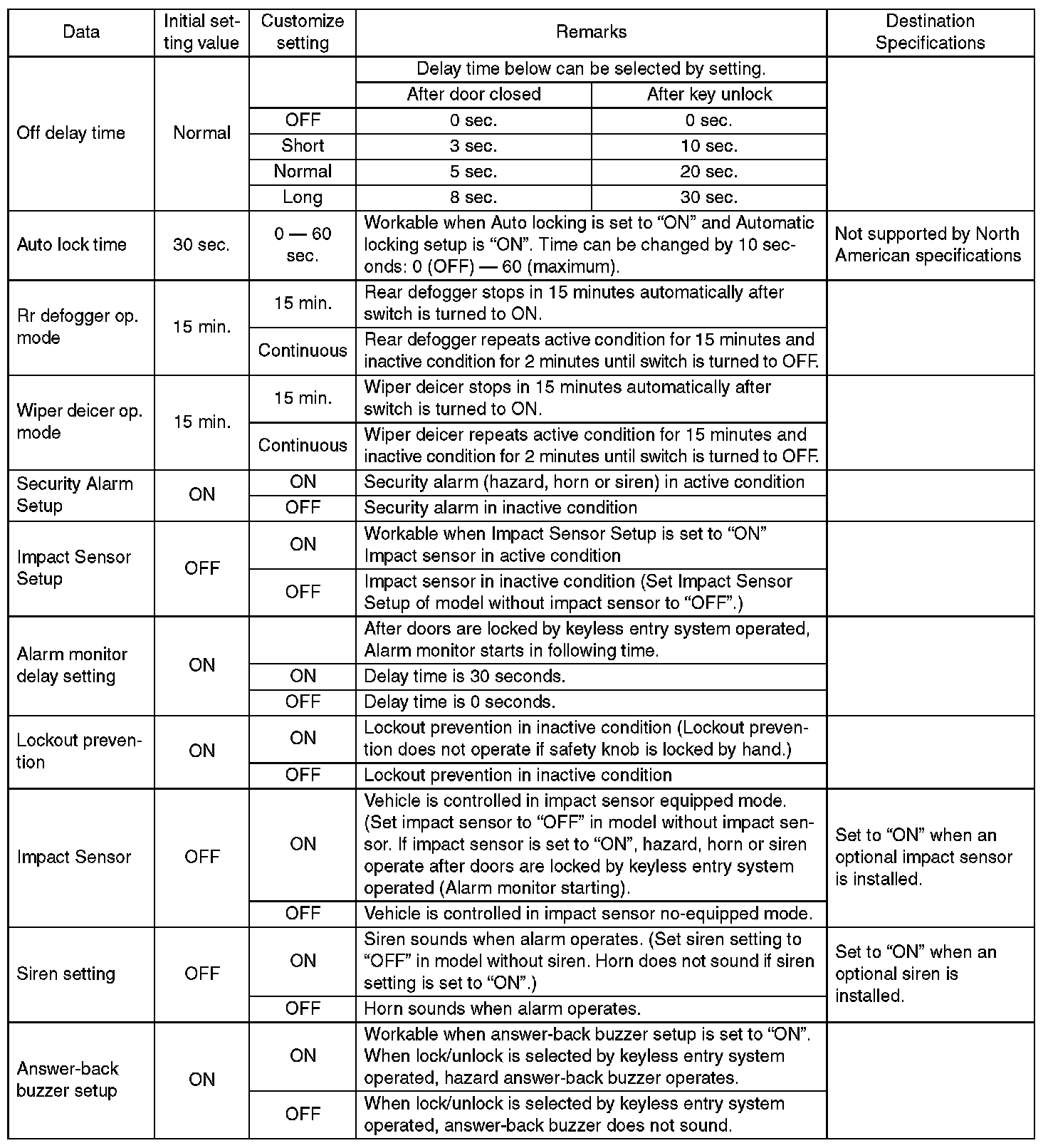

- List of function setting item (ECM customizing)

NOTE: Even if changes are made to items that are not equipped, the contents are not confirmed and do not operate.

5. After setting, make sure that vehicle equipment is same as the setting changed in the {Current Data Display & Save}.

CAUTION:
- It is possible to control the original functions of vehicle when settings above are corresponded to vehicle equipment.
- Do not change the settings except for setting above during operation of equipment setting.
- Be sure not to change Factory initial setting except installation of new body integrated unit.

NOTE: For details concerning operation procedure, refer to the "SUBARU SELECT MONITOR OPERATION".
