Confirmation of Current Setting

CONFIRMATION OF CURRENT SETTING

1. On the <
> display screen, select the {Each System Check} and press the [YES] key.
2. On the <> display screen, select the {Integ. Unit mode} and press the [YES] key.
3. On the <> display screen, select the {Current Data Display & Save} and press the [YES] key.
4. On the <> display screen, select the {12 Data Display} and press the [YES] key.
5. Using the scroll key, scroll the display screen up or down until the desired data is shown.

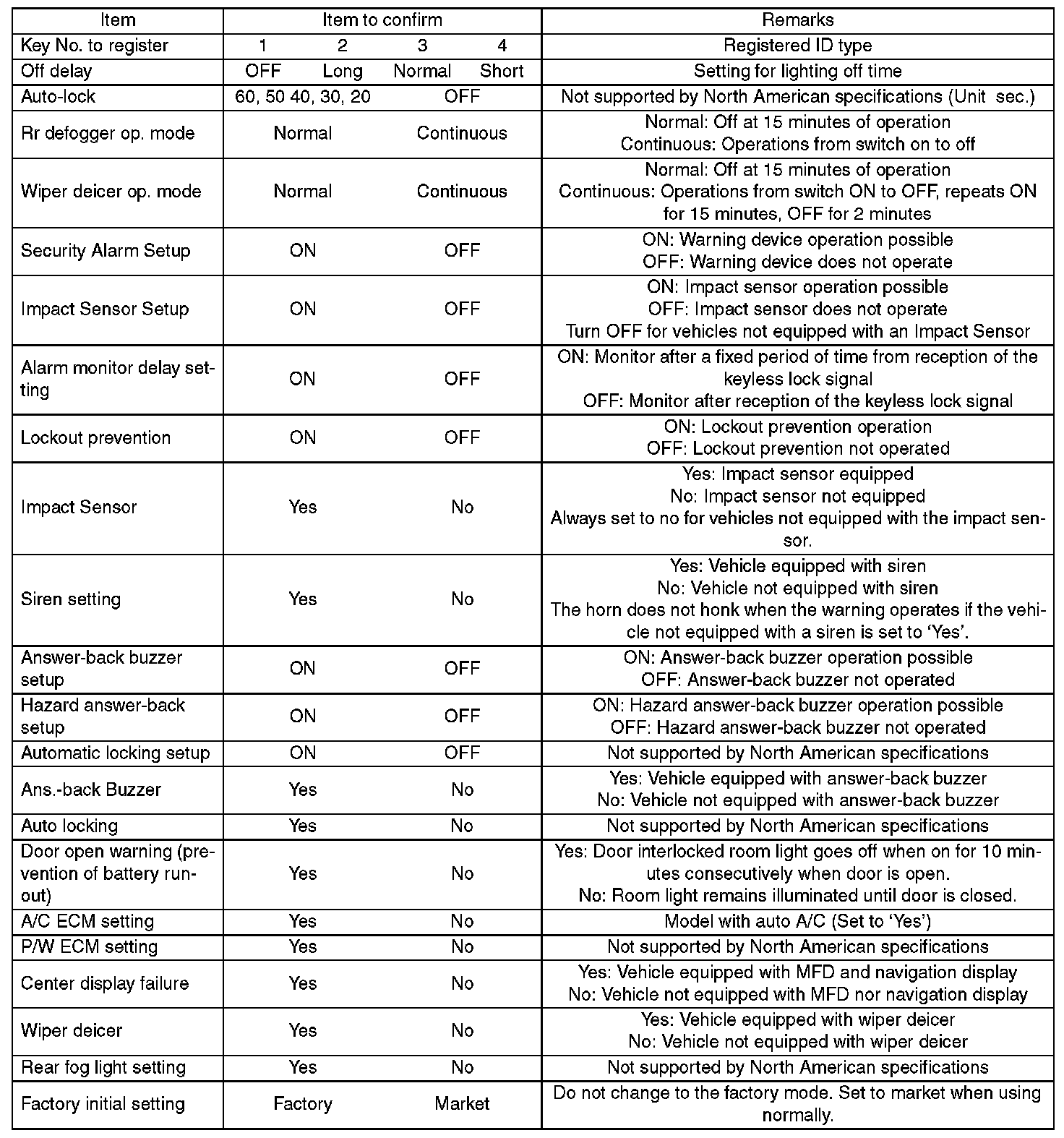

6. Display the following item and record the settings.




Required items for new registration (Except for system not equipped)
