Power Door Lock Switch: Service and Repair
Rear Gate Release SwitchREMOVAL 1.
Remove the rear gate trim.
2.
Remove the rear gate garnish.
3.
Disconnect the harness connector of the rear gate release switch.
4.

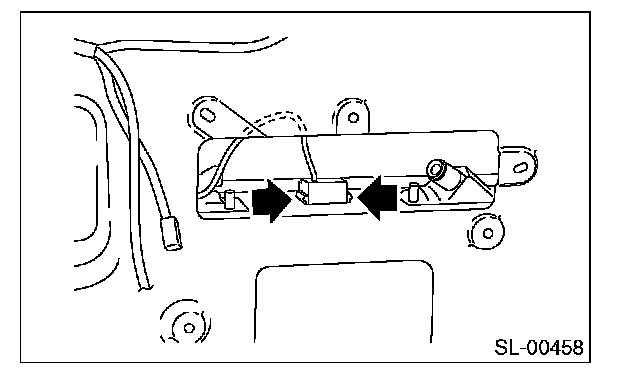

Hold the rear gate release switch hook, and remove the rear gate release switch.
INSTALLATIONInstall in the reverse order of removal.
NOTE: Make sure the rear gate latch assembly works after installation.
