Air Injection Pump: Service and Repair

Secondary Air Pump

REMOVAL

1. Remove the collector cover.

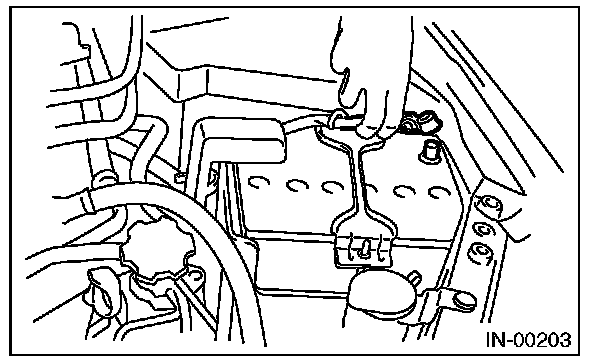

2. Disconnect the ground cable from battery.

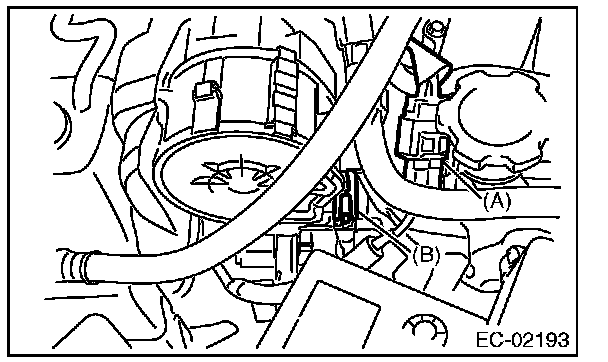

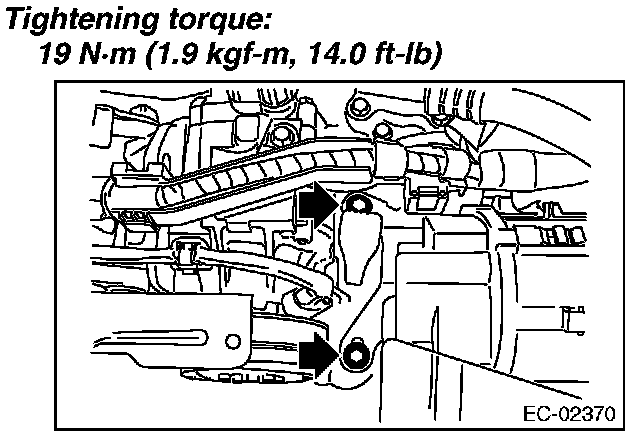

3. Remove the clip (A) which holds the harness on the harness stay and remove the bolts (B) which hold the secondary air pump on the vehicle.

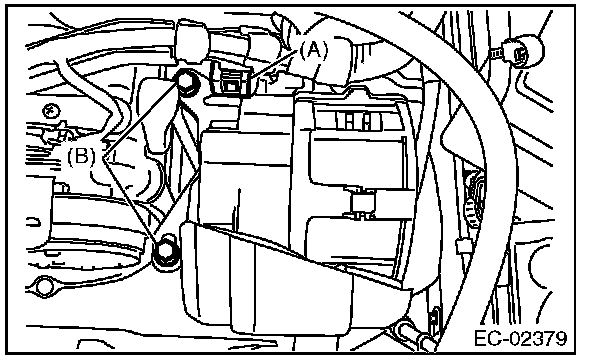

4. Disconnect the connector (A) and air duct (B) from secondary air pump and remove the secondary air pump.

INSTALLATION

Install in the reverse order of removal.
