Tightening Torques
Cylinder head
SpecificationsCamshaft bearing caps
SpecificationsCylinder block
SpecificationsConnecting rod caps
52 Nm (5.3 kgf-m, 38.4 ft lbs)
Crank Pulley
Tightening torque
47 Nm (4.8 kgf-m, 34.7 ft-lb)
Tightening angle
60 ± 5°
Oil pump
Exhaust manifold 40 Nm (4.1 kgf-m, 29.5 ft lbs)

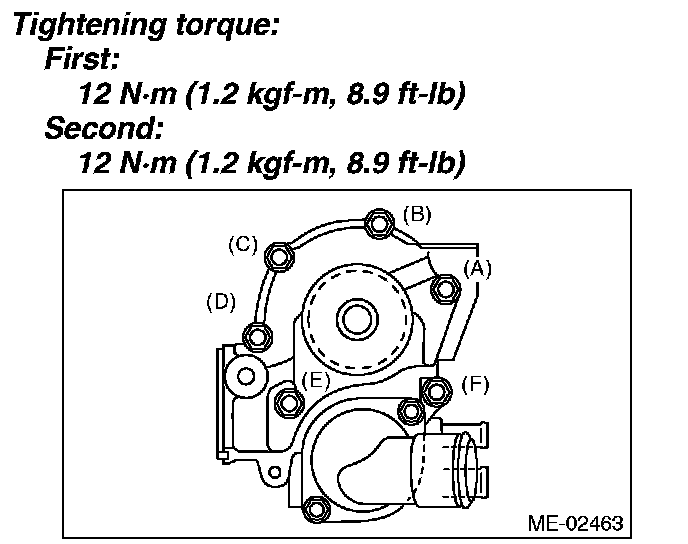

Water Pump
