Trunk Lamp: Service and Repair
Luggage Room LightREMOVAL 1.
Disconnect the ground cable from battery.
2.

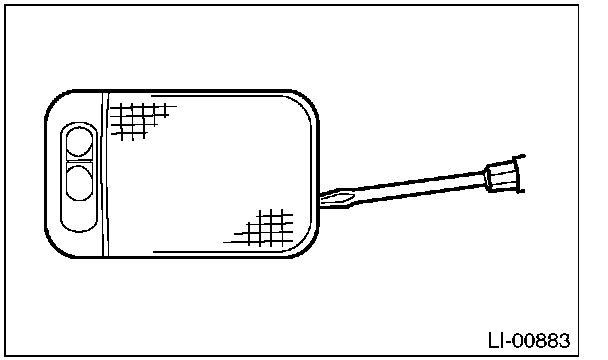

Insert a flat tip screwdriver into the edge of the luggage room light body to remove the luggage room light.
3.
Disconnect the harness connector.
4.
Insert a flat tip screwdriver to remove the luggage room light.
5.

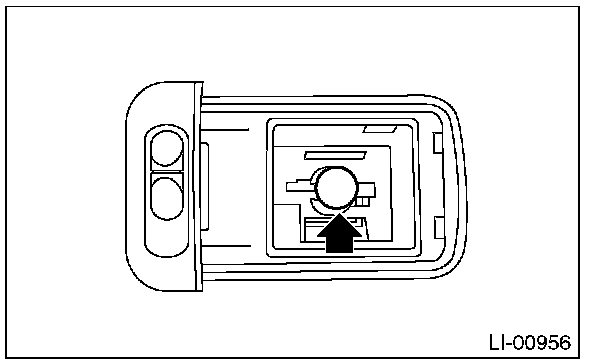

Remove the bulb.
INSTALLATIONInstall in the reverse order of removal.
