Fuel Temperature Sensor: Testing and Inspection

Fuel Temperature Sensor

INSPECTION

1. Check that the fuel temperature sensor has no deformation, cracks or other damages.

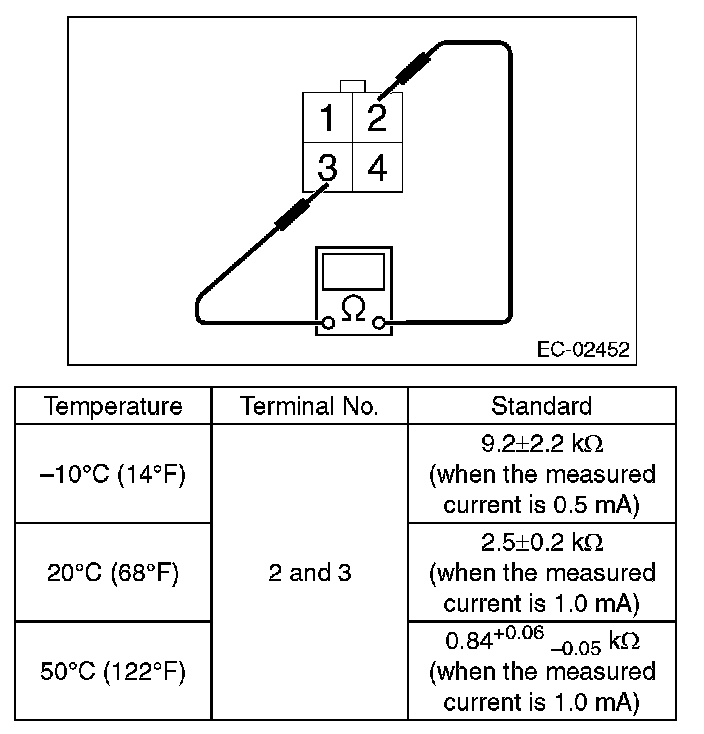

2. Measure the resistance between fuel temperature sensor terminals.

CAUTION: In order to prevent damaging the fuel temperature sensor, make sure to check the circuit tester specifications when measuring the resistance, and do not apply the voltage of 3 v or higher.
