System Specifications

Cylinder Block















































Cylinder Block Inspection
Warping limit (Mating surface with cylinder head) 0.025 mm (0.0098 in)
Grinding limit 0.1 mm (0.004 in)
Standard height 201.0 mm (7.91 in)

Crankshaft Main Bearing Cap Bolts
Please refer to Cylinder Block Removal and Replacement for bolt tightening specifications and procedures. Service and Repair

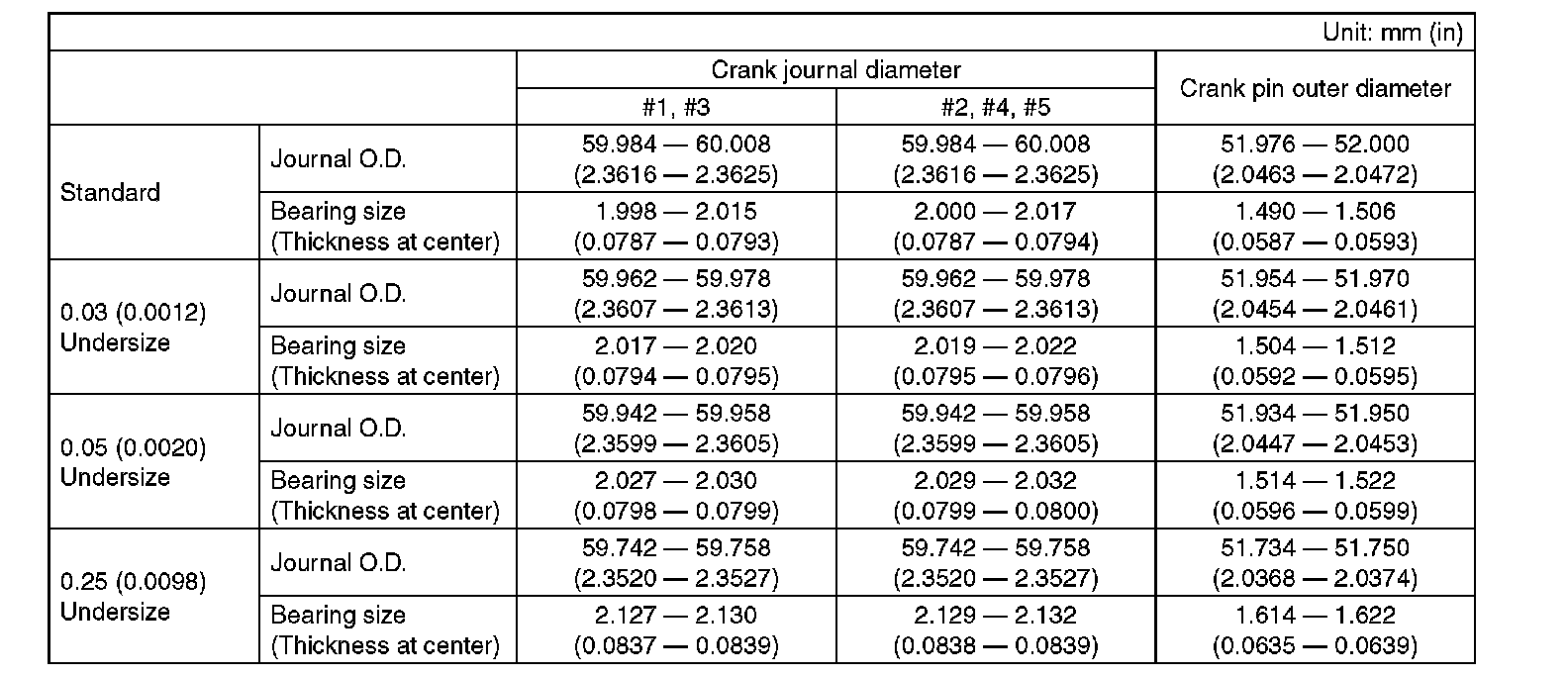

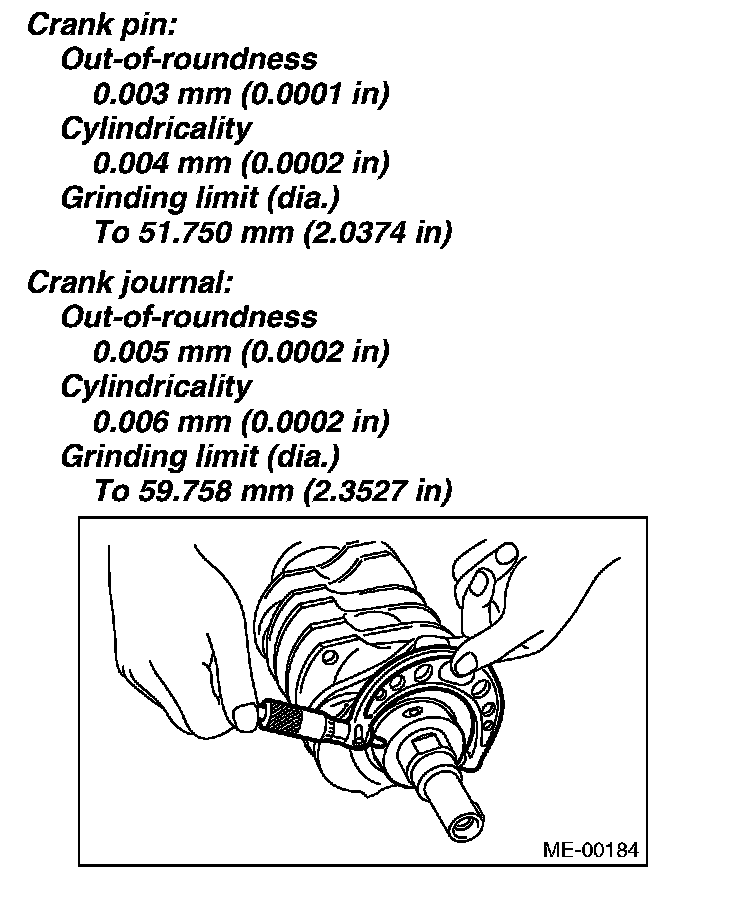

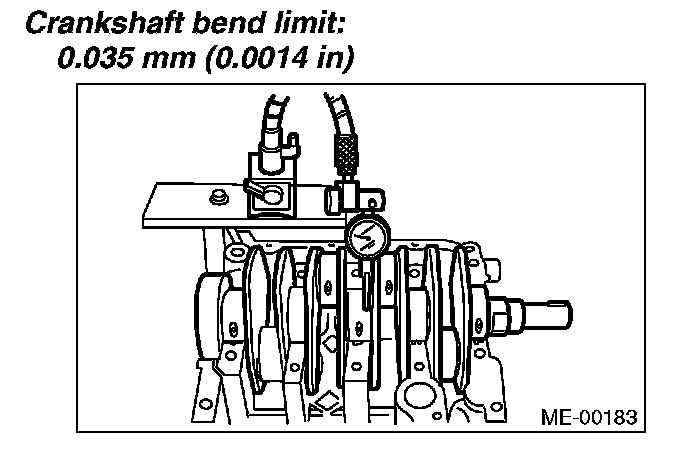

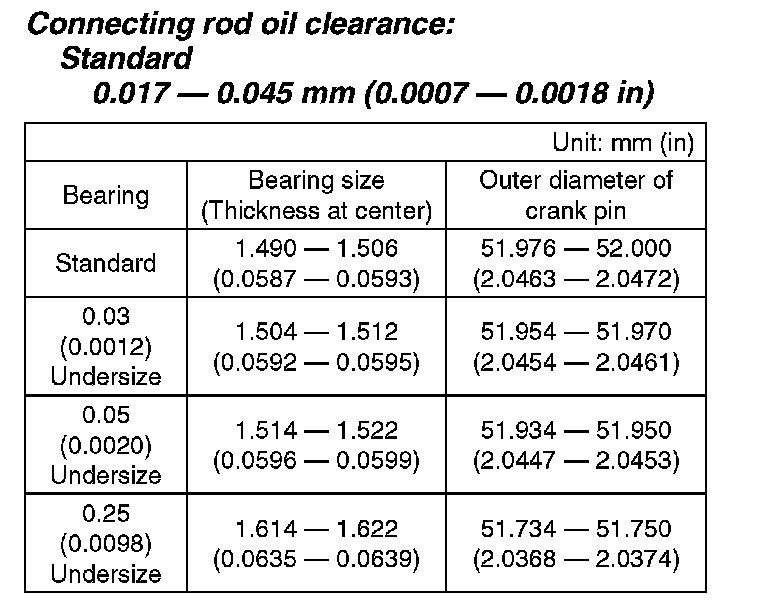

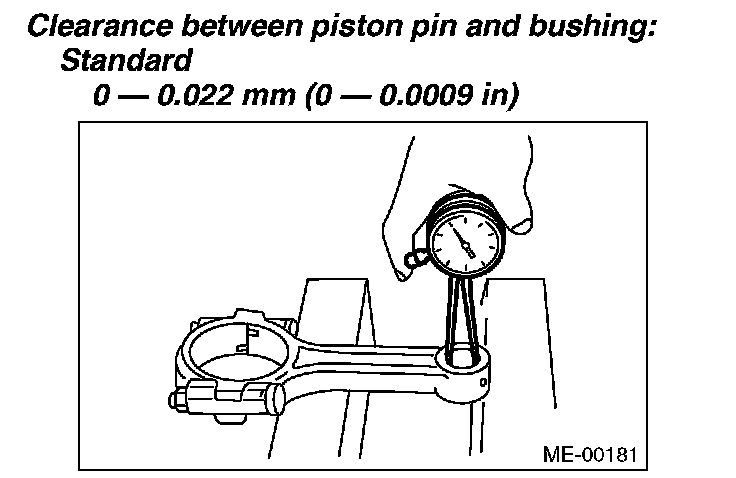

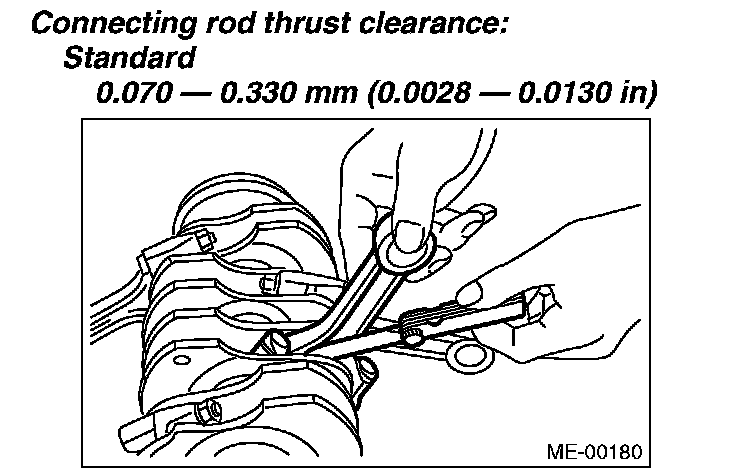

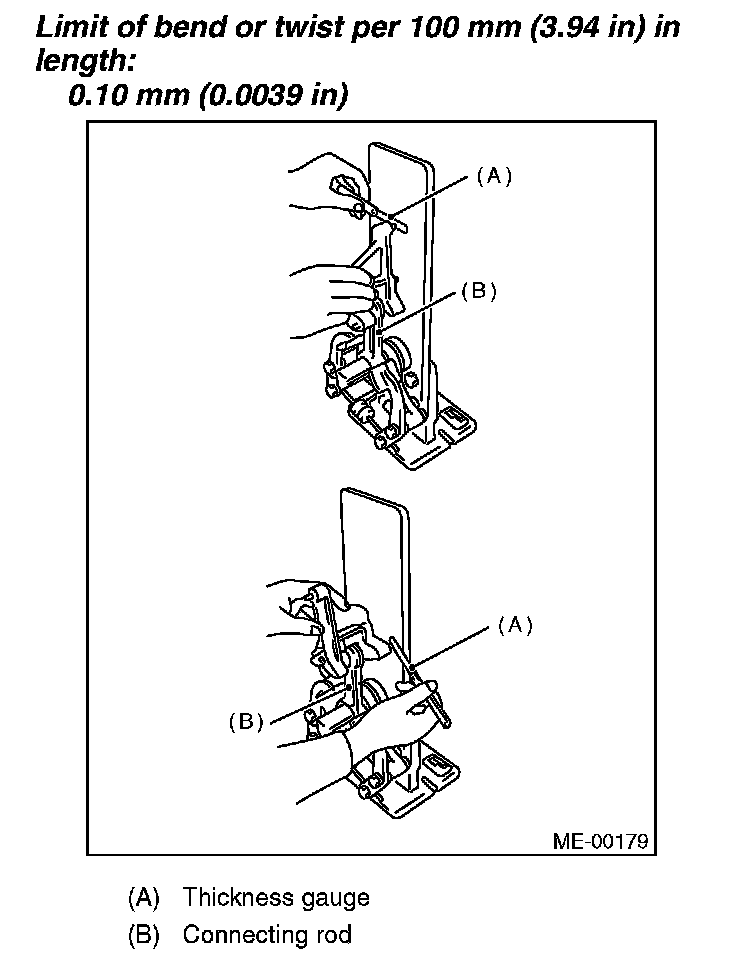

Connecting Rod Bolts 52 N.m (5.3 kgf-m, 38.4 ft-lb)

Crank Pulley Bolts
First pass 47 N.m (4.8 kgf-m, 34.7 ft-lb)
Final pass Tighten 60° ± 5°
