Variable Valve Timing Solenoid: Testing and Inspection
Oil Flow Control Solenoid ValveINSPECTION 1.
Check that the oil flow control solenoid valve has no deformation, cracks or other damages.
2.

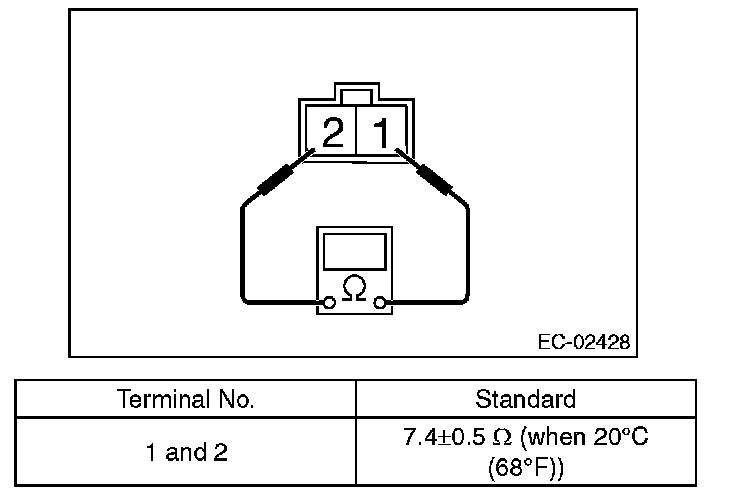

Measure the resistance between the oil flow control solenoid valve terminals.
