Intake Manifold

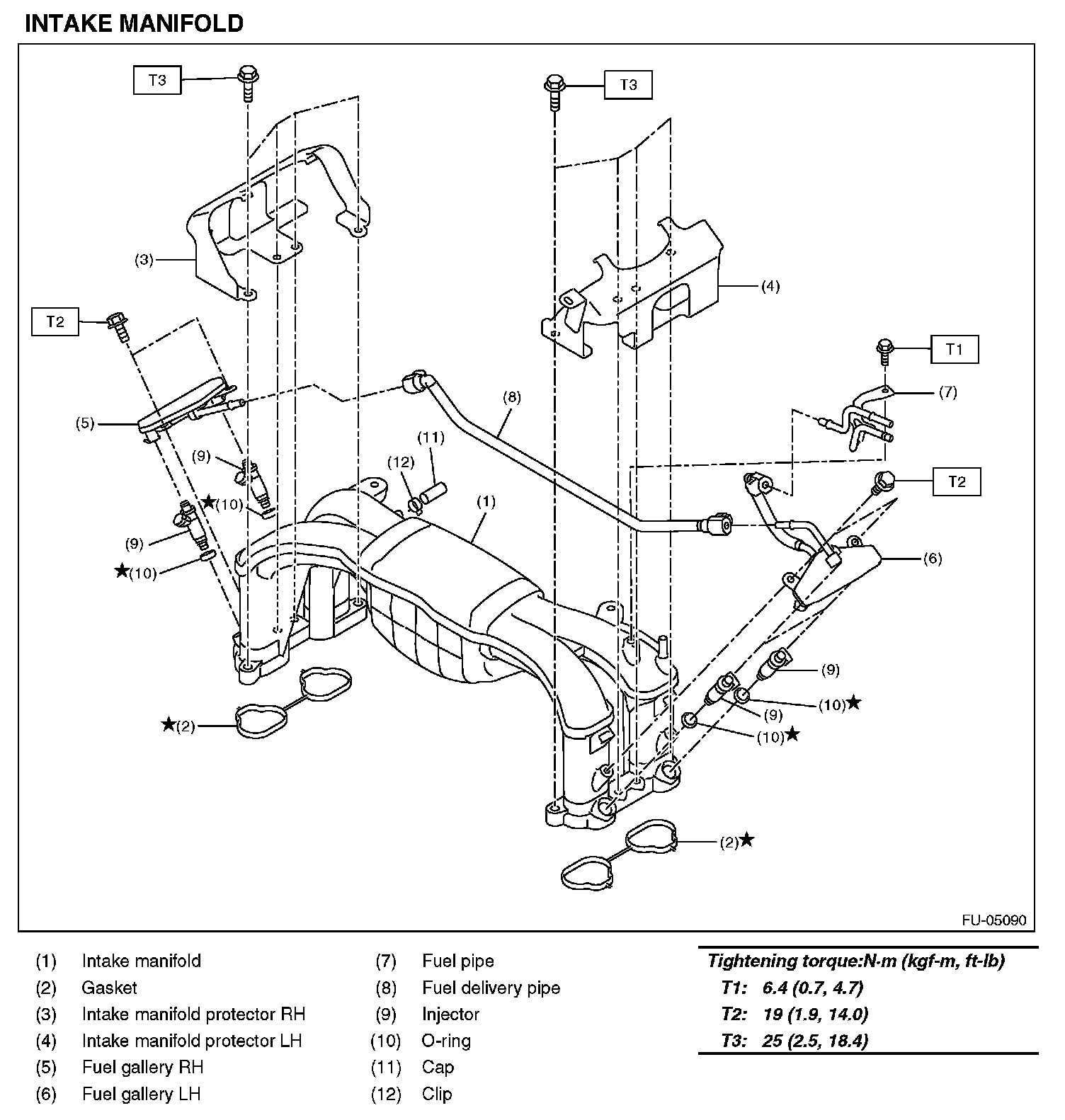

INTAKE MANIFOLD





Tightening torque: T1: 6.4 N.m (0.7 kgf.m, 4.7 ft.lb)
Tightening torque: T2: 19 N.m (0.9 kgf.m, 14.0 ft.lb)
Tightening torque: T3: 25 N.m (2.5 kgf.m, 18.4 ft.lb)
