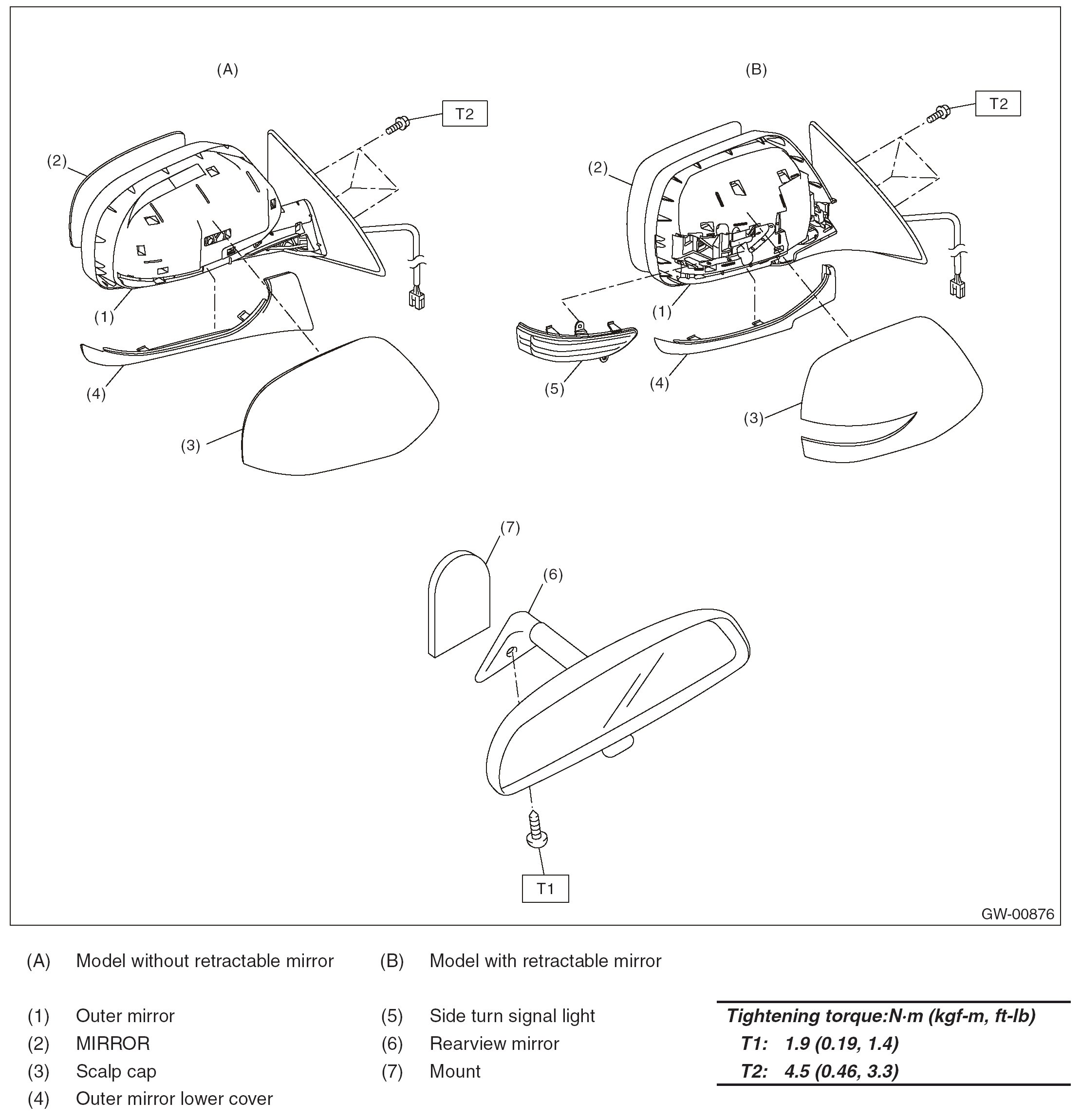

Outer Mirror Assembly
OUTER MIRROR ASSEMBLYMirror:
REMOVAL 1.
Remove the front door trim.
2.
Remove the outer mirror assembly.

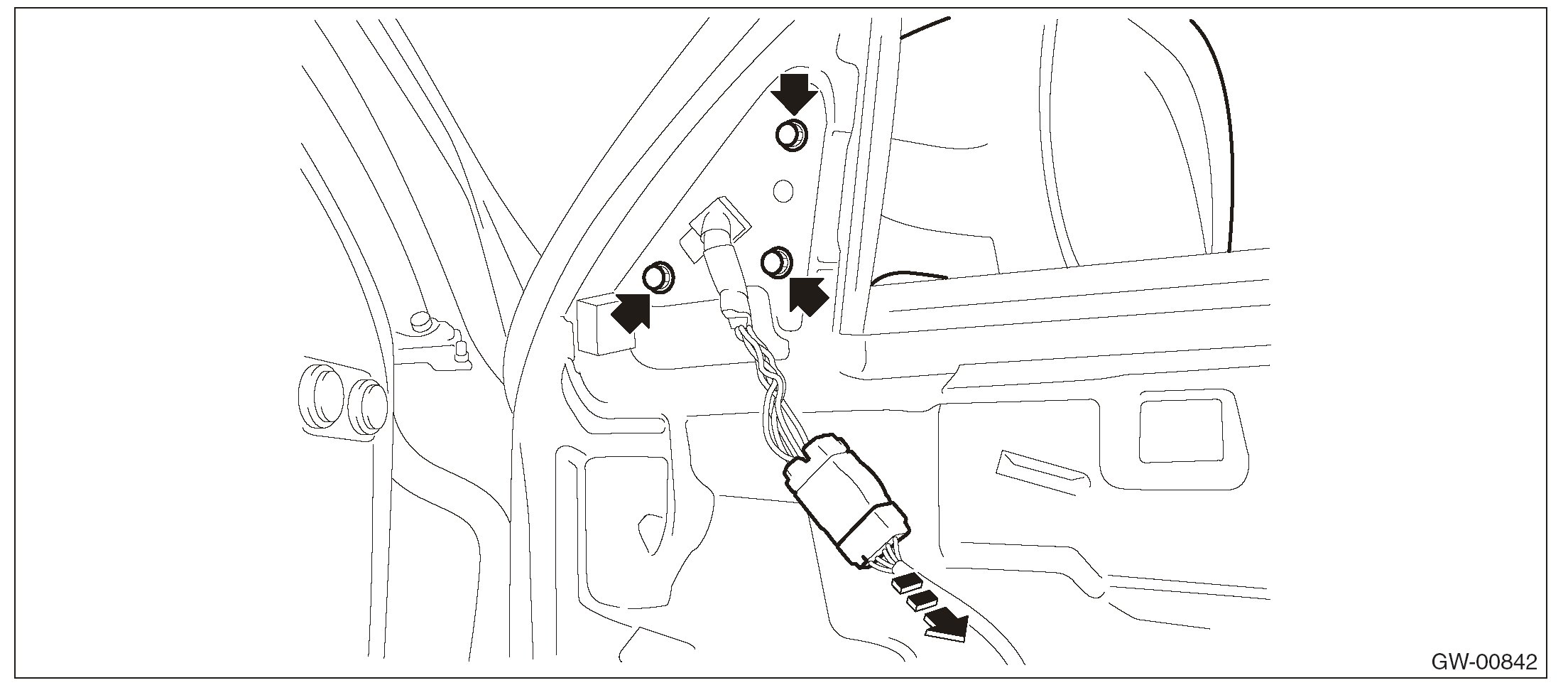

1.
Disconnect the connector.
2.
Remove the bolts, and then remove the outer mirror assembly.
INSTALLATIONInstall each part in the reverse order of removal.
Tightening torque: Outer mirror assembly: 4.5 N.m (0.46 kgf-m, 3.3 ft-lb)
