Basic Diagnostic Procedure

Basic Diagnostic Procedure

PROCEDURE

CAUTION:
- When performing diagnosis, observe the legal speed limit on the road.
- The cancel code will also appear when cruise control is cancelled by the driver s operation. Do not confuse them.
- Be sure to get an assistant to support the diagnosis while driving, and have him/her operate the select monitor.

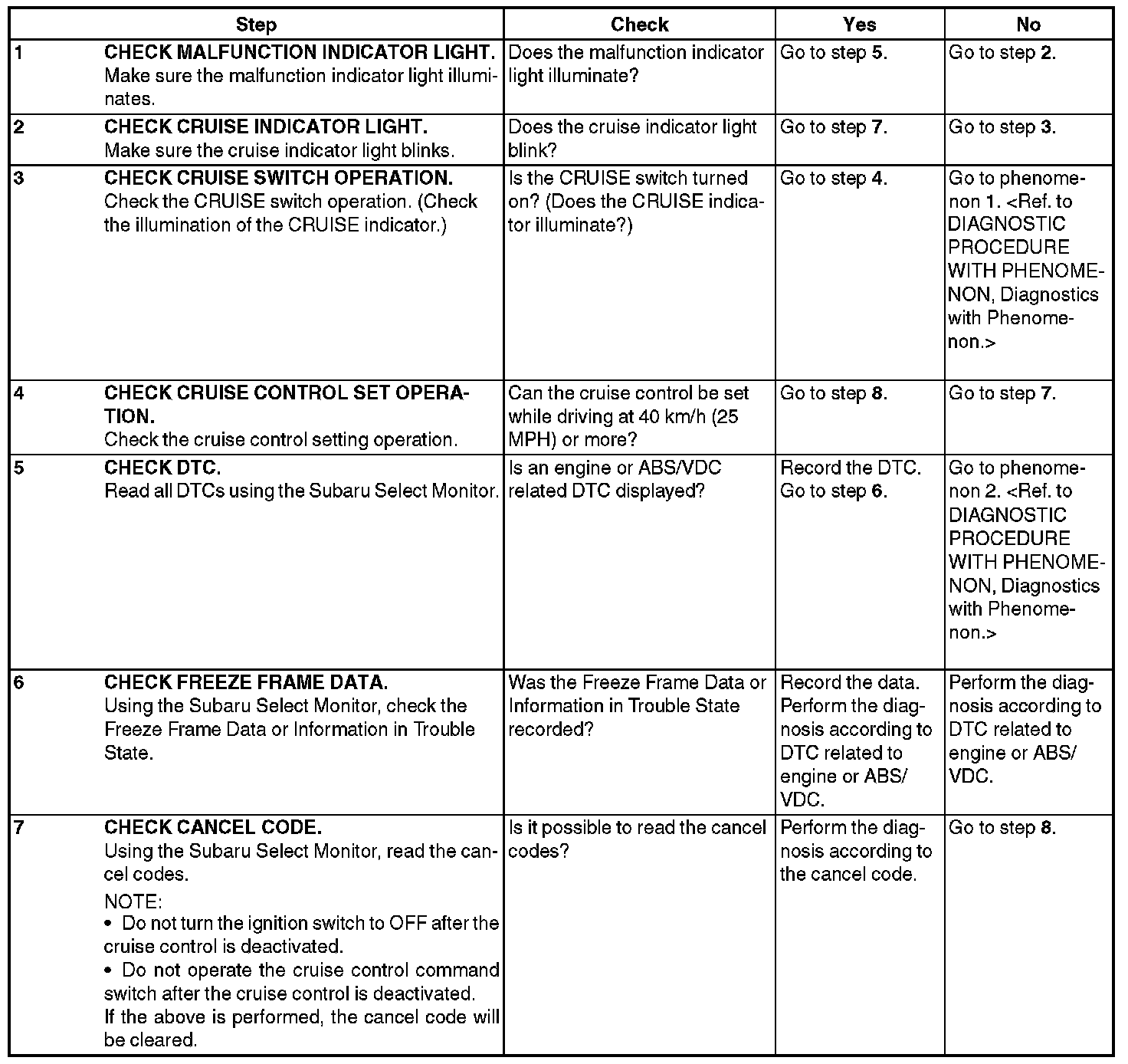

Step 1-7:

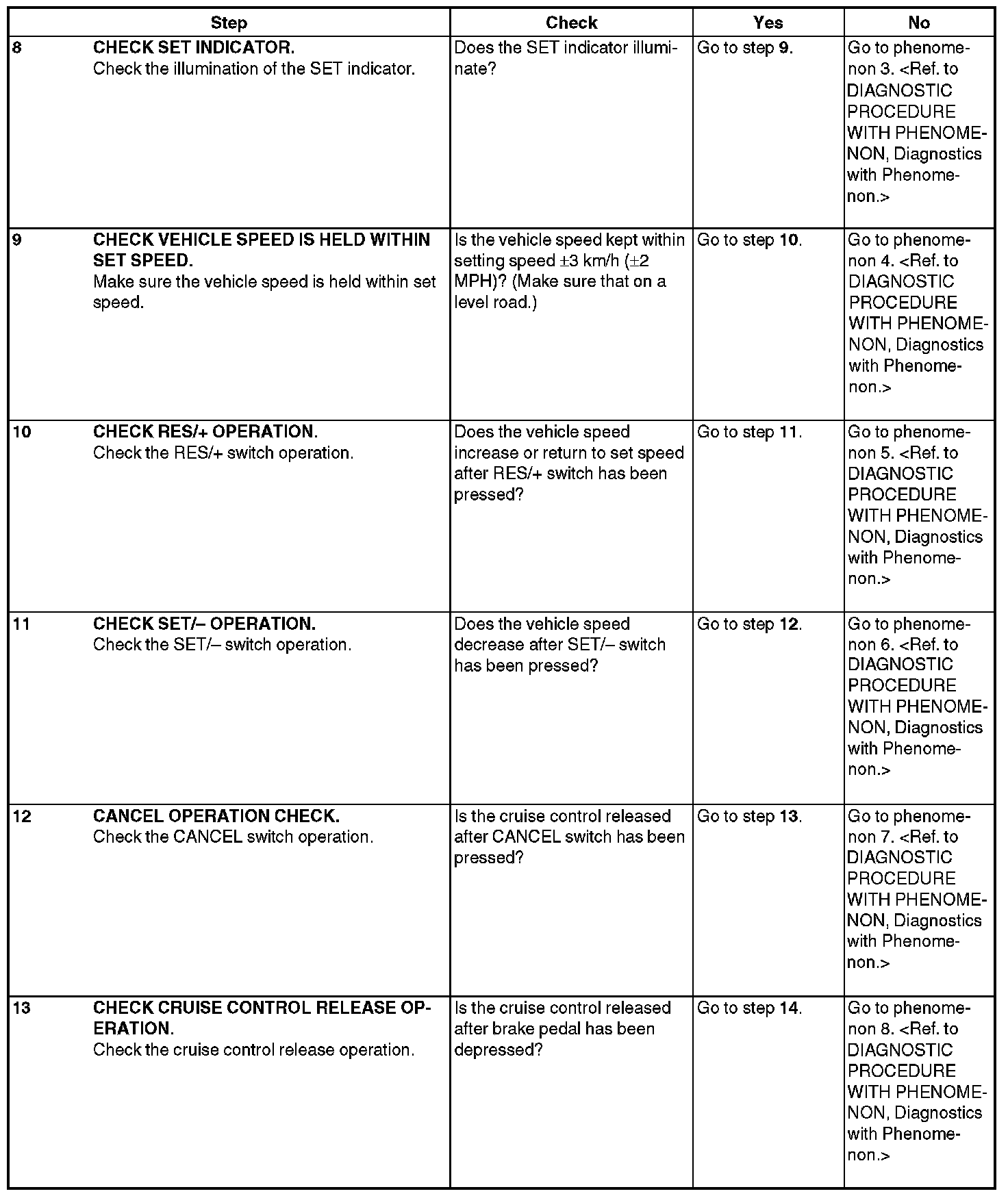

Step 8-13:

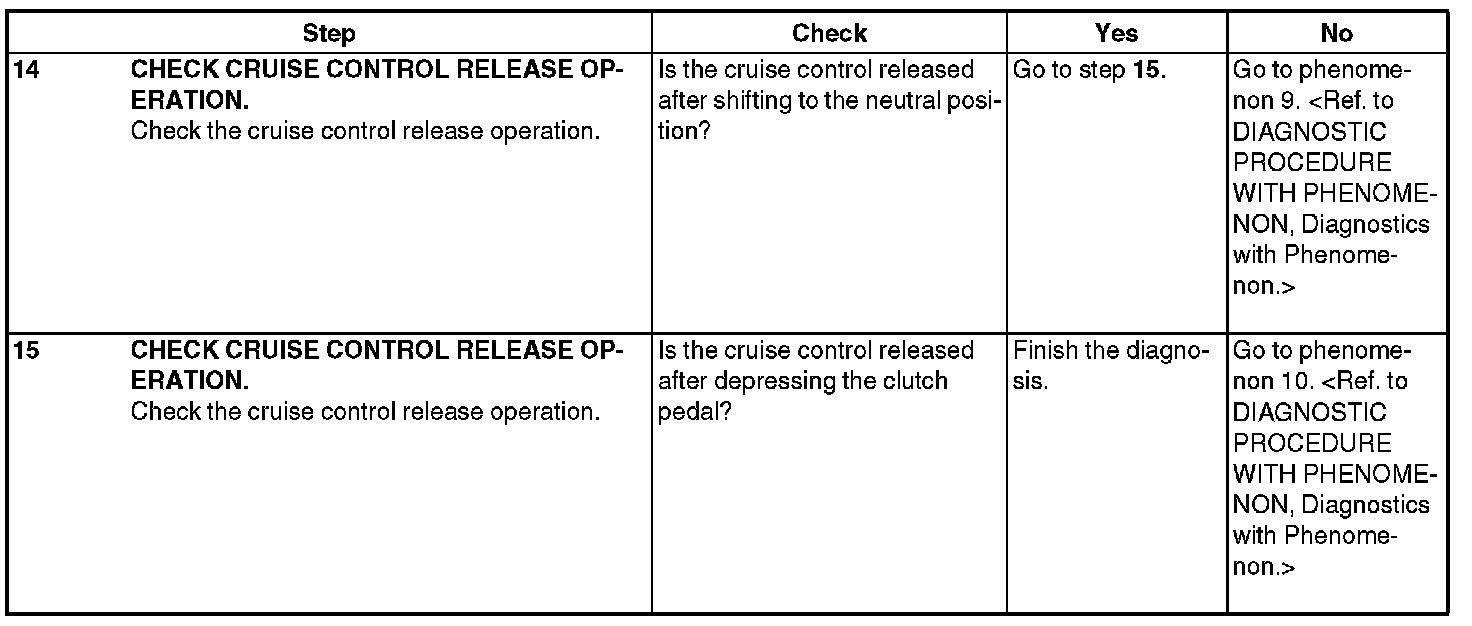

Step 14-15:
