Oil Level Sensor: Testing and Inspection

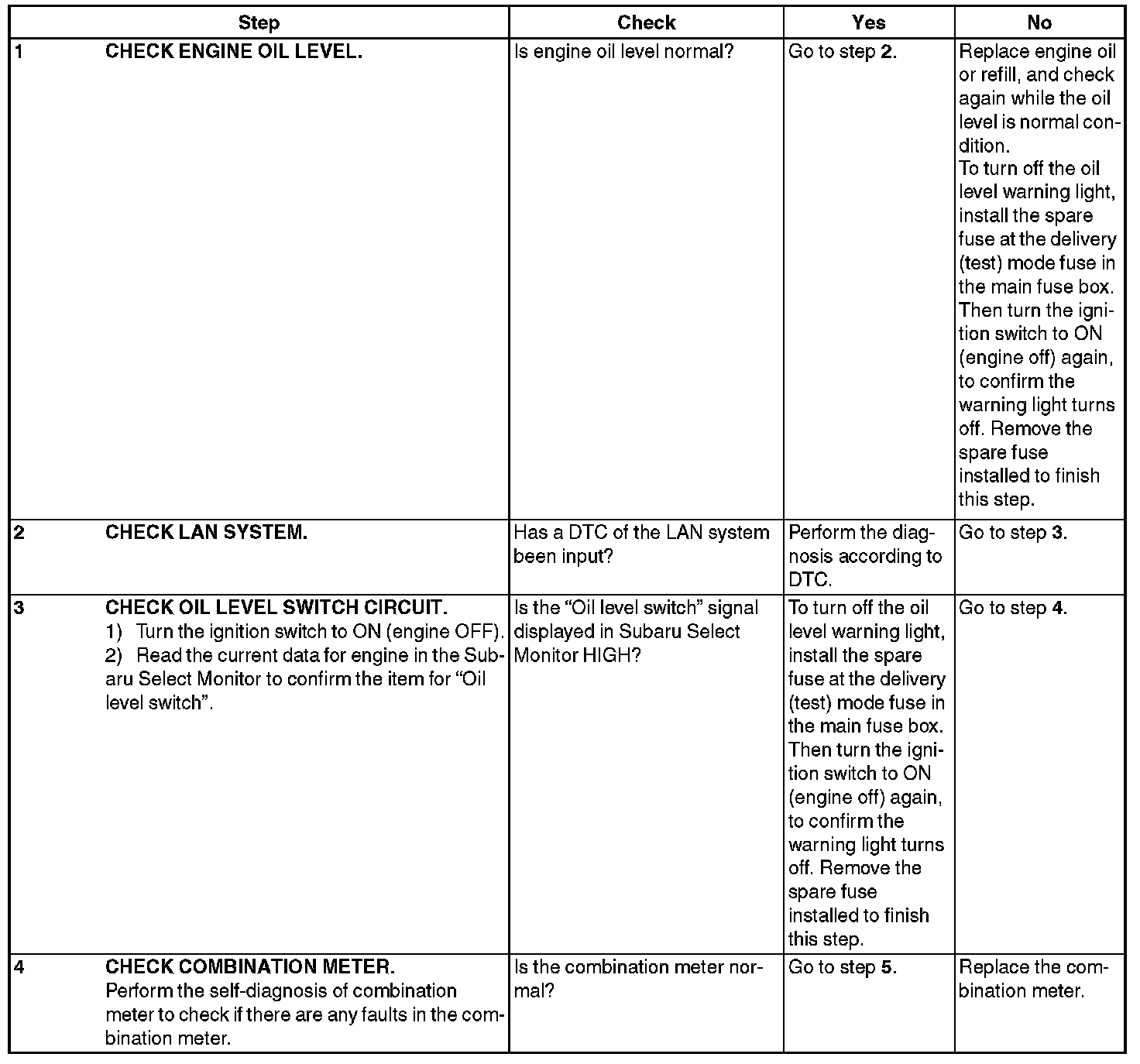

INSPECTIONINSPECTION WHILE OIL LEVEL SWITCH WARNING LIGHT IS ONStep 1-4:

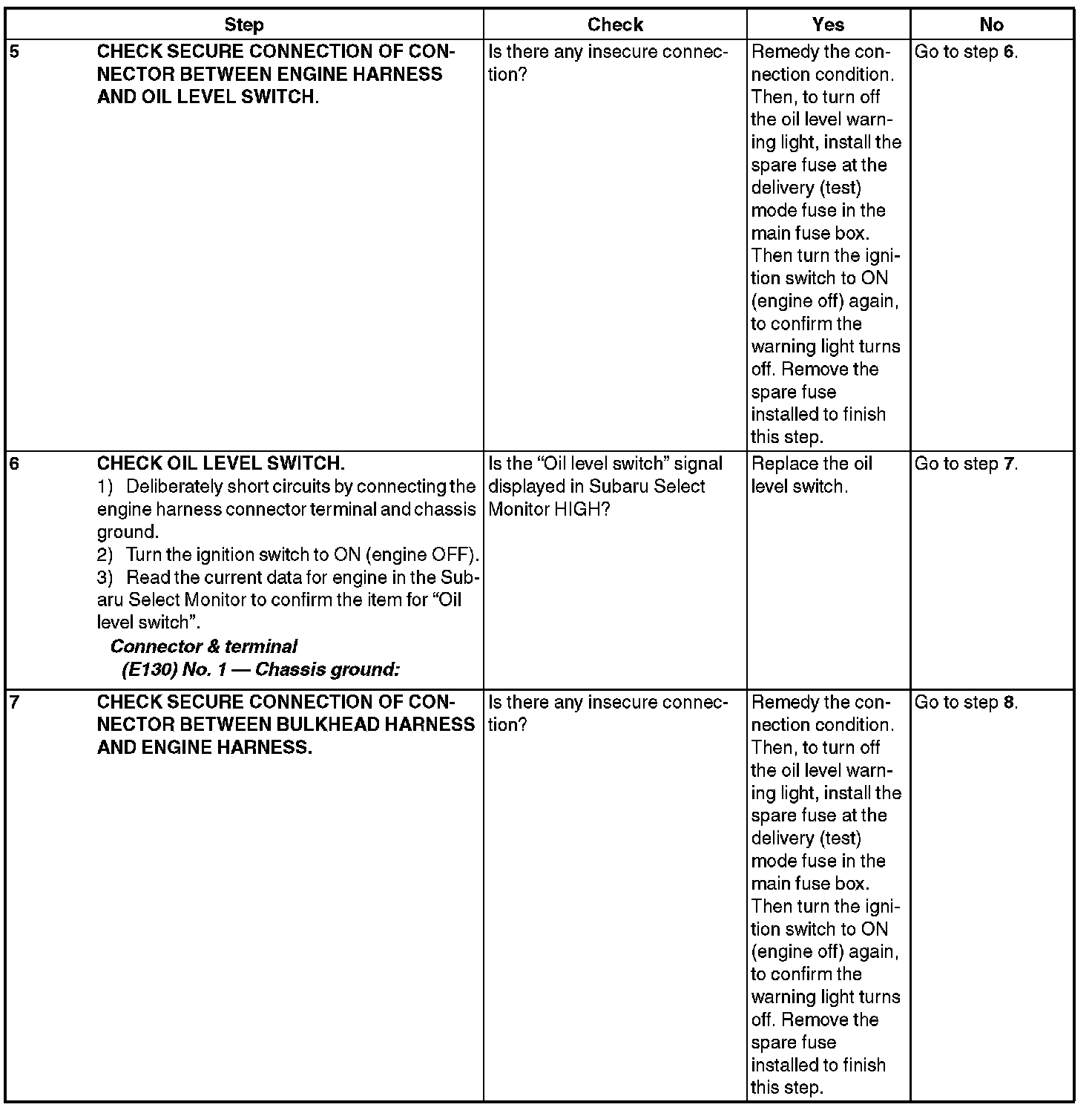

Step 5-7:

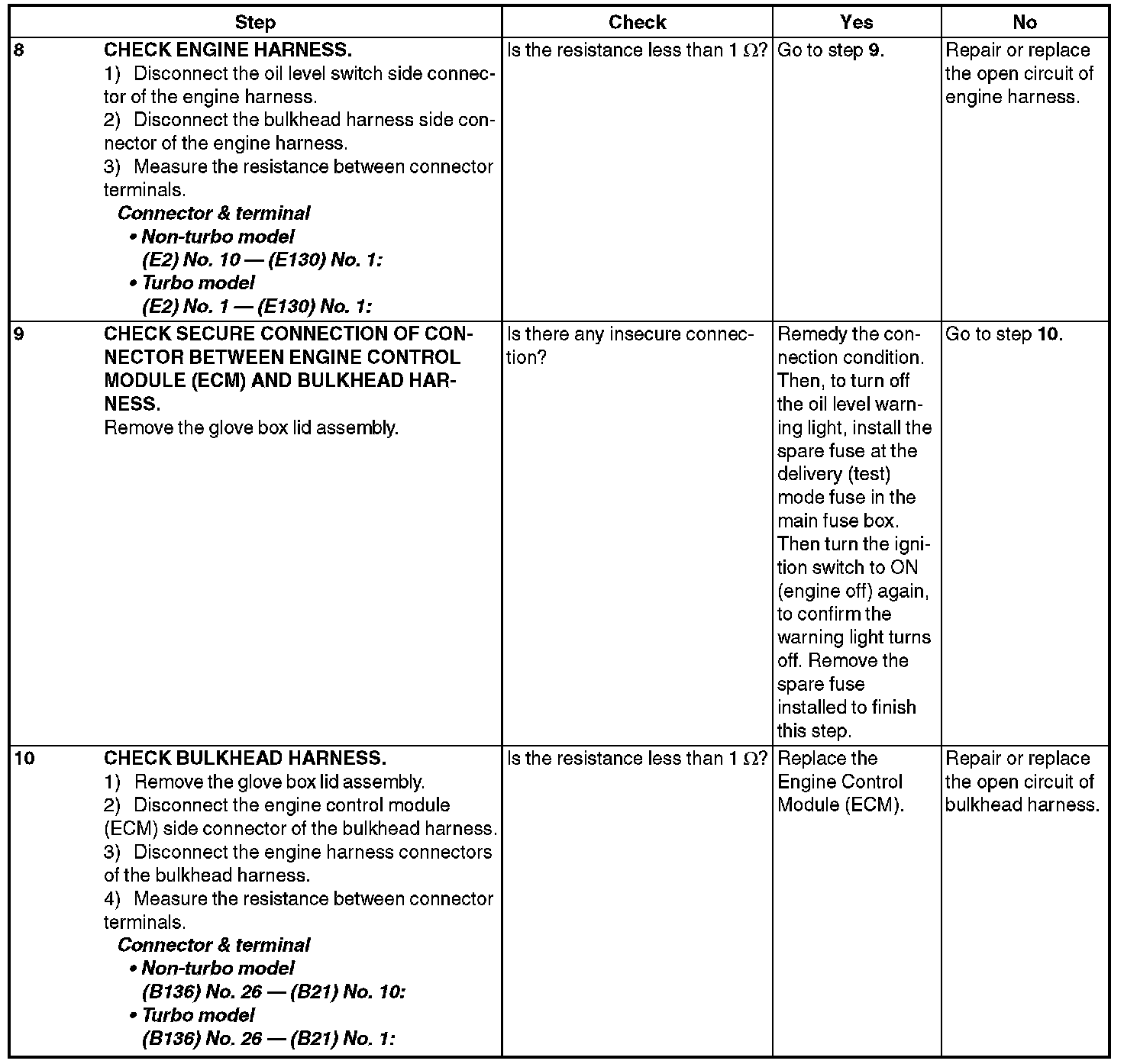

Step 8-10:
OTHER INSPECTIONS 1)
Check that the oil level switch does not have deformation, cracks, or damage.
2)
Check the oil level switch installation part for oil leakage and oil seepage.
