Engine Lubrication: Testing and Inspection

Engine Lubrication System Trouble in General

INSPECTION
Before performing diagnostics, make sure that the engine oil level is correct and no oil leakage exists.

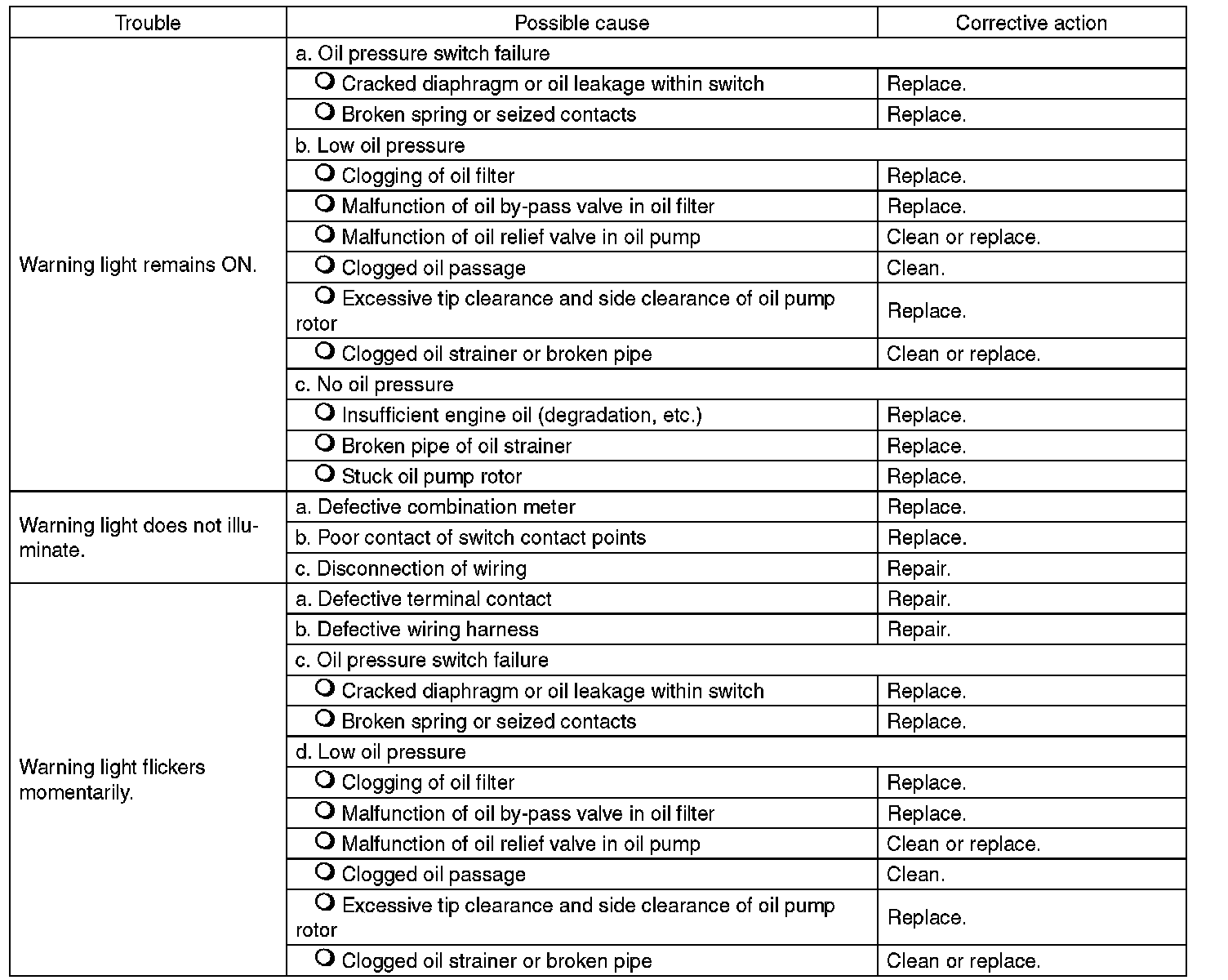

Engine Lubrication System Trouble in General:
